RY12L-JR (1971)

Toyota Toyoace

Production Sep 1971 - Feb 1979
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7109-7902)

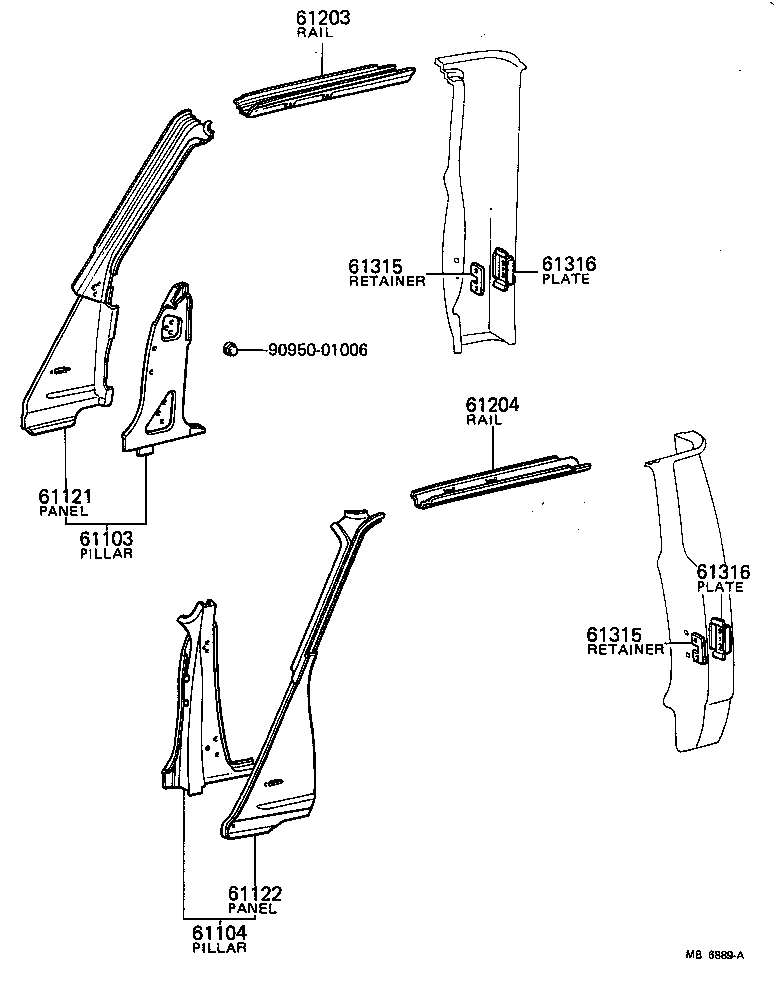

Click highlighted areas on diagram

diagram 61103 61104 61121 61122 61203 61204 61315 61315 61316 61316 9095001006
Part # Description Qty Price
61103 - PILLAR SUB-ASSY, FRONT BODY, RH
61110-95019

JY16,RY1#..LHD

 1
61110-95022

RY1#..LHD

 1
61104 - PILLAR SUB-ASSY, FRONT BODY, LH
61120-95019

JY16,RY1#..LHD

 1
61120-95019

RY1#..LHD

 1
61121 - PANEL, COWL SIDE, OUTER RH
61111-95010

JY16,RY1#

 1
61122 - PANEL, COWL SIDE, OUTER LH
61112-95010

JY16,RY1#

 1
61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH
61211-95012

JY16,RY1#

 1
61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH
61202-95011

JY16,RY1#

 1
61315 - RETAINER, DOOR LOCK STRIKER PLATE
61553-95012

JY16,RY1#

 2
61315 - RETAINER, DOOR LOCK STRIKER PLATE
61553-95012

JY16,RY1#

 2
61316 - PLATE, DOOR LOCK STRIKER SUPPORT
61325-95010

JY16,RY1#

 2
61316 - PLATE, DOOR LOCK STRIKER SUPPORT
61325-95010

JY16,RY1#

 2
Common parts
90950-01006
