RY12L-JR (1971)

Toyota Toyoace

Production Sep 1971 - Feb 1979
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7109-7902)

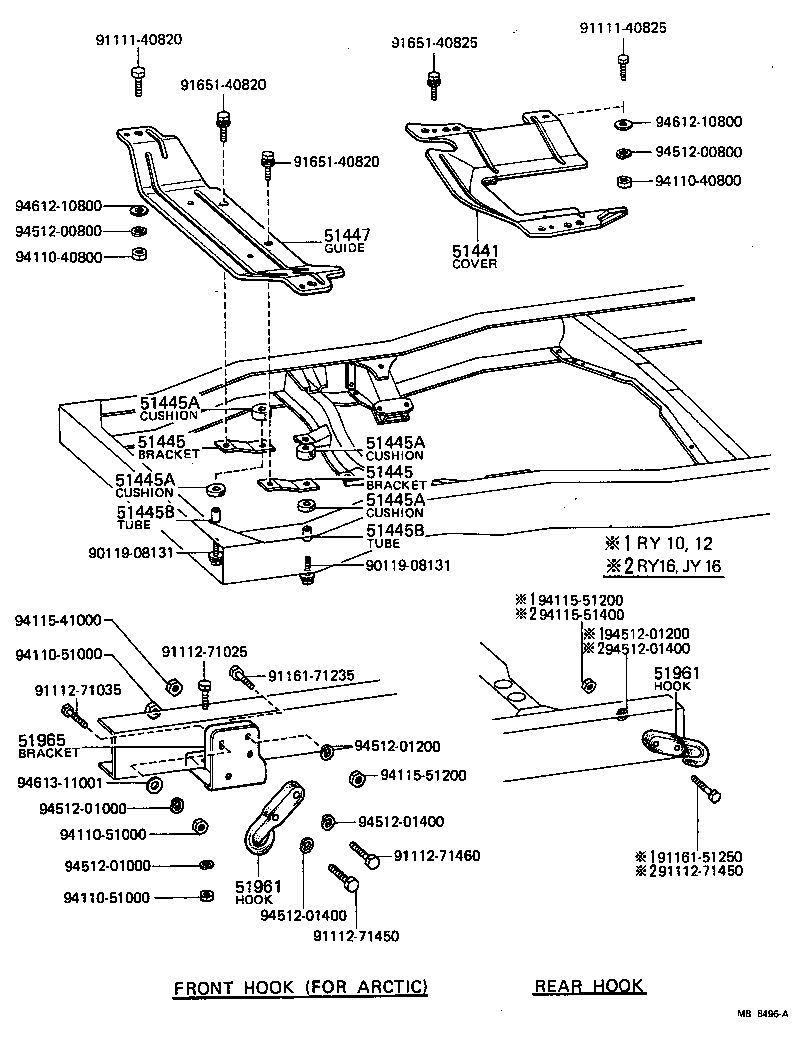

Click highlighted areas on diagram

diagram 51441 51445 51445 51445A 51445A 51445A 51445A 51445B 51445B 51447 51961 51961 51965 9011908131 9011908131 9111140820 9111140825 9111271025 9111271035 9111271450 9111271450 9111271460 9116151250 9116171235 9165140820 9165140820 9165140825 9411040800 9411040800 9411051000 9411051000 9411051000 9411541000 9411551200 9411551200 9411551400 9451200800 9451200800 9451201000 9451201000 9451201200 9451201200 9451201400 9451201400 9451201400 9461210800 9461210800 9461311001
Part # Description Qty Price
51441 - COVER, ENGINE UNDER, NO.1
51441-25080

RY10,12

 1
51445 - BRACKET, ENGINE UNDER COVER
51445-25020

JY16,RY1#

 2
51445 - BRACKET, ENGINE UNDER COVER
51445-25020

JY16,RY1#

 2
51445A - CUSHION(FOR ENGINE UNDER COVER BRACKET)
90540-10022

JY16,RY1#

OD=22,T=6

 2
90540-10011

JY16,RY1#

OD=28,T=14

 2
51445A - CUSHION(FOR ENGINE UNDER COVER BRACKET)
90540-10022

JY16,RY1#

OD=22,T=6

 2
90540-10011

JY16,RY1#

OD=28,T=14

 2
51445A - CUSHION(FOR ENGINE UNDER COVER BRACKET)
90540-10022

JY16,RY1#

OD=22,T=6

 2
90540-10011

JY16,RY1#

OD=28,T=14

 2
51445A - CUSHION(FOR ENGINE UNDER COVER BRACKET)
90540-10022

JY16,RY1#

OD=22,T=6

 2
90540-10011

JY16,RY1#

OD=28,T=14

 2
51445B - TUBE(FOR ENGINE UNDER COVER BRACKET)
90440-11042

JY16,RY1#

L=22

 2
90440-11001

JY16,RY1#

L=23.5

 2
51445B - TUBE(FOR ENGINE UNDER COVER BRACKET)
90440-11042

JY16,RY1#

L=22

 2
90440-11001

JY16,RY1#

L=23.5

 2
51447 - GUIDE, ENGINE UNDER COVER AIR
51447-25010

RY10,12

 1
51961 - HOOK, NO.1
51961-60010

RY10,12

 1
51961 - HOOK, NO.1
51961-60010

RY10,12

 1
Common parts
90119-08131
91111-40820
91111-40825
91112-71025
91112-71035
91112-71450
91112-71460
91161-51250
91161-71235
91651-40820
91651-40825
94110-40800
94110-51000
94115-41000
94115-51200
94115-51400
94512-00800
94512-01000
94512-01200
94512-01400
94612-10800
94613-11001
