RY12L-JR (1971)

Toyota Toyoace

Production Sep 1971 - Feb 1979
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7109-7902)RY10,12

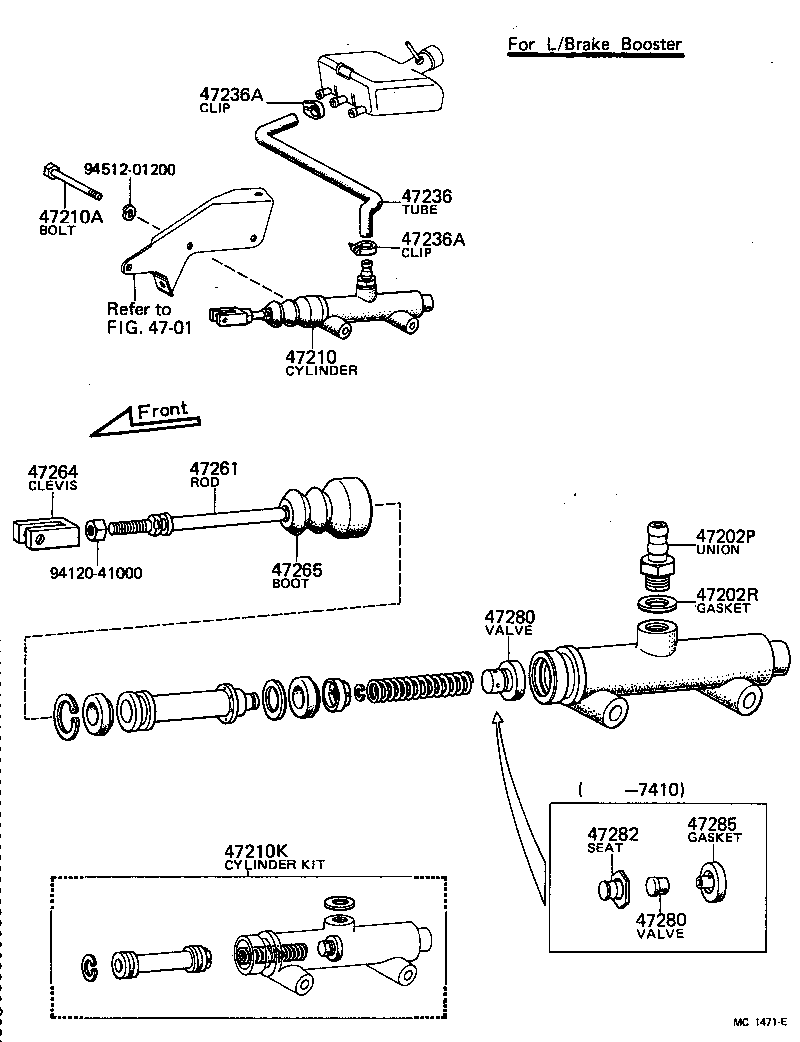

Click highlighted areas on diagram

diagram 4701 47202P 47202R 47210 47210A 47210K 47236 47236A 47236A 47261 47264 47265 47280 47280 47282 47285 9412041000 9451201200
Part # Description Qty Price
47202P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)
90404-16233

JY16,RY1#

 1
47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)
90430-16044

RY10,12

 1
90430-16044

JY16,RY1#

 1
47210 - CYLINDER ASSY, MASTER, W/O BOOSTER
47201-25010

RY10,12

FOR W/BOOSTER

 1
47201-25012

RY10,12

FOR W/BOOSTER

 1
47201-25011

RY10,12

FOR W/BOOSTER

 1
47210-25011

RY10,12

FOR L/BOOSTER

 1
47210-25010

RY10,12

FOR L/BOOSTER

 1
47210A - BOLT OR STUD BOLT(FOR BRAKE MASTER CYLINDER SETTING)
91171-41271

RY10,12

FOR L/BOOSTER

 2
91171-41270

RY10,12

FOR L/BOOSTER

 2
47210K - CYLINDER KIT, BRAKE MASTER
04471-25021

RY10,12

FOR L/BOOSTER

 1
04471-25031

RY10,12

FOR W/BOOSTER

 1
47236 - TUBE, RESERVOIR BRAKE
47236-25060

RY10,12..LHD

FOR W/BOOSTER

 1
47236-25050

RY10,12..LHD

 1
47236A - CLIP(FOR RESERVOIR TUBE)
90460-19082

JY16,RY1#

 2
90460-16069

JY16,RY1#

 2
47236A - CLIP(FOR RESERVOIR TUBE)
90460-19082

JY16,RY1#

 2
90460-16069

JY16,RY1#

 2
47261 - ROD, MASTER CYLINDER PUSH
47261-35020

RY10,12

 1
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
31453-30011

JY16,RY1#

 1
47265 - BOOT, MASTER CYLINDER
47265-35011

RY10,12

 1
47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK
47280-25010

RY10,12

 1
47281-55010

RY10,12

 1
47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK
47280-25010

RY10,12

 1
47281-55010

RY10,12

 1
47282 - SEAT, OUTLET CHECK VALVE SEAT
47282-55010

RY10,12

 1
47285 - GASKET, OUTLET CHECK VALVE SEAT
47285-35011

RY10,12

 1
Common parts
94120-41000
94512-01200
Linked diagrams
4701

(7109-7902)RY10,12

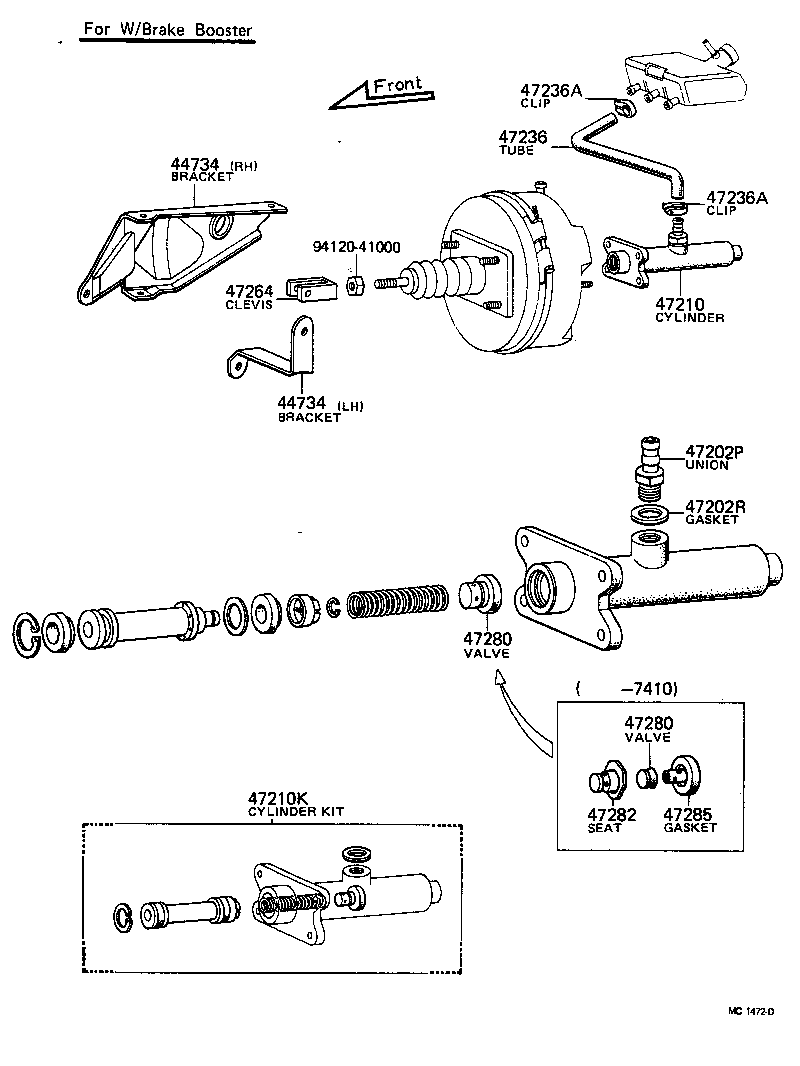

Click highlighted areas on diagram

diagram 44734 44734 47202P 47202R 47210 47210K 47236 47236A 47236A 47264 47280 47280 47282 47285 9412041000
Part # Description Qty Price
44734 - BRACKET, BOOSTER SUPPORT OR ROD SUPPORT
55107-95011

RY10,12..LHD

RH.

 1
55172-95010

RY10,12

LH.

 1
44734 - BRACKET, BOOSTER SUPPORT OR ROD SUPPORT
55107-95011

RY10,12..LHD

RH.

 1
55172-95010

RY10,12

LH.

 1
47202P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)
90404-16233

JY16,RY1#

 1
47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)
90430-16044

RY10,12

 1
90430-16044

JY16,RY1#

 1
47210 - CYLINDER ASSY, MASTER, W/O BOOSTER
47201-25010

RY10,12

FOR W/BOOSTER

 1
47201-25012

RY10,12

FOR W/BOOSTER

 1
47201-25011

RY10,12

FOR W/BOOSTER

 1
47210-25011

RY10,12

FOR L/BOOSTER

 1
47210-25010

RY10,12

FOR L/BOOSTER

 1
47210K - CYLINDER KIT, BRAKE MASTER
04471-25021

RY10,12

FOR L/BOOSTER

 1
04471-25031

RY10,12

FOR W/BOOSTER

 1
47236 - TUBE, RESERVOIR BRAKE
47236-25060

RY10,12..LHD

FOR W/BOOSTER

 1
47236-25050

RY10,12..LHD

 1
47236A - CLIP(FOR RESERVOIR TUBE)
90460-19082

JY16,RY1#

 2
90460-16069

JY16,RY1#

 2
47236A - CLIP(FOR RESERVOIR TUBE)
90460-19082

JY16,RY1#

 2
90460-16069

JY16,RY1#

 2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
31453-30011

JY16,RY1#

 1
47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK
47280-25010

RY10,12

 1
47281-55010

RY10,12

 1
47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK
47280-25010

RY10,12

 1
47281-55010

RY10,12

 1
47282 - SEAT, OUTLET CHECK VALVE SEAT
47282-55010

RY10,12

 1
47285 - GASKET, OUTLET CHECK VALVE SEAT
47285-35011

RY10,12

 1
