RY12L-JR (1971)
Toyota Toyoace

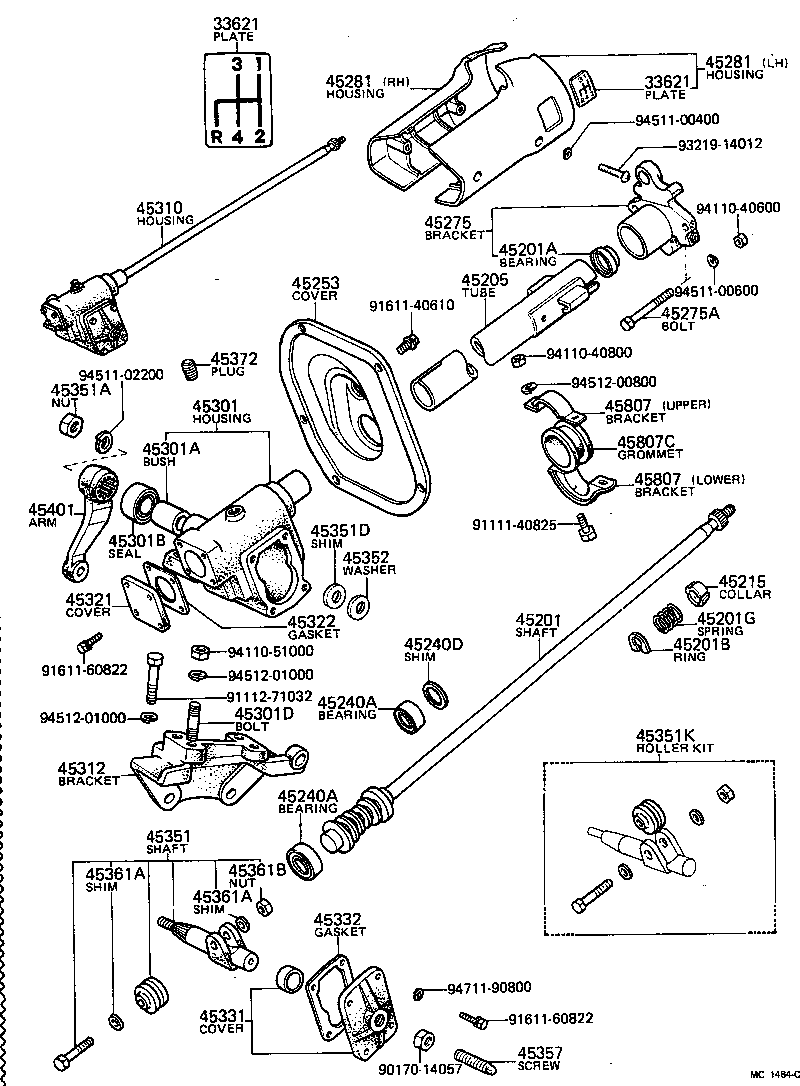

(7109-7207)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33621 - PLATE, CONTROL LEVER CAUTION | ||||
| 33621-36010 |
RY10,12..LHD |
1 | ||
| 33621 - PLATE, CONTROL LEVER CAUTION | ||||
| 33621-36010 |
RY10,12..LHD |
1 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45201-25050 |
JY16,RY1# |
1 | ||
| 45201-25040 |
RY1#..LHD |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90369-36003 |
RY1# |
1 | ||
| 90363-18038 |
JY16,RY1# |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17106 |
RY1# |
1 | ||
| 90520-17269 |
JY16,RY1# T=1.20,UPPER |
1 | ||
| 90520-17042 |
JY16,RY1# T=1.20,LOWER |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-20102 |
RY1# |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-25060 |
RY1#..LHD |
1 | ||
| 45205-25070 |
JY16,RY1# |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-20011 |
RY1# |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 97600-30205 |
RY1# UPPER |
1 | ||
| 90363-20062 |
JY16,RY1# |
2 | ||
| 97600-30206 |
RY1# LOWER |
1 | ||
| 90363-20003 |
JY16,RY1# |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 97600-30205 |
RY1# UPPER |
1 | ||
| 90363-20062 |
JY16,RY1# |
2 | ||
| 97600-30206 |
RY1# LOWER |
1 | ||
| 90363-20003 |
JY16,RY1# |
2 | ||
| 45240D - SHIM(FOR STEERING WORM BEARING ADJUST) | ||||
| 90564-40038 |
RY1# T=0.2 |
1 | ||
| 90564-40037 |
RY1# T=0.5 |
1 | ||
| 90564-40039 |
RY1# T=0.1 |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 55671-25021 |
RY1#..LHD |
1 | ||
| 45253-25021 |
JY16,RY1#..LHD |
1 | ||
| 45253-25020 |
JY16,RY1#..LHD |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45307-36012 |
RY1# |
1 | ||
| 45280-25010 |
RY1# |
1 | ||
| 45275A - BOLT, HEXAGON(FOR STEERING COLUMN BRACKET) | ||||
| 91111-40671 |
RY1# |
2 | ||
| 91611-40616 |
JY16,RY1# |
3 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-36020 |
RY1#..LHD LH. |
1 | ||
| 45286-36060 |
JY16,RY1#..LHD RH. |
1 | ||
| 45286-36020 |
RY1#..LHD RH. |
1 | ||
| 45287-36040 |
JY16,RY1#..LHD LH. |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-36020 |
RY1#..LHD LH. |
1 | ||
| 45286-36060 |
JY16,RY1#..LHD RH. |
1 | ||
| 45286-36020 |
RY1#..LHD RH. |
1 | ||
| 45287-36040 |
JY16,RY1#..LHD LH. |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-36050 |
JY16,RY1#..LHD |
1 | ||
| 45301-36020 |
RY1#..LHD |
1 | ||
| 45301A - BUSH OR BEARING, SECTOR SHAFT, NO.1 | ||||
| 90999-73061 |
JY16,RY1# |
1 | ||
| 90999-73018 |
RY1# |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90310-32024 |
JY16,RY1# |
1 | ||
| 45301D - BOLT, STUD(FOR STEERING GEAR HOUSING) | ||||
| 90116-10101 |
JY16,RY1# |
2 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-25020 |
RY1#..LHD |
1 | ||
| 45310-36070 |
JY16,RY1#..LHD |
1 | ||
| 45312 - BRACKET, STEERING GEAR HOUSING | ||||
| 45312-25060 |
RY1#..LHD |
1 | ||
| 45312-25061 |
RY10,12..LHD |
1 | ||
| 45321 - COVER, GEAR HOUSING END | ||||
| 45321-36020 |
JY16,RY1# |
1 | ||
| 45321-60012 |
RY1# |
1 | ||
| 45322 - GASKET, GEAR HOUSING END COVER | ||||
| 45322-55010 |
RY1# T=0.1 |
1 | ||
| 45322-60010 |
RY1# T=0.5 |
1 | ||
| 45324-55010 |
RY1# T=0.3 |
1 | ||
| 45323-55010 |
RY1# T=0.2 |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-60010 |
RY1# |
1 | ||
| 45304-36020 |
JY16,RY1# |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-60010 |
RY1# |
1 | ||
| 45332-36010 |
JY16,RY1# T=0.5 |
1 | ||
| 45351 - SHAFT, STEERING SECTOR | ||||
| 45351-36020 |
JY16,RY1# |
1 | ||
| 45350-60020 |
RY1#..LHD |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-22058 |
JY16,RY1# |
1 | ||
| 45351D - SHIM(FOR STEERING SECTOR ADJUSTING) | ||||
| 90564-33106 |
RY1# T=0.50 |
4 | ||
| 90564-33110 |
RY1# T=0.30 |
3 | ||
| 90564-33113 |
RY1# T=1.00 |
9 | ||
| 45351K - ROLLER KIT, STEERING SECTOR | ||||
| 04452-55010 |
RY1# |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45352-55010 |
RY1# T=2.33 |
1 | ||
| 45356-36010 |
JY16,RY1# T=2.20,T=2.20 |
1 | ||
| 45353-36010 |
JY16,RY1# T=2.05,T=2.05 |
1 | ||
| 45354-36010 |
JY16,RY1# T=2.10,T=2.10 |
1 | ||
| 45352-36010 |
JY16,RY1# T=2.00,T=2.00 |
1 | ||
| 45355-36010 |
JY16,RY1# T=2.15,T=2.15 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-36020 |
JY16,RY1# |
1 | ||
| 90113-14012 |
RY1# |
1 | ||
| 45361A - SHIM(FOR STEERING SECTOR ROLLER ADJUST) | ||||
| 90564-10059 |
RY1# |
2 | ||
| 45361A - SHIM(FOR STEERING SECTOR ROLLER ADJUST) | ||||
| 90564-10059 |
RY1# |
2 | ||
| 45361B - NUT(FOR STEERING SECTOR ROLLER SETTING) | ||||
| 90170-10054 |
RY1# |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90345-53020 |
RY1# ISO |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-25061 |
RY10,12..LHD |
1 | ||
| 45401-25060 |
RY1#..LHD |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 55661-26010 |
RY1# UPPER |
1 | ||
| 55662-26010 |
RY1# LOWER |
1 | ||
| 55662-25040 |
JY16,RY1# LOWER |
1 | ||
| 55661-25040 |
JY16,RY1# UPPER |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 55661-26010 |
RY1# UPPER |
1 | ||
| 55662-26010 |
RY1# LOWER |
1 | ||
| 55662-25040 |
JY16,RY1# LOWER |
1 | ||
| 55661-25040 |
JY16,RY1# UPPER |
1 | ||
| 45807C - GROMMET(FOR STEERING COLUMN CLAMP) | ||||
| 90480-45092 |
JY16,RY1# |
1 | ||
| Common parts | ||||
| 90170-14057 | ||||
| 91111-40825 | ||||
| 91112-71032 | ||||
| 91611-40610 | ||||
| 91611-60822 | ||||
| 93219-14012 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
| 94511-00400 | ||||
| 94511-00600 | ||||
| 94511-02200 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94711-90800 | ||||

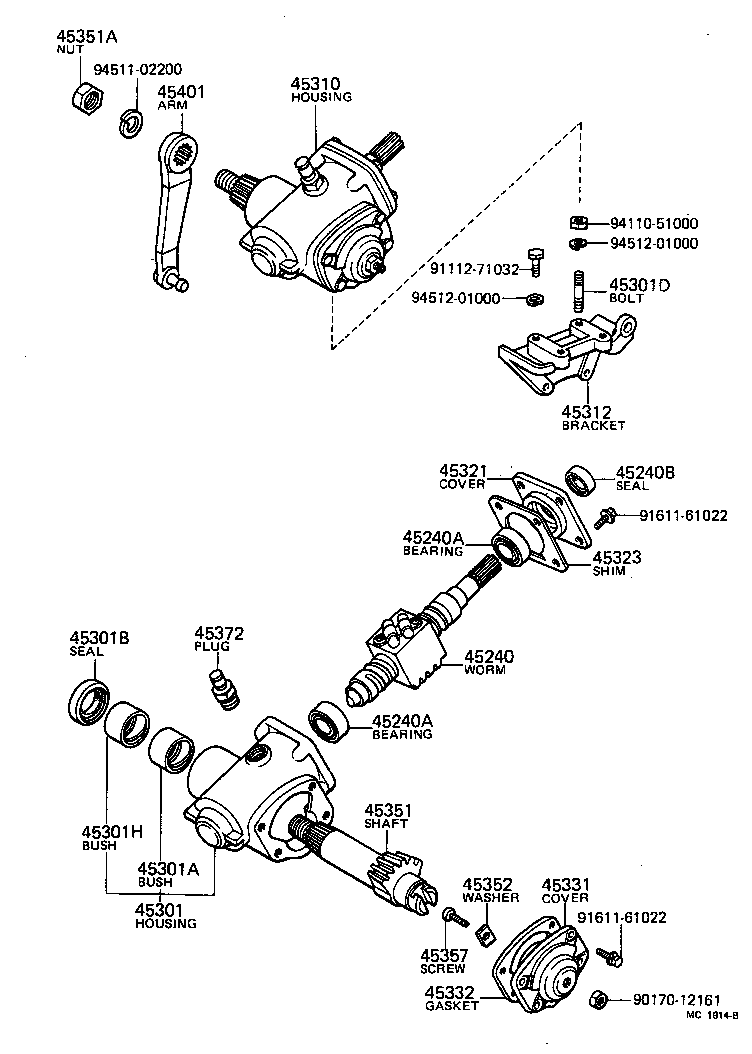

(7207-7902)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45240 - WORM ASSY, STEERING | ||||
| 45240-36040 |
JY16,RY1#..LHD |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 97600-30205 |
RY1# UPPER |
1 | ||
| 90363-20062 |
JY16,RY1# |
2 | ||
| 97600-30206 |
RY1# LOWER |
1 | ||
| 90363-20003 |
JY16,RY1# |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 97600-30205 |
RY1# UPPER |
1 | ||
| 90363-20062 |
JY16,RY1# |
2 | ||
| 97600-30206 |
RY1# LOWER |
1 | ||
| 90363-20003 |
JY16,RY1# |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-18001 |
JY16,RY1# |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-36050 |
JY16,RY1#..LHD |
1 | ||
| 45301-36020 |
RY1#..LHD |
1 | ||
| 45301A - BUSH OR BEARING, SECTOR SHAFT, NO.1 | ||||
| 90999-73061 |
JY16,RY1# |
1 | ||
| 90999-73018 |
RY1# |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90310-32024 |
JY16,RY1# |
1 | ||
| 45301D - BOLT, STUD(FOR STEERING GEAR HOUSING) | ||||
| 90116-10101 |
JY16,RY1# |
2 | ||
| 45301H - BUSH OR BEARING, SECTOR SHAFT, NO.2 | ||||
| 90999-73061 |
JY16,RY1# |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-25020 |
RY1#..LHD |
1 | ||
| 45310-36070 |
JY16,RY1#..LHD |
1 | ||
| 45312 - BRACKET, STEERING GEAR HOUSING | ||||
| 45312-25060 |
RY1#..LHD |
1 | ||
| 45312-25061 |
RY10,12..LHD |
1 | ||
| 45321 - COVER, GEAR HOUSING END | ||||
| 45321-36020 |
JY16,RY1# |
1 | ||
| 45321-60012 |
RY1# |
1 | ||
| 45323 - SHIM, GEAR HOUSING END COVER | ||||
| 45323-36010 |
JY16,RY1# T=0.045-0.055,T=0.05 |
1 | ||
| 45323-36030 |
JY16,RY1# T=0.072-0.088,T=0.08 |
1 | ||
| 45323-36040 |
JY16,RY1# T=0.092-0.108,T=0.10 |
1 | ||
| 45323-36020 |
JY16,RY1# T=0.065-0.075,T=0.07 |
1 | ||
| 45323-36070 |
JY16,RY1# T=0.055-0.065,T=0.06 |
1 | ||
| 45323-36060 |
JY16,RY1# T=0.485-0.515,T=0.50 |
1 | ||
| 45323-36080 |
JY16,RY1# T=0.082-0.098,T=0.09 |
1 | ||
| 45323-36050 |
JY16,RY1# T=0.185-0.215,T=0.20 |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-60010 |
RY1# |
1 | ||
| 45304-36020 |
JY16,RY1# |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-60010 |
RY1# |
1 | ||
| 45332-36010 |
JY16,RY1# T=0.5 |
1 | ||
| 45351 - SHAFT, STEERING SECTOR | ||||
| 45351-36020 |
JY16,RY1# |
1 | ||
| 45350-60020 |
RY1#..LHD |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-22058 |
JY16,RY1# |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45352-55010 |
RY1# T=2.33 |
1 | ||
| 45356-36010 |
JY16,RY1# T=2.20,T=2.20 |
1 | ||
| 45353-36010 |
JY16,RY1# T=2.05,T=2.05 |
1 | ||
| 45354-36010 |
JY16,RY1# T=2.10,T=2.10 |
1 | ||
| 45352-36010 |
JY16,RY1# T=2.00,T=2.00 |
1 | ||
| 45355-36010 |
JY16,RY1# T=2.15,T=2.15 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-36020 |
JY16,RY1# |
1 | ||
| 90113-14012 |
RY1# |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90345-53020 |
RY1# ISO |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-25061 |
RY10,12..LHD |
1 | ||
| 45401-25060 |
RY1#..LHD |
1 | ||
| Common parts | ||||
| 90170-12161 | ||||
| 91112-71032 | ||||
| 91611-61022 | ||||
| 94110-51000 | ||||
| 94511-02200 | ||||
| 94512-01000 | ||||

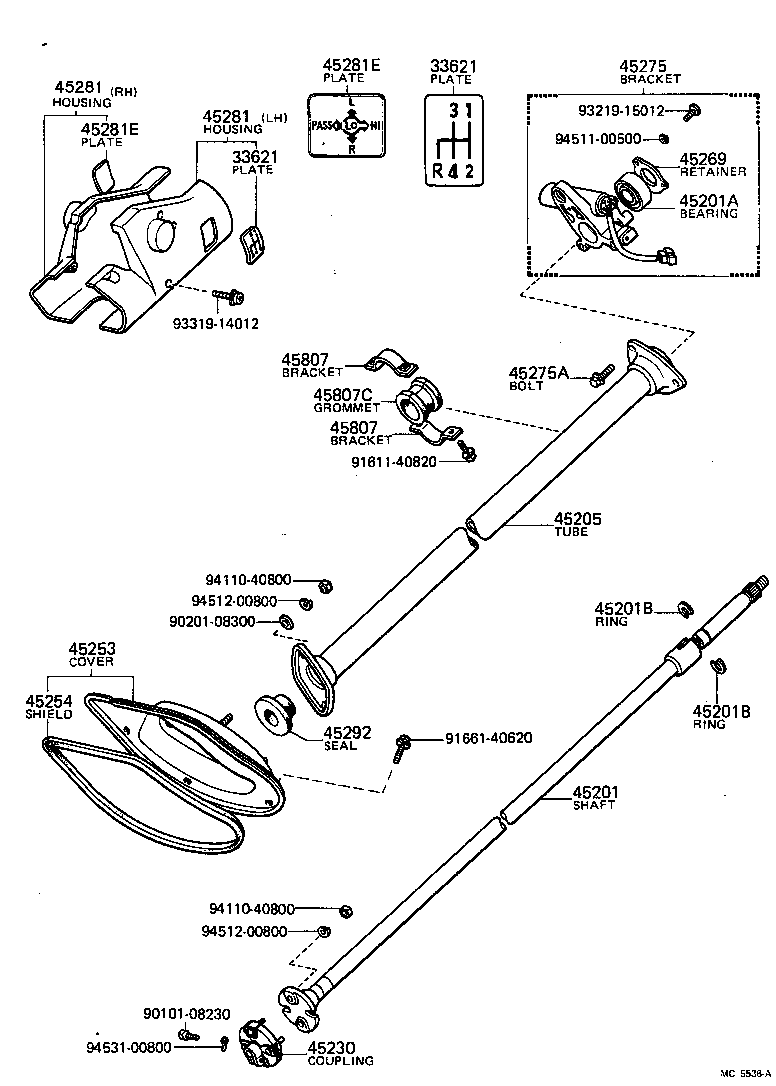

(7207-7902)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33621 - PLATE, CONTROL LEVER CAUTION | ||||
| 33621-36010 |
RY10,12..LHD |
1 | ||
| 33621 - PLATE, CONTROL LEVER CAUTION | ||||
| 33621-36010 |
RY10,12..LHD |
1 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45201-25050 |
JY16,RY1# |
1 | ||
| 45201-25040 |
RY1#..LHD |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90369-36003 |
RY1# |
1 | ||
| 90363-18038 |
JY16,RY1# |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17106 |
RY1# |
1 | ||
| 90520-17269 |
JY16,RY1# T=1.20,UPPER |
1 | ||
| 90520-17042 |
JY16,RY1# T=1.20,LOWER |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17106 |
RY1# |
1 | ||
| 90520-17269 |
JY16,RY1# T=1.20,UPPER |
1 | ||
| 90520-17042 |
JY16,RY1# T=1.20,LOWER |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-25060 |
RY1#..LHD |
1 | ||
| 45205-25070 |
JY16,RY1# |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-36010 |
JY16,RY1# |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 55671-25021 |
RY1#..LHD |
1 | ||
| 45253-25021 |
JY16,RY1#..LHD |
1 | ||
| 45253-25020 |
JY16,RY1#..LHD |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-25010 |
JY16,RY1# |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-36010 |
JY16,RY1# |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45307-36012 |
RY1# |
1 | ||
| 45280-25010 |
RY1# |
1 | ||
| 45275A - BOLT, HEXAGON(FOR STEERING COLUMN BRACKET) | ||||
| 91111-40671 |
RY1# |
2 | ||
| 91611-40616 |
JY16,RY1# |
3 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-36020 |
RY1#..LHD LH. |
1 | ||
| 45286-36060 |
JY16,RY1#..LHD RH. |
1 | ||
| 45286-36020 |
RY1#..LHD RH. |
1 | ||
| 45287-36040 |
JY16,RY1#..LHD LH. |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-36020 |
RY1#..LHD LH. |
1 | ||
| 45286-36060 |
JY16,RY1#..LHD RH. |
1 | ||
| 45286-36020 |
RY1#..LHD RH. |
1 | ||
| 45287-36040 |
JY16,RY1#..LHD LH. |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-36010 |
JY16,RY1# |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 55661-26010 |
RY1# UPPER |
1 | ||
| 55662-26010 |
RY1# LOWER |
1 | ||
| 55662-25040 |
JY16,RY1# LOWER |
1 | ||
| 55661-25040 |
JY16,RY1# UPPER |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 55661-26010 |
RY1# UPPER |
1 | ||
| 55662-26010 |
RY1# LOWER |
1 | ||
| 55662-25040 |
JY16,RY1# LOWER |
1 | ||
| 55661-25040 |
JY16,RY1# UPPER |
1 | ||
| 45807C - GROMMET(FOR STEERING COLUMN CLAMP) | ||||
| 90480-45092 |
JY16,RY1# |
1 | ||
| Common parts | ||||
| 90101-08230 | ||||
| 90201-08300 | ||||
| 91611-40820 | ||||
| 91661-40620 | ||||
| 93219-15012 | ||||
| 93319-14012 | ||||
| 94110-40800 | ||||
| 94511-00500 | ||||
| 94512-00800 | ||||
| 94531-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
