Toyota Toyoace RY12 EXHAUST PIPE

RY12L-JR (1971)

Toyota Toyoace

Production Sep 1971 - Feb 1979

Engine 12R

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

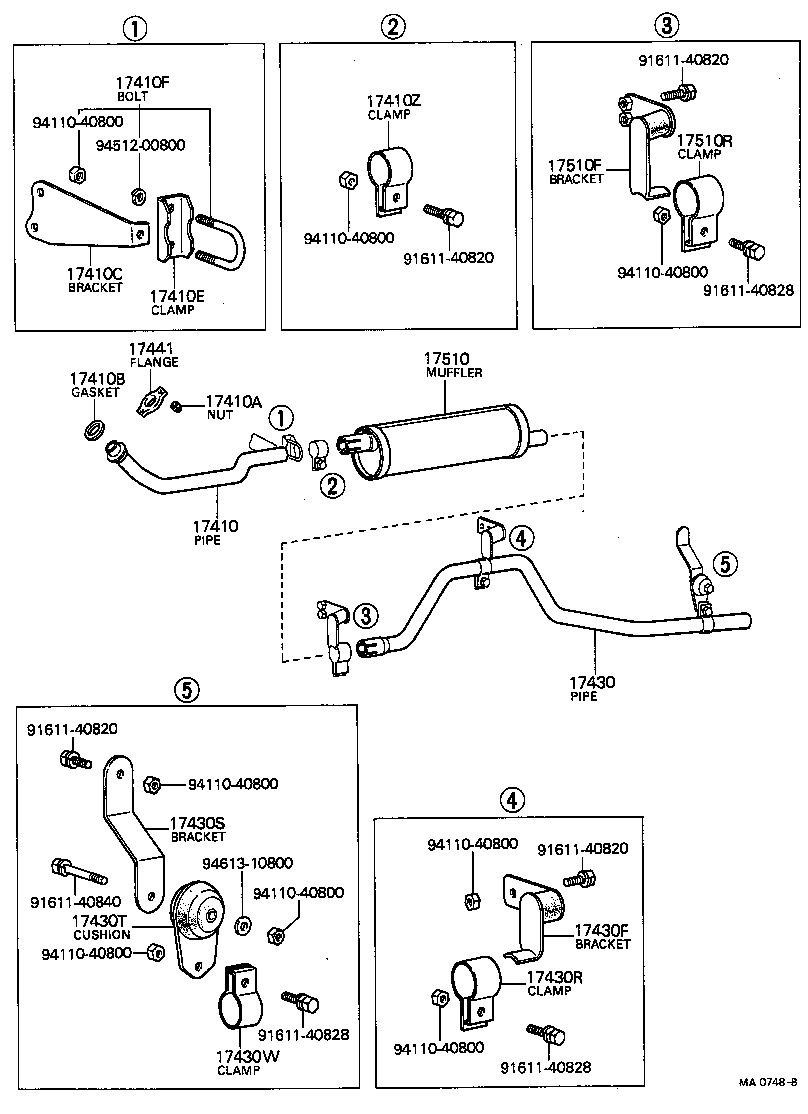

(7109-7404)12R

Click highlighted areas on diagram

Part #	Description	Period	Qty
17410 - PIPE ASSY, EXHAUST, FRONT
17401-31131	12R..RY12	04/1974 - 02/1979	1
17401-31130	12R..RY12	09/1971 - 04/1974	1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10118	12R,5R..RY1#	09/1971 - 02/1979	3
17410B - GASKET, EXHAUST PIPE
90917-06004	12R,2J..JY16,RY10,12	09/1971 - 02/1979	1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-44020	12R..RY10,12	04/1974 - 02/1979	1
17571-23050	12R..RY10,12	09/1971 - 04/1974	1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04007	12R,2J..JY16,RY10,12	09/1971 - 02/1979	1
17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
90999-99002	12R,2J..JY16,RY10,12	09/1971 - 02/1979	1
17410Z - CLAMP NO.2, EXHAUST PIPE FRONT (FOR REAR)
90461-23778	12R..RY10,12	09/1971 - 04/1974	1
17430 - PIPE ASSY, EXHAUST, TAIL
17431-23030	12R..RY10,12	09/1971 - 04/1974	1
17430-23010	12R..RY10,12	04/1974 - 02/1979	1
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17562-23020	12R..RY10,12	09/1971 - 02/1979	1
17430R - CLAMP NO.2, EXHAUST TAIL PIPE (FOR CENTER)
90461-23078	12R..RY10,12	09/1971 - 02/1979	1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17572-21010	12R..RY10,12	09/1971 - 02/1979	1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
90917-08004	12R,2J,5R..JY16,RY1#	09/1971 - 02/1979	1
17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR)
90461-23072	12R..RY10,12	09/1971 - 02/1979	1
17441 - FLANGE, EXHAUST PIPE
17441-40010	12R,2J..JY16,RY10,12	09/1971 - 04/1974	1
17510 - MUFFLER ASSY
17510-23030	12R,2J,5R..JY16,RY1#	09/1971 - 04/1974	1
17510F - BRACKET, MUFFLER, REAR
17561-23030	12R..RY10,12	09/1971 - 04/1974	1
17510R - CLAMP NO.2, MUFFLER, REAR
90461-23211	12R..RY10,12	09/1971 - 04/1974	1
Common parts
91611-40820
91611-40828
91611-40840
94110-40800
94512-00800
94613-10800

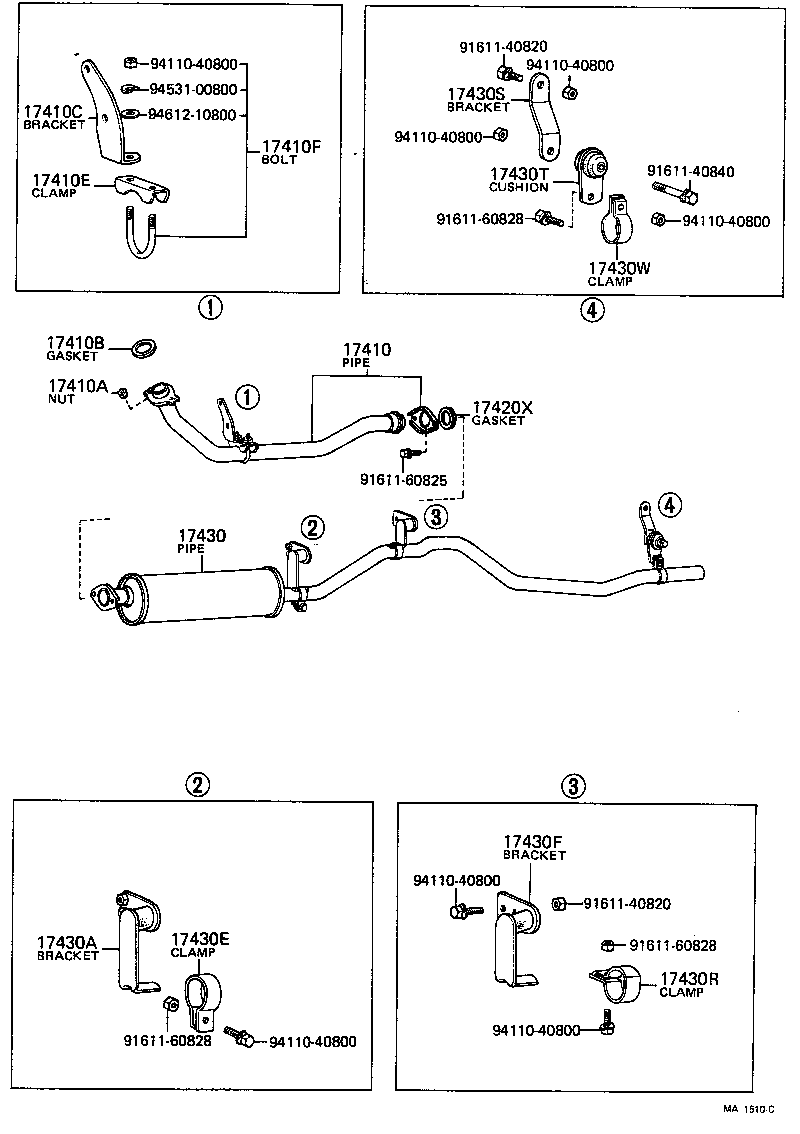

(7404-7902)12R

Click highlighted areas on diagram

Part #	Description	Period	Qty
17410 - PIPE ASSY, EXHAUST, FRONT
17401-31131	12R..RY12	04/1974 - 02/1979	1
17401-31130	12R..RY12	09/1971 - 04/1974	1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10118	12R,5R..RY1#	09/1971 - 02/1979	3
17410B - GASKET, EXHAUST PIPE
90917-06004	12R,2J..JY16,RY10,12	09/1971 - 02/1979	1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-44020	12R..RY10,12	04/1974 - 02/1979	1
17571-23050	12R..RY10,12	09/1971 - 04/1974	1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04007	12R,2J..JY16,RY10,12	09/1971 - 02/1979	1
17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
90999-99002	12R,2J..JY16,RY10,12	09/1971 - 02/1979	1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004	12R,2J,5R..JY16,RY1#	04/1974 - 02/1979	1
17430 - PIPE ASSY, EXHAUST, TAIL
17431-23030	12R..RY10,12	09/1971 - 04/1974	1
17430-23010	12R..RY10,12	04/1974 - 02/1979	1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17561-23030	12R,2J,5R..JY16,RY1#	04/1974 - 02/1979	1
17430E - CLAMP NO.2, EXHAUST TAIL PIPE(FOR FRONT)
90461-23276	12R..RY10,12	04/1974 - 02/1979	1
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17562-23020	12R..RY10,12	09/1971 - 02/1979	1
17430R - CLAMP NO.2, EXHAUST TAIL PIPE (FOR CENTER)
90461-23078	12R..RY10,12	09/1971 - 02/1979	1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17572-21010	12R..RY10,12	09/1971 - 02/1979	1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
90917-08004	12R,2J,5R..JY16,RY1#	09/1971 - 02/1979	1
17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR)
90461-23072	12R..RY10,12	09/1971 - 02/1979	1
Common parts
91611-40820
91611-40840
91611-60825
91611-60828
94110-40800
94531-00800
94612-10800
