RY12L-JR (1971)

Toyota Toyoace

Production Sep 1971 - Feb 1979
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

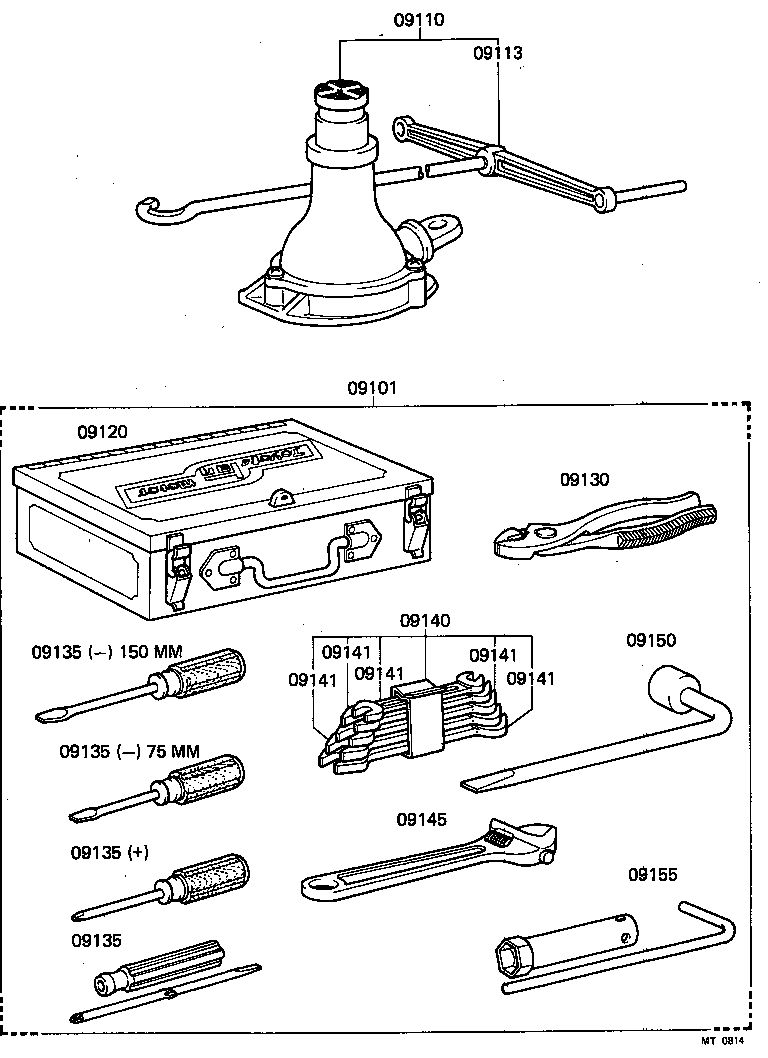

(7109-7510)

Click highlighted areas on diagram

diagram 09101 09110 09113 09120 09130 09135 09135 09135 09135 09140 09141 09141 09141 09141 09141 09145 09150 09155
Part # Description Qty Price
09101 - TOOL SET, STANDARD W/O JACK
09101-25100

RY10,12

 1
09101-25030

RY10,12

 1
09110 - JACK ASSY
09110-25020

RY10,12

 1
09113 - HANDLE, JACK
09113-25020

JY16,RY1#

 1
09120 - BAG, TOOL
09120-26021

JY16,RY1#

 1
09120-25010

RY10,12

 1
09130 - PLIERS
09130-00020

RY10,12

 1
09130-00011

JY16,RY1#

 1
09135 - DRIVER, SCREW
09135-00030

RY10,12

(-) 75

 1
09135-00010

JY16,RY1#

(+) (-)

 1
09135-00090

RY10,12

(+)

 1
09135-00060

JY16,RY1#

(-) 150

 1
09135 - DRIVER, SCREW
09135-00030

RY10,12

(-) 75

 1
09135-00010

JY16,RY1#

(+) (-)

 1
09135-00090

RY10,12

(+)

 1
09135-00060

JY16,RY1#

(-) 150

 1
09135 - DRIVER, SCREW
09135-00030

RY10,12

(-) 75

 1
09135-00010

JY16,RY1#

(+) (-)

 1
09135-00090

RY10,12

(+)

 1
09135-00060

JY16,RY1#

(-) 150

 1
09135 - DRIVER, SCREW
09135-00030

RY10,12

(-) 75

 1
09135-00010

JY16,RY1#

(+) (-)

 1
09135-00090

RY10,12

(+)

 1
09135-00060

JY16,RY1#

(-) 150

 1
09140 - SPANNER SET
09140-22010

JY16,RY1#

 1
09140-00040

RY10,12

 1
09141 - SPANNER
09141-00011

JY16,RY1#

8X10

 1
09141-00030

JY16,RY1#

10X12

 1
09141-00050

JY16,RY1#

14X17

 1
09141-00100

RY10,12

21X23

 1
09141-00040

RY10,12

12X14

 1
09141 - SPANNER
09141-00011

JY16,RY1#

8X10

 1
09141-00030

JY16,RY1#

10X12

 1
09141-00050

JY16,RY1#

14X17

 1
09141-00100

RY10,12

21X23

 1
09141-00040

RY10,12

12X14

 1
09141 - SPANNER
09141-00011

JY16,RY1#

8X10

 1
09141-00030

JY16,RY1#

10X12

 1
09141-00050

JY16,RY1#

14X17

 1
09141-00100

RY10,12

21X23

 1
09141-00040

RY10,12

12X14

 1
09141 - SPANNER
09141-00011

JY16,RY1#

8X10

 1
09141-00030

JY16,RY1#

10X12

 1
09141-00050

JY16,RY1#

14X17

 1
09141-00100

RY10,12

21X23

 1
09141-00040

RY10,12

12X14

 1
09141 - SPANNER
09141-00011

JY16,RY1#

8X10

 1
09141-00030

JY16,RY1#

10X12

 1
09141-00050

JY16,RY1#

14X17

 1
09141-00100

RY10,12

21X23

 1
09141-00040

RY10,12

12X14

 1
09145 - WRENCH, MONKEY
09145-00020

JY16,RY1#

 1
09145-00030

RY10,12

 1
09150 - WRENCH, HUB NUT BOX
09150-00020

RY10,12

 1
09150-00020

JY16,RY1#

 1
09155 - WRENCH, SPARK PLUG
09155-20010

RY1#

 1

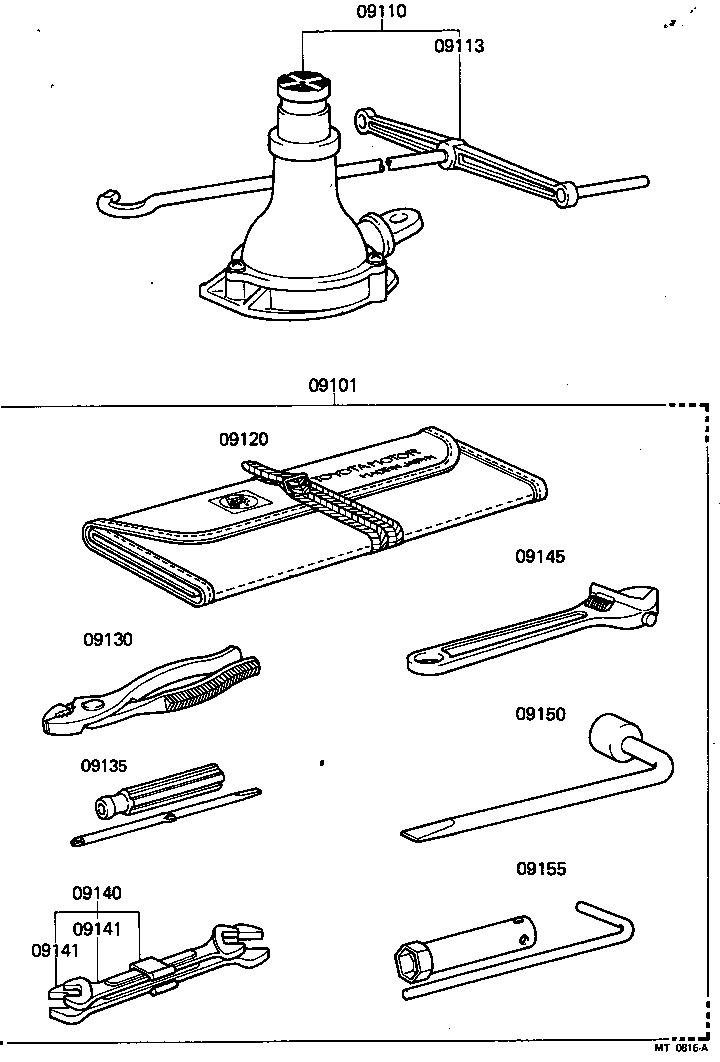

(7510-7902)

Click highlighted areas on diagram

diagram 09101 09110 09113 09120 09130 09135 09140 09141 09141 09145 09150 09155
Part # Description Qty Price
09101 - TOOL SET, STANDARD W/O JACK
09101-25100

RY10,12

 1
09101-25030

RY10,12

 1
09110 - JACK ASSY
09110-25020

RY10,12

 1
09113 - HANDLE, JACK
09113-25020

JY16,RY1#

 1
09120 - BAG, TOOL
09120-26021

JY16,RY1#

 1
09120-25010

RY10,12

 1
09130 - PLIERS
09130-00020

RY10,12

 1
09130-00011

JY16,RY1#

 1
09135 - DRIVER, SCREW
09135-00030

RY10,12

(-) 75

 1
09135-00010

JY16,RY1#

(+) (-)

 1
09135-00090

RY10,12

(+)

 1
09135-00060

JY16,RY1#

(-) 150

 1
09140 - SPANNER SET
09140-22010

JY16,RY1#

 1
09140-00040

RY10,12

 1
09141 - SPANNER
09141-00011

JY16,RY1#

8X10

 1
09141-00030

JY16,RY1#

10X12

 1
09141-00050

JY16,RY1#

14X17

 1
09141-00100

RY10,12

21X23

 1
09141-00040

RY10,12

12X14

 1
09141 - SPANNER
09141-00011

JY16,RY1#

8X10

 1
09141-00030

JY16,RY1#

10X12

 1
09141-00050

JY16,RY1#

14X17

 1
09141-00100

RY10,12

21X23

 1
09141-00040

RY10,12

12X14

 1
09145 - WRENCH, MONKEY
09145-00020

JY16,RY1#

 1
09145-00030

RY10,12

 1
09150 - WRENCH, HUB NUT BOX
09150-00020

RY10,12

 1
09150-00020

JY16,RY1#

 1
09155 - WRENCH, SPARK PLUG
09155-20010

RY1#

 1
