RY10L-JRB (1971)

Toyota Toyoace

Production Sep 1971 - Feb 1979
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7109-7902)

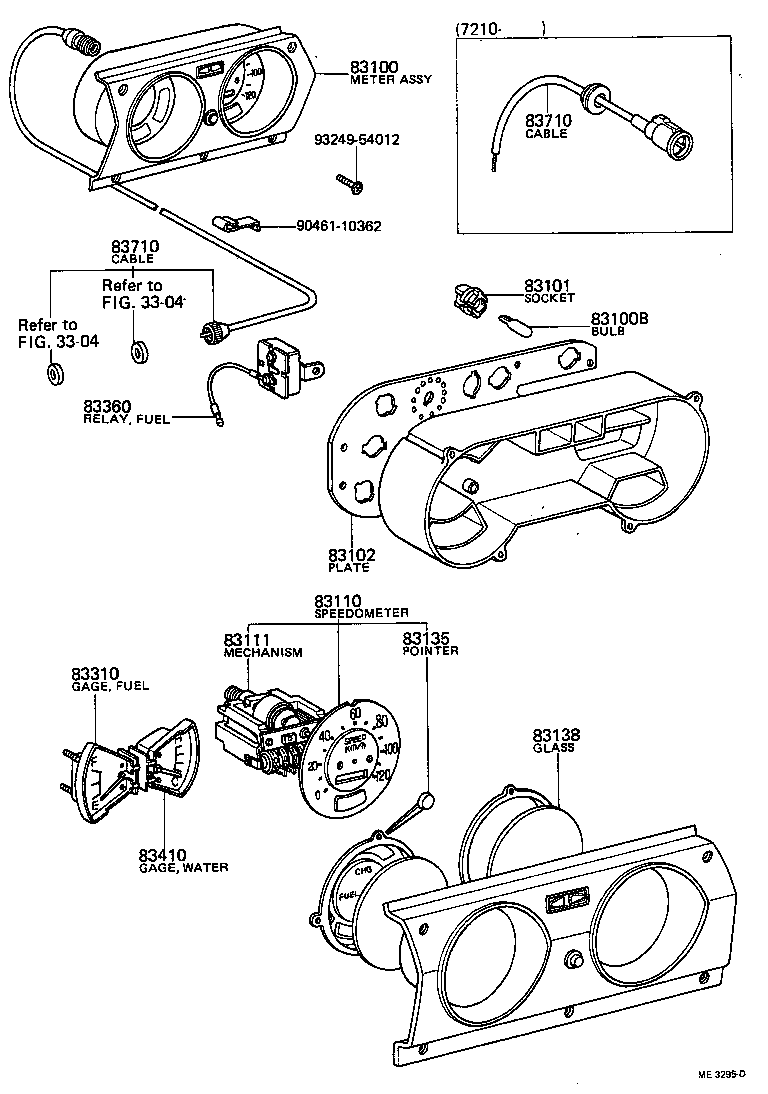

Click highlighted areas on diagram

diagram 3304 3304 83100 83100B 83101 83102 83110 83111 83135 83138 83310 83360 83410 83710 83710 9046110362 9324954012
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83100-25070

JY16,RY1#

KM

 1
83100-25080

JY16,RY1#

MILE

 1
83100-25071

JY16,RY1#

KM

 1
83100-25082

JY16,RY1#

MILE & KM

 1
83100-25081

JY16,RY1#

MILE

 1
83100B - BULB, COMBINATION METER, NO.1
99132-12034

JY16,RY1#

12V 3.4W,12V 3.4W

 8
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-12010

JY16,RY1#

 8
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83102-25010

JY16,RY1#

 1
83110 - SPEEDOMETER ASSY
83110-27021

JY16,RY1#

MILE

 1
83110-25070

JY16,RY1#

KM

 1
83110-26013

JY16,RY1#

KM

 1
83110-27022

JY16,RY1#

MILE & KM

 1
83110-27020

JY16,RY1#

MILE

 1
83110-26013

JY16,RY1#

KM

 1
83110-25060

JY16,RY1#

MILE

 1
83110-26014

JY16,RY1#

KM

 1
83111 - MECHANISM, SPEEDOMETER
83112-26023

JY16,RY1#

MILE

 1
83112-26014

JY16,RY1#

KM

 1
83135 - POINTER, SPEEDOMETER
83135-26010

JY16,RY1#

 1
83138 - GLASS, SPEEDOMETER
83138-26010

JY16,RY1#

 1
83310 - GAGE ASSY, FUEL RECEIVER
83310-26011

JY16,RY1#

 1
83360 - RELAY ASSY, FUEL SENDER
83360-20011

JY16,RY1#

 1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83410-25020

JY16,RY1#

 1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-39035

RY10,12..LHD

L=3400

 1
83710-39036

RY10,12..LHD

L=3400

 1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-39035

RY10,12..LHD

L=3400

 1
83710-39036

RY10,12..LHD

L=3400

 1
Common parts
90461-10362
93249-54012
Linked diagrams
3304
