RY10L-JRB (1971)
Toyota Toyoace
Production
Sep 1971
-
Feb 1979
Engine
12R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7109-7511)RY1# ; (7511-7902)RY16
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-36020 |
RY1# |
1 | ||
| 31201 - COVER SUB-ASSY, CLUTCH | ||||
| 31201-39045 |
RY1# |
1 | ||
| 31201-36010 |
RY1# |
1 | ||
| 31201-36020 |
RY1# |
1 | ||
| 31205 - SUPPORT SUB-ASSY, RELEASE FORK | ||||
| 31205-30010 |
RY1# |
1 | ||
| 31205A - PIN, W/SERRATION(FOR RELEASE FORK SUPPORT) | ||||
| 90245-10072 |
RY1# |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-35011 |
RY1# |
1 | ||
| 31210-25030 |
RY10,12 |
1 | ||
| 31210-26010 |
RY10,12 |
1 | ||
| 31210-35040 |
RY10,12 |
1 | ||
| 31221 - PLATE, CLUTCH PRESSURE | ||||
| 31202-26010 |
RY10,12 |
1 | ||
| 31221-39045 |
RY10,12 |
1 | ||
| 31202-36010 |
RY10,12 |
1 | ||
| 31221A - SPRING, COMPRESSION(FOR CLUTCH) | ||||
| 90501-40612 |
JY16,RY1# WD=4.0,CW=27.0 |
9 | ||
| 90501-40612 |
RY1# WD=4.0,CW=27.0 |
6 | ||
| 31221A - SPRING, COMPRESSION(FOR CLUTCH) | ||||
| 90501-40612 |
JY16,RY1# WD=4.0,CW=27.0 |
9 | ||
| 90501-40612 |
RY1# WD=4.0,CW=27.0 |
6 | ||
| 31222D - SPRING, TENSION(FOR CLUTCH PRESSURE LEVER) | ||||
| 90506-10022 |
RY1# |
3 | ||
| 31222E - NUT(FOR CLUTCH PRESSURE LEVER ADJUST) | ||||
| 90179-10111 |
RY1# |
3 | ||
| 90179-08023 |
RY10,12 |
3 | ||
| 31222F - WASHER(FOR CLUTCH PRESSURE LEVER) | ||||
| 90201-08058 |
RY10,12 |
3 | ||
| 90201-10429 |
RY1# |
3 | ||
| 31222K - LEVER KIT, CLUTCH PRESSURE | ||||
| 04315-36021 |
RY1# |
1 | ||
| 04315-35010 |
RY10,12 |
1 | ||
| 31226 - BOLT, CLUTCH PRESSURE PLATE | ||||
| 31226-36020 |
RY10,12 |
3 | ||
| 90114-10088 |
RY1# |
3 | ||
| 31226A - RIVET OR PIN(FOR CLUTCH PRESSURE PLATE BOLT LOCK) | ||||
| 90260-03006 |
RY10,12 |
3 | ||
| 31231 - HUB, CLUTCH RELEASE BEARING | ||||
| 31231-35010 |
RY1# |
1 | ||
| 31231-30010 |
RY1# |
1 | ||
| 31231-35020 |
RY10,12 |
1 | ||
| 31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB) | ||||
| 90363-40061 |
RY1# |
1 | ||
| 90363-40078 |
JY16,RY10,12 |
1 | ||
| 90363-40003 |
JY16,RY10,12 |
1 | ||
| 90363-38013 |
RY1# |
1 | ||
| 31232 - CLIP OR SPRING, RELEASE BEARING HUB | ||||
| 90506-14026 |
RY1# |
1 | ||
| 31232-30010 |
JY16,RY10,12 |
2 | ||
| 31232-20010 |
RY1# |
2 | ||
| 31238 - HANGER, RELEASE FORK RETRACTING SPRING | ||||
| 31238-35011 |
RY1# |
1 | ||
| 31240 - FORK ASSY, CLUTCH RELEASE | ||||
| 31240-36011 |
RY1# |
1 | ||
| 31240-35010 |
RY1# |
1 | ||
| 31240A - SPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN) | ||||
| 90506-16282 |
RY1# |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-25010 |
RY10,12 |
1 | ||
| 31250-26040 |
RY10,12 |
1 | ||
| 31250-26021 |
RY10,12 |
1 | ||
| Common parts | ||||
| 91611-41035 | ||||
| 91611-60816 | ||||
| 93381-16014 | ||||
| 95381-03020 | ||||

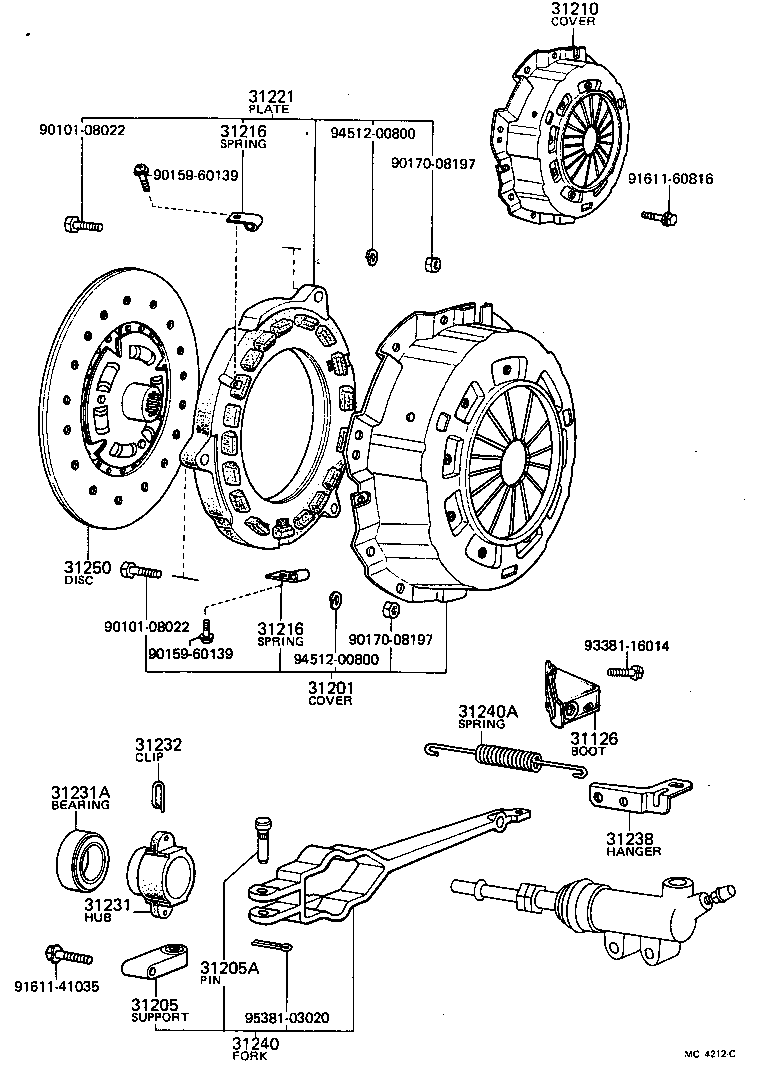

(7511-7902)RY10,12
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-36020 |
RY1# |
1 | ||
| 31201 - COVER SUB-ASSY, CLUTCH | ||||
| 31201-39045 |
RY1# |
1 | ||
| 31201-36010 |
RY1# |
1 | ||
| 31201-36020 |
RY1# |
1 | ||
| 31205 - SUPPORT SUB-ASSY, RELEASE FORK | ||||
| 31205-30010 |
RY1# |
1 | ||
| 31205A - PIN, W/SERRATION(FOR RELEASE FORK SUPPORT) | ||||
| 90245-10072 |
RY1# |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-35011 |
RY1# |
1 | ||
| 31210-25030 |
RY10,12 |
1 | ||
| 31210-26010 |
RY10,12 |
1 | ||
| 31210-35040 |
RY10,12 |
1 | ||
| 31216 - SPRING, CLUTCH RETRACTING | ||||
| 31216-30010 |
JY16,RY10,12 |
3 | ||
| 31216 - SPRING, CLUTCH RETRACTING | ||||
| 31216-30010 |
JY16,RY10,12 |
3 | ||
| 31221 - PLATE, CLUTCH PRESSURE | ||||
| 31202-26010 |
RY10,12 |
1 | ||
| 31221-39045 |
RY10,12 |
1 | ||
| 31202-36010 |
RY10,12 |
1 | ||
| 31231 - HUB, CLUTCH RELEASE BEARING | ||||
| 31231-35010 |
RY1# |
1 | ||
| 31231-30010 |
RY1# |
1 | ||
| 31231-35020 |
RY10,12 |
1 | ||
| 31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB) | ||||
| 90363-40061 |
RY1# |
1 | ||
| 90363-40078 |
JY16,RY10,12 |
1 | ||
| 90363-40003 |
JY16,RY10,12 |
1 | ||
| 90363-38013 |
RY1# |
1 | ||
| 31232 - CLIP OR SPRING, RELEASE BEARING HUB | ||||
| 90506-14026 |
RY1# |
1 | ||
| 31232-30010 |
JY16,RY10,12 |
2 | ||
| 31232-20010 |
RY1# |
2 | ||
| 31238 - HANGER, RELEASE FORK RETRACTING SPRING | ||||
| 31238-35011 |
RY1# |
1 | ||
| 31240 - FORK ASSY, CLUTCH RELEASE | ||||
| 31240-36011 |
RY1# |
1 | ||
| 31240-35010 |
RY1# |
1 | ||
| 31240A - SPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN) | ||||
| 90506-16282 |
RY1# |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-25010 |
RY10,12 |
1 | ||
| 31250-26040 |
RY10,12 |
1 | ||
| 31250-26021 |
RY10,12 |
1 | ||
| Common parts | ||||
| 90101-08022 | ||||
| 90159-60139 | ||||
| 90170-08197 | ||||
| 91611-41035 | ||||
| 91611-60816 | ||||
| 93381-16014 | ||||
| 94512-00800 | ||||
| 95381-03020 | ||||
