LY30R-QDPQ (1982)

Toyota Toyoace

Production Jan 1982 - Aug 1983
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )

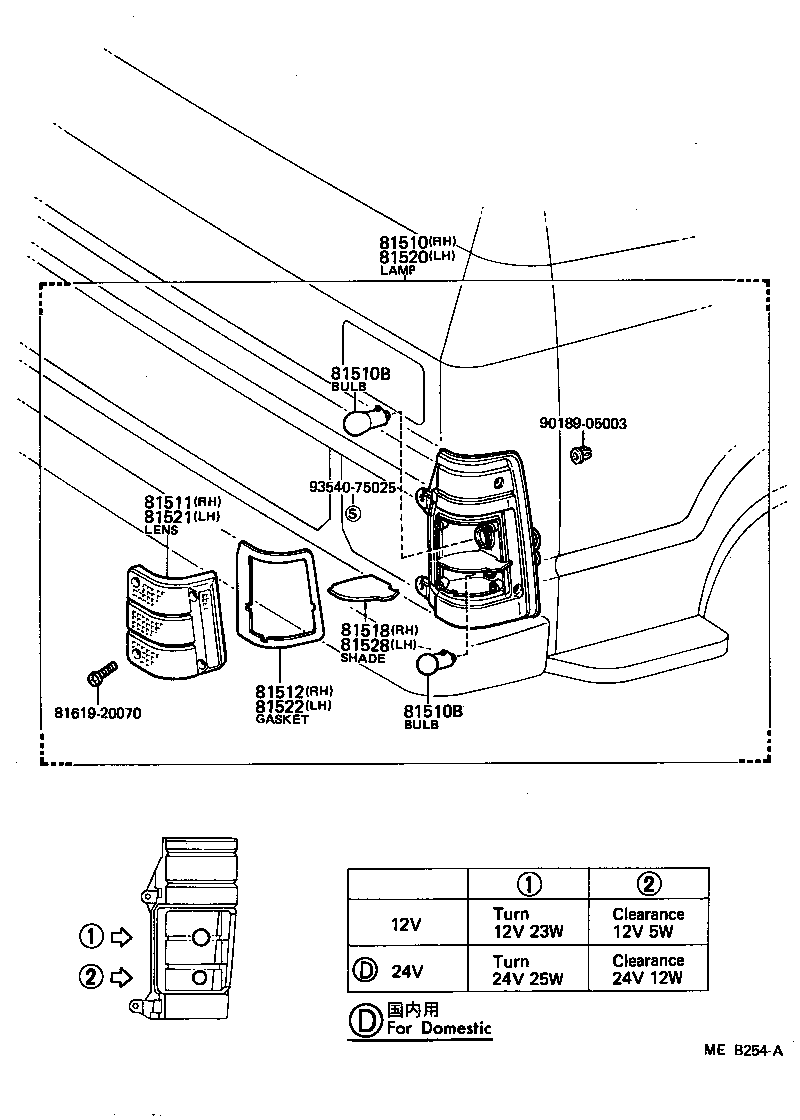

Click highlighted areas on diagram

diagram 81510 81510B 81510B 81511 81512 81518 81520 81521 81522 81528 8161920070 9018905003 9354075025
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-29765

LY30,RY31..ARL

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11230

JY30,LY20,3#,RY20,3#

12V 23W,12V 23W

 2
99132-11050

JY30,LY20,3#,RY20,3#

12V 5W,12V 5W

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11230

JY30,LY20,3#,RY20,3#

12V 23W,12V 23W

 2
99132-11050

JY30,LY20,3#,RY20,3#

12V 5W,12V 5W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-95014

LY30..ARL

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-95010

JY30,LY20,30,RY20,3#

 1
81518 - SHADE, FRONT TURN SIGNAL LAMP, RH
81517-95010

JY30,LY20,30,RY20,3#

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-29755

LY30,RY31..ARL

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-95014

LY30,RY31..ARL

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81512-95010

JY30,LY20,30,RY20,3#

 1
81528 - SHADE, FRONT TURN SIGNAL LAMP, LH
81517-95010

JY30,LY20,30,RY20,3#

 1
Common parts
81619-20070
90189-05003
93540-75025
