LY30R-QDPQ (1982)
Toyota Toyoace
Production
Jan 1982
-
Aug 1983
Engine
L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8201- )JY30,LY3#

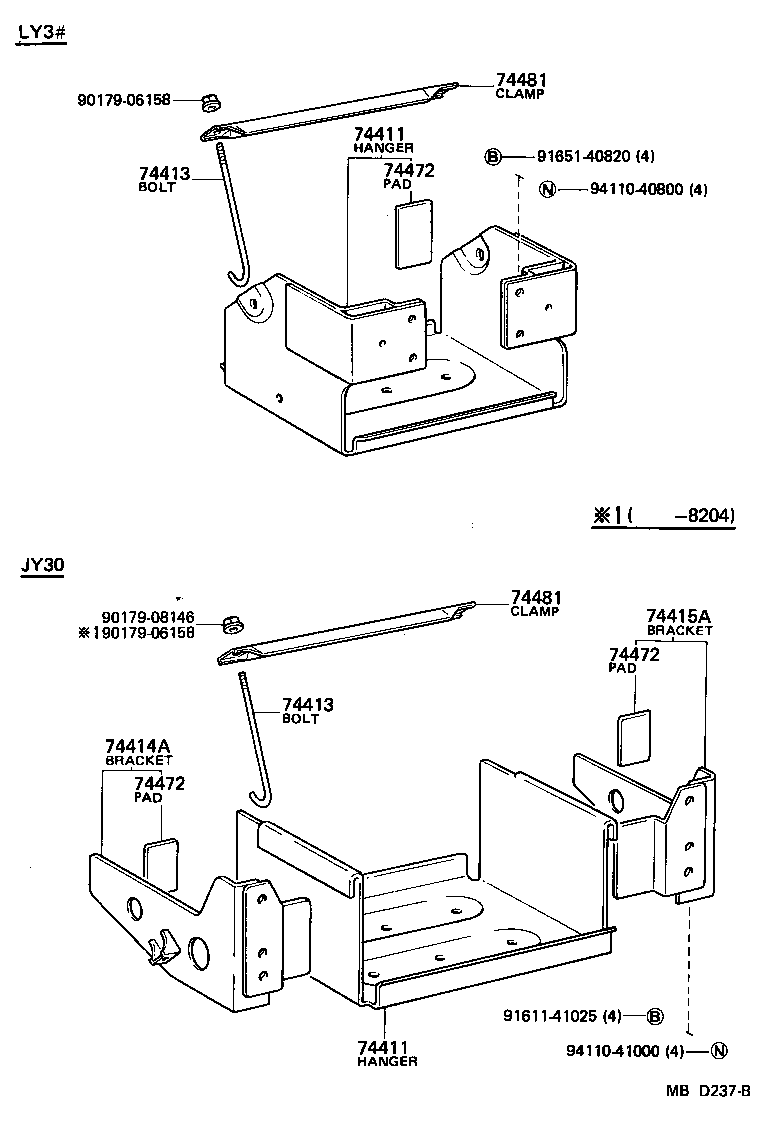

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74411 - CARRIER, BATTERY | ||||
| 74421-25010 |
RY20,3# NS40ZAL |
1 | ||
| 74421-36010 |
LY20,30 NX120-7L |
1 | ||
| 74411-25020 |
RY20,3# N50 |
1 | ||
| 74411 - CARRIER, BATTERY | ||||
| 74421-25010 |
RY20,3# NS40ZAL |
1 | ||
| 74421-36010 |
LY20,30 NX120-7L |
1 | ||
| 74411-25020 |
RY20,3# N50 |
1 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 90101-08132 |
LY20,30 NX120-7L |
1 | ||
| 74451-25020 |
RY20,3# NS40ZAL & N50,50D20R |
2 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 90101-08132 |
LY20,30 NX120-7L |
1 | ||
| 74451-25020 |
RY20,3# NS40ZAL & N50,50D20R |
2 | ||
| 74414A - BRACKET, BATTERY, NO.1 | ||||
| 74411-25011 |
RY20,3# NS40ZAL |
1 | ||
| 74401-36011 |
LY20,30 NX120-7L |
1 | ||
| 74415A - BRACKET, BATTERY, NO.2 | ||||
| 74402-36011 |
LY20,30 NX120-7L |
1 | ||
| 74412-25011 |
RY20,3# NS40ZAL |
1 | ||
| 74472 - PAD, BATTERY SIDE | ||||
| 74472-25010 |
RY20,3# NS40ZAL |
2 | ||
| 74472-25020 |
RY20,3# N50L,50D20R |
2 | ||
| 74472 - PAD, BATTERY SIDE | ||||
| 74472-25010 |
RY20,3# NS40ZAL |
2 | ||
| 74472-25020 |
RY20,3# N50L,50D20R |
2 | ||
| 74472 - PAD, BATTERY SIDE | ||||
| 74472-25010 |
RY20,3# NS40ZAL |
2 | ||
| 74472-25020 |
RY20,3# N50L,50D20R |
2 | ||
| 74481 - CLAMP, BATTERY HOLD DOWN | ||||
| 74453-25020 |
RY20,3# NS40ZAL |
1 | ||
| 74413-36010 |
RY20,3# N50 |
1 | ||
| 74481 - CLAMP, BATTERY HOLD DOWN | ||||
| 74453-25020 |
RY20,3# NS40ZAL |
1 | ||
| 74413-36010 |
RY20,3# N50 |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
| 90179-08146 | ||||
| 91611-41025 | ||||
| 91651-40820 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
