JY30R-QDH (1979)

Toyota Toyoace

Production Mar 1979 - Aug 1983
Engine 2J
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )RY20,3#

Click highlighted areas on diagram

diagram 44729 44729 44730A 44730A 44730F 44730F 44761 44762 44762 44764A 44774 9046108332 9046108334 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9094901033 9161160814 9161160814 9161160816 9165140820
Part # Description Qty Price
44729 - GASKET, VACUUM TUBE
44729-25010

JY30,LY20,3#,RY20,3#

 1
44729 - GASKET, VACUUM TUBE
44729-25010

JY30,LY20,3#,RY20,3#

 1
44730A - HOSE, VACUUM, NO.1
44776-25010

JY30,LY20,3#,RY20,3#

 1
44730A - HOSE, VACUUM, NO.1
44776-25010

JY30,LY20,3#,RY20,3#

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

RY20,30

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

RY20,30

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44764-25040

RY20,3#

 1
44764-25030

LY20,30

 1
44761-25050

JY30

 1
44762 - TUBE, BOOSTER VACUUM
44762-25030

JY30,LY20,3#,RY20,3#..RHD

 1
44762 - TUBE, BOOSTER VACUUM
44762-25030

JY30,LY20,3#,RY20,3#..RHD

 1
44764A - HOSE, BOOSTER VACUUM
90445-17927

RY20,3#

 1
44772-25010

JY30

 1
44772-25020

LY20,30

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
95441-09220

JY30

 1
44774-25010

RY20,30

 1
90445-17033

JY30

 1
44774-25021

LY20,3#

 1
Common parts
90461-08332
90461-08334
90467-16002
90949-01033
91611-60814
91611-60816
91651-40820

(7903-8308)LY20,30

Click highlighted areas on diagram

diagram 44704 44729 44730 44730A 44743 44761 44762 44764A 44773 44774 44786 9046108332 9046108334 9046108418 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9094901033 9161140814 9161140814 9161140816 9162140812 9165140820 9165140820 9165140820
Part # Description Qty Price
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-25021

LY20,30

 1
44704-25020

JY30,LY20,30

 1
44704-25030

JY30

 1
44729 - GASKET, VACUUM TUBE
44729-25010

JY30,LY20,3#,RY20,3#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60040

JY30,LY20,3#

 1
44730A - HOSE, VACUUM, NO.1
44776-25010

JY30,LY20,3#,RY20,3#

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09007

JY30

 1
90405-09013

LY20,30

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44764-25040

RY20,3#

 1
44764-25030

LY20,30

 1
44761-25050

JY30

 1
44762 - TUBE, BOOSTER VACUUM
44762-25030

JY30,LY20,3#,RY20,3#..RHD

 1
44764A - HOSE, BOOSTER VACUUM
90445-17927

RY20,3#

 1
44772-25010

JY30

 1
44772-25020

LY20,30

 1
44773 - HOSE, VACUUM, NO.2
44771-25010

JY30,LY20,30

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
95441-09220

JY30

 1
44774-25010

RY20,30

 1
90445-17033

JY30

 1
44774-25021

LY20,3#

 1
Common parts
90461-08332
90461-08334
90461-08418
90467-16141
90949-01033
91611-40814
91611-40816
91621-40812
91651-40820

(7903-8308)JY30

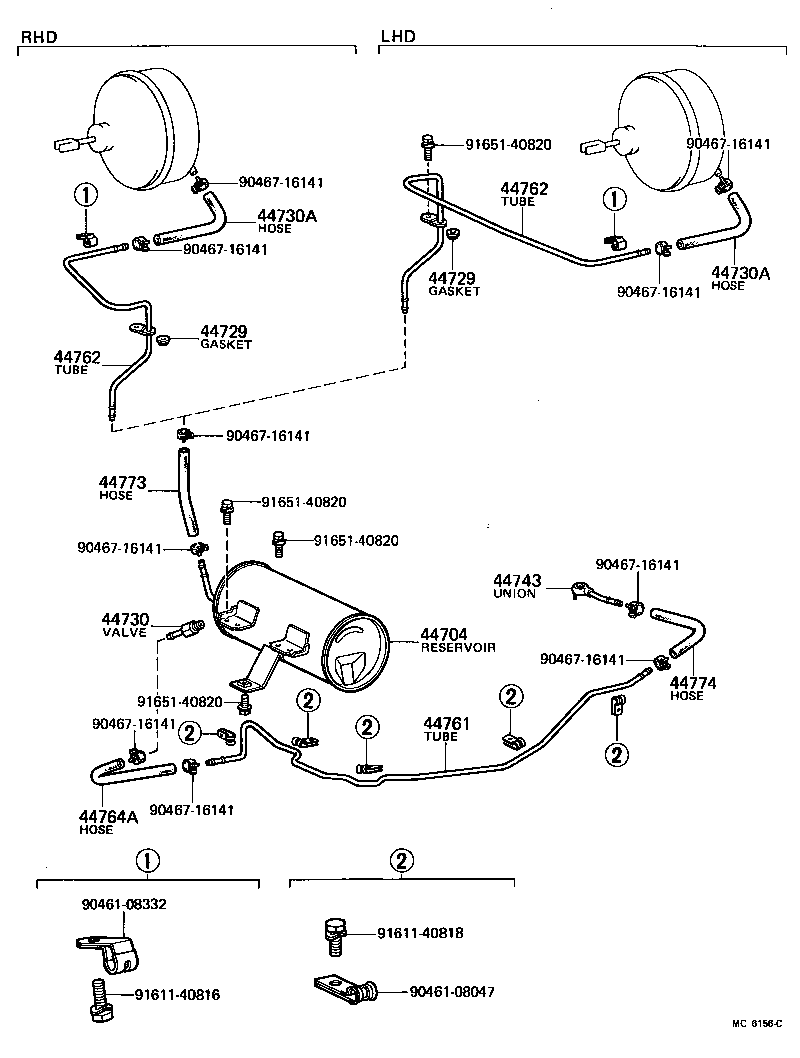

Click highlighted areas on diagram

diagram 44704 44729 44729 44730 44730A 44730A 44743 44761 44762 44762 44764A 44773 44774 9046108047 9046108332 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9161140816 9161140818 9165140820 9165140820 9165140820 9165140820
Part # Description Qty Price
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-25021

LY20,30

 1
44704-25020

JY30,LY20,30

 1
44704-25030

JY30

 1
44729 - GASKET, VACUUM TUBE
44729-25010

JY30,LY20,3#,RY20,3#

 1
44729 - GASKET, VACUUM TUBE
44729-25010

JY30,LY20,3#,RY20,3#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60040

JY30,LY20,3#

 1
44730A - HOSE, VACUUM, NO.1
44776-25010

JY30,LY20,3#,RY20,3#

 1
44730A - HOSE, VACUUM, NO.1
44776-25010

JY30,LY20,3#,RY20,3#

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09013

LY20,30

 1
90405-09007

JY30

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44764-25040

RY20,3#

 1
44764-25030

LY20,30

 1
44761-25050

JY30

 1
44762 - TUBE, BOOSTER VACUUM
44762-25030

JY30,LY20,3#,RY20,3#..RHD

 1
44762 - TUBE, BOOSTER VACUUM
44762-25030

JY30,LY20,3#,RY20,3#..RHD

 1
44764A - HOSE, BOOSTER VACUUM
90445-17927

RY20,3#

 1
44772-25010

JY30

 1
44772-25020

LY20,30

 1
44773 - HOSE, VACUUM, NO.2
44771-25010

JY30,LY20,30

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
95441-09220

JY30

 1
44774-25010

RY20,30

 1
90445-17033

JY30

 1
44774-25021

LY20,3#

 1
Common parts
90461-08047
90461-08332
90467-16141
91611-40816
91611-40818
91651-40820
