JY30R-QDH (1979)
Toyota Toyoace
(7903- )LY20,3#

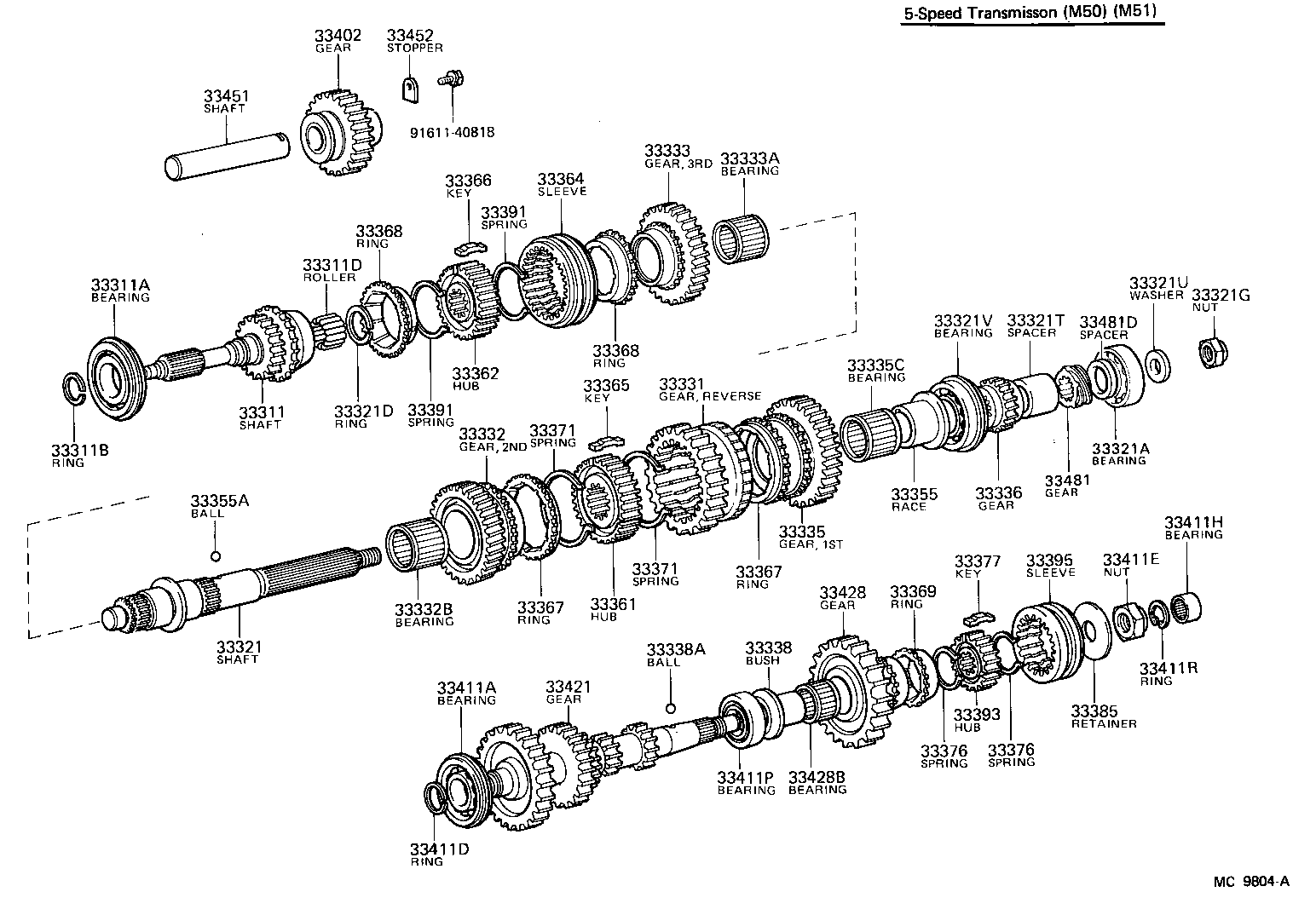

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33311 - SHAFT, INPUT | ||||
| 33311-36062 |
JY30 |
1 | ||
| 33311-25020 |
LY20,3# |
1 | ||
| 33311-36061 |
JY30 |
1 | ||
| 33311-36060 |
JY30 |
1 | ||
| 33311-25010 |
RY20,3# |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-35002 |
JY30 BALL BEARING |
1 | ||
| 90365-30002 |
LY20,3# |
1 | ||
| 97163-06306 |
RY20,3# |
1 | ||
| 90365-35001 |
JY30 ROLLER BEARING |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-33107 |
JY30 T=2.30-2.35,MARK 11,T=2.30-2.35 |
1 | ||
| 90520-33132 |
JY30 T=2.35-2.40,MARK 12,T=2.35-2.40 |
1 | ||
| 90520-33134 |
JY30 T=2.55,MARK 16,T=2.55-2.60 |
1 | ||
| 90520-33109 |
JY30 T=2.50,MARK 15,T=2.50-2.55 |
1 | ||
| 90520-28040 |
LY20,3#,RY20,3# T=2.3 |
1 | ||
| 90520-33133 |
JY30 T=2.45,MARK 14,T=2.45-2.50 |
1 | ||
| 90520-33108 |
JY30 T=2.40,MARK 13,T=2.40-2.45 |
1 | ||
| 90520-28041 |
LY20,3#,RY20,3# T=2.4 |
1 | ||
| 33311C - RING, HOLE SNAP (FOR NEEDLE ROLLER) | ||||
| 90521-33006 |
LY20,3#,RY20,3# |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90361-06049 |
JY30 |
16 | ||
| 90361-06047 |
LY20,3#,RY20,3# |
14 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-36052 |
JY30 |
1 | ||
| 33321-25020 |
RY20,3# |
1 | ||
| 33321-25030 |
LY20,3# |
1 | ||
| 33321-36050 |
JY30 |
1 | ||
| 33321-36051 |
JY30 |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 97104-06232 |
JY30 |
1 | ||
| 90363-35021 |
RY20,3# |
1 | ||
| 90363-30013 |
LY20,30 |
1 | ||
| 90363-32011 |
JY30 |
1 | ||
| 33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET) | ||||
| 90520-30217 |
LY20,3#,RY20,3# T=2.20,MARK 3,T=2.20 |
1 | ||
| 90520-36253 |
JY30 T=2.55-2.60,T=2.55-2.60 |
1 | ||
| 90520-30214 |
LY20,3#,RY20,3# T=2.05,MARK 0,T=2.05 |
1 | ||
| 90520-36251 |
JY30 T=2.45-2.50,T=2.45-2.50 |
1 | ||
| 90520-30218 |
LY20,3#,RY20,3# T=2.25,MARK 4,T=2.25 |
1 | ||
| 90520-36250 |
JY30 T=2.40-2.45,T=2.40-2.45 |
1 | ||
| 90520-30216 |
LY20,3#,RY20,3# T=2.15,MARK 2,T=2.15 |
1 | ||
| 90520-30215 |
LY20,3#,RY20,3# T=2.10,MARK 1,T=2.10 |
1 | ||
| 90520-36252 |
JY30 T=2.50-2.55,T=2.50-2.55 |
1 | ||
| 90520-36254 |
JY30 T=2.60-2.65,T=2.60-2.65 |
1 | ||
| 90520-36255 |
JY30 T=2.65-2.70,T=2.65-2.70 |
1 | ||
| 90520-30238 |
LY20,3#,RY20,3# T=2.00 |
1 | ||
| 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) | ||||
| 90179-20001 |
JY30 |
1 | ||
| 90179-20061 |
JY30,LY20,30,RY20,3# |
1 | ||
| 33321H - SHIM (FOR OUTPUT SHAFT REAR BEARING) | ||||
| 90564-21143 |
LY20,30,RY20,3# |
1 | ||
| 33321T - SPACER (FOR OUTPUT SHAFT) | ||||
| 90560-32002 |
JY30 |
1 | ||
| 90561-32002 |
LY20,3# |
1 | ||
| 90560-32003 |
JY30 |
1 | ||
| 33321U - WASHER (FOR MANUAL TRANSMISSION OUTPUT SHAFT SET) | ||||
| 90201-20479 |
JY30 |
1 | ||
| 90201-20010 |
JY30 |
1 | ||
| 90201-20329 |
LY20,3#,RY20,3# |
1 | ||
| 33321V - BEARING (FOR OUTPUT SHAFT CENTER) | ||||
| 97153-06307 |
JY30,LY20,30 |
1 | ||
| 97153-06307 |
LY20,30 |
1 | ||
| 90363-35011 |
JY30 |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-25010 |
LY20,3#,RY20,3# |
1 | ||
| 33331-36024 |
JY30 |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33332-25011 |
LY20,3#,RY20,3# |
1 | ||
| 33332-36020 |
JY30 |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-45001 |
LY20,3#,RY20,3# |
1 | ||
| 90364-46003 |
JY30 |
1 | ||
| 90364-46053 |
JY30 |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33333-25010 |
RY20,3# |
1 | ||
| 33333-36021 |
JY30 |
1 | ||
| 33333-25020 |
LY20,3# |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33335-25010 |
RY20,3# |
1 | ||
| 33335-36050 |
JY30 |
1 | ||
| 33335-25020 |
LY20,3# |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-45001 |
LY20,3#,RY20,3# |
1 | ||
| 90364-46053 |
JY30 |
1 | ||
| 90364-46003 |
JY30 |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33336-36031 |
JY30 |
1 | ||
| 33336-36030 |
JY30 |
1 | ||
| 33336-25010 |
LY20,3# |
1 | ||
| 33338 - BUSH OR BEARING, 5TH GEAR | ||||
| 33338-36020 |
JY30 |
1 | ||
| 33359-25010 |
LY20,3# |
1 | ||
| 33338A - BALL (FOR GEAR BUSH) | ||||
| 90360-06004 |
JY30,LY20,3# |
1 | ||
| 33355 - RACE, 1ST GEAR BEARING INNER | ||||
| 33355-36010 |
JY30 |
1 | ||
| 33355-25010 |
LY20,3#,RY20,3# |
1 | ||
| 33355A - KEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK | ||||
| 90360-06004 |
JY30,LY20,3#,RY20,3# |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-25010 |
LY20,3#,RY20,3# |
1 | ||
| 33361-36010 |
JY30 |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-36021 |
JY30 |
1 | ||
| 33362-25010 |
LY20,3#,RY20,3# |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-36051 |
JY30 |
1 | ||
| 33364-25011 |
LY20,3#,RY20,3# |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-36010 |
JY30 |
3 | ||
| 33365-25010 |
LY20,3#,RY20,3# |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-25011 |
LY20,3#,RY20,3# |
3 | ||
| 33366-36020 |
JY30 |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-36030 |
JY30 2ND GEAR |
1 | ||
| 33367-40012 |
JY30 1ST GEAR |
1 | ||
| 33368-20012 |
LY20,3#,RY20,3# |
2 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-36030 |
JY30 2ND GEAR |
1 | ||
| 33367-40012 |
JY30 1ST GEAR |
1 | ||
| 33368-20012 |
LY20,3#,RY20,3# |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20012 |
JY30 |
2 | ||
| 33367-14010 |
LY20,3#,RY20,3# |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20012 |
JY30 |
2 | ||
| 33367-14010 |
LY20,3#,RY20,3# |
2 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33367-14010 |
JY30,LY20,3# |
1 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-36020 |
JY30 |
2 | ||
| 33371-20010 |
LY20,3#,RY20,3# |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-36020 |
JY30 |
2 | ||
| 33371-20010 |
LY20,3#,RY20,3# |
2 | ||
| 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) | ||||
| 33371-14010 |
JY30,LY20,3# |
2 | ||
| 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) | ||||
| 33371-14010 |
JY30,LY20,3# |
2 | ||
| 33377 - KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB) | ||||
| 33366-14010 |
JY30,LY20,3# |
3 | ||
| 33385 - RETAINER, SHIFTING KEY | ||||
| 33385-36020 |
JY30 |
1 | ||
| 33385-25010 |
LY20,3# |
1 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-25020 |
LY20,3#,RY20,3# |
2 | ||
| 33371-20010 |
JY30 |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-25020 |
LY20,3#,RY20,3# |
2 | ||
| 33371-20010 |
JY30 |
2 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-36020 |
JY30,LY20,3# |
1 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33364-14010 |
JY30,LY20,3# |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-25020 |
LY20,3#,RY20,3# |
1 | ||
| 33402-36030 |
JY30 |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 97153-06305 |
RY20,3# |
1 | ||
| 90365-25001 |
LY20,3# |
1 | ||
| 90365-30004 |
JY30 |
1 | ||
| 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 | ||||
| 90520-28248 |
JY30 T=2.00-2.05,MARK F,T=2.0 |
1 | ||
| 90520-23145 |
LY20,3#,RY20,3# T=2.30-2.35,T=2.35 |
1 | ||
| 90520-28246 |
JY30 T=1.90-1.95,MARK E,T=1.9 |
1 | ||
| 90520-23147 |
LY20,3#,RY20,3# T=2.40-2.45,T=2.45 |
1 | ||
| 90520-23090 |
LY20,3#,RY20,3# T=2.20-2.25,T=2.20 |
1 | ||
| 90520-28249 |
JY30 T=2.10-2.15,MARK G,T=2.1 |
1 | ||
| 33411E - NUT(FOR COUNTER GEAR SHAFT) | ||||
| 90179-25107 |
LY20,30 |
1 | ||
| 90179-26002 |
JY30 |
1 | ||
| 90179-26001 |
JY30 |
1 | ||
| 33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR) | ||||
| 90365-33001 |
RY20,3# |
1 | ||
| 90364-22003 |
JY30,LY20,3# |
1 | ||
| 33411P - BEARING, COUNTER SHAFT CENTER | ||||
| 90365-33001 |
LY20,3# |
1 | ||
| 90365-30014 |
JY30 |
1 | ||
| 33411R - RING, SNAP, COUNTER GEAR REAR BEARING | ||||
| 90521-38117 |
JY30,LY20,3# T=1.5 |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33411-36061 |
JY30 |
1 | ||
| 33411-36060 |
JY30 |
1 | ||
| 33421-25011 |
RY20,3# |
1 | ||
| 33421-25021 |
LY20,3# |
1 | ||
| 33428 - GEAR, COUNTERSHAFT 5TH | ||||
| 33428-36030 |
JY30 |
1 | ||
| 33428-25010 |
LY20,3# |
1 | ||
| 33428B - BEARING (FOR COUNTER 5TH GEAR) | ||||
| 90364-38001 |
JY30 |
1 | ||
| 90364-36003 |
LY20,3# |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-36030 |
JY30 |
1 | ||
| 33451-25010 |
LY20,3#,RY20,3# |
1 | ||
| 33451A - KEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90280-03005 |
LY20,3#,RY20,3# |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-36060 |
JY30 N=5 |
1 | ||
| 33481-25010 |
RY20,30;RY31..20T N=4,N=4 |
1 | ||
| 33481-36090 |
JY30 N=5 |
1 | ||
| 33481A - KEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM) | ||||
| 90360-06004 |
LY20,3#,RY20,3# |
1 | ||
| 33481D - SPACER (FOR SPEEDOMETER DRIVE GEAR) | ||||
| 90560-30002 |
RY20,3# RR |
1 | ||
| 33487-36040 |
JY30 |
1 | ||
| 33487-36020 |
JY30 |
1 | ||
| 90560-30003 |
LY20,30 |
1 | ||
| 90561-30001 |
RY20,3# FR |
1 | ||
(7903- )RY20,3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33311 - SHAFT, INPUT | ||||
| 33311-36062 |
JY30 |
1 | ||
| 33311-25020 |
LY20,3# |
1 | ||
| 33311-36061 |
JY30 |
1 | ||
| 33311-36060 |
JY30 |
1 | ||
| 33311-25010 |
RY20,3# |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-35002 |
JY30 BALL BEARING |
1 | ||
| 90365-30002 |
LY20,3# |
1 | ||
| 97163-06306 |
RY20,3# |
1 | ||
| 90365-35001 |
JY30 ROLLER BEARING |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-33107 |
JY30 T=2.30-2.35,MARK 11,T=2.30-2.35 |
1 | ||
| 90520-33132 |
JY30 T=2.35-2.40,MARK 12,T=2.35-2.40 |
1 | ||
| 90520-33134 |
JY30 T=2.55,MARK 16,T=2.55-2.60 |
1 | ||
| 90520-33109 |
JY30 T=2.50,MARK 15,T=2.50-2.55 |
1 | ||
| 90520-28040 |
LY20,3#,RY20,3# T=2.3 |
1 | ||
| 90520-33133 |
JY30 T=2.45,MARK 14,T=2.45-2.50 |
1 | ||
| 90520-33108 |
JY30 T=2.40,MARK 13,T=2.40-2.45 |
1 | ||
| 90520-28041 |
LY20,3#,RY20,3# T=2.4 |
1 | ||
| 33311C - RING, HOLE SNAP (FOR NEEDLE ROLLER) | ||||
| 90521-33006 |
LY20,3#,RY20,3# |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90361-06049 |
JY30 |
16 | ||
| 90361-06047 |
LY20,3#,RY20,3# |
14 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-36052 |
JY30 |
1 | ||
| 33321-25020 |
RY20,3# |
1 | ||
| 33321-25030 |
LY20,3# |
1 | ||
| 33321-36050 |
JY30 |
1 | ||
| 33321-36051 |
JY30 |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 97104-06232 |
JY30 |
1 | ||
| 90363-35021 |
RY20,3# |
1 | ||
| 90363-30013 |
LY20,30 |
1 | ||
| 90363-32011 |
JY30 |
1 | ||
| 33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET) | ||||
| 90520-30217 |
LY20,3#,RY20,3# T=2.20,MARK 3,T=2.20 |
1 | ||
| 90520-36253 |
JY30 T=2.55-2.60,T=2.55-2.60 |
1 | ||
| 90520-30214 |
LY20,3#,RY20,3# T=2.05,MARK 0,T=2.05 |
1 | ||
| 90520-36251 |
JY30 T=2.45-2.50,T=2.45-2.50 |
1 | ||
| 90520-30218 |
LY20,3#,RY20,3# T=2.25,MARK 4,T=2.25 |
1 | ||
| 90520-36250 |
JY30 T=2.40-2.45,T=2.40-2.45 |
1 | ||
| 90520-30216 |
LY20,3#,RY20,3# T=2.15,MARK 2,T=2.15 |
1 | ||
| 90520-30215 |
LY20,3#,RY20,3# T=2.10,MARK 1,T=2.10 |
1 | ||
| 90520-36252 |
JY30 T=2.50-2.55,T=2.50-2.55 |
1 | ||
| 90520-36254 |
JY30 T=2.60-2.65,T=2.60-2.65 |
1 | ||
| 90520-36255 |
JY30 T=2.65-2.70,T=2.65-2.70 |
1 | ||
| 90520-30238 |
LY20,3#,RY20,3# T=2.00 |
1 | ||
| 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) | ||||
| 90179-20001 |
JY30 |
1 | ||
| 90179-20061 |
JY30,LY20,30,RY20,3# |
1 | ||
| 33321H - SHIM (FOR OUTPUT SHAFT REAR BEARING) | ||||
| 90564-21143 |
LY20,30,RY20,3# |
1 | ||
| 33321U - WASHER (FOR MANUAL TRANSMISSION OUTPUT SHAFT SET) | ||||
| 90201-20479 |
JY30 |
1 | ||
| 90201-20010 |
JY30 |
1 | ||
| 90201-20329 |
LY20,3#,RY20,3# |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-25010 |
LY20,3#,RY20,3# |
1 | ||
| 33331-36024 |
JY30 |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33332-25011 |
LY20,3#,RY20,3# |
1 | ||
| 33332-36020 |
JY30 |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-45001 |
LY20,3#,RY20,3# |
1 | ||
| 90364-46003 |
JY30 |
1 | ||
| 90364-46053 |
JY30 |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33333-25010 |
RY20,3# |
1 | ||
| 33333-36021 |
JY30 |
1 | ||
| 33333-25020 |
LY20,3# |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33335-25010 |
RY20,3# |
1 | ||
| 33335-36050 |
JY30 |
1 | ||
| 33335-25020 |
LY20,3# |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-45001 |
LY20,3#,RY20,3# |
1 | ||
| 90364-46053 |
JY30 |
1 | ||
| 90364-46003 |
JY30 |
1 | ||
| 33355 - RACE, 1ST GEAR BEARING INNER | ||||
| 33355-36010 |
JY30 |
1 | ||
| 33355-25010 |
LY20,3#,RY20,3# |
1 | ||
| 33355A - KEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK | ||||
| 90360-06004 |
JY30,LY20,3#,RY20,3# |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-25010 |
LY20,3#,RY20,3# |
1 | ||
| 33361-36010 |
JY30 |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-36021 |
JY30 |
1 | ||
| 33362-25010 |
LY20,3#,RY20,3# |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-36051 |
JY30 |
1 | ||
| 33364-25011 |
LY20,3#,RY20,3# |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-36010 |
JY30 |
3 | ||
| 33365-25010 |
LY20,3#,RY20,3# |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-25011 |
LY20,3#,RY20,3# |
3 | ||
| 33366-36020 |
JY30 |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-36030 |
JY30 2ND GEAR |
1 | ||
| 33367-40012 |
JY30 1ST GEAR |
1 | ||
| 33368-20012 |
LY20,3#,RY20,3# |
2 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-36030 |
JY30 2ND GEAR |
1 | ||
| 33367-40012 |
JY30 1ST GEAR |
1 | ||
| 33368-20012 |
LY20,3#,RY20,3# |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20012 |
JY30 |
2 | ||
| 33367-14010 |
LY20,3#,RY20,3# |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20012 |
JY30 |
2 | ||
| 33367-14010 |
LY20,3#,RY20,3# |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-36020 |
JY30 |
2 | ||
| 33371-20010 |
LY20,3#,RY20,3# |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-36020 |
JY30 |
2 | ||
| 33371-20010 |
LY20,3#,RY20,3# |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-25020 |
LY20,3#,RY20,3# |
2 | ||
| 33371-20010 |
JY30 |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-25020 |
LY20,3#,RY20,3# |
2 | ||
| 33371-20010 |
JY30 |
2 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-25020 |
LY20,3#,RY20,3# |
1 | ||
| 33402-36030 |
JY30 |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 97153-06305 |
RY20,3# |
1 | ||
| 90365-25001 |
LY20,3# |
1 | ||
| 90365-30004 |
JY30 |
1 | ||
| 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 | ||||
| 90520-28248 |
JY30 T=2.00-2.05,MARK F,T=2.0 |
1 | ||
| 90520-23145 |
LY20,3#,RY20,3# T=2.30-2.35,T=2.35 |
1 | ||
| 90520-28246 |
JY30 T=1.90-1.95,MARK E,T=1.9 |
1 | ||
| 90520-23147 |
LY20,3#,RY20,3# T=2.40-2.45,T=2.45 |
1 | ||
| 90520-23090 |
LY20,3#,RY20,3# T=2.20-2.25,T=2.20 |
1 | ||
| 90520-28249 |
JY30 T=2.10-2.15,MARK G,T=2.1 |
1 | ||
| 33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR) | ||||
| 90365-33001 |
RY20,3# |
1 | ||
| 90364-22003 |
JY30,LY20,3# |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33411-36061 |
JY30 |
1 | ||
| 33411-36060 |
JY30 |
1 | ||
| 33421-25011 |
RY20,3# |
1 | ||
| 33421-25021 |
LY20,3# |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-36030 |
JY30 |
1 | ||
| 33451-25010 |
LY20,3#,RY20,3# |
1 | ||
| 33451A - KEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90280-03005 |
LY20,3#,RY20,3# |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-36060 |
JY30 N=5 |
1 | ||
| 33481-25010 |
RY20,30;RY31..20T N=4,N=4 |
1 | ||
| 33481-36090 |
JY30 N=5 |
1 | ||
| 33481A - KEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM) | ||||
| 90360-06004 |
LY20,3#,RY20,3# |
1 | ||
| 33481D - SPACER (FOR SPEEDOMETER DRIVE GEAR) | ||||
| 90560-30002 |
RY20,3# RR |
1 | ||
| 33487-36040 |
JY30 |
1 | ||
| 33487-36020 |
JY30 |
1 | ||
| 90560-30003 |
LY20,30 |
1 | ||
| 90561-30001 |
RY20,3# FR |
1 | ||
| 33481D - SPACER (FOR SPEEDOMETER DRIVE GEAR) | ||||
| 90560-30002 |
RY20,3# RR |
1 | ||
| 33487-36040 |
JY30 |
1 | ||
| 33487-36020 |
JY30 |
1 | ||
| 90560-30003 |
LY20,30 |
1 | ||
| 90561-30001 |
RY20,3# FR |
1 | ||
(7903-8308)JY30
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33311 - SHAFT, INPUT | ||||
| 33311-36062 |
JY30 |
1 | ||
| 33311-25020 |
LY20,3# |
1 | ||
| 33311-36061 |
JY30 |
1 | ||
| 33311-36060 |
JY30 |
1 | ||
| 33311-25010 |
RY20,3# |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-35002 |
JY30 BALL BEARING |
1 | ||
| 90365-30002 |
LY20,3# |
1 | ||
| 97163-06306 |
RY20,3# |
1 | ||
| 90365-35001 |
JY30 ROLLER BEARING |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-33107 |
JY30 T=2.30-2.35,MARK 11,T=2.30-2.35 |
1 | ||
| 90520-33132 |
JY30 T=2.35-2.40,MARK 12,T=2.35-2.40 |
1 | ||
| 90520-33134 |
JY30 T=2.55,MARK 16,T=2.55-2.60 |
1 | ||
| 90520-33109 |
JY30 T=2.50,MARK 15,T=2.50-2.55 |
1 | ||
| 90520-28040 |
LY20,3#,RY20,3# T=2.3 |
1 | ||
| 90520-33133 |
JY30 T=2.45,MARK 14,T=2.45-2.50 |
1 | ||
| 90520-33108 |
JY30 T=2.40,MARK 13,T=2.40-2.45 |
1 | ||
| 90520-28041 |
LY20,3#,RY20,3# T=2.4 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90361-06049 |
JY30 |
16 | ||
| 90361-06047 |
LY20,3#,RY20,3# |
14 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-36052 |
JY30 |
1 | ||
| 33321-25020 |
RY20,3# |
1 | ||
| 33321-25030 |
LY20,3# |
1 | ||
| 33321-36050 |
JY30 |
1 | ||
| 33321-36051 |
JY30 |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 97104-06232 |
JY30 |
1 | ||
| 90363-35021 |
RY20,3# |
1 | ||
| 90363-30013 |
LY20,30 |
1 | ||
| 90363-32011 |
JY30 |
1 | ||
| 33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET) | ||||
| 90520-30217 |
LY20,3#,RY20,3# T=2.20,MARK 3,T=2.20 |
1 | ||
| 90520-36253 |
JY30 T=2.55-2.60,T=2.55-2.60 |
1 | ||
| 90520-30214 |
LY20,3#,RY20,3# T=2.05,MARK 0,T=2.05 |
1 | ||
| 90520-36251 |
JY30 T=2.45-2.50,T=2.45-2.50 |
1 | ||
| 90520-30218 |
LY20,3#,RY20,3# T=2.25,MARK 4,T=2.25 |
1 | ||
| 90520-36250 |
JY30 T=2.40-2.45,T=2.40-2.45 |
1 | ||
| 90520-30216 |
LY20,3#,RY20,3# T=2.15,MARK 2,T=2.15 |
1 | ||
| 90520-30215 |
LY20,3#,RY20,3# T=2.10,MARK 1,T=2.10 |
1 | ||
| 90520-36252 |
JY30 T=2.50-2.55,T=2.50-2.55 |
1 | ||
| 90520-36254 |
JY30 T=2.60-2.65,T=2.60-2.65 |
1 | ||
| 90520-36255 |
JY30 T=2.65-2.70,T=2.65-2.70 |
1 | ||
| 90520-30238 |
LY20,3#,RY20,3# T=2.00 |
1 | ||
| 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) | ||||
| 90179-20001 |
JY30 |
1 | ||
| 90179-20061 |
JY30,LY20,30,RY20,3# |
1 | ||
| 33321T - SPACER (FOR OUTPUT SHAFT) | ||||
| 90560-32002 |
JY30 |
1 | ||
| 90561-32002 |
LY20,3# |
1 | ||
| 90560-32003 |
JY30 |
1 | ||
| 33321U - WASHER (FOR MANUAL TRANSMISSION OUTPUT SHAFT SET) | ||||
| 90201-20479 |
JY30 |
1 | ||
| 90201-20010 |
JY30 |
1 | ||
| 90201-20329 |
LY20,3#,RY20,3# |
1 | ||
| 33321V - BEARING (FOR OUTPUT SHAFT CENTER) | ||||
| 97153-06307 |
JY30,LY20,30 |
1 | ||
| 97153-06307 |
LY20,30 |
1 | ||
| 90363-35011 |
JY30 |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-25010 |
LY20,3#,RY20,3# |
1 | ||
| 33331-36024 |
JY30 |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33332-25011 |
LY20,3#,RY20,3# |
1 | ||
| 33332-36020 |
JY30 |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-45001 |
LY20,3#,RY20,3# |
1 | ||
| 90364-46003 |
JY30 |
1 | ||
| 90364-46053 |
JY30 |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33333-25010 |
RY20,3# |
1 | ||
| 33333-36021 |
JY30 |
1 | ||
| 33333-25020 |
LY20,3# |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90364-43004 |
JY30 KOYO |
1 | ||
| 90364-43042 |
JY30 |
1 | ||
| 90364-43003 |
JY30 NSK |
1 | ||
| 90364-43001 |
JY30 NSK |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33335-25010 |
RY20,3# |
1 | ||
| 33335-36050 |
JY30 |
1 | ||
| 33335-25020 |
LY20,3# |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-45001 |
LY20,3#,RY20,3# |
1 | ||
| 90364-46053 |
JY30 |
1 | ||
| 90364-46003 |
JY30 |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33336-36031 |
JY30 |
1 | ||
| 33336-36030 |
JY30 |
1 | ||
| 33336-25010 |
LY20,3# |
1 | ||
| 33338 - BUSH OR BEARING, 5TH GEAR | ||||
| 33338-36020 |
JY30 |
1 | ||
| 33359-25010 |
LY20,3# |
1 | ||
| 33338A - BALL (FOR GEAR BUSH) | ||||
| 90360-06004 |
JY30,LY20,3# |
1 | ||
| 33355 - RACE, 1ST GEAR BEARING INNER | ||||
| 33355-36010 |
JY30 |
1 | ||
| 33355-25010 |
LY20,3#,RY20,3# |
1 | ||
| 33355A - KEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK | ||||
| 90360-06004 |
JY30,LY20,3#,RY20,3# |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-25010 |
LY20,3#,RY20,3# |
1 | ||
| 33361-36010 |
JY30 |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-36021 |
JY30 |
1 | ||
| 33362-25010 |
LY20,3#,RY20,3# |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-36051 |
JY30 |
1 | ||
| 33364-25011 |
LY20,3#,RY20,3# |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-36010 |
JY30 |
3 | ||
| 33365-25010 |
LY20,3#,RY20,3# |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-25011 |
LY20,3#,RY20,3# |
3 | ||
| 33366-36020 |
JY30 |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-36030 |
JY30 2ND GEAR |
1 | ||
| 33367-40012 |
JY30 1ST GEAR |
1 | ||
| 33368-20012 |
LY20,3#,RY20,3# |
2 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-36030 |
JY30 2ND GEAR |
1 | ||
| 33367-40012 |
JY30 1ST GEAR |
1 | ||
| 33368-20012 |
LY20,3#,RY20,3# |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20012 |
JY30 |
2 | ||
| 33367-14010 |
LY20,3#,RY20,3# |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20012 |
JY30 |
2 | ||
| 33367-14010 |
LY20,3#,RY20,3# |
2 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33367-14010 |
JY30,LY20,3# |
1 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-36020 |
JY30 |
2 | ||
| 33371-20010 |
LY20,3#,RY20,3# |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-36020 |
JY30 |
2 | ||
| 33371-20010 |
LY20,3#,RY20,3# |
2 | ||
| 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) | ||||
| 33371-14010 |
JY30,LY20,3# |
2 | ||
| 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) | ||||
| 33371-14010 |
JY30,LY20,3# |
2 | ||
| 33377 - KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB) | ||||
| 33366-14010 |
JY30,LY20,3# |
3 | ||
| 33385 - RETAINER, SHIFTING KEY | ||||
| 33385-36020 |
JY30 |
1 | ||
| 33385-25010 |
LY20,3# |
1 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-25020 |
LY20,3#,RY20,3# |
2 | ||
| 33371-20010 |
JY30 |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-25020 |
LY20,3#,RY20,3# |
2 | ||
| 33371-20010 |
JY30 |
2 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-36020 |
JY30,LY20,3# |
1 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33364-14010 |
JY30,LY20,3# |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-25020 |
LY20,3#,RY20,3# |
1 | ||
| 33402-36030 |
JY30 |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 97153-06305 |
RY20,3# |
1 | ||
| 90365-25001 |
LY20,3# |
1 | ||
| 90365-30004 |
JY30 |
1 | ||
| 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 | ||||
| 90520-28248 |
JY30 T=2.00-2.05,MARK F,T=2.0 |
1 | ||
| 90520-23145 |
LY20,3#,RY20,3# T=2.30-2.35,T=2.35 |
1 | ||
| 90520-28246 |
JY30 T=1.90-1.95,MARK E,T=1.9 |
1 | ||
| 90520-23147 |
LY20,3#,RY20,3# T=2.40-2.45,T=2.45 |
1 | ||
| 90520-23090 |
LY20,3#,RY20,3# T=2.20-2.25,T=2.20 |
1 | ||
| 90520-28249 |
JY30 T=2.10-2.15,MARK G,T=2.1 |
1 | ||
| 33411E - NUT(FOR COUNTER GEAR SHAFT) | ||||
| 90179-25107 |
LY20,30 |
1 | ||
| 90179-26002 |
JY30 |
1 | ||
| 90179-26001 |
JY30 |
1 | ||
| 33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR) | ||||
| 90365-33001 |
RY20,3# |
1 | ||
| 90364-22003 |
JY30,LY20,3# |
1 | ||
| 33411P - BEARING, COUNTER SHAFT CENTER | ||||
| 90365-33001 |
LY20,3# |
1 | ||
| 90365-30014 |
JY30 |
1 | ||
| 33411R - RING, SNAP, COUNTER GEAR REAR BEARING | ||||
| 90521-38117 |
JY30,LY20,3# T=1.5 |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33411-36061 |
JY30 |
1 | ||
| 33411-36060 |
JY30 |
1 | ||
| 33421-25011 |
RY20,3# |
1 | ||
| 33421-25021 |
LY20,3# |
1 | ||
| 33428 - GEAR, COUNTERSHAFT 5TH | ||||
| 33428-36030 |
JY30 |
1 | ||
| 33428-25010 |
LY20,3# |
1 | ||
| 33428B - BEARING (FOR COUNTER 5TH GEAR) | ||||
| 90364-38001 |
JY30 |
1 | ||
| 90364-36003 |
LY20,3# |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-36030 |
JY30 |
1 | ||
| 33451-25010 |
LY20,3#,RY20,3# |
1 | ||
| 33452 - STOPPER, REVERSE IDLER GEAR SHAFT | ||||
| 33452-36020 |
JY30 |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-36060 |
JY30 N=5 |
1 | ||
| 33481-25010 |
RY20,30;RY31..20T N=4,N=4 |
1 | ||
| 33481-36090 |
JY30 N=5 |
1 | ||
| 33481D - SPACER (FOR SPEEDOMETER DRIVE GEAR) | ||||
| 90560-30002 |
RY20,3# RR |
1 | ||
| 33487-36040 |
JY30 |
1 | ||
| 33487-36020 |
JY30 |
1 | ||
| 90560-30003 |
LY20,30 |
1 | ||
| 90561-30001 |
RY20,3# FR |
1 | ||
| Common parts | ||||
| 91611-40818 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
