JY30R-QDH (1979)

Toyota Toyoace

Production Mar 1979 - Aug 1983
Engine 2J
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )2J

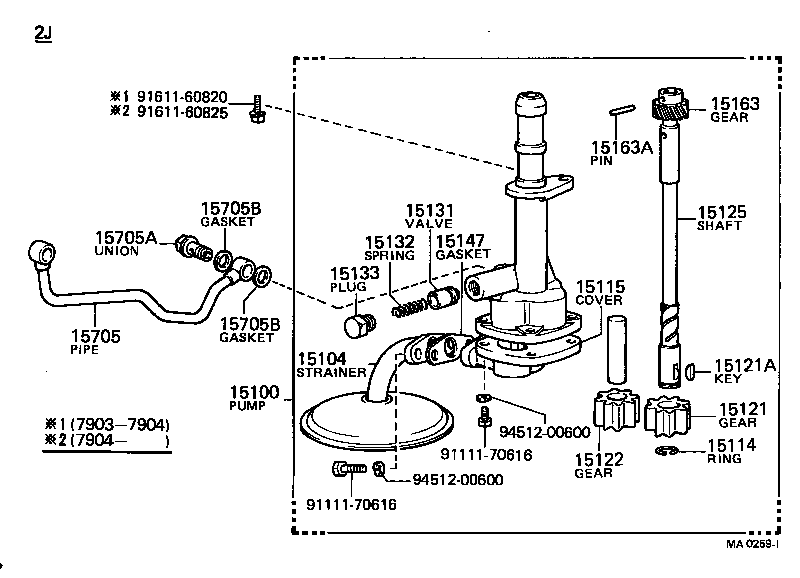

Click highlighted areas on diagram

diagram 15100 15104 15114 15115 15121 15121A 15122 15125 15131 15132 15133 15147 15163 15163A 15705 15705A 15705B 15705B 9111170616 9111170616 9161160820 9161160825 9451200600 9451200600
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-48021

2J..JY30

 1
15100-48020

2J..JY30

 1
15104 - STRAINER SUB-ASSY, OIL
15104-47020

2J..JY30

 1
15114 - RING, SHAFT SNAP
15114-46011

2J..JY30

 1
15115 - COVER, OIL PUMP
15115-48020

2J..JY30

 1
15121 - GEAR, OIL PUMP DRIVE
15121-46011

2J..JY30

 1
15121A - KEY, OIL PUMP DRIVE SHAFT
90280-03009

2J..JY30

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-60010

2J..JY30

N=7

 1
15125 - SHAFT, OIL PUMP
15125-46011

2J..JY30

 1
15131 - VALVE, OIL PUMP RELIEF
15131-24010

2J..JY30

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-46010

2J..JY30

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-24010

2J..JY30

 1
15147 - GASKET, OIL STRAINER
15147-47010

2J..JY30

 1
15163 - GEAR, OIL PUMP DRIVE SHAFT
15163-39410

2J..JY30

 1
15163A - PIN, STRAIGHT(FOR OIL PUMP DRIVE SHAFT GEAR)
90250-05089

2J..JY30

 1
15705 - PIPE SUB-ASSY, OIL, INJECTION PUMP INLET
15707-48010

2J..JY30

 1
15705A - UNION(FOR INJECTION PUMP INLET PIPE)
90401-10006

2J..JY30

 1
15705B - GASKET(FOR INJECTION PUMP INLET PIPE)
90430-10035

2J..JY30

 2
15705B - GASKET(FOR INJECTION PUMP INLET PIPE)
90430-10035

2J..JY30

 2
Common parts
91111-70616
91611-60820
91611-60825
94512-00600
