JY30R-QDH (1979)
Toyota Toyoace
Production
Mar 1979
-
Aug 1983
Engine
2J
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7903-8308)2J

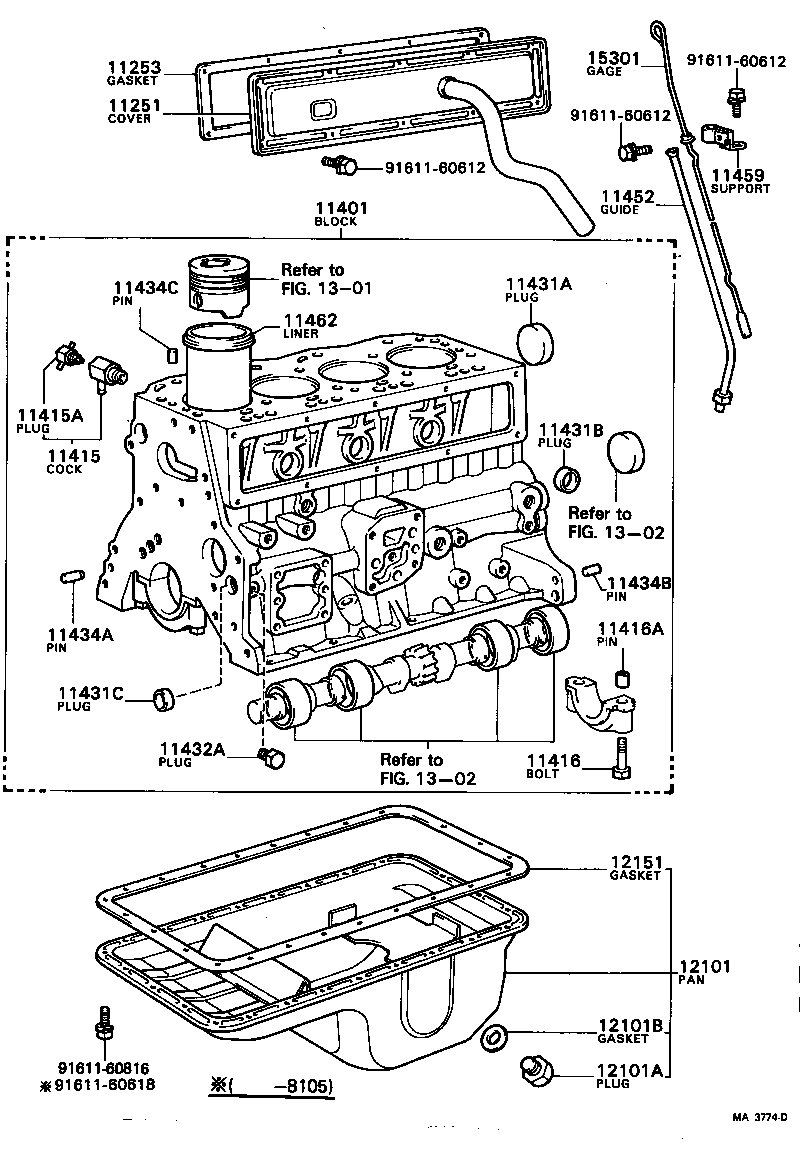

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11251 - COVER, VALVE PUSH ROD | ||||
| 11203-48020 |
2J..JY30 |
1 | ||
| 11253 - GASKET, VALVE PUSH ROD COVER | ||||
| 11253-46010 |
2J..JY30 |
1 | ||
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-49199 |
2J..JY30 |
1 | ||
| 11401-49336 |
2J..JY30 |
1 | ||
| 11401-49335 |
2J..JY30 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90910-09056 |
2J..JY30 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 96431-23814 |
2J..JY30 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02029 |
2J..JY30 *12-1.25PX75-22 |
10 | ||
| 11416A - PIN, RING(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90253-15005 |
2J..JY30 |
10 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
2J..JY30 OD=50 |
3 | ||
| 90331-50015 |
2J..JY30 OD=50 |
3 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
2J..JY30 OD=35 |
4 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 90330-21012 |
2J..JY30 OD=21 |
3 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-51003 |
2J..JY30 |
5 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-08120 |
2J..JY30 L=18,OD=8,L=18,OD=8 |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-08054 |
2J..JY30 L=23,OD=8,L=23,OD=8 |
4 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-06037 |
2J..JY30 L=12,OD=6,L=12,OD=6 |
1 | ||
| 90250-08074 |
2J..JY30 L=15,OD=8,L=15,OD=8 |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-48020 |
2J..JY30 |
1 | ||
| 11459 - SUPPORT, OIL LEVEL GAGE GUIDE | ||||
| 11495-48010 |
2J..JY30 |
1 | ||
| 11462 - LINER, CYLINDER | ||||
| 11461-48011 |
2J..JY30 |
4 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-49196 |
2J..JY30 |
1 | ||
| 12101-49197 |
2J..JY30 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-25054 |
2J..JY30 |
1 | ||
| 90341-18089 |
2J..JY30 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-18244 |
2J..JY30 |
1 | ||
| 90430-25013 |
2J..JY30 |
1 | ||
| 12151 - GASKET, OIL PAN | ||||
| 12151-48010 |
2J..JY30 |
1 | ||
| 12151-48011 |
2J..JY30 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-48021 |
2J..JY30 |
1 | ||
| Common parts | ||||
| 91611-60612 | ||||
| 91611-60618 | ||||
| 91611-60816 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1302 | ||||
