JY30R-QDBH3 (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 2J
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903-8308)2J

Click highlighted areas on diagram

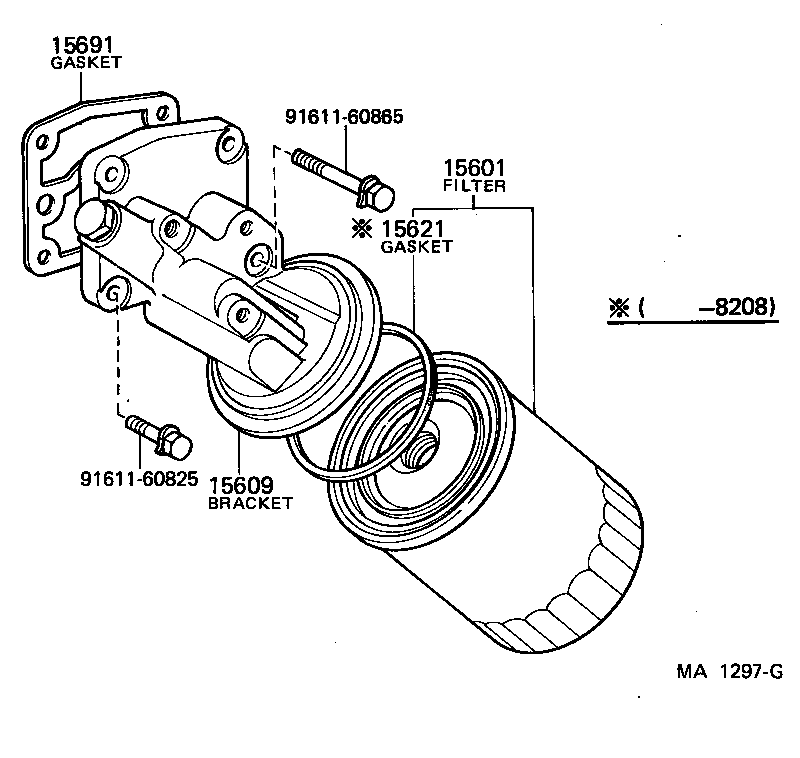

diagram 15601 15609 15621 15691 9161160825 9161160865
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
15600-41010

2J..JY30

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-48023

2J..JY30

 1
15621 - GASKET, OIL FILTER BODY
15621-41010

2J..JY30

CARTRIDGE TYPE

 1
15691 - GASKET, OIL FILTER
15691-48021

2J..JY30

 1
Common parts
91611-60825
91611-60865
