JY30R-QDBH (1979)
Toyota Toyoace
Production
Mar 1979
-
Jan 1982
Engine
2J
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7903-8308)2J

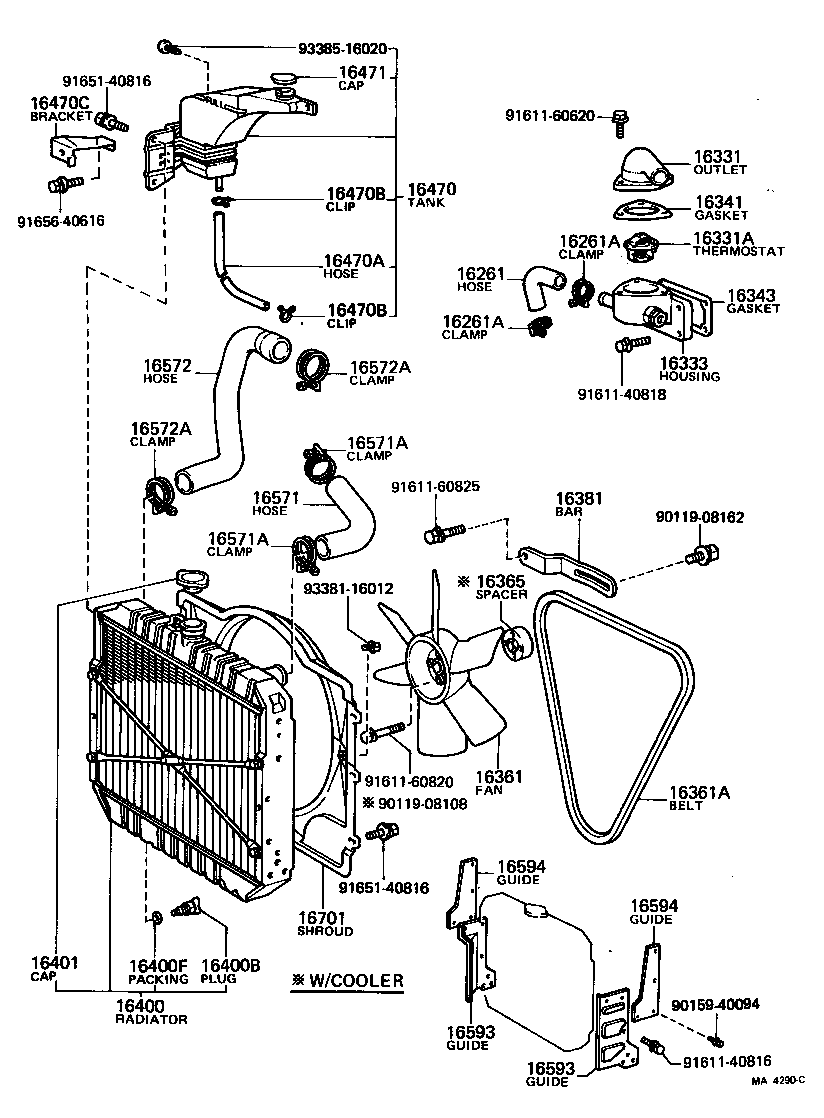

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-48010 |
2J..JY30 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10240 |
2J..JY30 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10240 |
2J..JY30 |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-46010 |
2J..JY30 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03034 |
2J..JY30 *WAX 82-95,FUJI-THOMSON |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-48011 |
2J..JY30 |
1 | ||
| 16333-48021 |
2J..JY30 W/O THERMOSTAT |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-46010 |
2J..JY30 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-46010 |
2J..JY30 |
1 | ||
| 16361 - FAN | ||||
| 16361-48030 |
2J..JY30 6 BLADES |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 90916-02073 |
2J..JY30 |
1 | ||
| 16365 - SPACER, FAN | ||||
| 16365-48011 |
2J..JY30 W/COOLER |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-48011 |
2J..JY30 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-49375 |
2J..JY30 |
1 | ||
| 16400-49385 |
2J..JY30 COLD SPEC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24200 |
2J..JY30 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
2J..JY30 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-41021 |
2J..JY30 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-48040 |
2J..JY30 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12897 |
2J..JY30 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2J..JY30 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2J..JY30 |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16611-48020 |
2J..JY30 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-34030 |
2J..JY30 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-48040 |
2J..JY30 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96111-10460 |
2J..JY30 ID=46 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96111-10460 |
2J..JY30 ID=46 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-48050 |
2J..JY30 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-55021 |
2J..JY30 PUMP SIDE,ID=55 |
1 | ||
| 96111-10460 |
2J..JY30 RADIATOR SIDE,ID=46 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-55021 |
2J..JY30 PUMP SIDE,ID=55 |
1 | ||
| 96111-10460 |
2J..JY30 RADIATOR SIDE,ID=46 |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16595-54010 |
2J..JY30 LH |
1 | ||
| 16593-54010 |
2J..JY30 RH |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16595-54010 |
2J..JY30 LH |
1 | ||
| 16593-54010 |
2J..JY30 RH |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-54011 |
2J..JY30 |
2 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-54011 |
2J..JY30 |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-48040 |
2J..JY30 UPR |
1 | ||
| 16712-48010 |
2J..JY30 LWR |
1 | ||
| Common parts | ||||
| 90119-08108 | ||||
| 90119-08162 | ||||
| 90159-40094 | ||||
| 91611-40816 | ||||
| 91611-40818 | ||||
| 91611-60620 | ||||
| 91611-60820 | ||||
| 91611-60825 | ||||
| 91651-40816 | ||||
| 91656-40616 | ||||
| 93381-16012 | ||||
| 93385-16020 | ||||
