JY30L-QDBH (1979)

Toyota Toyoace

Production Mar 1979 - Aug 1983
Engine 2J
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )20T

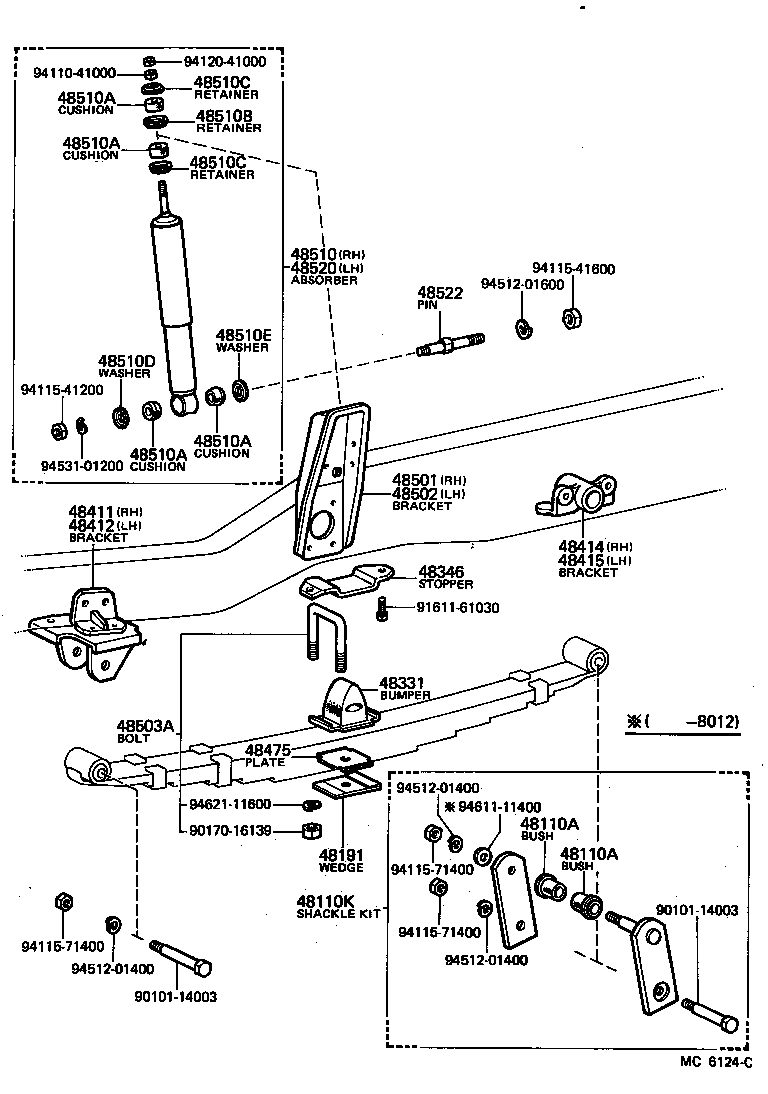

Click highlighted areas on diagram

diagram 48110A 48110A 48110K 48191 48331 48346 48411 48412 48414 48415 48475 48501 48502 48503A 48510 48510A 48510A 48510A 48510A 48510B 48510C 48510C 48510D 48510E 48520 48522 9010114003 9010114003 9017016139 9161161030 9411041000 9411541200 9411541600 9411571400 9411571400 9411571400 9412041000 9451201400 9451201400 9451201400 9451201600 9453101200 9461111400 9462111600
Part # Description Qty Price
48110A - BUSH(FOR FRONT SPRING SHACKLE)
90385-18025

JY30,RY31..20T

 4
48110A - BUSH(FOR FRONT SPRING SHACKLE)
90385-18025

JY30,RY31..20T

 4
48110K - SHACKLE KIT, FRONT SPRING
04481-36041

JY30,RY31..20T

 2
48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING)
48192-36020

JY30,RY31..20T

 2
48331 - BUMPER, FRONT SPRING, NO.1
48304-25010

JY30,RY31..20T

 2
48346 - STOPPER, BUMPER, FRONT
48035-25010

JY30,RY31..20T

LH

 1
48346-25080

JY30,RY31..20T

RH

 1
48411 - BRACKET, FRONT SPRING(FOR FRONT RH)
48411-36070

JY30,RY31..20T

 1
48412 - BRACKET, FRONT SPRING(FOR FRONT LH)
48412-36070

JY30,RY31..20T

 1
48414 - BRACKET, FRONT SPRING(FOR REAR RH)
48413-36020

JY30,RY31..20T

 1
48415 - BRACKET, FRONT SPRING(FOR REAR LH)
48413-36020

JY30,RY31..20T

 1
48475 - PLATE, DISTANCE(FOR FRONT)
48475-36070

JY30,LY20,3#,RY20,3#

 1
48501 - BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER RH
48512-25060

JY30,RY31..20T

 1
48502 - BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER LH
48512-25060

JY30,RY31..20T

 1
48503A - BOLT, U(FOR FRONT SHOCK ABSORBER BRACKET)
90118-16058

JY30,RY31..20T

L=100

 4
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48511-29105

JY30,RY31..20T

 1
48510A - CUSHION, FRONT SHOCK ABSORBER
90385-16007

JY30,LY20,3#,RY20,3#

LWR

 4
90948-01003

JY30,LY20,3#,RY20,3#

UPR

 4
48510A - CUSHION, FRONT SHOCK ABSORBER
90385-16007

JY30,LY20,3#,RY20,3#

LWR

 4
90948-01003

JY30,LY20,3#,RY20,3#

UPR

 4
48510A - CUSHION, FRONT SHOCK ABSORBER
90385-16007

JY30,LY20,3#,RY20,3#

LWR

 4
90948-01003

JY30,LY20,3#,RY20,3#

UPR

 4
48510A - CUSHION, FRONT SHOCK ABSORBER
90385-16007

JY30,LY20,3#,RY20,3#

LWR

 4
90948-01003

JY30,LY20,3#,RY20,3#

UPR

 4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02007

JY30,LY20,30,RY20,3#

 2
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02002

JY30,LY20,3#,RY20,3#

 4
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02002

JY30,LY20,3#,RY20,3#

 4
48510D - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.1
90948-03003

JY30,RY31..20T

 2
48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2
90948-03004

JY30,LY20,3#,RY20,3#

 2
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48511-29105

JY30,RY31..20T

 1
48522 - PIN, FRONT SHOCK ABSORBER LOWER PIVOT
48522-36030

JY30,RY31..20T

 2
Common parts
90101-14003
90170-16139
91611-61030
94110-41000
94115-41200
94115-41600
94115-71400
94120-41000
94512-01400
94512-01600
94531-01200
94611-11400
94621-11600

(7903- )ST

Click highlighted areas on diagram

diagram 48110 48110 48110F 48111 48111 48112 48112 48113 48113 48114 48114 48115 48116 48117 48120 48120 48141 48141 48142 48142 48147 48147 9411041000 9411041000 9511100814 9511100814 9511100816 9511100816 9511100816
Part # Description Qty Price
48110 - SPRING ASSY, FRONT, RH
48110-25170

JY30,RY31..LHD..20T

 1
48110 - SPRING ASSY, FRONT, RH
48110-25170

JY30,RY31..LHD..20T

 1
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
90389-16002

JY30,RY31..20T

 4
48111 - LEAF, FRONT SPRING, NO.1
48101-25170

JY30,RY31..20T

 2
48111 - LEAF, FRONT SPRING, NO.1
48101-25170

JY30,RY31..20T

 2
48112 - LEAF, FRONT SPRING, NO.2
48112-25170

JY30,RY31..20T

 2
48112 - LEAF, FRONT SPRING, NO.2
48112-25170

JY30,RY31..20T

 2
48113 - LEAF, FRONT SPRING, NO.3
48102-25170

JY30,RY31..20T

 2
48113 - LEAF, FRONT SPRING, NO.3
48102-25170

JY30,RY31..20T

 2
48114 - LEAF, FRONT SPRING, NO.4
48114-25170

JY30,RY31..20T

 2
48114 - LEAF, FRONT SPRING, NO.4
48114-25170

JY30,RY31..20T

 2
48115 - LEAF, FRONT SPRING, NO.5
48103-25170

JY30,RY31..20T

 2
48116 - LEAF, FRONT SPRING, NO.6
48116-25170

JY30,RY31..20T

 2
48117 - LEAF, FRONT SPRING, NO.7
48117-25170

JY30,RY31..20T

 2
48120 - SPRING ASSY, FRONT, LH
48110-25280

JY30,RY31..LHD..20T

 1
48120 - SPRING ASSY, FRONT, LH
48110-25280

JY30,RY31..LHD..20T

 1
48141 - CLIP, FRONT SPRING, NO.1
48241-36070

JY30,RY31..20T

 4
48141 - CLIP, FRONT SPRING, NO.1
48241-36070

JY30,RY31..20T

 4
48142 - CLIP, FRONT SPRING, NO.2
48242-25170

JY30,RY31..20T

 2
48142 - CLIP, FRONT SPRING, NO.2
48242-25170

JY30,RY31..20T

 2
48147 - BOLT, FRONT SPRING, CENTER
48247-36140

JY30,RY31..20T

 2
48147 - BOLT, FRONT SPRING, CENTER
48247-36140

JY30,RY31..20T

 2
Common parts
94110-41000
95111-00814
95111-00816
