JY30L-QDBH (1979)

Toyota Toyoace

Production Mar 1979 - Aug 1983
Engine 2J
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903-8308)2J

Click highlighted areas on diagram

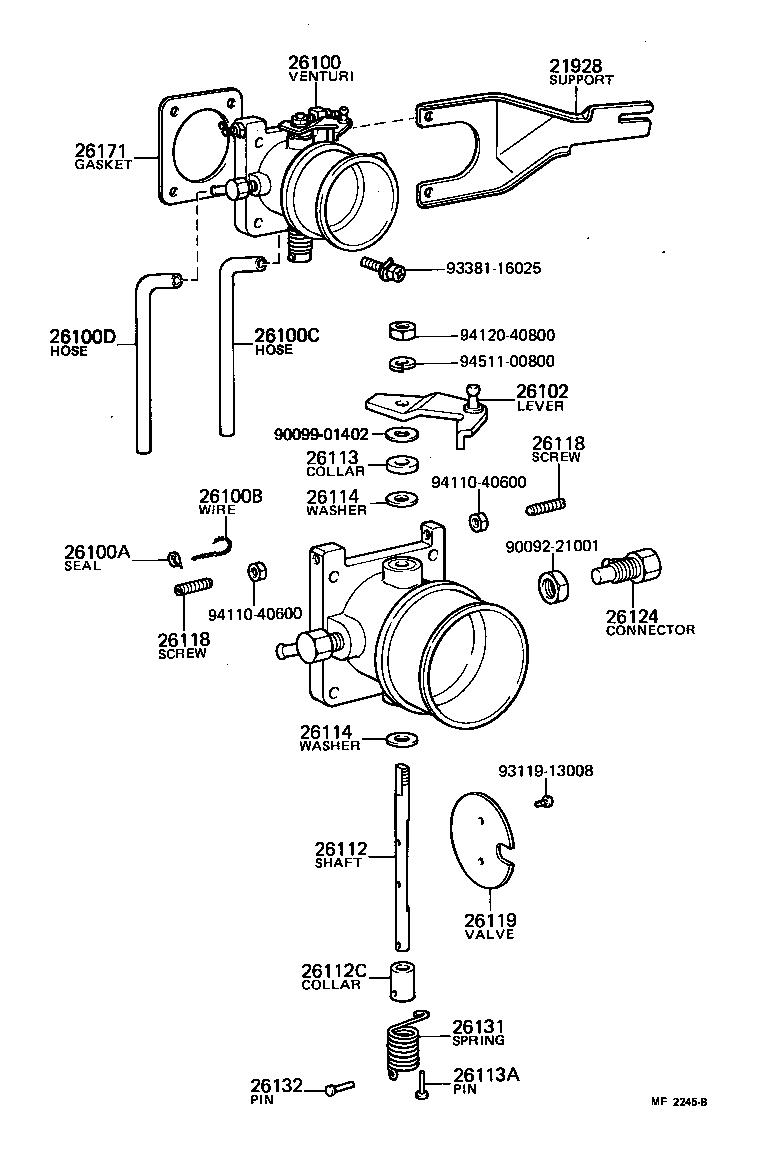

diagram 21928 26100 26100A 26100B 26100C 26100D 26102 26112 26112C 26113 26113A 26114 26114 26118 26118 26119 26124 26131 26132 26171 9009221001 9009901402 9311913008 9338116025 9411040600 9411040600 9412040800 9451100800
Part # Description Qty Price
21928 - SUPPORT, THROTTLE WIRE
21928-48021

2J..JY30

 1
26100 - VENTURI ASSY
26100-48021

2J..JY30

 1
26100A - SEAL, LEAD
22354-77050

2J..JY30

 1
26100B - WIRE, SEAL
22355-36010

2J..JY30

 1
26100C - HOSE, VACCUM, NO.1(VENTURI TO GOVERNOR)
90446-10331

2J..JY30

 1
26100D - HOSE, VACCUM, NO.2(VENTURI TO GOVERNOR)
90446-10331

2J..JY30

 1
26102 - LEVER SUB-ASSY, THROTTLE SHAFT ADJUSTING
26102-48021

2J..JY30

 1
26112 - SHAFT, VENTURI THROTTLE VALVE
26112-56010

2J..JY30

 1
26112C - COLLAR, ADJUSTING
26113-56011

2J..JY30

 1
26113-56010

2J..JY30

 1
26113 - COLLAR, THROTTLE VALVE SHAFT
26113-47020

2J..JY30

 1
26113A - PIN, THROTTLE VALVE SHAFT
26132-56011

2J..JY30

 1
26114 - WASHER, THROTTLE VALVE SHAFT ADJUSTING
26115-76010

2J..JY30

T=0.2,T=0.2

 1
26114-76010

2J..JY30

T=0.1,T=0.1

 1
26116-76010

2J..JY30

T=0.5,T=0.5

 1
26114 - WASHER, THROTTLE VALVE SHAFT ADJUSTING
26115-76010

2J..JY30

T=0.2,T=0.2

 1
26114-76010

2J..JY30

T=0.1,T=0.1

 1
26116-76010

2J..JY30

T=0.5,T=0.5

 1
26118 - SCREW, STOP PLATE ADJUSTING
26118-48014

2J..JY30

 2
26118 - SCREW, STOP PLATE ADJUSTING
26118-48014

2J..JY30

 2
26119 - VALVE, VENTURI THROTTLE
26119-48010

2J..JY30

 1
26124 - CONNECTOR, VENTURI PIPE
26124-48020

2J..JY30

 1
26131 - SPRING, RETURN
26131-48014

2J..JY30

 1
26132 - PIN
26132-56010

2J..JY30

 1
26171 - GASKET, VENTURI
26171-46010

2J..JY30

 1
Common parts
90092-21001
90099-01402
93119-13008
93381-16025
94110-40600
94120-40800
94511-00800
