JY16L-JR (1972)
Toyota Toyoace
Production
Jul 1972
-
Feb 1979
Engine
2J
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7207-7902)JY16

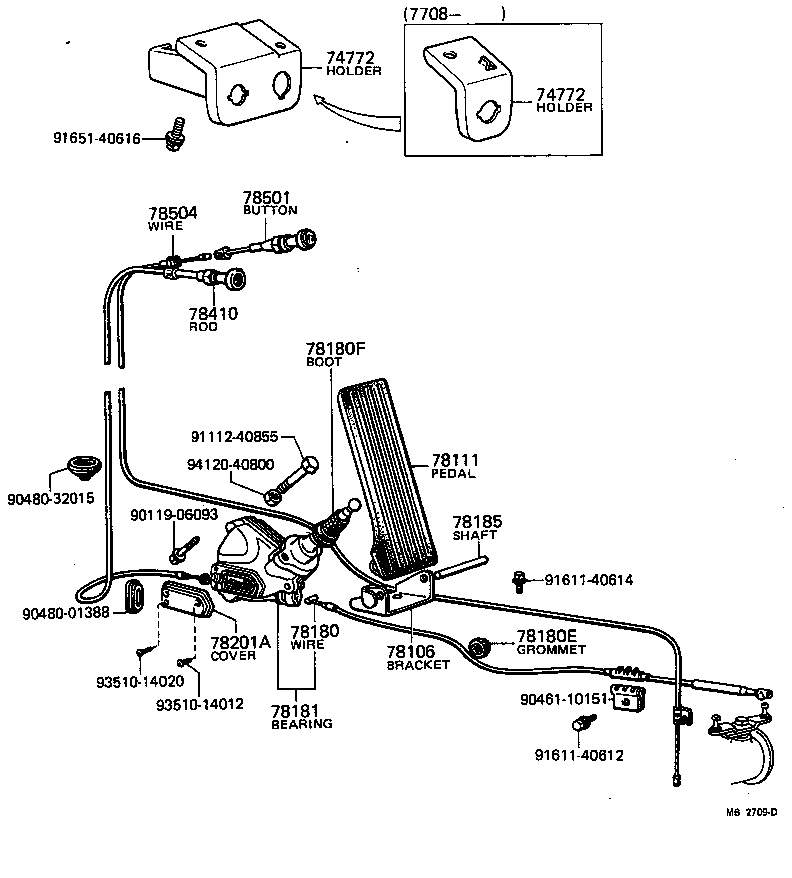

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74772 - HOLDER, STOP AND THROTTLE WIRE | ||||
| 74701-95011 |
JY16 |
1 | ||
| 74771-95013 |
JY16 |
1 | ||
| 74772 - HOLDER, STOP AND THROTTLE WIRE | ||||
| 74701-95011 |
JY16 |
1 | ||
| 74771-95013 |
JY16 |
1 | ||
| 78106 - BRACKET SUB-ASSY, ACCELERATOR PEDAL SUPPORT | ||||
| 78105-95020 |
JY16,RY1#..LHD |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-95020 |
JY16,RY1# |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78150-95015 |
JY16..LHD |
1 | ||
| 78150-95014 |
JY16..LHD |
1 | ||
| 78180E - GROMMET (FOR ACCELERATOR WIRE) | ||||
| 90480-26043 |
JY16,RY1# |
1 | ||
| 78181 - BEARING, ACCELERATOR PEDAL ROD SUPPORT | ||||
| 78180-95095 |
JY16..LHD |
1 | ||
| 78180-95011 |
JY16..LHD |
1 | ||
| 78180-95031 |
JY16..LHD |
1 | ||
| 78185 - SHAFT, ACCELERATOR PEDAL SUPPORT | ||||
| 90250-06164 |
JY16,RY1# |
1 | ||
| 78201A - COVER, THROTTLE WIRE | ||||
| 78103-95401 |
JY16 |
1 | ||
| 78151-95403 |
JY16 |
1 | ||
| 78410 - CABLE ASSY, THROTTLE CONTROL | ||||
| 78410-95011 |
JY16..LHD |
1 | ||
| 78501 - BUTTON SUB-ASSY, STOP | ||||
| 78501-36030 |
JY16 |
1 | ||
| 78504 - WIRE SUB-ASSY, STOP FLEXIBLE | ||||
| 78504-95011 |
JY16..LHD |
1 | ||
| Common parts | ||||
| 90119-06093 | ||||
| 90461-10151 | ||||
| 90480-01388 | ||||
| 90480-32015 | ||||
| 91112-40855 | ||||
| 91611-40612 | ||||
| 91611-40614 | ||||
| 91651-40616 | ||||
| 93510-14012 | ||||
| 93510-14020 | ||||
| 94120-40800 | ||||
