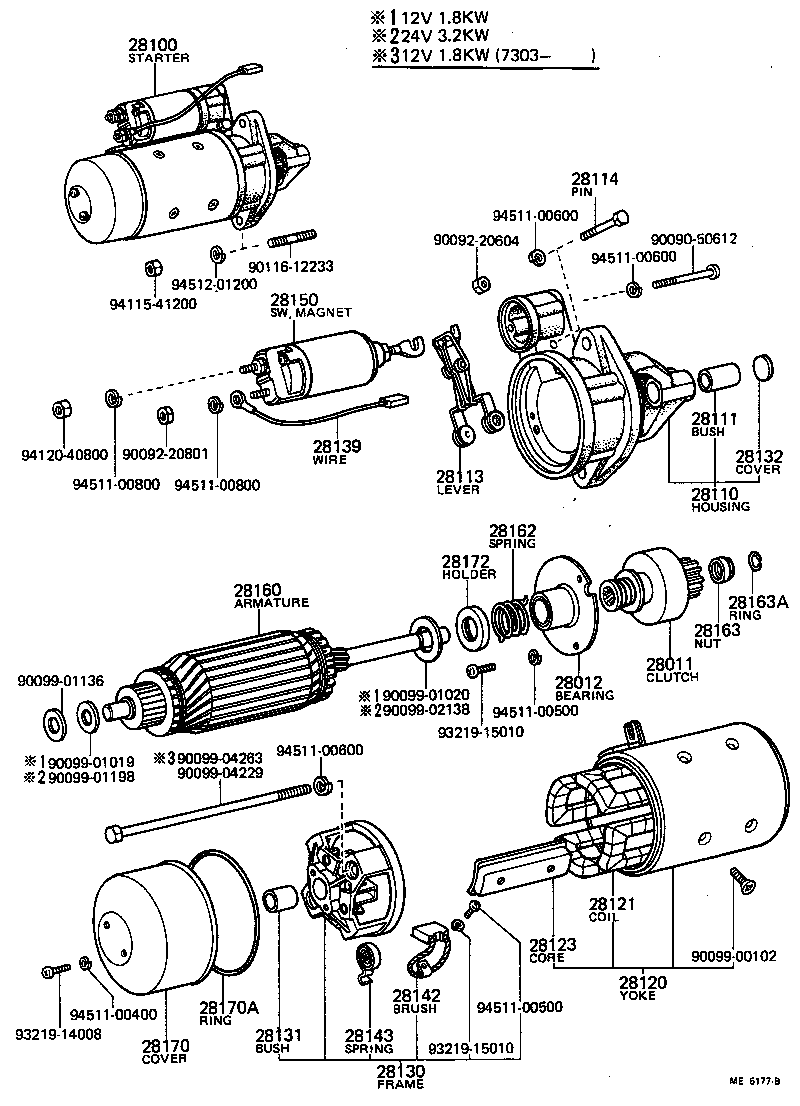

JY16L-JR (1972)
Toyota Toyoace
(7207-7708)2J
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-77090 |
2J..JY16 |
1 | ||
| 28011-46013 |
2J..JY16 |
1 | ||
| 28012 - BEARING SUB-ASSY, CENTER | ||||
| 28012-46011 |
2J..JY16 |
1 | ||
| 28012-56010 |
2J..JY16 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-46011 |
2J..JY16 12V 1.8KW |
1 | ||
| 28100-46030 |
2J..JY16 12V 2.5KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-46013 |
2J..JY16 |
1 | ||
| 28110-46012 |
2J..JY16 |
1 | ||
| 28115-46030 |
2J..JY16 |
1 | ||
| 28111 - BUSH(FOR STARTER HOUSING) | ||||
| 28111-46010 |
2J..JY16 |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-46012 |
2J..JY16 |
1 | ||
| 28114 - PIN, STARTER DRIVE LEVER SET | ||||
| 28114-46010 |
2J..JY16 |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-46011 |
2J..JY16 |
1 | ||
| 28120-56020 |
2J..JY16 |
1 | ||
| 28120-47040 |
2J..JY16 |
1 | ||
| 28121 - COIL, STARTER FIELD | ||||
| 28121-46012 |
2J..JY16 |
1 | ||
| 28123 - CORE, STARTER POLE | ||||
| 28123-46011 |
2J..JY16 |
4 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-46013 |
2J..JY16 |
1 | ||
| 28130-56020 |
2J..JY16 |
1 | ||
| 28130-46030 |
2J..JY16 |
1 | ||
| 28130-46020 |
2J..JY16 |
1 | ||
| 28131 - BUSH, COMMUTATOR END FRAME | ||||
| 90099-10071 |
2J..JY16 U/S 0.3 |
1 | ||
| 90099-10072 |
2J..JY16 U/S 0.5 |
1 | ||
| 28111-46011 |
2J..JY16 STD |
1 | ||
| 28132 - COVER, STARTER BEARING(FOR DRIVE HOUSING) | ||||
| 28132-21010 |
2J..JY16 |
1 | ||
| 28166-21010 |
2J..JY16 |
1 | ||
| 28139 - WIRE, LEAD, NO.1(FOR STARTER) | ||||
| 28139-46010 |
2J..JY16 |
1 | ||
| 28139-77090 |
2J..JY16 |
1 | ||
| 28142 - BRUSH, STARTER | ||||
| 28142-46013 |
2J..JY16 |
4 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-46012 |
2J..JY16 |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-46011 |
2J..JY16 |
1 | ||
| 28150-46030 |
2J..JY16 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-46012 |
2J..JY16 |
1 | ||
| 28160-47040 |
2J..JY16 |
1 | ||
| 28162 - SPRING, STARTER BRAKE | ||||
| 28162-46011 |
2J..JY16 |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-46016 |
2J..JY16 |
1 | ||
| 28163A - RING, SNAP(FOR STARTER PINION STOP NUT) | ||||
| 90099-07049 |
2J..JY16 |
1 | ||
| 28170 - COVER ASSY, STARTER | ||||
| 28170-46013 |
2J..JY16 |
1 | ||
| 28170-46012 |
2J..JY16 |
1 | ||
| 28170A - RING, O(FOR STARTER COVER) | ||||
| 90099-14023 |
2J..JY16 |
1 | ||
| 28172 - HOLDER, STARTER SPRING | ||||
| 28172-46011 |
2J..JY16 |
1 | ||
| Common parts | ||||
| 90090-50612 | ||||
| 90092-20604 | ||||
| 90092-20801 | ||||
| 90099-00102 | ||||
| 90099-01019 | ||||
| 90099-01020 | ||||
| 90099-01136 | ||||
| 90099-01198 | ||||
| 90099-02138 | ||||
| 90099-04229 | ||||
| 90099-04263 | ||||
| 90116-12233 | ||||
| 93219-14008 | ||||
| 93219-15010 | ||||
| 94115-41200 | ||||
| 94120-40800 | ||||
| 94511-00400 | ||||
| 94511-00500 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
| 94512-01200 | ||||
(7708-7902)2J
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-77090 |
2J..JY16 |
1 | ||
| 28011-46013 |
2J..JY16 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-46011 |
2J..JY16 12V 1.8KW |
1 | ||
| 28100-46030 |
2J..JY16 12V 2.5KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-46013 |
2J..JY16 |
1 | ||
| 28110-46012 |
2J..JY16 |
1 | ||
| 28115-46030 |
2J..JY16 |
1 | ||
| 28118 - PLATE(FOR STARTER YOKE) | ||||
| 28118-77090 |
2J..JY16 |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28119-77090 |
2J..JY16 |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-46011 |
2J..JY16 |
1 | ||
| 28120-56020 |
2J..JY16 |
1 | ||
| 28120-47040 |
2J..JY16 |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-46013 |
2J..JY16 |
1 | ||
| 28130-56020 |
2J..JY16 |
1 | ||
| 28130-46030 |
2J..JY16 |
1 | ||
| 28130-46020 |
2J..JY16 |
1 | ||
| 28137 - WASHER, FELT, STARTER | ||||
| 90099-12205 |
2J..JY16 |
1 | ||
| 28139 - WIRE, LEAD, NO.1(FOR STARTER) | ||||
| 28139-46010 |
2J..JY16 |
1 | ||
| 28139-77090 |
2J..JY16 |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-77090 |
2J..JY16 |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-46011 |
2J..JY16 |
1 | ||
| 28150-46030 |
2J..JY16 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-46012 |
2J..JY16 |
1 | ||
| 28160-47040 |
2J..JY16 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10119 |
2J..JY16 OD=35 |
1 | ||
| 90099-10107 |
2J..JY16 OD=30 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10119 |
2J..JY16 OD=35 |
1 | ||
| 90099-10107 |
2J..JY16 OD=30 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-77090 |
2J..JY16 |
1 | ||
| 28222 - WASHER, STARTER IDLE GEAR CLUTCH | ||||
| 28222-77090 |
2J..JY16 |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-56080 |
2J..JY16 |
6 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-56080 |
2J..JY16 |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-77090 |
2J..JY16 |
1 | ||
| Common parts | ||||
| 90092-21001 | ||||
| 90099-00138 | ||||
| 90099-01436 | ||||
| 90099-02325 | ||||
| 90099-04297 | ||||
| 90099-12009 | ||||
| 90116-12233 | ||||
| 93319-15008 | ||||
| 94115-41000 | ||||
| 94115-41200 | ||||
| 94511-00600 | ||||
| 94511-01000 | ||||
| 94512-01200 | ||||
