Toyota Toyoace JY16 CYLINDER HEAD

JY16-JR (1972)

Toyota Toyoace

Production Jul 1972 - Feb 1979

Engine 2J

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

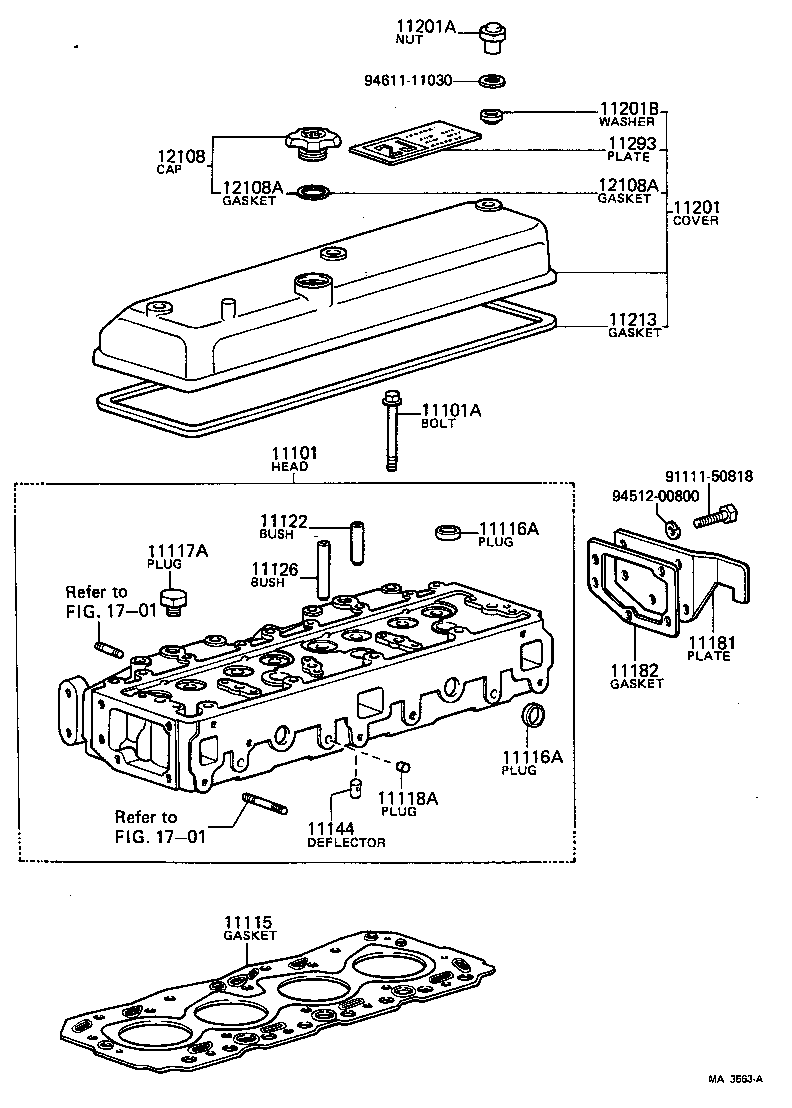

(7207-7708)2J

Click highlighted areas on diagram

Part #	Description	Period	Qty
11101 - HEAD SUB-ASSY, CYLINDER
11101-49146	2J..JY16	07/1976 - 02/1979	1
11101-49145	2J..JY16	07/1972 - 07/1976	1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02049	2J..JY16 12-1.25PX110-25	07/1972 - 02/1979	18
11115 - GASKET, CYLINDER HEAD
11115-48023	2J..JY16	07/1972 - 07/1976	1
11115-48024	2J..JY16	07/1976 - 12/1976	1
11115-48025	2J..JY16	12/1976 - 02/1979	1
11116A - PLUG, TIGHT, NO.1
96411-43000	2J..JY16 OD=30	01/1974 - 02/1979	9
90331-30013	2J..JY16 OD=30	07/1972 - 01/1974	9
11116A - PLUG, TIGHT, NO.1
96411-43000	2J..JY16 OD=30	01/1974 - 02/1979	9
90331-30013	2J..JY16 OD=30	07/1972 - 01/1974	9
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-54002	2J..JY16	05/1978 - 02/1979	2
90345-54021	2J..JY16	07/1972 - 05/1978	2
11118A - PLUG, STRAIGHT, NO.1
90334-09021	2J..JY16 L=8,OD=9.25	07/1972 - 09/1975	4
11122 - BUSH, INTAKE VALVE GUIDE
11122-46010	2J..JY16 STD	07/1972 - 02/1979	4
11126 - BUSH, EXHAUST VALVE GUIDE
11126-46010	2J..JY16 STD	07/1972 - 02/1979	4
11144 - DEFLECTOR, CYLINDER HEAD WATER, NO.1
11144-46012	2J..JY16	07/1972 - 02/1979	1
11181 - PLATE, CYLINDER HEAD, REAR
11181-48010	2J..JY16	07/1972 - 02/1979	1
11182 - GASKET, CYLINDER HEAD REAR PLATE
11182-48010	2J..JY16	07/1972 - 02/1979	1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11211-49035	2J..JY16	07/1972 - 02/1979	1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
11295-46010	2J..JY16	07/1972 - 08/1977	3
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-08007	2J..JY16	08/1977 - 02/1979	3
90210-12002	2J..JY16	07/1972 - 08/1977	3
11213 - GASKET, CYLINDER HEAD COVER
11213-48011	2J..JY16	08/1977 - 02/1979	1
11213-48010	2J..JY16	07/1972 - 08/1977	1
11293 - PLATE, ENGINE CAUTION & ENGINE NAME
11293-48020	2J..JY16	07/1972 - 01/1975	1
11293-48011	2J..JY16	01/1975 - 08/1977	1
11293-48030	2J..JY16	08/1977 - 02/1979	1
12108 - CAP SUB-ASSY, OIL FILLER
12181-12904	2J..JY16	09/1978 - 02/1979	1
12181-12903	2J..JY16	07/1972 - 09/1978	1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140	2J..JY16	07/1972 - 02/1979	1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140	2J..JY16	07/1972 - 02/1979	1
Common parts
91111-50818
94512-00800
94611-11030
Linked diagrams
1701

(7708-7902)2J

Click highlighted areas on diagram

Part #	Description	Period	Qty
11101 - HEAD SUB-ASSY, CYLINDER
11101-49146	2J..JY16	07/1976 - 02/1979	1
11101-49145	2J..JY16	07/1972 - 07/1976	1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02049	2J..JY16 12-1.25PX110-25	07/1972 - 02/1979	18
11115 - GASKET, CYLINDER HEAD
11115-48023	2J..JY16	07/1972 - 07/1976	1
11115-48024	2J..JY16	07/1976 - 12/1976	1
11115-48025	2J..JY16	12/1976 - 02/1979	1
11116A - PLUG, TIGHT, NO.1
96411-43000	2J..JY16 OD=30	01/1974 - 02/1979	9
90331-30013	2J..JY16 OD=30	07/1972 - 01/1974	9
11116A - PLUG, TIGHT, NO.1
96411-43000	2J..JY16 OD=30	01/1974 - 02/1979	9
90331-30013	2J..JY16 OD=30	07/1972 - 01/1974	9
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-54002	2J..JY16	05/1978 - 02/1979	2
90345-54021	2J..JY16	07/1972 - 05/1978	2
11122 - BUSH, INTAKE VALVE GUIDE
11122-46010	2J..JY16 STD	07/1972 - 02/1979	4
11126 - BUSH, EXHAUST VALVE GUIDE
11126-46010	2J..JY16 STD	07/1972 - 02/1979	4
11144 - DEFLECTOR, CYLINDER HEAD WATER, NO.1
11144-46012	2J..JY16	07/1972 - 02/1979	1
11181 - PLATE, CYLINDER HEAD, REAR
11181-48010	2J..JY16	07/1972 - 02/1979	1
11182 - GASKET, CYLINDER HEAD REAR PLATE
11182-48010	2J..JY16	07/1972 - 02/1979	1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11211-49035	2J..JY16	07/1972 - 02/1979	1
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-08007	2J..JY16	08/1977 - 02/1979	3
90210-12002	2J..JY16	07/1972 - 08/1977	3
11213 - GASKET, CYLINDER HEAD COVER
11213-48011	2J..JY16	08/1977 - 02/1979	1
11213-48010	2J..JY16	07/1972 - 08/1977	1
11293 - PLATE, ENGINE CAUTION & ENGINE NAME
11293-48020	2J..JY16	07/1972 - 01/1975	1
11293-48011	2J..JY16	01/1975 - 08/1977	1
11293-48030	2J..JY16	08/1977 - 02/1979	1
11294 - PLATE, ENGINE CAUTION, NO.2
11294-56010	2J..JY16	03/1978 - 02/1979	1
12108 - CAP SUB-ASSY, OIL FILLER
12181-12904	2J..JY16	09/1978 - 02/1979	1
12181-12903	2J..JY16	07/1972 - 09/1978	1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140	2J..JY16	07/1972 - 02/1979	1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140	2J..JY16	07/1972 - 02/1979	1
Common parts
91611-60816
91631-40840
94611-11030
Linked diagrams
1701
