EL53L-AEPRKK (1994)
Toyota Tercel
Production
Sep 1994
-
Jul 1999
Engine
5EFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9409- )

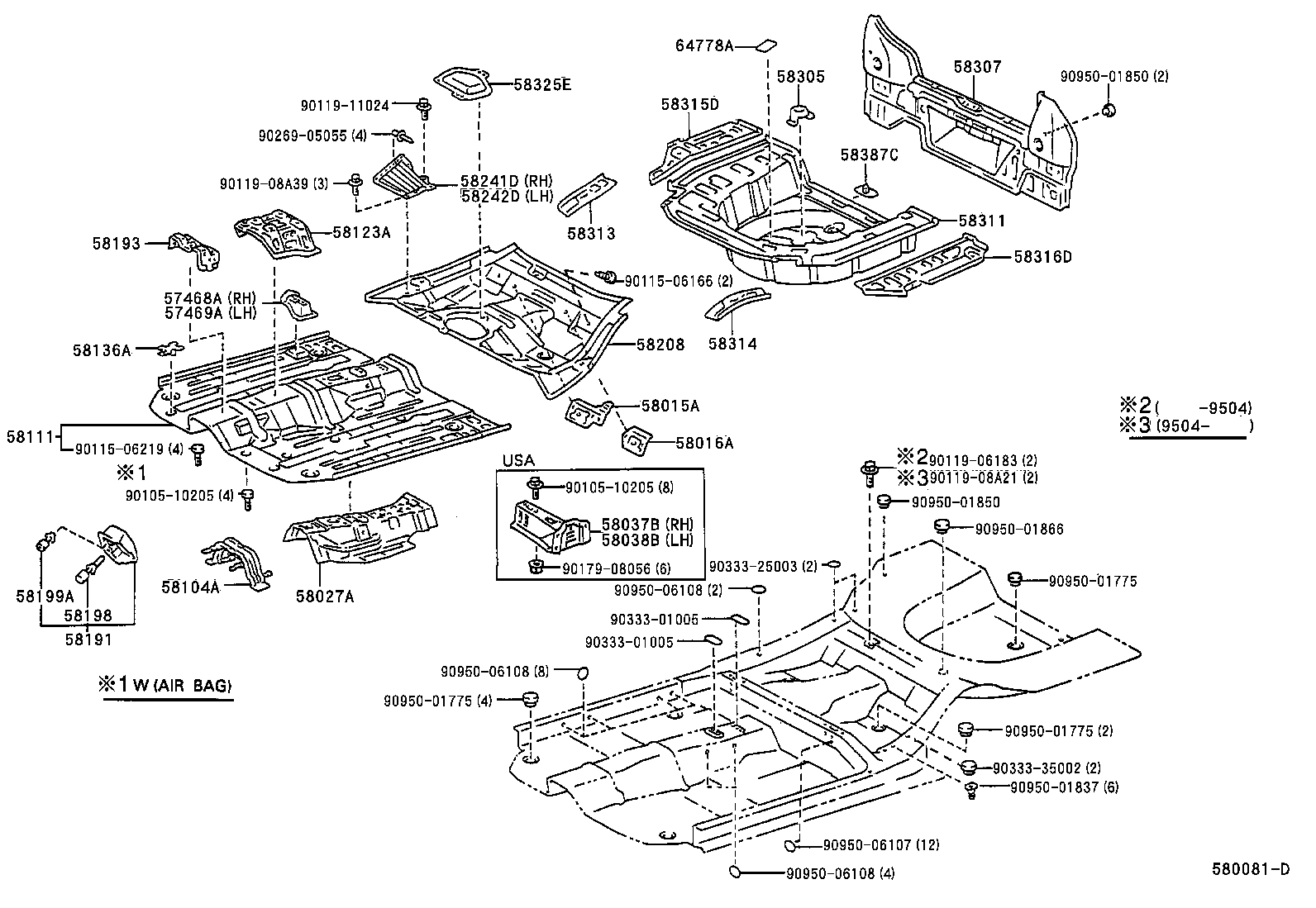

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57468A - BRACKET, FRONT SEAT, OUTSIDE, REAR RH | ||||
| 57468-10030 |
EL53 |
1 | ||
| 57469A - BRACKET, FRONT SEAT, OUTSIDE, REAR LH | ||||
| 57469-10030 |
EL53 |
1 | ||
| 58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH | ||||
| 58015-16050 |
EL53 |
1 | ||
| 58015-10020 |
EL53 |
1 | ||
| 58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH | ||||
| 58016-10020 |
EL53 |
1 | ||
| 58027A - REINFORCE SUB-ASSY, SEAT BELT ANCHOR | ||||
| 58027-16090 |
EL53 |
1 | ||
| 58027-16091 |
EL53 |
1 | ||
| 58104A - BRACKET SUB-ASSY, CATALYTIC CONVERTER SUPPORT | ||||
| 58104-16020 |
EL53 |
1 | ||
| 58104-16011 |
EL53 |
1 | ||
| 58104-16011 |
EL53..CND |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-16903 |
EL53 |
1 | ||
| 58111-16902 |
EL53 |
1 | ||
| 58111-16900 |
EL53 |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58123-16050 |
EL53 W(*80) |
1 | ||
| 58123-10050 |
EL53..CND |
1 | ||
| 58136A - COVER, FRONT FLOOR SERVICE HOLE | ||||
| 58136-12030 |
EL53 |
2 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58191-16060 |
EL53 |
1 | ||
| 58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58193-16060 |
EL53 |
1 | ||
| 58193-16040 |
EL53 |
1 | ||
| 58198 - CLIP, FOOTREST | ||||
| 58198-16020 |
EL53 |
1 | ||
| 58199A - CLIP, FOOTREST, NO.2 | ||||
| 58199-16010 |
EL53 |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-16091 |
EL53 |
1 | ||
| 58241D - GUSSET, WHEELHOUSE INNER, FRONT RH | ||||
| 58241-16010 |
EL53..4DS |
1 | ||
| 58242D - GUSSET, WHEELHOUSE INNER, FRONT LH | ||||
| 58242-16010 |
EL53..4DS |
1 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58305-10011 |
EL53 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-16420 |
EL53 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-16160 |
EL53 |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58313-16030 |
EL53 |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-16090 |
EL53 |
1 | ||
| 58315D - EXTENSION, REAR FLOOR PAN, RH | ||||
| 58315-16050 |
EL53 |
1 | ||
| 58316D - EXTENSION, REAR FLOOR PAN, LH | ||||
| 58316-16070 |
EL53 |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58031-16020 |
EL53 |
1 | ||
| 58387C - PLATE, REAR FLOOR FINISH | ||||
| 58387-10010 |
EL53 |
1 | ||
| 64778A - PROTECTOR, SPARE WHEEL | ||||
| 64778-16030 |
EL53 |
4 | ||
| 64778-16020 |
EL53 |
4 | ||
| Common parts | ||||
| 90105-10205 | ||||
| 90115-06166 | ||||
| 90115-06219 | ||||
| 90119-06183 | ||||
| 90119-08A21 | ||||
| 90119-08A39 | ||||
| 90119-11024 | ||||
| 90179-08056 | ||||
| 90269-05055 | ||||
| 90333-01005 | ||||
| 90333-25003 | ||||
| 90333-35002 | ||||
| 90950-01775 | ||||
| 90950-01837 | ||||
| 90950-01850 | ||||
| 90950-01866 | ||||
| 90950-06107 | ||||
| 90950-06108 | ||||
