Toyota Tercel EL53 WIRING & CLAMP

EL53L-AEPRKA (1994)

Toyota Tercel

Production Sep 1994 - Jul 1999

Engine 5EFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 7(9409- )

Click highlighted areas on diagram

ENGINE WIRE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-1G270	EL53..4FC	09/1994 - 08/1996	1
82121-1G271	EL53..4FC	08/1996 - 05/1997	1
82121-1G272	EL53..4FC	05/1997 - 12/1997	1
82121-1G273	EL53..4FC	12/1997 - 12/2999	1
82123 - WIRE, ENGINE, NO.3
82123-16130	EL53..4F,4FC,5F	09/1994 - 12/2999	1
82620 - BLOCK ASSY, FUSIBLE LINK
82620-16080	EL53	09/1994 - 12/2999	1
82621 - COVER, FUSIBLE LINK
82621-16010	EL53	09/1994 - 12/2999	1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-16050	EL53	09/1994 - 12/2999	1
Common parts
90105-10122
90119-06390
90467-06131
91621-60612
91651-60614

ILLUST NO. 3 OF 7(9409- )

Click highlighted areas on diagram

INSTRUMENT WIRE

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-16060	EL53..4DS..USA PUERTORICO SPEC & W(POWER WINDOW)	09/1994 - 08/1996	1
82141-16050	EL53..USA PUERTORICO SPEC	09/1994 - 08/1996	1
82141-16010	EL53..USA W(REAR WINDOW DEFOGGER)	09/1994 - 05/1995	1
82141-16040	EL53..4DS..USA COLD SPEC & W(ABS & POWER WINDOW)	09/1994 - 08/1995	1
82141-16030	EL53..USA COLD SPEC	09/1994 - 05/1995	1
82141-16040	EL53..DX..USA COLD SPEC & W(ABS & POWER WINDOW)	08/1995 - 08/1996	1
82141-16020	EL53..DX..USA W(POWER WINDOW)	08/1995 - 08/1996	1
82141-16660	EL53..ATM..USA COLD SPEC	05/1995 - 08/1996	1
82141-16650	EL53..ATM..USA	05/1995 - 08/1996	1
82141-16041	EL53..USA COLD SPEC & W(ABS & POWER WINDOW)	08/1996 - 12/1997	1
82141-16021	EL53..USA W(POWER WINDOW)	08/1996 - 12/1997	1
82141-16661	EL53..ATM..USA COLD SPEC	08/1996 - 12/1997	1
82141-16061	EL53..4DS..USA PUERTORICO SPEC & W(POWER WINDOW)	08/1996 - 12/1997	1
82141-16020	EL53..4DS..USA W(POWER WINDOW)	09/1994 - 08/1995	1
82141-16042	EL53..USA COLD SPEC & W(POWER WINDOW)	12/1997 - 12/2999	1
82141-16051	EL53..USA PUERTORICO SPEC	08/1996 - 12/1997	1
82141-16022	EL53..USA W(POWER WINDOW)	12/1997 - 12/2999	1
82141-16651	EL53..ATM..USA	08/1996 - 12/1997	1
82141-16662	EL53..ATM..USA COLD SPEC	12/1997 - 12/2999	1
82141-16062	EL53..4DS..USA PUERTORICO SPEC & W(POWER WINDOW)	12/1997 - 12/2999	1
82141-16052	EL53..USA PUERTORICO SPEC	12/1997 - 12/2999	1
82141-16652	EL53..ATM..USA	12/1997 - 12/2999	1
82666A - HOLDER, CONNECTOR NO.2
82666-16020	EL53	09/1994 - 12/2999	2
82666A - HOLDER, CONNECTOR NO.2
82666-16020	EL53	09/1994 - 12/2999	2
Common parts
85999-16130
90159-50134
90159-70003
90167-50028
91651-60612
93568-15014
Linked diagrams
8401

ILLUST NO. 4 OF 7(9409- )4DS

Click highlighted areas on diagram

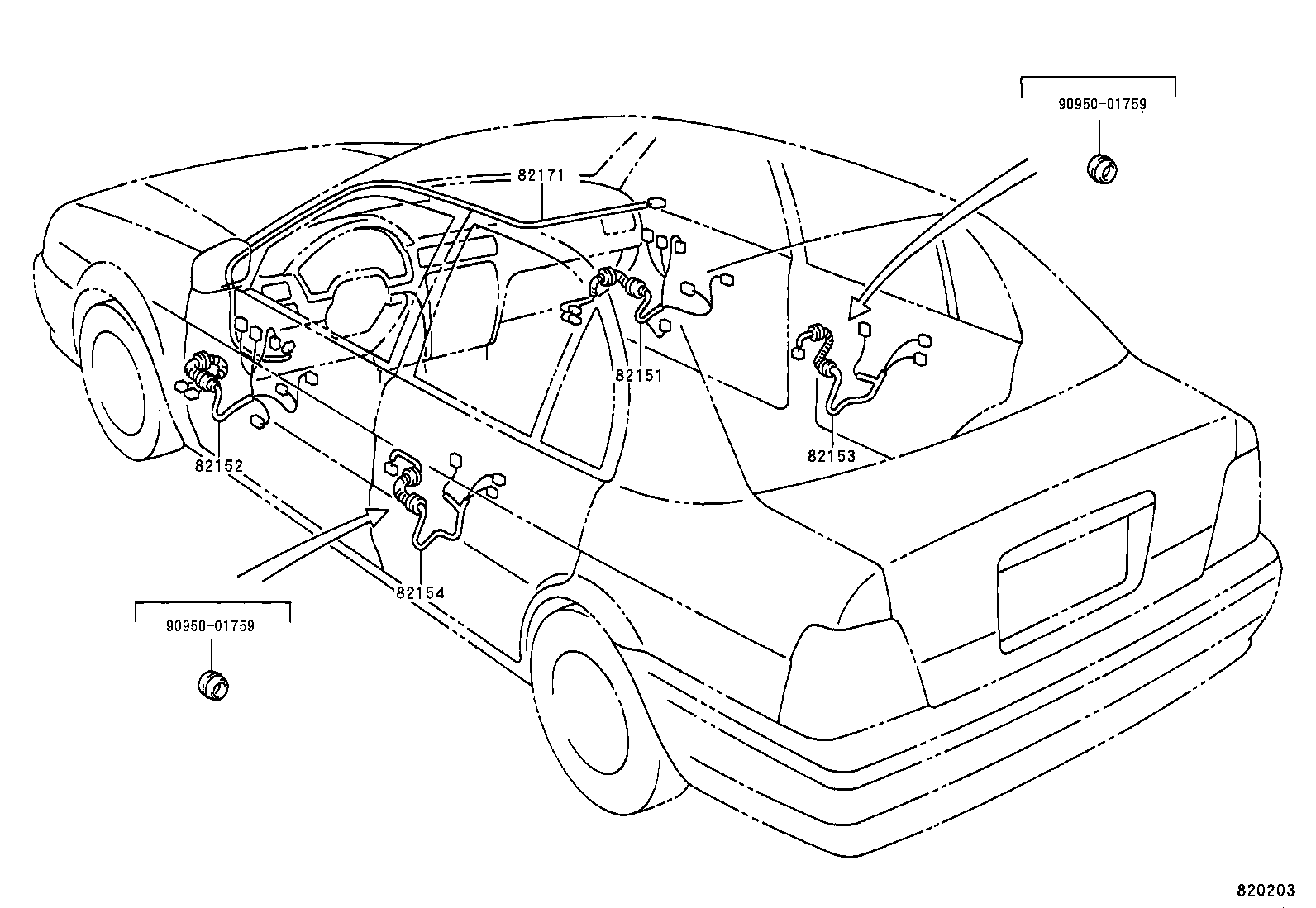

DOOR, ROOF WIRE

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-16470	EL53..4DS W(POWER WINDOW)	09/1994 - 12/1997	1
82151-16390	EL53..4DS..USA PUERTORICO SPEC & W(SECURITY SYSTEM & POWER WINDOW)	09/1994 - 12/1997	1
82151-16380	EL53..4DS..USA PUERTORICO SPEC	09/1994 - 12/1997	1
82151-16391	EL53..4DS..USA PUERTORICO SPEC & W(SECURITY SYSTEM & POWER WINDOW)	12/1997 - 12/2999	1
82151-16670	EL53..4DS..USA PUERTORICO SPEC & W(POWER WINDOW)	12/1997 - 12/2999	1
82151-16471	EL53..4DS W(POWER WINDOW)	12/1997 - 12/2999	1
82151-16420	EL53	09/1994 - 12/2999	1
82151-16381	EL53..4DS..USA PUERTORICO SPEC	12/1997 - 12/2999	1
82152 - WIRE, FRONT DOOR, LH
82152-16410	EL53..4DS W(POWER WINDOW)	09/1994 - 12/1997	1
82152-16340	EL53..4DS..USA PUERTORICO SPEC & W(POWER WINDOW)	09/1994 - 12/1997	1
82152-16420	EL53..4DS..USA PUERTORICO SPEC	09/1994 - 12/1997	1
82152-16341	EL53..4DS..USA PUERTORICO SPEC & W(POWER WINDOW)	12/1997 - 12/2999	1
82152-16330	EL53	09/1994 - 12/2999	1
82152-16421	EL53..4DS..USA PUERTORICO SPEC	12/1997 - 12/2999	1
82152-16411	EL53..4DS W(POWER WINDOW)	12/1997 - 12/2999	1
82153 - WIRE, REAR DOOR, NO.1
82153-16090	EL53..4DS..USA PUERTORICO SPEC	09/1994 - 12/2999	1
82153-16100	EL53..4DS W(POWER WINDOW)	09/1994 - 12/2999	1
82154 - WIRE, REAR DOOR, NO.2
82154-16100	EL53..4DS W(POWER WINDOW)	09/1994 - 12/2999	1
82153-16090	EL53..4DS..USA PUERTORICO SPEC	09/1995 - 12/2999	1
82154-16090	EL53..4DS..USA PUERTORICO SPEC	09/1994 - 09/1995	1
82171 - WIRE, ROOF, NO.1
82171-16301	EL53..4DS	12/1997 - 07/1999	1
82171-16300	EL53..4DS	09/1994 - 12/1997	1
Common parts
90950-01759

ILLUST NO. 7 OF 7(9409- )

Click highlighted areas on diagram

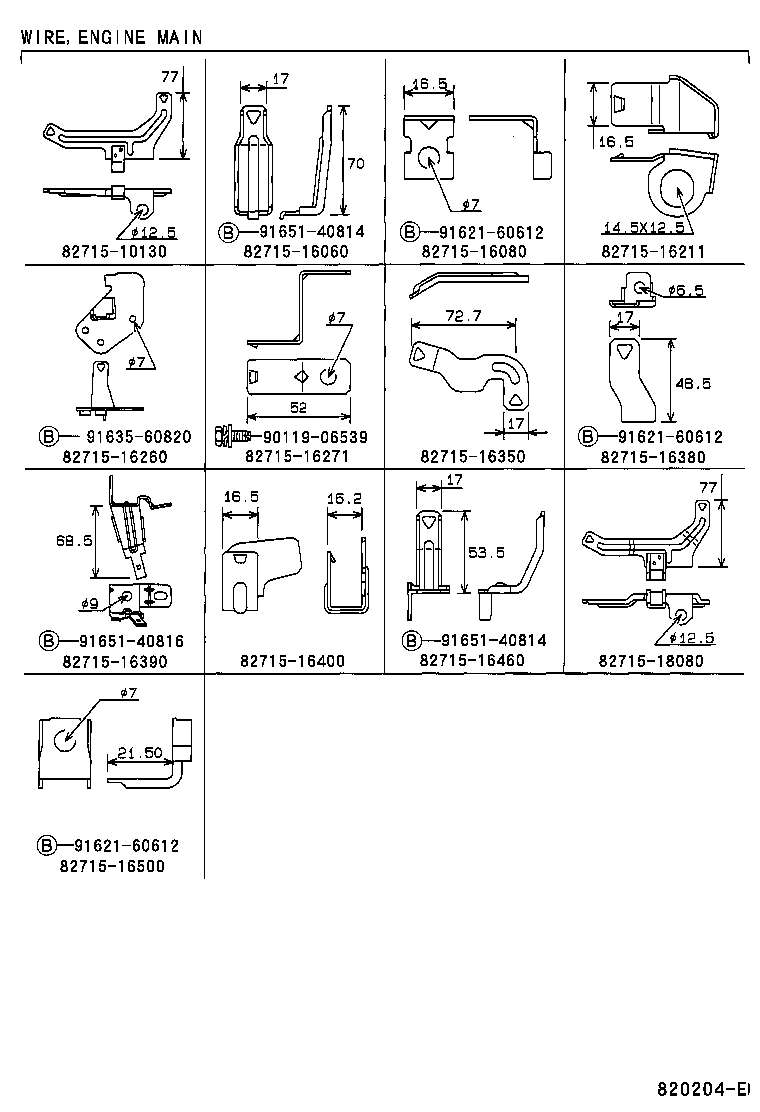

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82715-10130
82715-16060
82715-16080
82715-16211
82715-16260
82715-16271
82715-16350
82715-16380
82715-16390
82715-16400
82715-16460
82715-16500
82715-18080
90119-06539
91621-60612
91635-60820
91651-40814
91651-40816

ILLUST NO. 7 OF 7(9409- )

Click highlighted areas on diagram

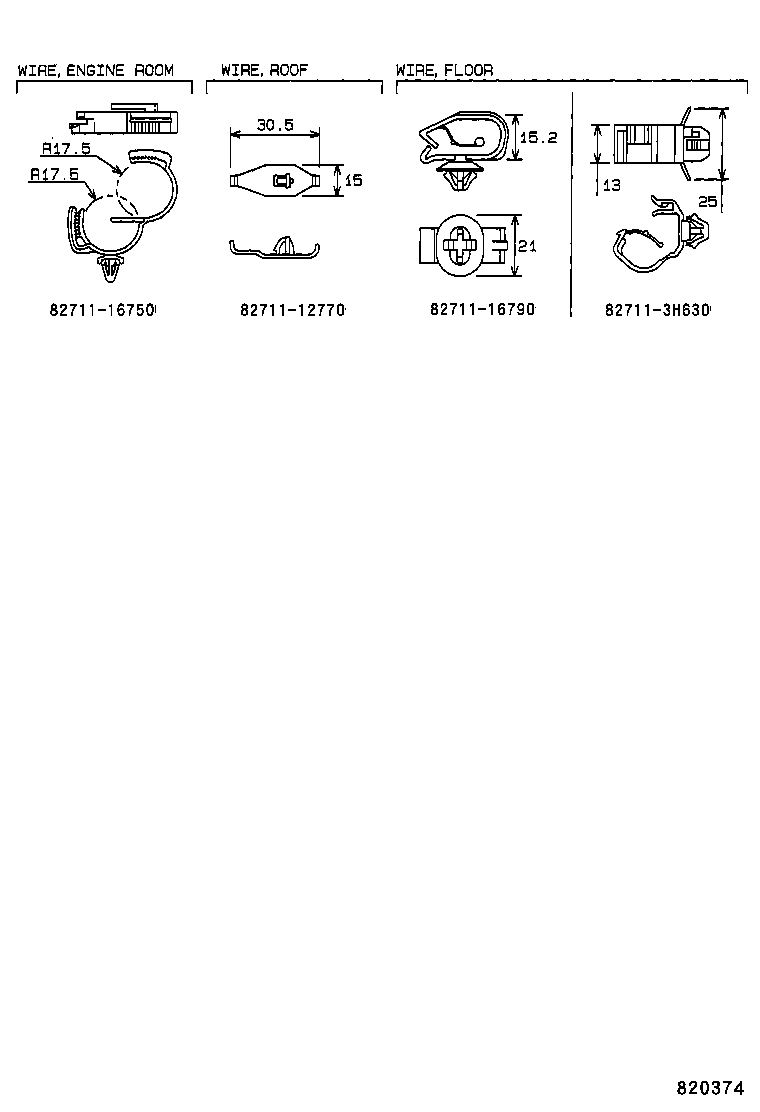

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82711-12770
82711-16750
82711-16790
82711-3H630

ILLUST NO. 1 OF 7(9409- )

Click highlighted areas on diagram

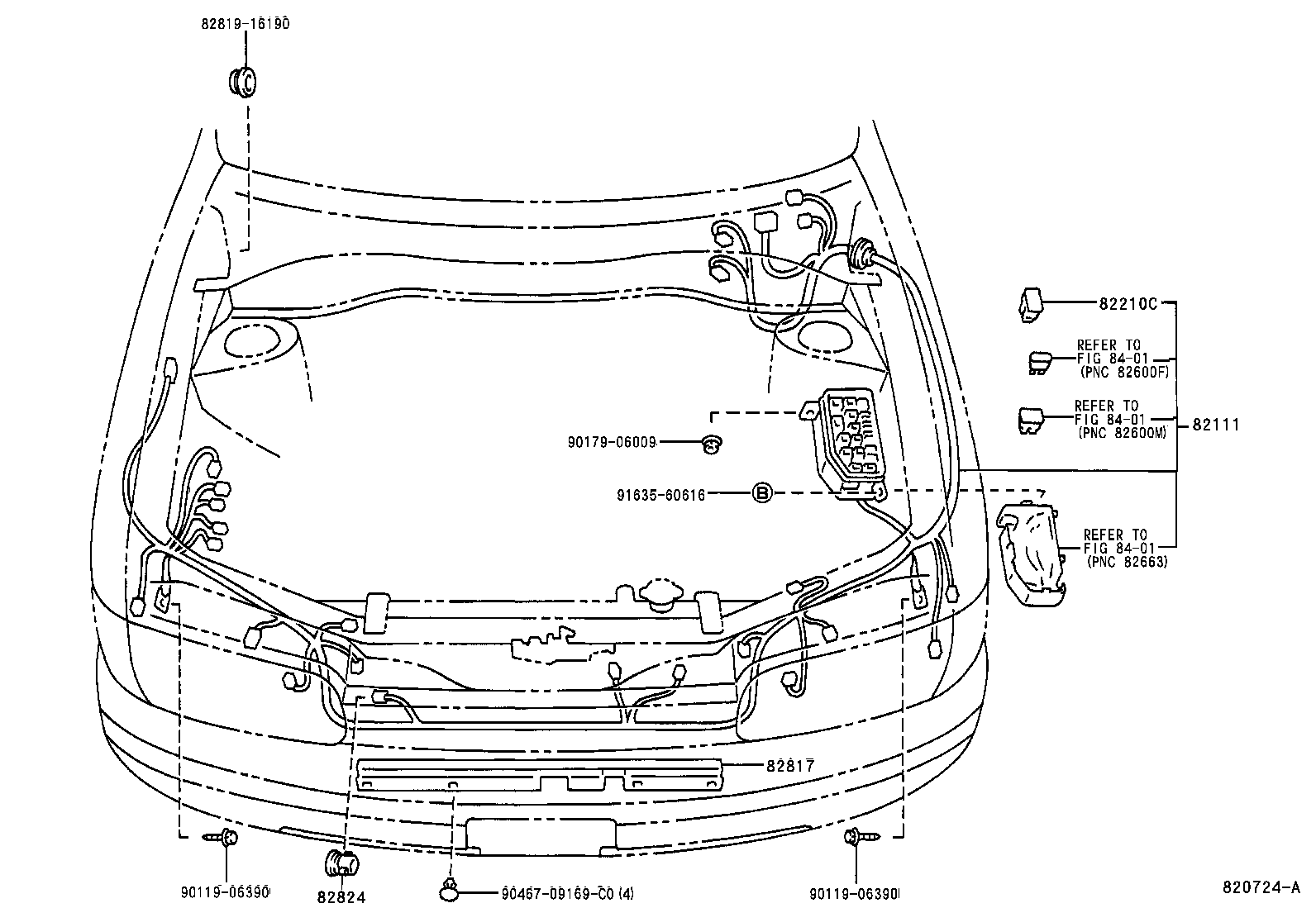

ENGINE ROOM WIRE

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-1G611	EL53..USA W(ABS)	08/1995 - 08/1996	1
82111-1G600	EL53..USA PUERTORICO SPEC	09/1994 - 08/1996	1
82111-1G601	EL53..USA PUERTORICO SPEC	08/1996 - 12/1997	1
82111-1G610	EL53..USA W(ABS)	09/1994 - 08/1995	1
82111-1G602	EL53..USA PUERTORICO SPEC	12/1997 - 12/2999	1
82111-1G550	EL53..USA	09/1994 - 08/1996	1
82111-1G552	EL53..USA	12/1997 - 12/2999	1
82111-1G551	EL53..USA	08/1996 - 12/1997	1
82111-1G613	EL53..USA W(ABS)	12/1997 - 12/2999	1
82111-1G612	EL53..USA W(ABS)	08/1996 - 12/1997	1
82210C - FUSIBLE LINK
90982-08280	EL53..USA 30A,TERM.:FEMALE,PNK	12/1997 - 12/2999	3
90982-08281	EL53 40A,TERM.:FEMALE,GRN	08/1996 - 12/2999	1
90982-08227	EL53 50A,TERM.:FEMALE,RED	09/1994 - 08/1995	1
90982-08246	EL53 100A,TERM.:MALE,BLUE	08/1995 - 12/2999	1
90982-08280	EL53 30A,TERM.:FEMALE,PNK	08/1996 - 12/1997	4
90982-08190	EL53 60A,TERM.:FEMALE,YEL	09/1994 - 12/2999	1
90982-08277	EL53 50A,TERM.:FEMALE,RED	08/1995 - 12/2999	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-16480	EL53	09/1994 - 02/1998	1
82824 - CONNECTOR, WIRING HARNESS
82824-20050	EL53	09/1994 - 12/2999	1
Common parts
82819-16190
90119-06390
90179-06009
90467-09169C0
91635-60616
Linked diagrams
8401

ILLUST NO. 6 OF 7(9409- )

Click highlighted areas on diagram

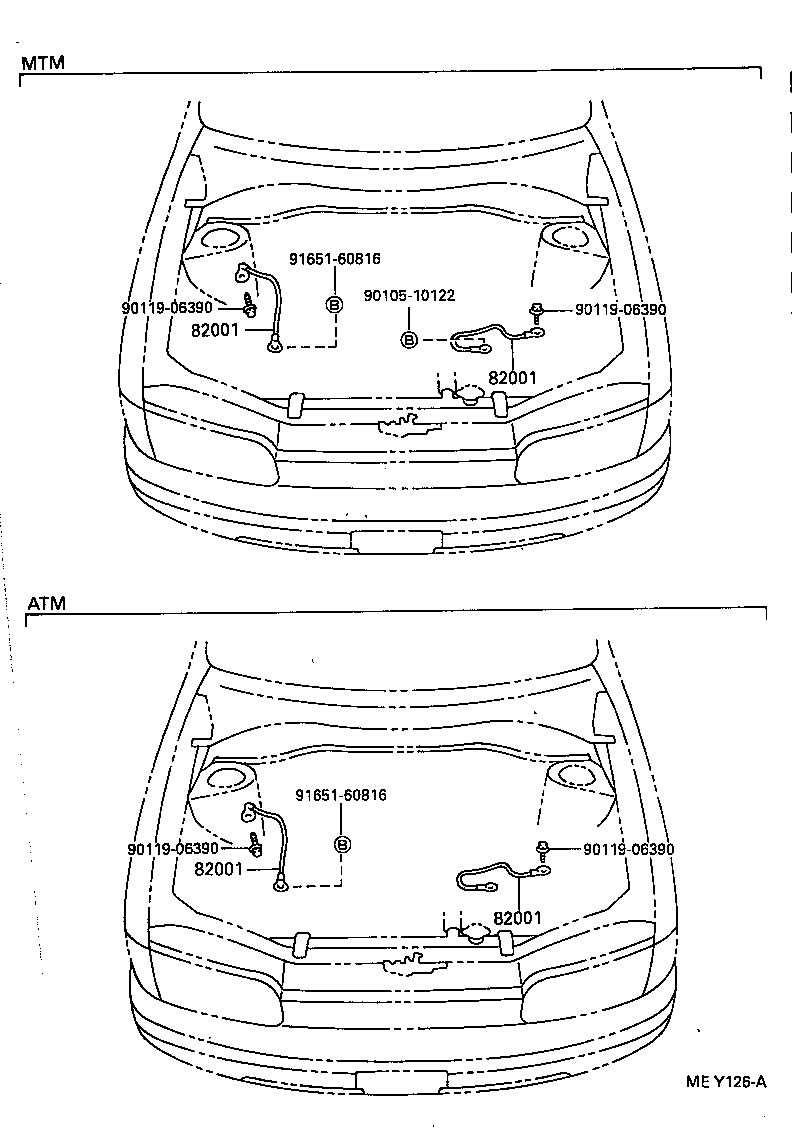

CABLE BOND

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07341	EL53 RH	09/1994 - 12/2999	1
90980-07375	EL53 LH	09/1994 - 12/2999	1
82001 - CABLE, BOND, NO.1
90980-07341	EL53 RH	09/1994 - 12/2999	1
90980-07375	EL53 LH	09/1994 - 12/2999	1
82001 - CABLE, BOND, NO.1
90980-07341	EL53 RH	09/1994 - 12/2999	1
90980-07375	EL53 LH	09/1994 - 12/2999	1
82001 - CABLE, BOND, NO.1
90980-07341	EL53 RH	09/1994 - 12/2999	1
90980-07375	EL53 LH	09/1994 - 12/2999	1
Common parts
90105-10122
90119-06390
91651-60816

ILLUST NO. 5 OF 7(9409- )4DS

Click highlighted areas on diagram

FLOOR, LUGGAGE WIRE

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-1G190	EL53..4DS	09/1994 - 08/1995	1
82161-1G220	EL53..4DS W(ABS & POWER WINDOW)	09/1994 - 08/1995	1
82161-1G191	EL53..4DS..USA	08/1995 - 08/1996	1
82161-1G200	EL53..4DS W(ABS)	09/1994 - 08/1995	1
82161-1G210	EL53..4DS W(POWER WINDOW)	09/1994 - 08/1995	1
82161-1G211	EL53..4DS PUERTORICO SPEC & W(POWER WINDOW)	08/1995 - 08/1996	1
82161-1G212	EL53..4DS PUERTORICO SPEC & W(POWER WINDOW)	08/1996 - 12/1997	1
82161-1G221	EL53..4DS W(ABS) OR W(ABS & POWER WINDOW)	08/1995 - 08/1996	1
82161-1G192	EL53..4DS..USA	08/1996 - 12/1997	1
82161-1G222	EL53..4DS W(ABS) OR W(ABS & POWER WINDOW)	08/1996 - 12/1997	1
82161-1G193	EL53..4DS..USA	12/1997 - 12/2999	1
82161-1G223	EL53..4DS W(ABS)	12/1997 - 12/2999	1
82161-1G213	EL53..4DS PUERTORICO SPEC & W(POWER WINDOW)	12/1997 - 12/2999	1
82187 - WIRE, REAR WINDOW, NO.2
82187-16090	EL53	09/1994 - 12/2999	1
82817E - PROTECTOR, WIRING HARNESS, NO.6
61824-50020	EL53	08/1996 - 12/1997	1
82817-16410	EL53	09/1994 - 08/1995	1
61824-50020	EL53 75 X 90	08/1995 - 08/1996	1
Common parts
90119-06390
90159-60303
