Toyota Tercel EL53 HEATING & AIR CONDITIONING - COMPRESSOR

Manufacturers Home
Toyota
EU
TERCEL
EL53L-AEPRKA (1994)
8719 - HEATING & AIR CONDITIONING - COMPRESSOR

EL53L-AEPRKA (1994)

Toyota Tercel

Production Sep 1994 - Jul 1999

Engine 5EFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9608- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
88317 - SPACER, COOLER COMPRESSOR
88317-10010	EL53	08/1996 - 12/2999	1
88320 - COMPRESSOR ASSY, COOLER
88320-16400	EL53..USA PUERTORICO SPEC	09/1994 - 08/1996	1
88320-10510	EL53 W(POWER STEERING)	08/1996 - 10/1997	1
88320-16390	EL53..USA PUERTORICO SPEC & W(POWER STEERING)	09/1994 - 08/1996	1
88320-16420	EL53	09/1994 - 08/1996	1
88320-10520	EL53	08/1996 - 10/1997	1
88320-16460	EL53..USA W/O(POWER STEERING)	03/1997 - 10/1997	1
88320-10550	EL53..USA PUERTORICO SPEC & W(POWER STEERING)	08/1996 - 10/1997	1
88320-16410	EL53 W(POWER STEERING)	09/1994 - 08/1996	1
88320-16461	EL53 W/O(POWER STEERING)	10/1997 - 12/2999	1
88320-10521	EL53..USA PUERTORICO SPEC	10/1997 - 12/2999	1
88320-10551	EL53..USA PUERTORICO SPEC & W(POWER STEERING)	10/1997 - 12/2999	1
88320-10511	EL53..CND;EL53..4DS..USA;EL53..2DS..(3FC,5F)..USA W(POWER STEERING)	10/1997 - 12/2999	1
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88322-10060	EL53	08/1996 - 12/2999	1
88322-12100	EL53 REAR	09/1994 - 08/1996	1
88321-12091	EL53..USA PUERTORICO SPEC,FRONT	09/1994 - 08/1996	1
88321-12130	EL53 W(POWER STEERING),FRONT	09/1994 - 08/1996	1
88321-12081	EL53..USA PUERTORICO SPEC & W(POWER STEERING),FRONT	09/1994 - 08/1996	1
88321-12140	EL53 FRONT	09/1994 - 08/1996	1
88322-12080	EL53..USA PUERTORICO SPEC,REAR	09/1994 - 08/1996	1
88322-16070	EL53..USA PUERTORICO SPEC & W/O(POWER STEERING)	12/1997 - 12/2999	1
88329E - BOLT, COMPRESSOR, NO.1
88329-10050	EL53	08/1996 - 12/2999	1
88329F - BOLT, COMPRESSOR, NO.2
88329-10060	EL53	08/1996 - 12/2999	4
88329G - BOLT, COMPRESSOR, NO.3
88329-10070	EL53	08/1996 - 12/2999	5
88329H - BOLT, COMPRESSOR, NO.4
88329-16030	EL53	08/1996 - 12/2999	1
88335 - GASKET KIT, OVERHAUL
88335-12110	EL53	09/1994 - 08/1996	1
88335-12070	EL53..USA PUERTORICO SPEC	09/1994 - 08/1996	1
88335-10080	EL53	08/1996 - 12/2999	1
88342 - PLATE, COMPRESSOR VALVE, RR
88342-10010	EL53	08/1996 - 12/2999	1
88344D - REED, DISCHARGE VALVE
88344-10010	EL53	08/1996 - 12/2999	1
88346A - SENSOR, COMPRESSOR PICK UP
88346-16010	EL53	08/1996 - 12/2999	1
88346-16020	EL53..USA PUERTORICO SPEC & W/O(POWER STEERING)	12/1997 - 12/2999	1
88353 - SEAL, COMPRESSOR TIP, NO.1
88353-10020	EL53	08/1996 - 12/2999	1
88353A - SEAL, COMPRESSOR TIP, NO.2
88353-10030	EL53	08/1996 - 12/2999	1
88360A - RING, COMPRESSOR SEAL PLATE SNAP
90096-90034	EL53	08/1996 - 12/2999	1
90096-90022	EL53	09/1994 - 08/1996	1
88360C - SEAL ASSY, SHAFT
88360-12100	EL53	09/1994 - 08/1996	1
88360-12090	EL53..USA PUERTORICO SPEC	09/1994 - 08/1996	1
88360-10030	EL53	08/1996 - 12/2999	1
88368 - RETANIER, COMPRESSOR BEARING
88368-10010	EL53	08/1996 - 12/2999	4
88376 - CAP, BLIND
88376-10040	EL53 NO.2	08/1996 - 12/2999	1
88376-12020	EL53 NO.1	08/1996 - 12/2999	1
88376-12010	EL53 NO.1	09/1994 - 08/1996	1
88376-12020	EL53 NO.2	09/1994 - 08/1996	1
88376 - CAP, BLIND
88376-10040	EL53 NO.2	08/1996 - 12/2999	1
88376-12020	EL53 NO.1	08/1996 - 12/2999	1
88376-12010	EL53 NO.1	09/1994 - 08/1996	1
88376-12020	EL53 NO.2	09/1994 - 08/1996	1
88379D - VALVE, PRESSURE RELIEF
88379-10010	EL53	08/1996 - 12/2999	1
88389A - WIRE, COMPRESSOR
88389-10020	EL53	08/1996 - 12/1997	1
88389-10020	EL53..USA	12/1997 - 12/2999	1
88394 - SPRING, COMPRESSOR
88394-10020	EL53	08/1996 - 12/2999	1
88394B - SPRING, COMPRESSOR
88394-10030	EL53	08/1996 - 12/2999	1
88397A - CLIP, COMPRESSOR
88397-16040	EL53	09/1994 - 08/1996	1
88397-16050	EL53	08/1996 - 12/1997	1
88397-16050	EL53..USA	12/1997 - 12/2999	1
88397-16060	EL53..USA PUERTORICO SPEC & W/O(POWER STEERING)	12/1997 - 12/2999	1
Common parts
90091-40623
93381-15008

ILLUST NO. 1 OF 2(9409- )

Click highlighted areas on diagram

Part #	Description	Period	Qty

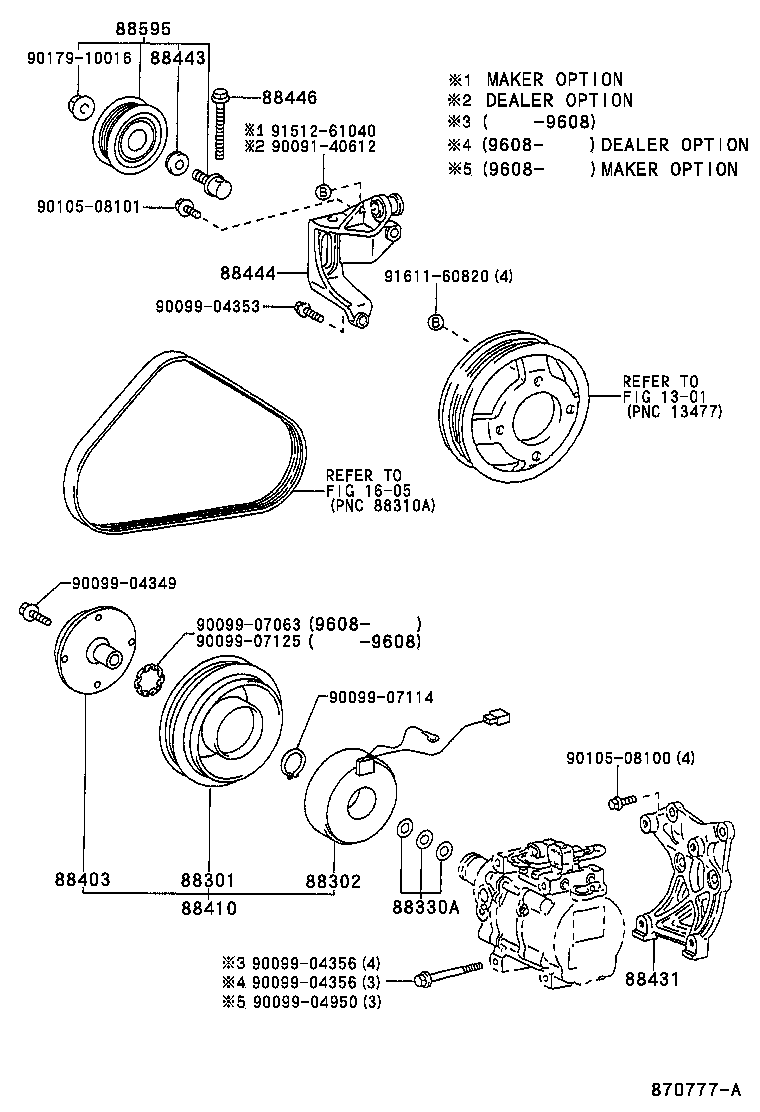

88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-16190	EL53	08/1996 - 12/2999	1
88412-16150	EL53	09/1994 - 08/1996	1
88412-16160	EL53..USA PUERTORICO SPEC	08/1996 - 12/2999	1
88412-16130	EL53..USA PUERTORICO SPEC	09/1994 - 08/1996	1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-1A040	EL53	09/1994 - 08/1996	1
88411-16070	EL53	08/1996 - 12/2999	1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020	EL53	09/1994 - 12/2999	1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-1A010	EL53	09/1994 - 08/1996	1
88403-16020	EL53	08/1996 - 12/2999	1
88410 - CLUTCH ASSY, MAGNET
88410-16181	EL53..USA PUERTORICO SPEC	09/1994 - 08/1996	1
88410-16300	EL53	08/1996 - 12/2999	1
88410-16270	EL53	09/1994 - 08/1996	1
88410-16280	EL53..USA PUERTORICO SPEC	08/1996 - 12/2999	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-16090	EL53	09/1994 - 08/1996	1
88431-16060	EL53..USA PUERTORICO SPEC	09/1994 - 08/1996	1
88431-16140	EL53	08/1996 - 12/2999	1
88443 - COLLAR, IDLE PULLEY
88443-36010	EL53	09/1994 - 12/1997	1
88444 - BRACKET, IDLE PULLEY
88444-16030	EL53	09/1994 - 12/2999	1
88446 - BOLT, IDLE PULLEY
88446-12030	EL53	09/1994 - 12/2999	1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-16050	EL53	09/1994 - 12/2999	1
Common parts
90091-40612
90099-04349
90099-04353
90099-04356
90099-04950
90099-07063
90099-07114
90099-07125
90105-08100
90105-08101
90179-10016
91512-61040
91611-60820
Linked diagrams
1301
1605

ILLUST NO. 2 OF 2(9409-9608)

Click highlighted areas on diagram

Part #	Description	Period	Qty

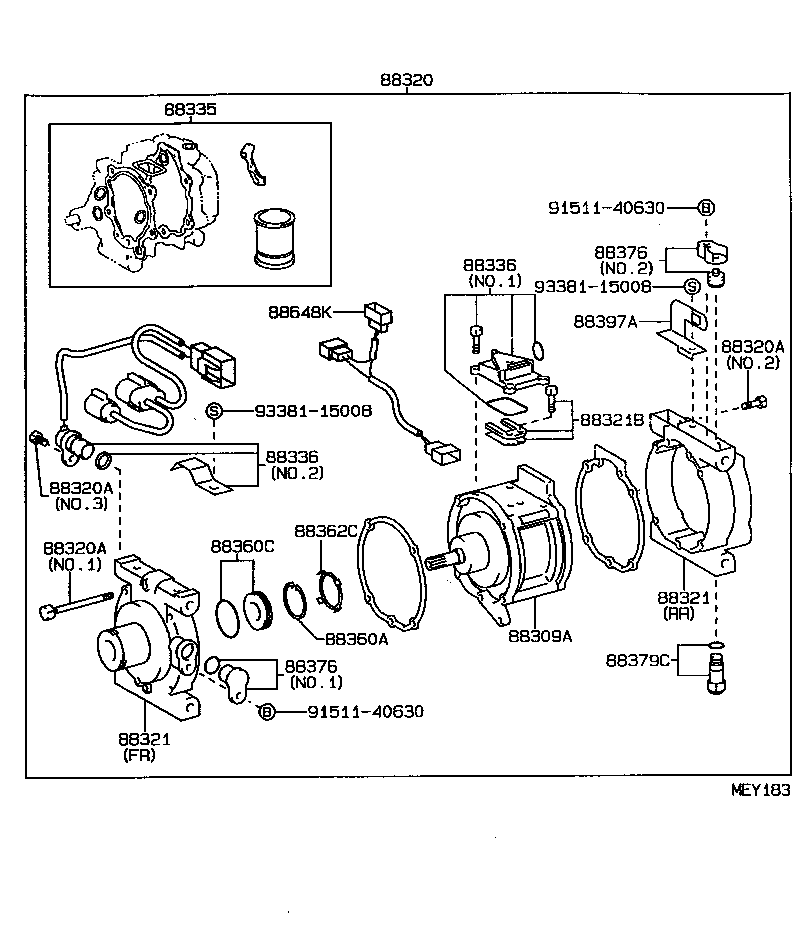

88309A - PUMP SUB-ASSY, COMPRESSOR
88309-12080	EL53..USA PUERTORICO SPEC	09/1994 - 08/1996	1
88309-12110	EL53	09/1994 - 08/1996	1
88320 - COMPRESSOR ASSY, COOLER
88320-16400	EL53..USA PUERTORICO SPEC	09/1994 - 08/1996	1
88320-10510	EL53 W(POWER STEERING)	08/1996 - 10/1997	1
88320-16390	EL53..USA PUERTORICO SPEC & W(POWER STEERING)	09/1994 - 08/1996	1
88320-16420	EL53	09/1994 - 08/1996	1
88320-10520	EL53	08/1996 - 10/1997	1
88320-16460	EL53..USA W/O(POWER STEERING)	03/1997 - 10/1997	1
88320-10550	EL53..USA PUERTORICO SPEC & W(POWER STEERING)	08/1996 - 10/1997	1
88320-16410	EL53 W(POWER STEERING)	09/1994 - 08/1996	1
88320-16461	EL53 W/O(POWER STEERING)	10/1997 - 12/2999	1
88320-10521	EL53..USA PUERTORICO SPEC	10/1997 - 12/2999	1
88320-10551	EL53..USA PUERTORICO SPEC & W(POWER STEERING)	10/1997 - 12/2999	1
88320-10511	EL53..CND;EL53..4DS..USA;EL53..2DS..(3FC,5F)..USA W(POWER STEERING)	10/1997 - 12/2999	1
88320A - BOLT, THROUGH
88329-10010	EL53..USA PUERTORICO SPEC,NO.1	09/1994 - 08/1996	5
88329-10020	EL53..USA PUERTORICO SPEC,NO.2	09/1994 - 08/1996	2
88329-16020	EL53 NO.2	09/1994 - 08/1996	2
88329-16010	EL53 NO.1	09/1994 - 08/1996	5
88329-16030	EL53 NO.3	09/1994 - 08/1996	1
88320A - BOLT, THROUGH
88329-10010	EL53..USA PUERTORICO SPEC,NO.1	09/1994 - 08/1996	5
88329-10020	EL53..USA PUERTORICO SPEC,NO.2	09/1994 - 08/1996	2
88329-16020	EL53 NO.2	09/1994 - 08/1996	2
88329-16010	EL53 NO.1	09/1994 - 08/1996	5
88329-16030	EL53 NO.3	09/1994 - 08/1996	1
88320A - BOLT, THROUGH
88329-10010	EL53..USA PUERTORICO SPEC,NO.1	09/1994 - 08/1996	5
88329-10020	EL53..USA PUERTORICO SPEC,NO.2	09/1994 - 08/1996	2
88329-16020	EL53 NO.2	09/1994 - 08/1996	2
88329-16010	EL53 NO.1	09/1994 - 08/1996	5
88329-16030	EL53 NO.3	09/1994 - 08/1996	1
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88322-10060	EL53	08/1996 - 12/2999	1
88322-12100	EL53 REAR	09/1994 - 08/1996	1
88321-12091	EL53..USA PUERTORICO SPEC,FRONT	09/1994 - 08/1996	1
88321-12130	EL53 W(POWER STEERING),FRONT	09/1994 - 08/1996	1
88321-12081	EL53..USA PUERTORICO SPEC & W(POWER STEERING),FRONT	09/1994 - 08/1996	1
88321-12140	EL53 FRONT	09/1994 - 08/1996	1
88322-12080	EL53..USA PUERTORICO SPEC,REAR	09/1994 - 08/1996	1
88322-16070	EL53..USA PUERTORICO SPEC & W/O(POWER STEERING)	12/1997 - 12/2999	1
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88322-10060	EL53	08/1996 - 12/2999	1
88322-12100	EL53 REAR	09/1994 - 08/1996	1
88321-12091	EL53..USA PUERTORICO SPEC,FRONT	09/1994 - 08/1996	1
88321-12130	EL53 W(POWER STEERING),FRONT	09/1994 - 08/1996	1
88321-12081	EL53..USA PUERTORICO SPEC & W(POWER STEERING),FRONT	09/1994 - 08/1996	1
88321-12140	EL53 FRONT	09/1994 - 08/1996	1
88322-12080	EL53..USA PUERTORICO SPEC,REAR	09/1994 - 08/1996	1
88322-16070	EL53..USA PUERTORICO SPEC & W/O(POWER STEERING)	12/1997 - 12/2999	1
88321B - REED SUB-ASSY, VALVE
88307-12050	EL53	09/1994 - 08/1996	1
88307-10010	EL53..USA PUERTORICO SPEC	09/1994 - 08/1996	1
88335 - GASKET KIT, OVERHAUL
88335-12110	EL53	09/1994 - 08/1996	1
88335-12070	EL53..USA PUERTORICO SPEC	09/1994 - 08/1996	1
88335-10080	EL53	08/1996 - 12/2999	1
88336 - SENSOR, COMPRESSOR
88336-12090	EL53 NO.2	09/1994 - 08/1996	1
88336-10020	EL53..USA PUERTORICO SPEC,NO.1	09/1994 - 08/1996	1
88336-16010	EL53 NO.1	09/1994 - 08/1996	1
88336 - SENSOR, COMPRESSOR
88336-12090	EL53 NO.2	09/1994 - 08/1996	1
88336-10020	EL53..USA PUERTORICO SPEC,NO.1	09/1994 - 08/1996	1
88336-16010	EL53 NO.1	09/1994 - 08/1996	1
88360A - RING, COMPRESSOR SEAL PLATE SNAP
90096-90034	EL53	08/1996 - 12/2999	1
90096-90022	EL53	09/1994 - 08/1996	1
88360C - SEAL ASSY, SHAFT
88360-12100	EL53	09/1994 - 08/1996	1
88360-12090	EL53..USA PUERTORICO SPEC	09/1994 - 08/1996	1
88360-10030	EL53	08/1996 - 12/2999	1
88362C - PLATE, PULSE
88362-12020	EL53	09/1994 - 08/1996	1
88362-12010	EL53..USA PUERTORICO SPEC	09/1994 - 08/1996	1
88376 - CAP, BLIND
88376-10040	EL53 NO.2	08/1996 - 12/2999	1
88376-12020	EL53 NO.1	08/1996 - 12/2999	1
88376-12010	EL53 NO.1	09/1994 - 08/1996	1
88376-12020	EL53 NO.2	09/1994 - 08/1996	1
88376 - CAP, BLIND
88376-10040	EL53 NO.2	08/1996 - 12/2999	1
88376-12020	EL53 NO.1	08/1996 - 12/2999	1
88376-12010	EL53 NO.1	09/1994 - 08/1996	1
88376-12020	EL53 NO.2	09/1994 - 08/1996	1
88379C - VALVE, PRESSURE RELIEF
88379-12050	EL53	09/1994 - 08/1996	1
88397A - CLIP, COMPRESSOR
88397-16040	EL53	09/1994 - 08/1996	1
88397-16050	EL53	08/1996 - 12/1997	1
88397-16050	EL53..USA	12/1997 - 12/2999	1
88397-16060	EL53..USA PUERTORICO SPEC & W/O(POWER STEERING)	12/1997 - 12/2999	1
88648K - WIRE SUB-ASSY, SENSOR
88648-12600	EL53	09/1994 - 08/1996	1
Common parts
91511-40630
93381-15008
