Toyota Tercel EL53 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
EU
TERCEL
EL53L-AEPRKA (1994)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

EL53L-AEPRKA (1994)

Toyota Tercel

Production Sep 1994 - Jul 1999

Engine 5EFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

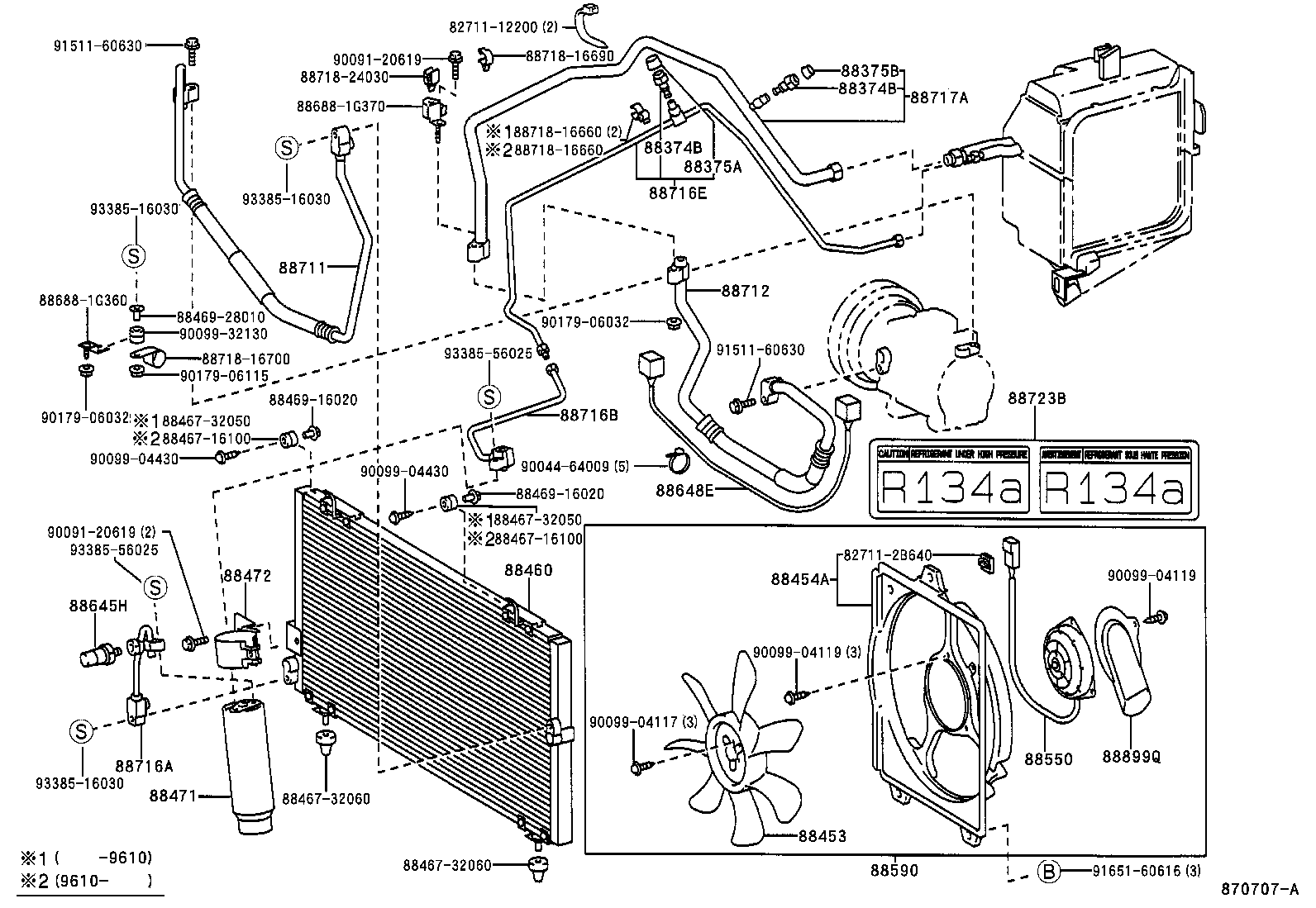

ILLUST NO. 1 OF 2(9409-9608)

Click highlighted areas on diagram

MAKER OPTION

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	EL53	09/1994 - 12/2999	2
88374B - VALVE, SERVICE, NO.1
88374-30010	EL53	09/1994 - 12/2999	2
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	EL53	09/1994 - 12/2999	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	EL53	09/1994 - 12/2999	1
88453 - FAN, COOLING (FOR CONDENSER)
88453-20080	EL53	09/1994 - 12/2999	1
88454A - SHROUD, FAN
88454-16140	EL53	09/1994 - 12/2999	1
88460 - CONDENSER ASSY, COOLER
88460-16370	EL53 DEALER OPTION	09/1994 - 08/1996	1
88460-16340	EL53..USA MAKER OPTION	09/1994 - 08/1996	1
88460-16460	EL53 DEALER OPTION	08/1996 - 12/2999	1
88460-16440	EL53..USA MAKER OPTION	08/1996 - 12/1997	1
88460-16490	EL53..USA MAKER OPTION	12/1997 - 12/2999	1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-20050	EL53	09/1994 - 12/2999	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-16140	EL53	09/1994 - 12/2999	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
16363-74180	EL53	09/1994 - 12/2999	1
88590 - BLOWER ASSY, W/SHROUD
88590-16070	EL53	09/1994 - 12/2999	1
88645H - SWITCH, PRESSURE NO.1
88645-20050	EL53	09/1994 - 12/2999	1
88648E - WIRING, COOLER
88648-16310	EL53	08/1996 - 12/2999	1
88648-16220	EL53	09/1994 - 08/1996	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-16281	EL53..USA MAKER OPTION	08/1995 - 08/1996	1
88711-16410	EL53 DEALER OPTION	08/1996 - 12/2999	1
88711-16351	EL53 DEALER OPTION	09/1994 - 08/1996	1
88711-16380	EL53..USA MAKER OPTION	08/1996 - 12/1997	1
88711-16280	EL53..USA MAKER OPTION	09/1994 - 08/1995	1
88711-16440	EL53..USA MAKER OPTION	12/1997 - 12/2999	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-16410	EL53	09/1994 - 08/1996	1
88712-16570	EL53	08/1996 - 12/2999	1
88712-16460	EL53..USA PUERTORICO SPEC	09/1994 - 08/1996	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-1G420	EL53..USA DEALER OPTION	12/1997 - 12/2999	1
88716-1G040	EL53	09/1994 - 12/2999	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-1G010	EL53..USA MAKER OPTION	09/1994 - 08/1996	1
88716-1G380	EL53 DEALER OPTION	08/1996 - 12/2999	1
88716-1G140	EL53 DEALER OPTION	09/1994 - 08/1996	1
88716-1G340	EL53..USA MAKER OPTION	08/1996 - 12/2999	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-16300	EL53	08/1996 - 12/2999	1
88717-16250	EL53	09/1994 - 08/1996	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-16080	EL53 DEALER OPTION	08/1996 - 12/2999	1
88723-16060	EL53	09/1994 - 08/1996	1
88723-16080	EL53..USA MAKER OPTION	08/1996 - 03/1998	1
88723-16090	EL53..USA MAKER OPTION	03/1998 - 12/2999	1
88899Q - PLATE, COVER
88899-16020	EL53	09/1994 - 12/2999	1
Common parts
82711-2B640
88467-32050
88467-32060
88469-16020
88469-28010
88688-1G360
88688-1G370
88718-16660
88718-16690
88718-16700
88718-24030
90044-64009
90091-20609
90099-04117
90099-04119
90099-32130
90105-06035
90179-06032
90179-06115
91511-60614
91511-G0622
91631-60630
91635-60630
91651-60616
93385-16030
93385-56025

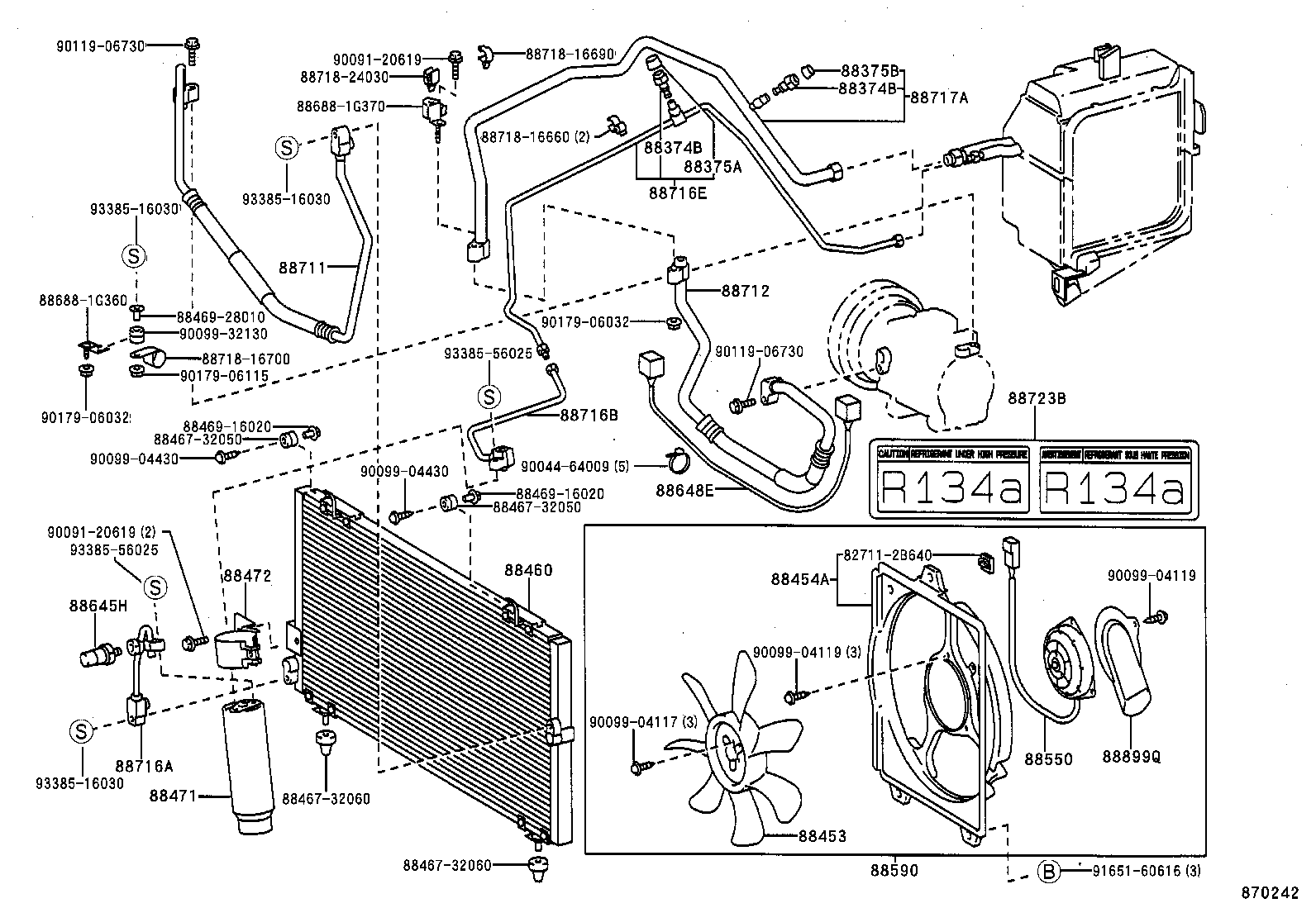

ILLUST NO. 1 OF 2(9409-9608)

Click highlighted areas on diagram

DEALER OPTION

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	EL53	09/1994 - 12/2999	2
88374B - VALVE, SERVICE, NO.1
88374-30010	EL53	09/1994 - 12/2999	2
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	EL53	09/1994 - 12/2999	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	EL53	09/1994 - 12/2999	1
88453 - FAN, COOLING (FOR CONDENSER)
88453-20080	EL53	09/1994 - 12/2999	1
88454A - SHROUD, FAN
88454-16140	EL53	09/1994 - 12/2999	1
88460 - CONDENSER ASSY, COOLER
88460-16370	EL53 DEALER OPTION	09/1994 - 08/1996	1
88460-16340	EL53..USA MAKER OPTION	09/1994 - 08/1996	1
88460-16460	EL53 DEALER OPTION	08/1996 - 12/2999	1
88460-16440	EL53..USA MAKER OPTION	08/1996 - 12/1997	1
88460-16490	EL53..USA MAKER OPTION	12/1997 - 12/2999	1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-20050	EL53	09/1994 - 12/2999	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-16140	EL53	09/1994 - 12/2999	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
16363-74180	EL53	09/1994 - 12/2999	1
88590 - BLOWER ASSY, W/SHROUD
88590-16070	EL53	09/1994 - 12/2999	1
88645H - SWITCH, PRESSURE NO.1
88645-20050	EL53	09/1994 - 12/2999	1
88648E - WIRING, COOLER
88648-16310	EL53	08/1996 - 12/2999	1
88648-16220	EL53	09/1994 - 08/1996	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-16281	EL53..USA MAKER OPTION	08/1995 - 08/1996	1
88711-16410	EL53 DEALER OPTION	08/1996 - 12/2999	1
88711-16351	EL53 DEALER OPTION	09/1994 - 08/1996	1
88711-16380	EL53..USA MAKER OPTION	08/1996 - 12/1997	1
88711-16280	EL53..USA MAKER OPTION	09/1994 - 08/1995	1
88711-16440	EL53..USA MAKER OPTION	12/1997 - 12/2999	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-16410	EL53	09/1994 - 08/1996	1
88712-16570	EL53	08/1996 - 12/2999	1
88712-16460	EL53..USA PUERTORICO SPEC	09/1994 - 08/1996	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-1G420	EL53..USA DEALER OPTION	12/1997 - 12/2999	1
88716-1G040	EL53	09/1994 - 12/2999	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-1G130	EL53	09/1994 - 12/2999	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-1G010	EL53..USA MAKER OPTION	09/1994 - 08/1996	1
88716-1G380	EL53 DEALER OPTION	08/1996 - 12/2999	1
88716-1G140	EL53 DEALER OPTION	09/1994 - 08/1996	1
88716-1G340	EL53..USA MAKER OPTION	08/1996 - 12/2999	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-16300	EL53	08/1996 - 12/2999	1
88717-16250	EL53	09/1994 - 08/1996	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-16080	EL53 DEALER OPTION	08/1996 - 12/2999	1
88723-16060	EL53	09/1994 - 08/1996	1
88723-16080	EL53..USA MAKER OPTION	08/1996 - 03/1998	1
88723-16090	EL53..USA MAKER OPTION	03/1998 - 12/2999	1
88899Q - PLATE, COVER
88899-16020	EL53	09/1994 - 12/2999	1
Common parts
82711-2B640
88467-32050
88467-32060
88469-16020
88469-28010
88688-1G360
88688-1G370
88718-16660
88718-16690
88718-16700
88718-24030
90044-64009
90091-20619
90099-04117
90099-04119
90099-04430
90099-32130
90119-06730
90179-06032
90179-06115
91651-60616
93385-16030
93385-56025

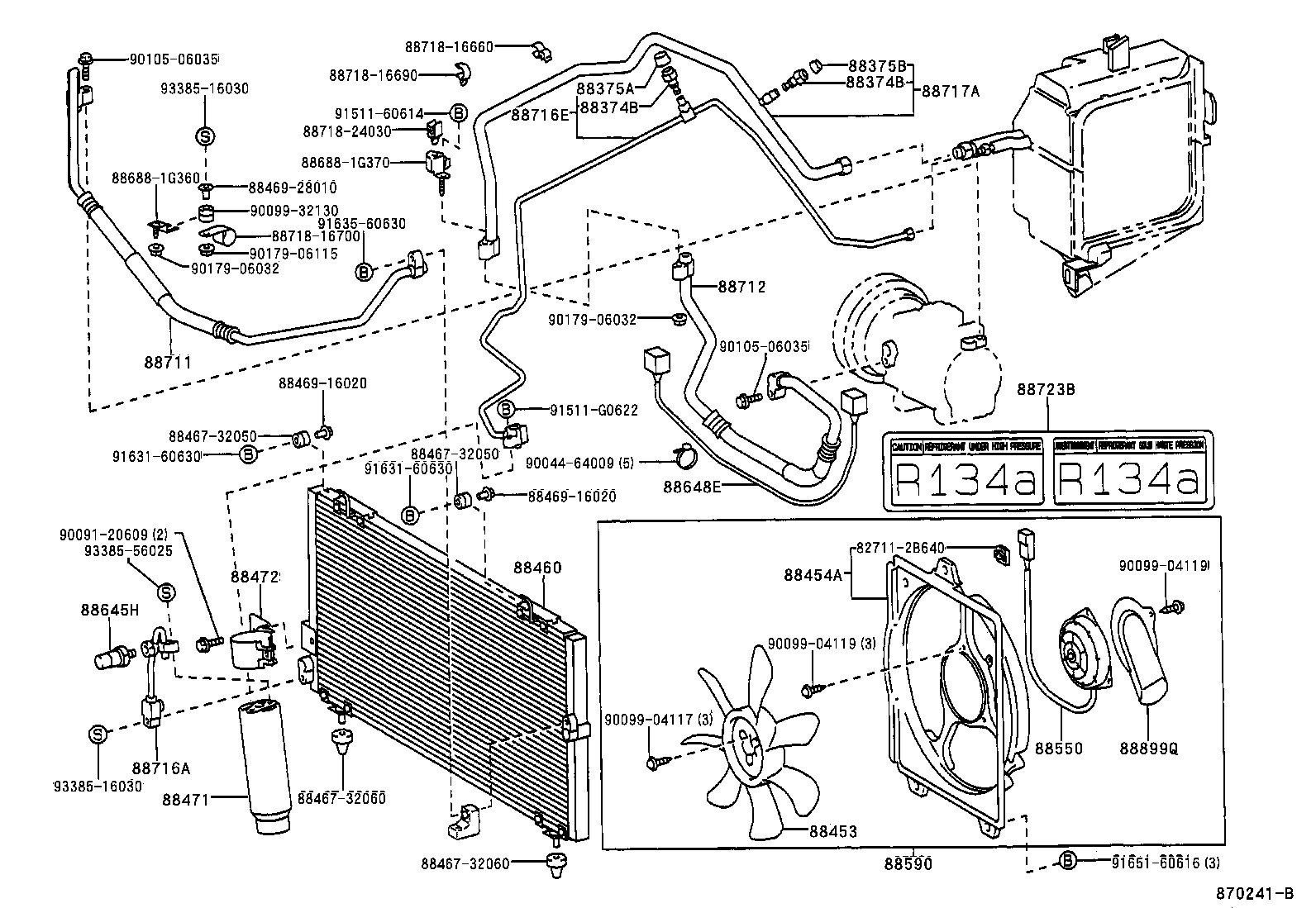

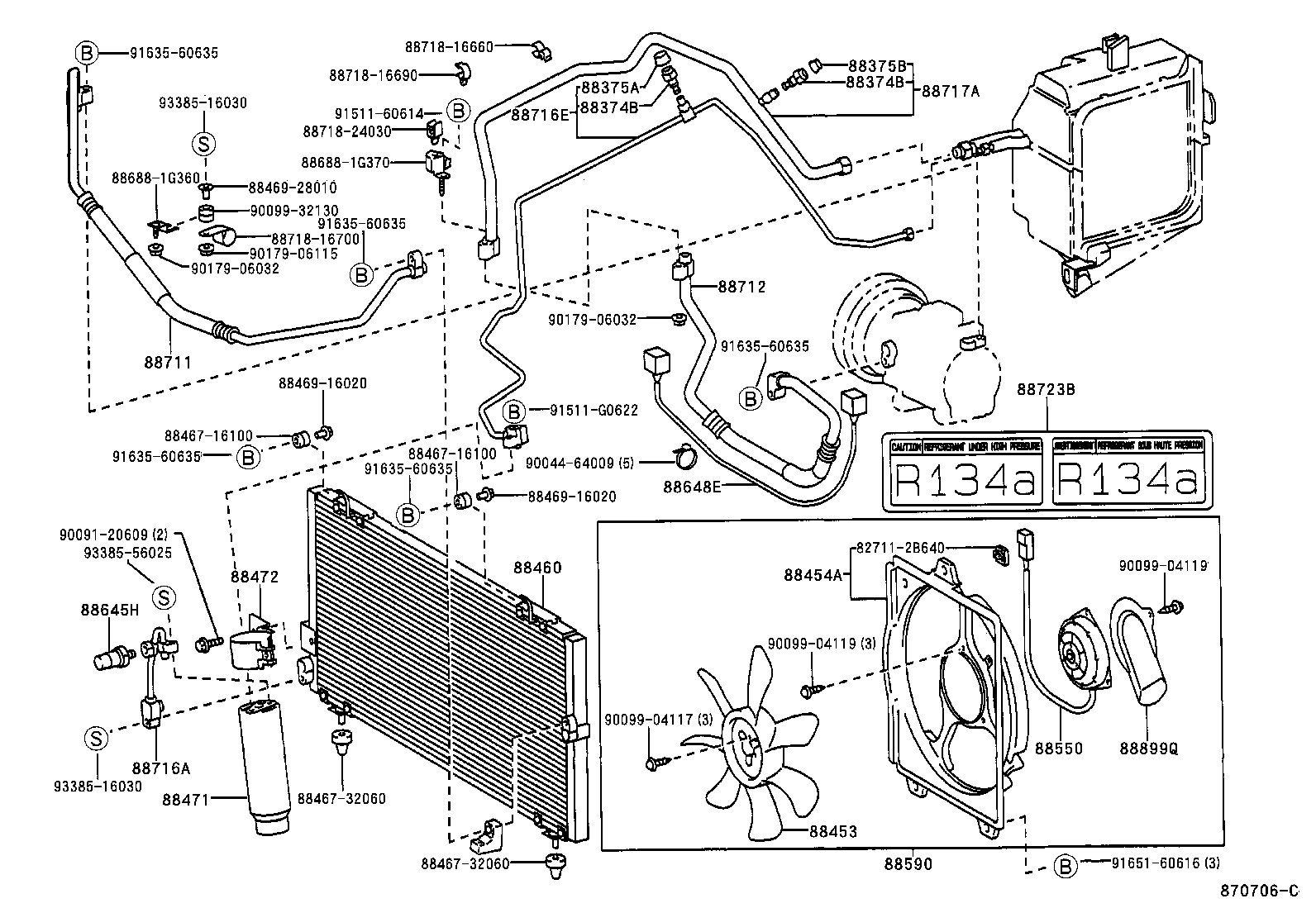

ILLUST NO. 1 OF 2(9608-9712)

Click highlighted areas on diagram

MAKER OPTION

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	EL53	09/1994 - 12/2999	2
88374B - VALVE, SERVICE, NO.1
88374-30010	EL53	09/1994 - 12/2999	2
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	EL53	09/1994 - 12/2999	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	EL53	09/1994 - 12/2999	1
88453 - FAN, COOLING (FOR CONDENSER)
88453-20080	EL53	09/1994 - 12/2999	1
88454A - SHROUD, FAN
88454-16140	EL53	09/1994 - 12/2999	1
88460 - CONDENSER ASSY, COOLER
88460-16370	EL53 DEALER OPTION	09/1994 - 08/1996	1
88460-16340	EL53..USA MAKER OPTION	09/1994 - 08/1996	1
88460-16460	EL53 DEALER OPTION	08/1996 - 12/2999	1
88460-16440	EL53..USA MAKER OPTION	08/1996 - 12/1997	1
88460-16490	EL53..USA MAKER OPTION	12/1997 - 12/2999	1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-20050	EL53	09/1994 - 12/2999	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-16140	EL53	09/1994 - 12/2999	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
16363-74180	EL53	09/1994 - 12/2999	1
88590 - BLOWER ASSY, W/SHROUD
88590-16070	EL53	09/1994 - 12/2999	1
88645H - SWITCH, PRESSURE NO.1
88645-20050	EL53	09/1994 - 12/2999	1
88648E - WIRING, COOLER
88648-16310	EL53	08/1996 - 12/2999	1
88648-16220	EL53	09/1994 - 08/1996	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-16281	EL53..USA MAKER OPTION	08/1995 - 08/1996	1
88711-16410	EL53 DEALER OPTION	08/1996 - 12/2999	1
88711-16351	EL53 DEALER OPTION	09/1994 - 08/1996	1
88711-16380	EL53..USA MAKER OPTION	08/1996 - 12/1997	1
88711-16280	EL53..USA MAKER OPTION	09/1994 - 08/1995	1
88711-16440	EL53..USA MAKER OPTION	12/1997 - 12/2999	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-16410	EL53	09/1994 - 08/1996	1
88712-16570	EL53	08/1996 - 12/2999	1
88712-16460	EL53..USA PUERTORICO SPEC	09/1994 - 08/1996	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-1G420	EL53..USA DEALER OPTION	12/1997 - 12/2999	1
88716-1G040	EL53	09/1994 - 12/2999	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-1G010	EL53..USA MAKER OPTION	09/1994 - 08/1996	1
88716-1G380	EL53 DEALER OPTION	08/1996 - 12/2999	1
88716-1G140	EL53 DEALER OPTION	09/1994 - 08/1996	1
88716-1G340	EL53..USA MAKER OPTION	08/1996 - 12/2999	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-16300	EL53	08/1996 - 12/2999	1
88717-16250	EL53	09/1994 - 08/1996	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-16080	EL53 DEALER OPTION	08/1996 - 12/2999	1
88723-16060	EL53	09/1994 - 08/1996	1
88723-16080	EL53..USA MAKER OPTION	08/1996 - 03/1998	1
88723-16090	EL53..USA MAKER OPTION	03/1998 - 12/2999	1
88899Q - PLATE, COVER
88899-16020	EL53	09/1994 - 12/2999	1
Common parts
82711-2B640
88467-16100
88467-32060
88469-16020
88469-28010
88688-1G360
88688-1G370
88718-16660
88718-16690
88718-16700
88718-24030
90044-64009
90091-20609
90099-04117
90099-04119
90099-32130
90179-06032
90179-06115
91511-60614
91511-G0622
91635-60635
91651-60616
93385-16030
93385-56025

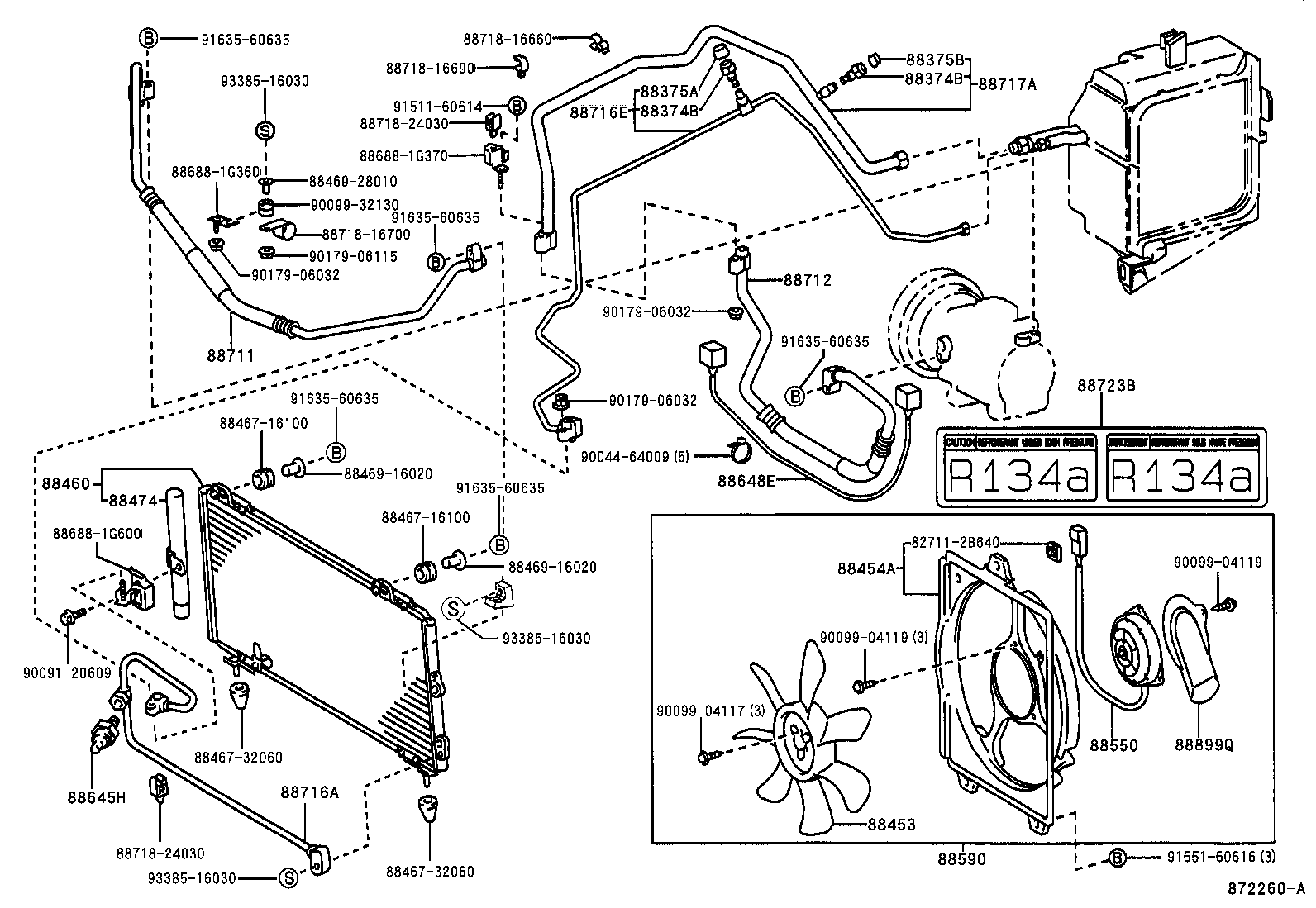

ILLUST NO. 1 OF 2(9608- )

Click highlighted areas on diagram

DEALER OPTION

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	EL53	09/1994 - 12/2999	2
88374B - VALVE, SERVICE, NO.1
88374-30010	EL53	09/1994 - 12/2999	2
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	EL53	09/1994 - 12/2999	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	EL53	09/1994 - 12/2999	1
88453 - FAN, COOLING (FOR CONDENSER)
88453-20080	EL53	09/1994 - 12/2999	1
88454A - SHROUD, FAN
88454-16140	EL53	09/1994 - 12/2999	1
88460 - CONDENSER ASSY, COOLER
88460-16370	EL53 DEALER OPTION	09/1994 - 08/1996	1
88460-16340	EL53..USA MAKER OPTION	09/1994 - 08/1996	1
88460-16460	EL53 DEALER OPTION	08/1996 - 12/2999	1
88460-16440	EL53..USA MAKER OPTION	08/1996 - 12/1997	1
88460-16490	EL53..USA MAKER OPTION	12/1997 - 12/2999	1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-20050	EL53	09/1994 - 12/2999	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-16140	EL53	09/1994 - 12/2999	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
16363-74180	EL53	09/1994 - 12/2999	1
88590 - BLOWER ASSY, W/SHROUD
88590-16070	EL53	09/1994 - 12/2999	1
88645H - SWITCH, PRESSURE NO.1
88645-20050	EL53	09/1994 - 12/2999	1
88648E - WIRING, COOLER
88648-16310	EL53	08/1996 - 12/2999	1
88648-16220	EL53	09/1994 - 08/1996	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-16281	EL53..USA MAKER OPTION	08/1995 - 08/1996	1
88711-16410	EL53 DEALER OPTION	08/1996 - 12/2999	1
88711-16351	EL53 DEALER OPTION	09/1994 - 08/1996	1
88711-16380	EL53..USA MAKER OPTION	08/1996 - 12/1997	1
88711-16280	EL53..USA MAKER OPTION	09/1994 - 08/1995	1
88711-16440	EL53..USA MAKER OPTION	12/1997 - 12/2999	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-16410	EL53	09/1994 - 08/1996	1
88712-16570	EL53	08/1996 - 12/2999	1
88712-16460	EL53..USA PUERTORICO SPEC	09/1994 - 08/1996	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-1G420	EL53..USA DEALER OPTION	12/1997 - 12/2999	1
88716-1G040	EL53	09/1994 - 12/2999	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-1G130	EL53	09/1994 - 12/2999	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-1G010	EL53..USA MAKER OPTION	09/1994 - 08/1996	1
88716-1G380	EL53 DEALER OPTION	08/1996 - 12/2999	1
88716-1G140	EL53 DEALER OPTION	09/1994 - 08/1996	1
88716-1G340	EL53..USA MAKER OPTION	08/1996 - 12/2999	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-16300	EL53	08/1996 - 12/2999	1
88717-16250	EL53	09/1994 - 08/1996	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-16060	EL53	09/1994 - 08/1996	1
88723-16080	EL53 DEALER OPTION	08/1996 - 12/2999	1
88723-16080	EL53..USA MAKER OPTION	08/1996 - 03/1998	1
88723-16090	EL53..USA MAKER OPTION	03/1998 - 12/2999	1
88899Q - PLATE, COVER
88899-16020	EL53	09/1994 - 12/2999	1
Common parts
82711-12200
82711-2B640
88467-16100
88467-32050
88467-32060
88469-16020
88469-28010
88688-1G360
88688-1G370
88718-16660
88718-16690
88718-16700
88718-24030
90044-64009
90091-20619
90099-04117
90099-04119
90099-04430
90099-32130
90179-06032
90179-06115
91511-60630
91651-60616
93385-16030
93385-56025

ILLUST NO. 1 OF 2(9712- )

Click highlighted areas on diagram

MAKER OPTION

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	EL53	09/1994 - 12/2999	2
88374B - VALVE, SERVICE, NO.1
88374-30010	EL53	09/1994 - 12/2999	2
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	EL53	09/1994 - 12/2999	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	EL53	09/1994 - 12/2999	1
88453 - FAN, COOLING (FOR CONDENSER)
88453-20080	EL53	09/1994 - 12/2999	1
88454A - SHROUD, FAN
88454-16140	EL53	09/1994 - 12/2999	1
88460 - CONDENSER ASSY, COOLER
88460-16370	EL53 DEALER OPTION	09/1994 - 08/1996	1
88460-16340	EL53..USA MAKER OPTION	09/1994 - 08/1996	1
88460-16460	EL53 DEALER OPTION	08/1996 - 12/2999	1
88460-16440	EL53..USA MAKER OPTION	08/1996 - 12/1997	1
88460-16490	EL53..USA MAKER OPTION	12/1997 - 12/2999	1
88474 - DRYER, COOLER
88474-47010	EL53..USA	12/1997 - 12/2999	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
16363-74180	EL53	09/1994 - 12/2999	1
88590 - BLOWER ASSY, W/SHROUD
88590-16070	EL53	09/1994 - 12/2999	1
88645H - SWITCH, PRESSURE NO.1
88645-20050	EL53	09/1994 - 12/2999	1
88648E - WIRING, COOLER
88648-16310	EL53	08/1996 - 12/2999	1
88648-16220	EL53	09/1994 - 08/1996	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-16281	EL53..USA MAKER OPTION	08/1995 - 08/1996	1
88711-16410	EL53 DEALER OPTION	08/1996 - 12/2999	1
88711-16351	EL53 DEALER OPTION	09/1994 - 08/1996	1
88711-16380	EL53..USA MAKER OPTION	08/1996 - 12/1997	1
88711-16280	EL53..USA MAKER OPTION	09/1994 - 08/1995	1
88711-16440	EL53..USA MAKER OPTION	12/1997 - 12/2999	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-16410	EL53	09/1994 - 08/1996	1
88712-16570	EL53	08/1996 - 12/2999	1
88712-16460	EL53..USA PUERTORICO SPEC	09/1994 - 08/1996	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-1G420	EL53..USA DEALER OPTION	12/1997 - 12/2999	1
88716-1G040	EL53	09/1994 - 12/2999	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-1G010	EL53..USA MAKER OPTION	09/1994 - 08/1996	1
88716-1G380	EL53 DEALER OPTION	08/1996 - 12/2999	1
88716-1G140	EL53 DEALER OPTION	09/1994 - 08/1996	1
88716-1G340	EL53..USA MAKER OPTION	08/1996 - 12/2999	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-16300	EL53	08/1996 - 12/2999	1
88717-16250	EL53	09/1994 - 08/1996	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-16080	EL53 DEALER OPTION	08/1996 - 12/2999	1
88723-16060	EL53	09/1994 - 08/1996	1
88723-16080	EL53..USA MAKER OPTION	08/1996 - 03/1998	1
88723-16090	EL53..USA MAKER OPTION	03/1998 - 12/2999	1
88899Q - PLATE, COVER
88899-16020	EL53	09/1994 - 12/2999	1
Common parts
82711-2B640
88467-16100
88467-32060
88469-16020
88469-28010
88688-1G360
88688-1G370
88688-1G600
88718-16660
88718-16690
88718-16700
88718-24030
90044-64009
90091-20609
90099-04117
90099-04119
90099-32130
90179-06032
90179-06115
91511-60614
91635-60635
91651-60616
93385-16030

ILLUST NO. 2 OF 2(9409- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122
90099-14125

EL53L-AEPRKA (1994)

ILLUST NO. 1 OF 2(9409-9608)

ILLUST NO. 1 OF 2(9409-9608)

ILLUST NO. 1 OF 2(9608-9712)

ILLUST NO. 1 OF 2(9608- )

ILLUST NO. 1 OF 2(9712- )

ILLUST NO. 2 OF 2(9409- )

Part Price Details
