EL53L-AEPRKA (1994)
Toyota Tercel
Production
Sep 1994
-
Jul 1999
Engine
5EFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

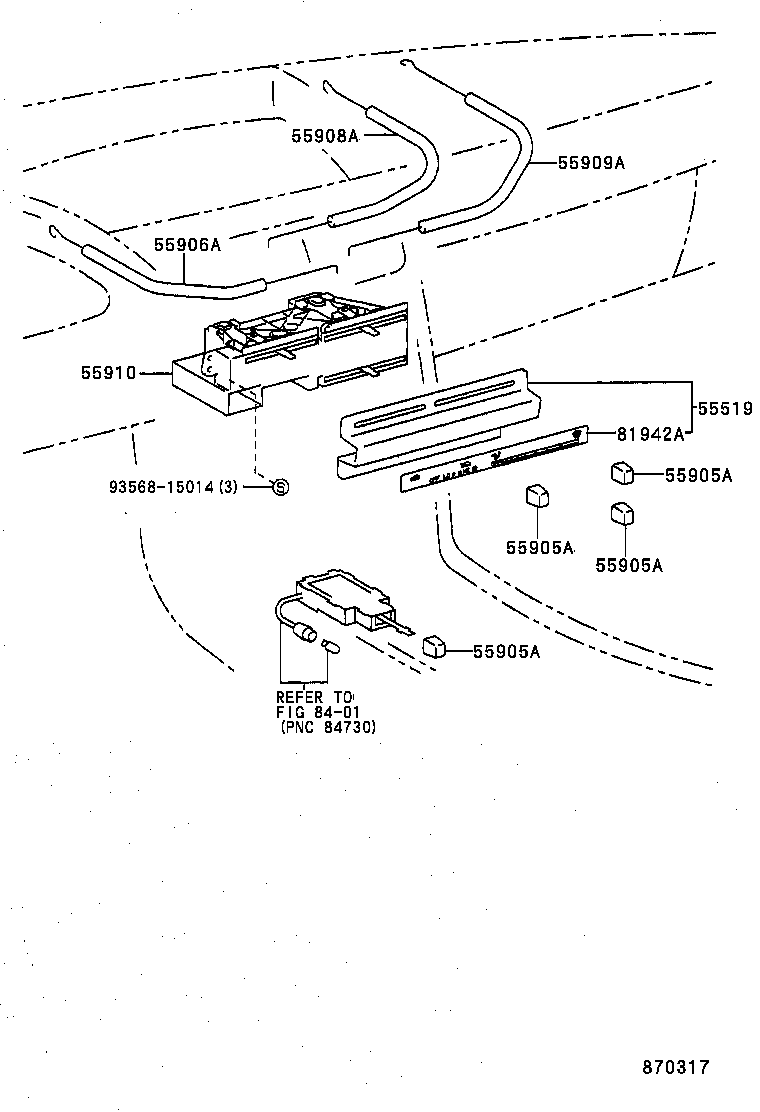

ILLUST NO. 1 OF 2(9409-9608)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-16250 |
EL53 |
1 | ||
| 55519-16140 |
EL53 |
1 | ||
| 55519-16260 |
EL53..USA W(AIR CONDITIONER) |
1 | ||
| 55519-16190 |
EL53 |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
EL53 |
2 | ||
| 55905-89115 |
EL53 |
4 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
EL53 |
2 | ||
| 55905-89115 |
EL53 |
4 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
EL53 |
2 | ||
| 55905-89115 |
EL53 |
4 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
EL53 |
2 | ||
| 55905-89115 |
EL53 |
4 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-16130 |
EL53 |
1 | ||
| 55906-16100 |
EL53 |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-16120 |
EL53 |
1 | ||
| 55908-16100 |
EL53 |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-16110 |
EL53 |
1 | ||
| 55909-16140 |
EL53 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-16280 |
EL53 |
1 | ||
| 55910-16340 |
EL53 |
1 | ||
| 55910-16220 |
EL53 |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-16330 |
EL53 |
1 | ||
| 81942-16271 |
EL53 |
1 | ||
| 81942-16230 |
EL53 |
1 | ||
| 81942-16270 |
EL53 |
1 | ||
| Common parts | ||||
| 93568-15014 | ||||
| Linked diagrams | ||||
| 8401 | ||||

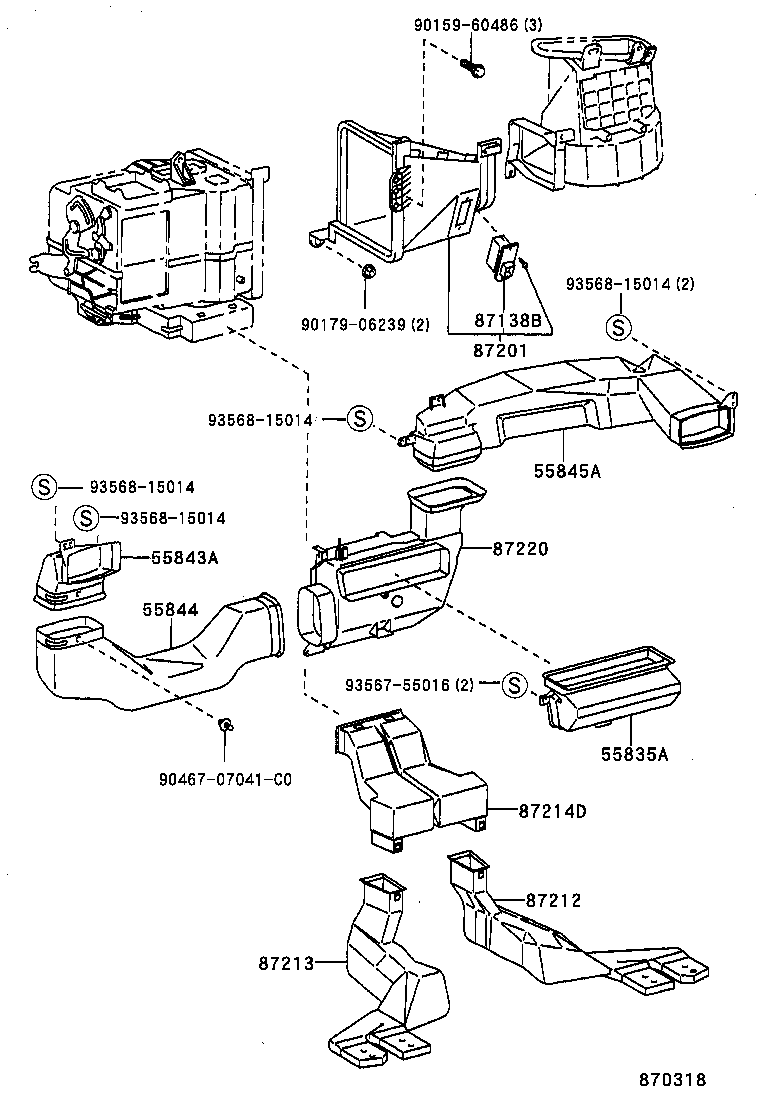

ILLUST NO. 2 OF 2(9409- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55835A - DUCT, HEATER TO REGISTER, CENTER | ||||
| 55835-16070 |
EL53 |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-16120 |
EL53 |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-16100 |
EL53 |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-16120 |
EL53 |
1 | ||
| 55845-16100 |
EL53 |
1 | ||
| 87138B - RESISTOR, HEATER BLOWER | ||||
| 87138-16140 |
EL53 |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-16150 |
EL53 |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-16060 |
EL53 |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-16060 |
EL53 |
1 | ||
| 87214D - DUCT, AIR, REAR NO.3 | ||||
| 87215-16020 |
EL53 |
1 | ||
| 87220 - DUCT ASSY, AIR | ||||
| 87220-16040 |
EL53 |
1 | ||
| Common parts | ||||
| 90159-60486 | ||||
| 90179-06239 | ||||
| 90467-07041C0 | ||||
| 93567-55016 | ||||
| 93568-15014 | ||||
ILLUST NO. 1 OF 2(9608- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-16250 |
EL53 |
1 | ||
| 55519-16140 |
EL53 |
1 | ||
| 55519-16260 |
EL53..USA W(AIR CONDITIONER) |
1 | ||
| 55519-16190 |
EL53 |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
EL53 |
2 | ||
| 55905-89115 |
EL53 |
4 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
EL53 |
2 | ||
| 55905-89115 |
EL53 |
4 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-16130 |
EL53 |
1 | ||
| 55906-16100 |
EL53 |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-16120 |
EL53 |
1 | ||
| 55908-16100 |
EL53 |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-16110 |
EL53 |
1 | ||
| 55909-16140 |
EL53 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-16280 |
EL53 |
1 | ||
| 55910-16340 |
EL53 |
1 | ||
| 55910-16220 |
EL53 |
1 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 90981-11014 |
EL53 |
2 | ||
| 55921A - RETAINER, HEATER CONTROL | ||||
| 55921-16020 |
EL53 |
2 | ||
| 55921-10050 |
EL53 |
2 | ||
| 55921A - RETAINER, HEATER CONTROL | ||||
| 55921-16020 |
EL53 |
2 | ||
| 55921-10050 |
EL53 |
2 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-16330 |
EL53 |
1 | ||
| 81942-16271 |
EL53 |
1 | ||
| 81942-16230 |
EL53 |
1 | ||
| 81942-16270 |
EL53 |
1 | ||
| Common parts | ||||
| 93566-14512 | ||||
| 93568-15014 | ||||
