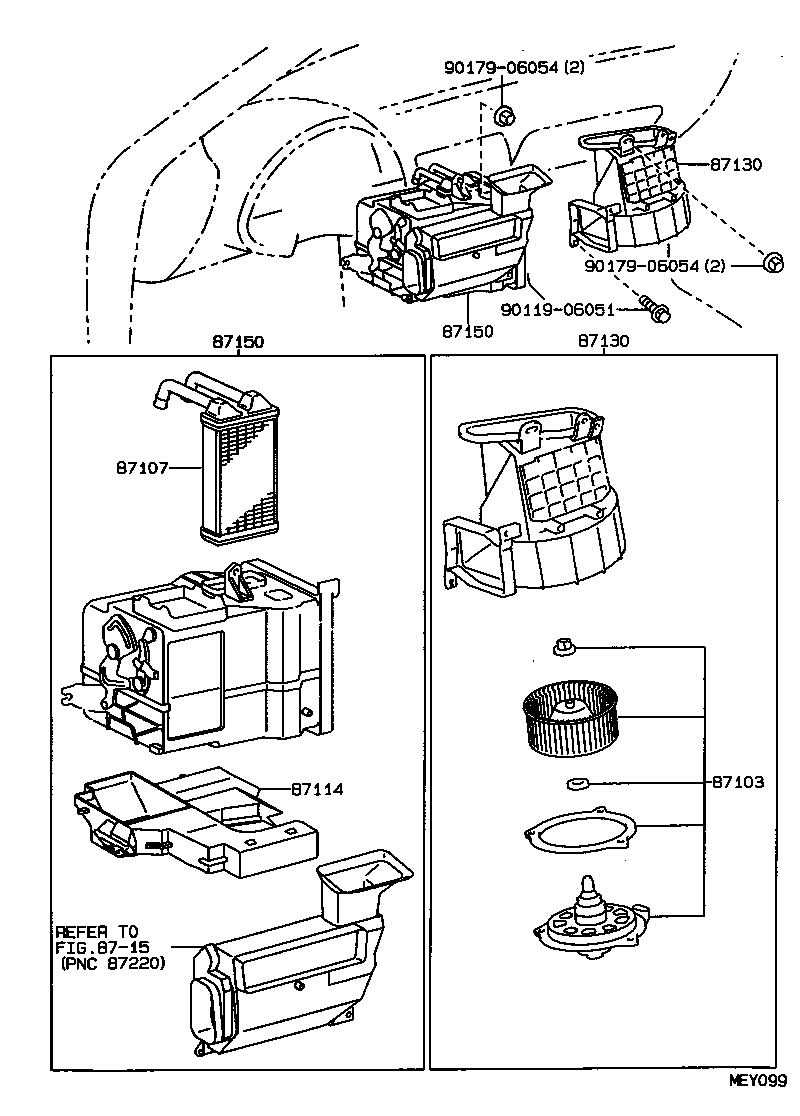

Toyota Tercel EL53 HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

Part #	Description	Period	Qty
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-16040	EL53	09/1994 - 12/2999	1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-16180	EL53..USA COLD SPEC,HEATER RADIATOR FIN PITCH=1.8	09/1994 - 08/1996	1
87107-10340	EL53..USA COLD SPEC,HEATER RADIATOR FIN PITCH=1.8	08/1996 - 12/2999	1
87107-42050	EL53..USA	08/1996 - 12/2999	1
87107-16250	EL53..USA	09/1994 - 08/1996	1
87114 - COVER, HEATER
87114-16070	EL53..USA	09/1994 - 12/2999	1
87114-16080	EL53..3FC..STD..USA;EL53..(4F,4FC,5F)..USA COLD SPEC,HEATER RADIATOR FIN PITCH=1.8	09/1994 - 12/2999	1
87130 - BLOWER ASSY, HEATER, FRONT
87130-16190	EL53	09/1994 - 12/2999	1
87130 - BLOWER ASSY, HEATER, FRONT
87130-16190	EL53	09/1994 - 12/2999	1
87150 - RADIATOR ASSY, HEATER
87150-16571	EL53..USA COLD SPEC,HEATER RADIATOR FIN PITCH=1.8	08/1996 - 12/2999	1
87150-16570	EL53..USA COLD SPEC,HEATER RADIATOR FIN PITCH=1.8	09/1994 - 08/1996	1
87150-16561	EL53..USA	08/1996 - 12/2999	1
87150-16560	EL53..USA	09/1994 - 08/1996	1
87150 - RADIATOR ASSY, HEATER
87150-16571	EL53..USA COLD SPEC,HEATER RADIATOR FIN PITCH=1.8	08/1996 - 12/2999	1
87150-16570	EL53..USA COLD SPEC,HEATER RADIATOR FIN PITCH=1.8	09/1994 - 08/1996	1
87150-16561	EL53..USA	08/1996 - 12/2999	1
87150-16560	EL53..USA	09/1994 - 08/1996	1
Common parts
90119-06051
90179-06054
Linked diagrams
8715

EL53L-AEPRKA (1994)
