EL53L-AEPRKA (1994)

Toyota Tercel

Production Sep 1994 - Jul 1999
Engine 5EFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

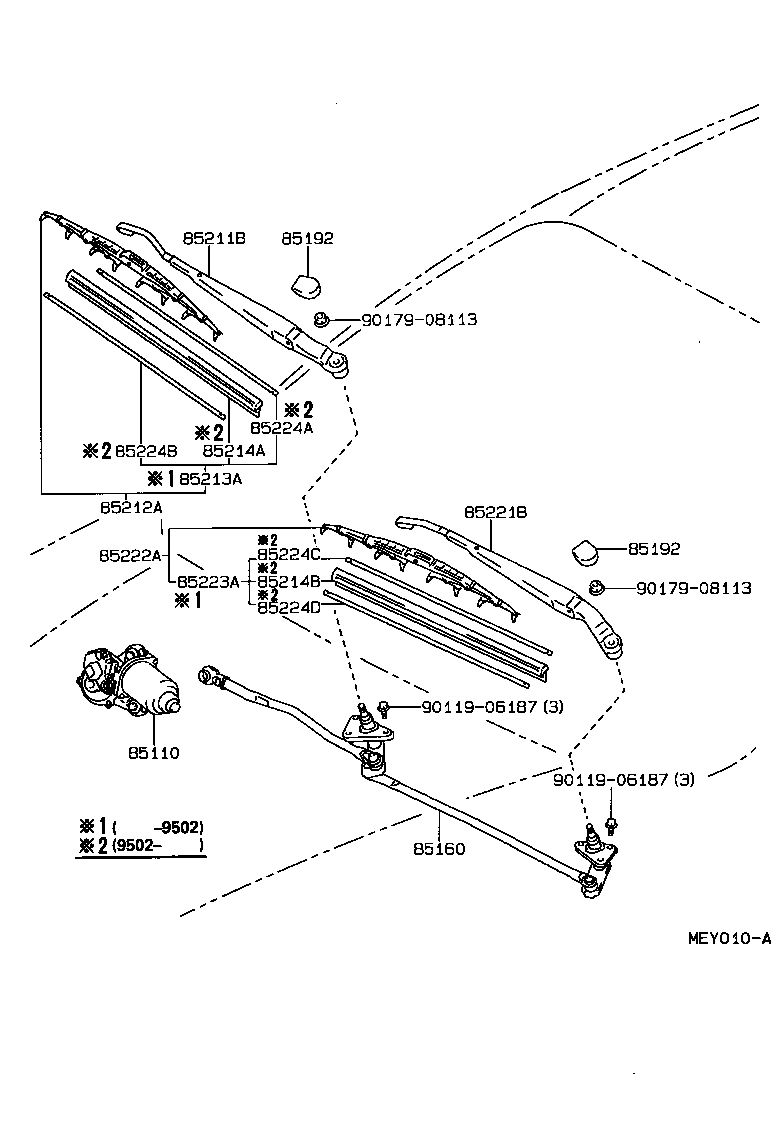

ILLUST NO. 1 OF 2(9409- )

Click highlighted areas on diagram

diagram
Part # Description Qty Price

ILLUST NO. 2 OF 2(9409- )

Click highlighted areas on diagram

diagram 85110 85160 85192 85192 85211B 85212A 85213A 85214A 85214B 85221B 85222A 85223A 85224A 85224B 85224C 85224D 9011906187 9011906187 9017908113 9017908113
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-16610

EL53..USA

 1
85110-16660

EL53

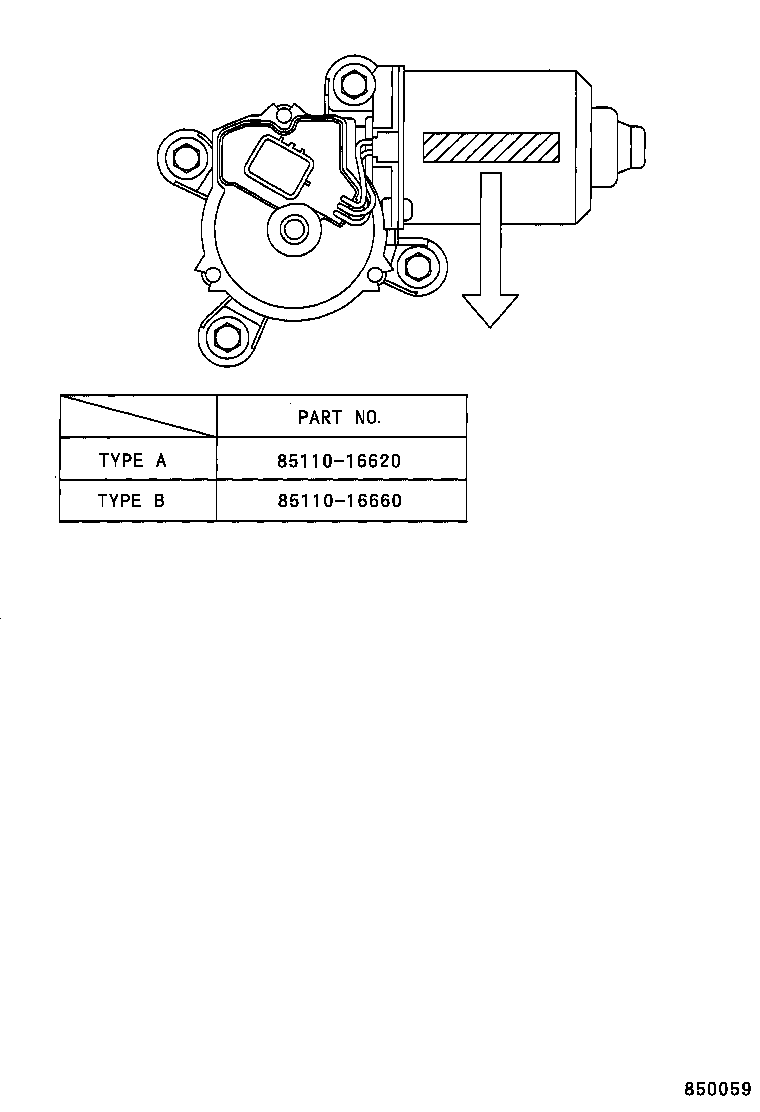

COLD SPEC,TYPE B:REFER TO ILLUSTRATION

 1
85110-16620

EL53

COLD SPEC,TYPE A:REFER TO ILLUSTRATION

 1
85110-16650

EL53..USA

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-16490

EL53

COLD SPEC,REFER TO ILLUSTRATION

 1
85150-16480

EL53..USA

 1
85192 - COVER, WINDSHIELD WIPER ARM
85292-12020

EL53

 2
85192 - COVER, WINDSHIELD WIPER ARM
85292-12020

EL53

 2
85211B - ARM, FRONT WIPER, RH
85211-16120

EL53

 1
85211-16121

EL53

 1
85212A - BLADE, FR WIPER, RH
85212-20360

EL53

 1
85212-16120

EL53

 1
85213A - RUBBER, WIPER BLADE, RH
85223-20320

EL53

 1
85214A - RUBBER, WIPER, RH
85214-20330

EL53

 1
85214B - RUBBER, WIPER, LH
85214-20330

EL53

 1
85221B - ARM, FRONT WIPER, LH
85221-16161

EL53

 1
85221-16160

EL53

 1
85222A - BLADE, FR WIPER, LH
85222-1G012

EL53

 1
85222-1G080

EL53

 1
85223A - RUBBER, FRONT WIPER BLADE, LH
85213-60020

EL53

 1
85224A - PLATE, WIPER RUBBER BACKING, NO.1
85224-60050

EL53

 1
85224B - PLATE, WIPER RUBBER BACKING, NO.2
85224-60050

EL53

 1
85224C - PLATE, WIPER RUBBER BACKING, NO.3
85224-60060

EL53

 1
85224D - PLATE, WIPER RUBBER BACKING, NO.4
85224-60060

EL53

 1
Common parts
90119-06187
90179-08113
