EL53L-AEPRKA (1994)

Toyota Tercel

Production Sep 1994 - Jul 1999
Engine 5EFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9409- )4FC

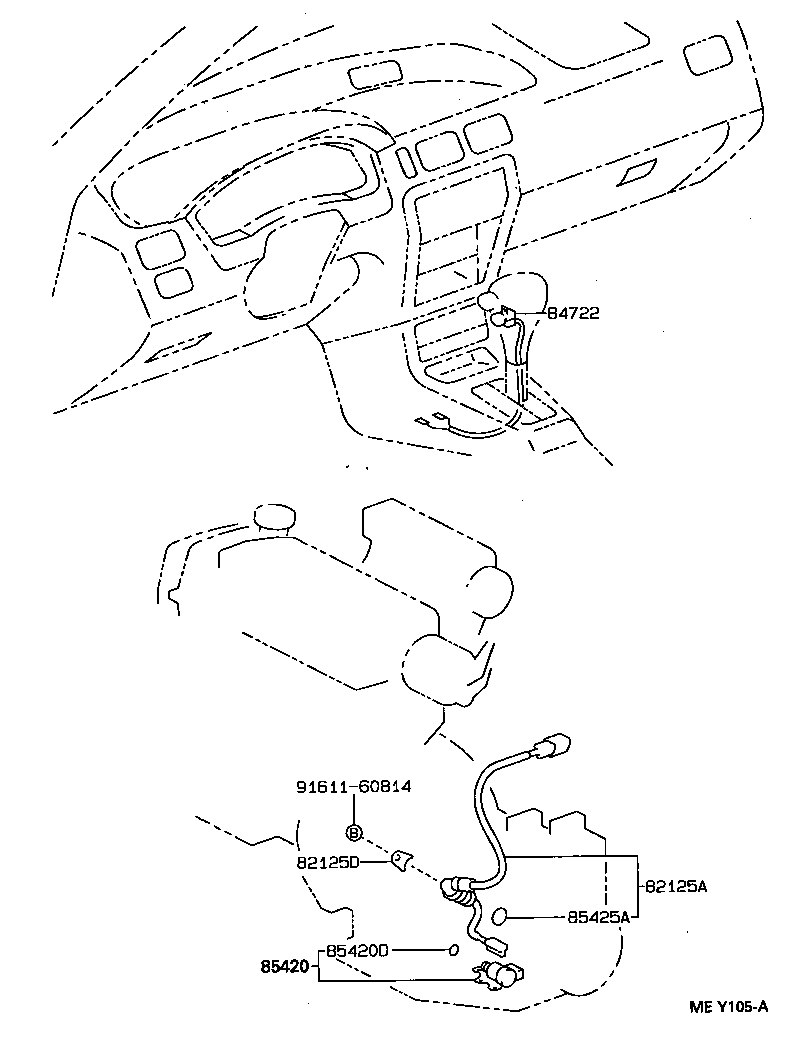

Click highlighted areas on diagram

diagram 82125A 82125D 84722 85420 85420D 85425A 9161160814
Part # Description Qty Price
82125A - WIRE, TRANSMISSION
82125-20170

EL53..4FC

 1
82125-20240

EL53..4FC

 1
82125D - PLATE, TRANSMISSION WIRE LOCK
33485-30020

EL53..4FC

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-16100B1

EL53..4FC

GRAY,TRIM1#

 1
84722-16100B0

EL53..4FC

BLUISH GRAY,TRIM1#

 1
84722-16100E1

EL53..4FC

SANDAL WOOD,TRIM43

 1
84722-16100E0

EL53..4FC

OAK,TRIM4#

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-20180

EL53..4FC

 1
85420-10011

EL53..4FC

 1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

EL53..4FC

 1
85425A - RING, O (FOR OVERDRIVE SOLENOID)
96721-24018

EL53..4FC

 1
Common parts
91611-60814
