EL53L-AEPRKA (1994)
Toyota Tercel

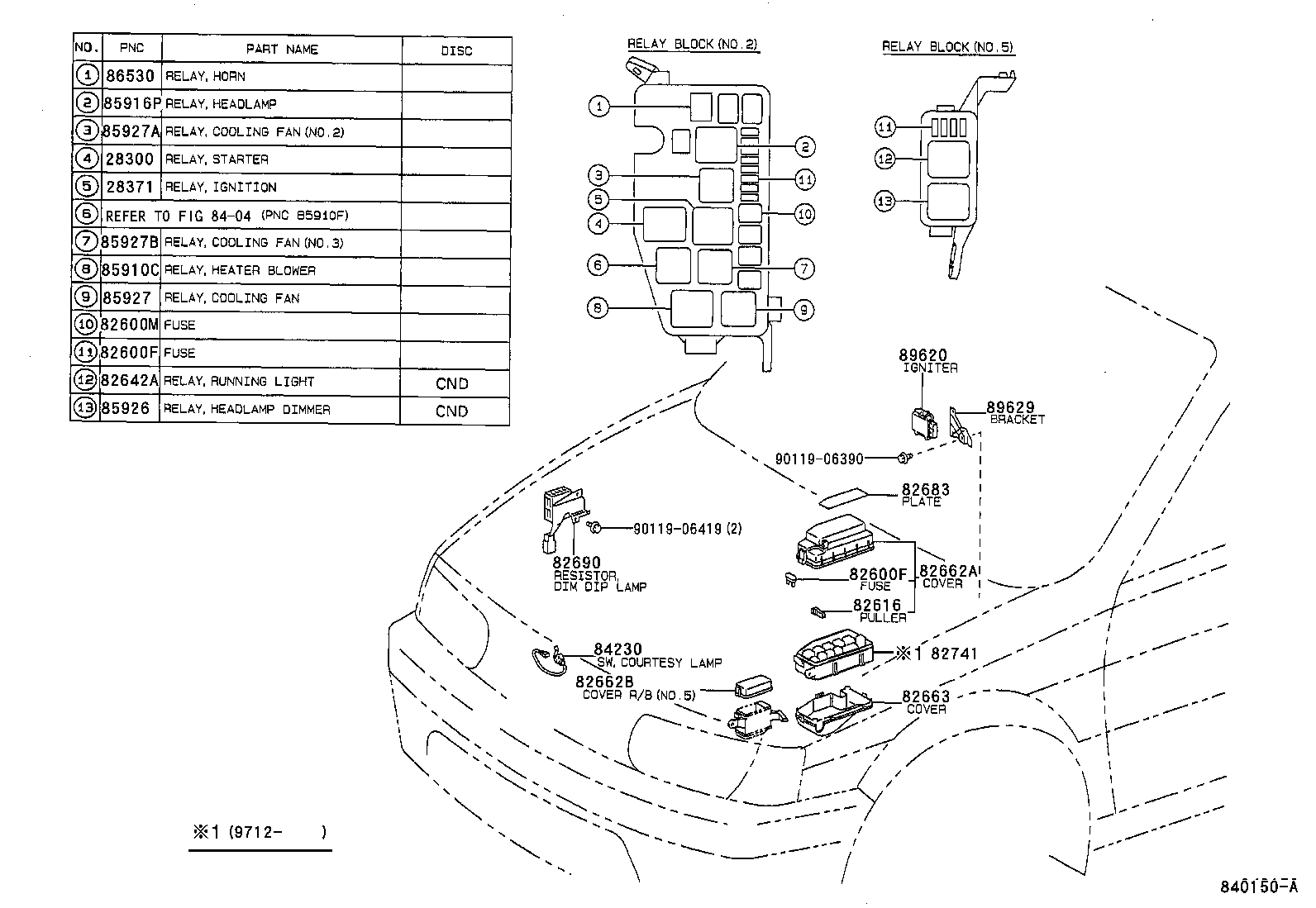

ILLUST NO. 2 OF 6(9409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
5EFE..EL53 |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-04002 |
5EFE..EL53 |
1 | ||
| 85925-17010 |
5EFE..EL53 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
EL53 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
EL53 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09007 |
EL53 5A,MINI FUSE,TAN |
1 | ||
| 90982-09009 |
EL53 10A,MINI FUSE,RED |
1 | ||
| 90982-09011 |
EL53 20A,MINI FUSE,YELLOW |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
EL53 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
EL53 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09007 |
EL53 5A,MINI FUSE,TAN |
1 | ||
| 90982-09009 |
EL53 10A,MINI FUSE,RED |
1 | ||
| 90982-09011 |
EL53 20A,MINI FUSE,YELLOW |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-08280 |
EL53..3FC..STD;EL53..4F,4FC,5F 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08281 |
EL53 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-10001 |
EL53 30A,PINK |
1 | ||
| 90982-10001 |
EL53 30A,PINK |
1 | ||
| 90982-10001 |
EL53..DX..USA;EL53..4DS..CND 30A,PINK |
1 | ||
| 90982-10002 |
EL53 40A,GREEN |
1 | ||
| 90982-10001 |
EL53 30A,PINK |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
EL53 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-16150 |
EL53 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-16010 |
EL53 |
1 | ||
| 82683 - PLATE, FUSE BLOCK CAUTION | ||||
| 82683-16131 |
EL53..USA |
1 | ||
| 82683-16130 |
EL53..USA |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-16011 |
EL53 |
1 | ||
| 84230 - SWITCH ASSY, COURTESY LAMP (FOR ENGINE ROOM) | ||||
| 84231-16080 |
EL53..USA |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
EL53 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
EL53 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03003 |
EL53..3FC..STD;EL53..4F,4FC,5F NIPPON DENSO |
1 | ||
| 90987-03003 |
EL53 NIPPON DENSO |
1 | ||
| 90084-98011 |
EL53 BOSCH |
1 | ||
| 90084-98011 |
EL53..3FC..STD;EL53..4F,4FC,5F BOSCH |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04003 |
EL53 NIPPON DENSO |
1 | ||
| 90987-04003 |
EL53 |
1 | ||
| 90084-98010 |
EL53..3FC..STD..USA;EL53..(4F,4FC,5F)..USA BOSCH |
1 | ||
| 90084-98010 |
EL53..USA BOSCH |
1 | ||
| 90987-04003 |
EL53..USA NIPPON DENSO |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-02009 |
EL53 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
EL53 |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-16040 |
EL53 |
1 | ||
| 89621-16050 |
EL53 |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-16060 |
EL53 |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-06419 | ||||
| Linked diagrams | ||||
| 8404 | ||||

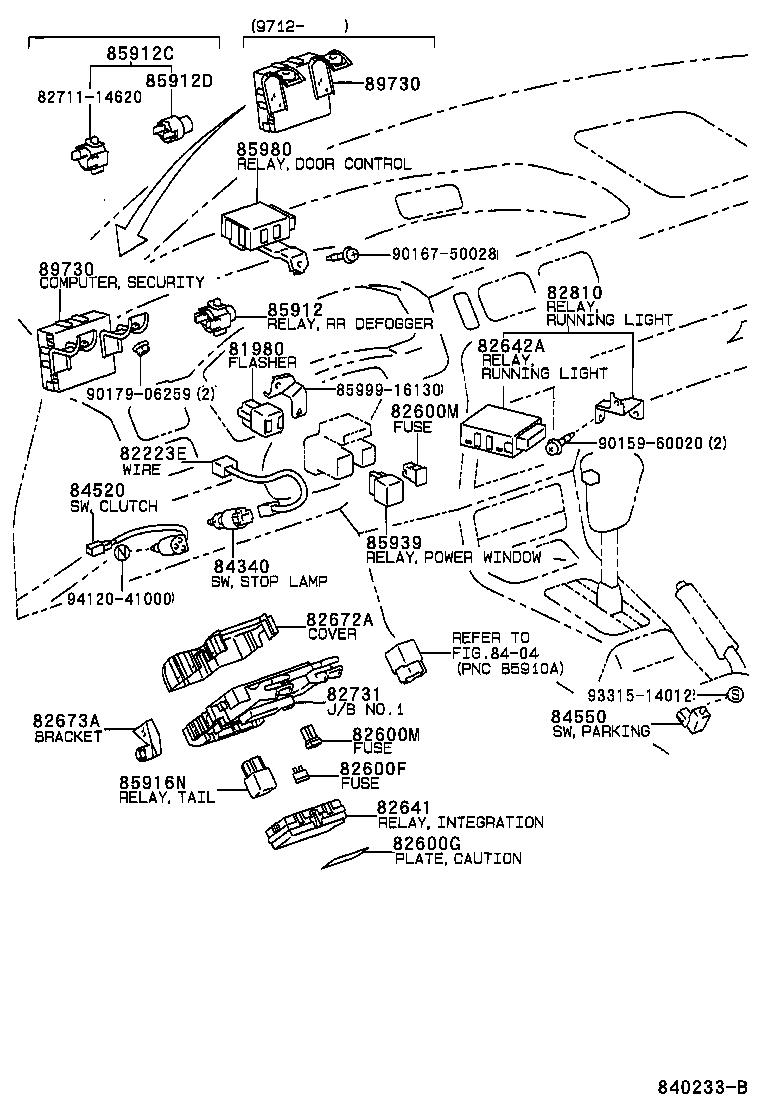

ILLUST NO. 5 OF 6(9409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-02010 |
EL53 |
1 | ||
| 81980-12070 |
EL53..3FC..STD;EL53..4F,4FC,5F NIPPON DENSO |
1 | ||
| 81980-0W010 |
EL53 TRIDON |
1 | ||
| 81980-12110 |
EL53 |
1 | ||
| 81980-12110 |
EL53 NIPPON DENSO |
1 | ||
| 82223E - WIRE, CLUTCH START SWITCH | ||||
| 82223-12530 |
EL53 |
1 | ||
| 82223-16030 |
EL53 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
EL53 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
EL53 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09007 |
EL53 5A,MINI FUSE,TAN |
1 | ||
| 90982-09009 |
EL53 10A,MINI FUSE,RED |
1 | ||
| 90982-09011 |
EL53 20A,MINI FUSE,YELLOW |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-16111 |
EL53 |
1 | ||
| 82683-16110 |
EL53 |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-08280 |
EL53..3FC..STD;EL53..4F,4FC,5F 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08281 |
EL53 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-10001 |
EL53 30A,PINK |
1 | ||
| 90982-10001 |
EL53 30A,PINK |
1 | ||
| 90982-10001 |
EL53..DX..USA;EL53..4DS..CND 30A,PINK |
1 | ||
| 90982-10002 |
EL53 40A,GREEN |
1 | ||
| 90982-10001 |
EL53 30A,PINK |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-08280 |
EL53..3FC..STD;EL53..4F,4FC,5F 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08281 |
EL53 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-10001 |
EL53 30A,PINK |
1 | ||
| 90982-10001 |
EL53 30A,PINK |
1 | ||
| 90982-10001 |
EL53..DX..USA;EL53..4DS..CND 30A,PINK |
1 | ||
| 90982-10002 |
EL53 40A,GREEN |
1 | ||
| 90982-10001 |
EL53 30A,PINK |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-16030 |
EL53 |
1 | ||
| 82641-16050 |
EL53 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82674-16010 |
EL53 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-16020 |
EL53 |
1 | ||
| 82731 - BLOCK, DRIVER SIDE JUNCTION | ||||
| 82731-16020 |
EL53..USA |
1 | ||
| 82731-16030 |
EL53..3FC..STD;EL53..4F,4FC,5F W(AIR BAG CAUTION) |
1 | ||
| 82731-16030 |
EL53 W(AIR BAG CAUTION) |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32050 |
EL53 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
EL53 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-05003 |
EL53 |
1 | ||
| 85912C - RELAY, W/HOLDER | ||||
| 90987-05003 |
EL53 |
1 | ||
| 85912D - RELAY | ||||
| 90987-02004 |
EL53 |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02009 |
EL53 |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02002 |
EL53 MARUKO |
1 | ||
| 90987-02004 |
EL53..4DS NIPPON DENSO |
1 | ||
| 90987-02004 |
EL53..DX..USA;EL53..4DS..CND NIPPON DENSO |
1 | ||
| 90987-02002 |
EL53..4DS MARUKO |
1 | ||
| 90987-02004 |
EL53 |
1 | ||
| 90987-02004 |
EL53 NIPPON DENSO |
1 | ||
| 90987-02002 |
EL53..DX..USA;EL53..4DS..CND MARUKO |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-16050 |
EL53..DX..USA;EL53..4DS..CND |
1 | ||
| 85980-16050 |
EL53 |
1 | ||
| 85980-16050 |
EL53..4DS |
1 | ||
| 89730 - COMPUTER ASSY, SECURITY WARNING | ||||
| 89730-16051 |
EL53..USA |
1 | ||
| 89730-16060 |
EL53..4DS..USA W(POWER WINDOW) |
1 | ||
| 89730-16061 |
EL53..4DS..USA W(POWER WINDOW) |
1 | ||
| 89730-16050 |
EL53..USA |
1 | ||
| 89730 - COMPUTER ASSY, SECURITY WARNING | ||||
| 89730-16051 |
EL53..USA |
1 | ||
| 89730-16060 |
EL53..4DS..USA W(POWER WINDOW) |
1 | ||
| 89730-16061 |
EL53..4DS..USA W(POWER WINDOW) |
1 | ||
| 89730-16050 |
EL53..USA |
1 | ||
| Common parts | ||||
| 82711-14620 | ||||
| 85999-16130 | ||||
| 90159-60020 | ||||
| 90167-50028 | ||||
| 90179-06259 | ||||
| 93315-14012 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 8404 | ||||

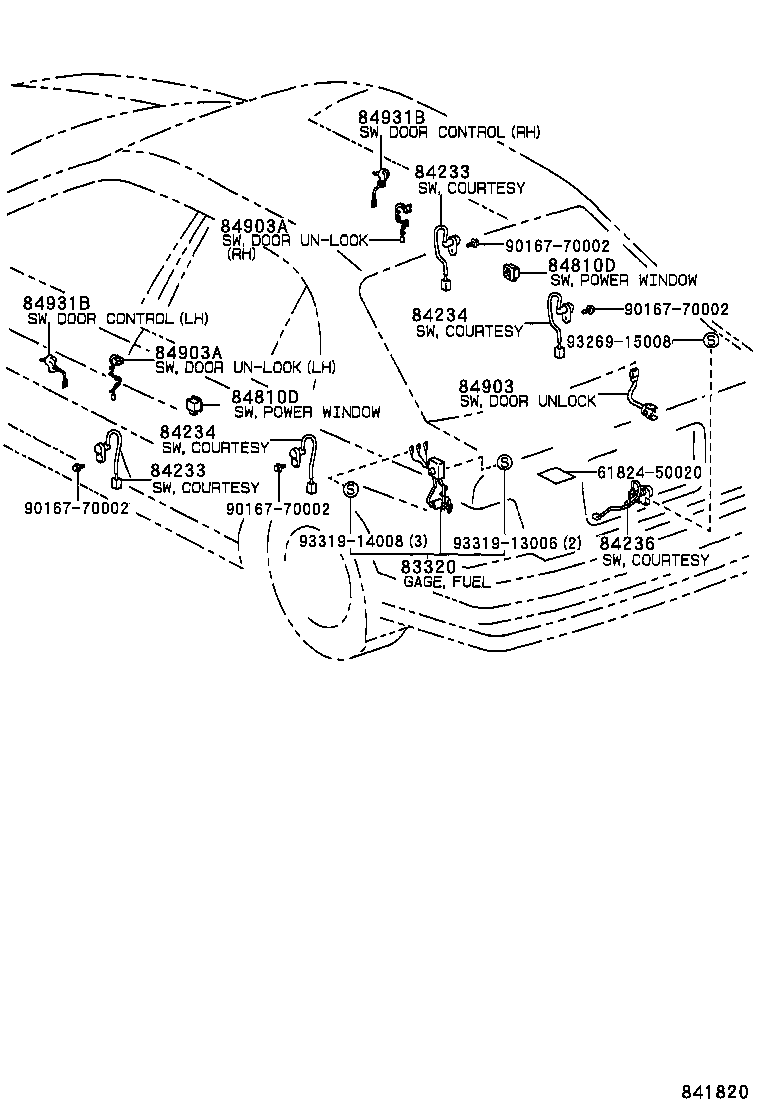

ILLUST NO. 6 OF 6(9409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-16280 |
EL53 |
1 | ||
| 83320-80191 |
EL53 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12080 |
EL53 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12080 |
EL53 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-12080 |
EL53..4DS |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-12080 |
EL53..4DS |
2 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-20200 |
EL53..DX;EL53..STD..USA |
1 | ||
| 84231-20200 |
EL53..USA |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-10020E0 |
EL53..4DS OAK,TRIM4# |
2 | ||
| 84810-10020B0 |
EL53..4DS BLUISH GRAY,TRIM1# |
2 | ||
| 84810-10020P0 |
EL53..4DS GRAY,TRIM1# |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-10020E0 |
EL53..4DS OAK,TRIM4# |
2 | ||
| 84810-10020B0 |
EL53..4DS BLUISH GRAY,TRIM1# |
2 | ||
| 84810-10020P0 |
EL53..4DS GRAY,TRIM1# |
2 | ||
| 84903 - SWITCH SUB-ASSY, DOOR UN-LOCK | ||||
| 84903-16060 |
EL53..USA |
1 | ||
| 84903A - SWITCH SUB-ASSY, DOOR UNLOCK | ||||
| 84903-16110 |
EL53..4DS..USA LH |
1 | ||
| 84903-16100 |
EL53..4DS..USA RH |
1 | ||
| 84903A - SWITCH SUB-ASSY, DOOR UNLOCK | ||||
| 84903-16110 |
EL53..4DS..USA LH |
1 | ||
| 84903-16100 |
EL53..4DS..USA RH |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-16050 |
EL53..4DS LH |
1 | ||
| 84931-16030 |
EL53..4DS RH |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-16050 |
EL53..4DS LH |
1 | ||
| 84931-16030 |
EL53..4DS RH |
1 | ||
| Common parts | ||||
| 61824-50020 | ||||
| 90167-70002 | ||||
| 93269-15008 | ||||
| 93319-13006 | ||||
| 93319-14008 | ||||

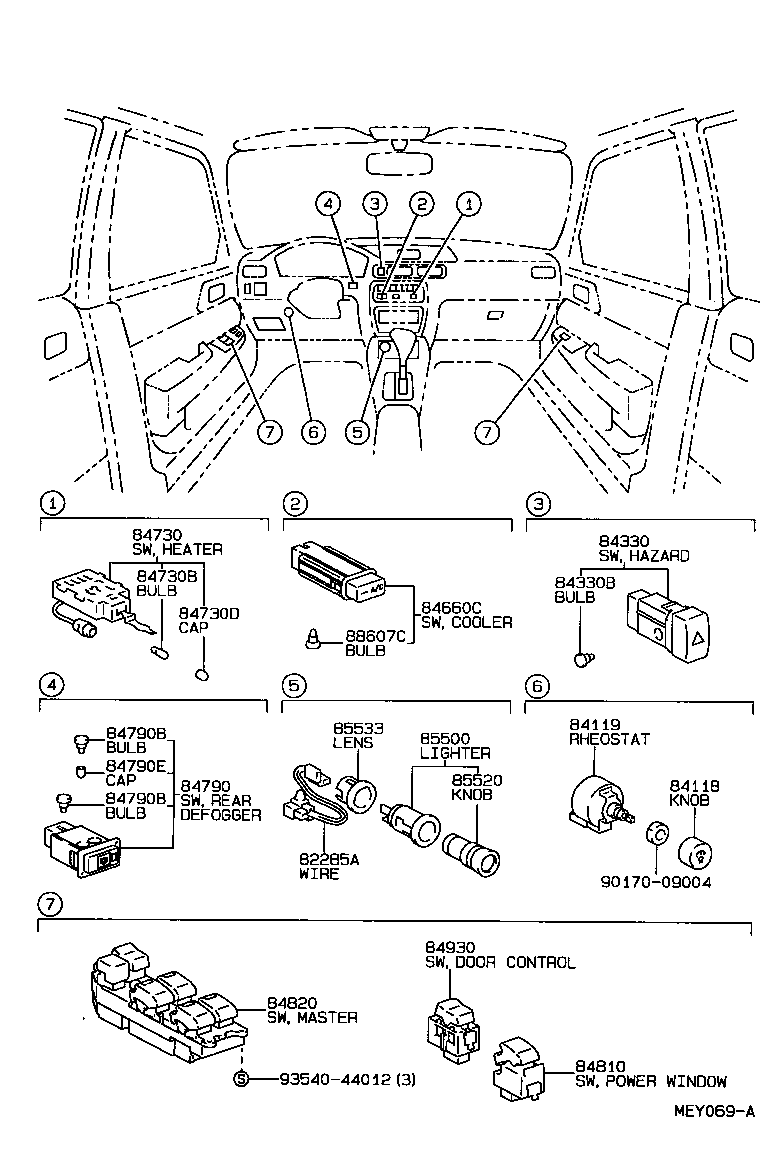

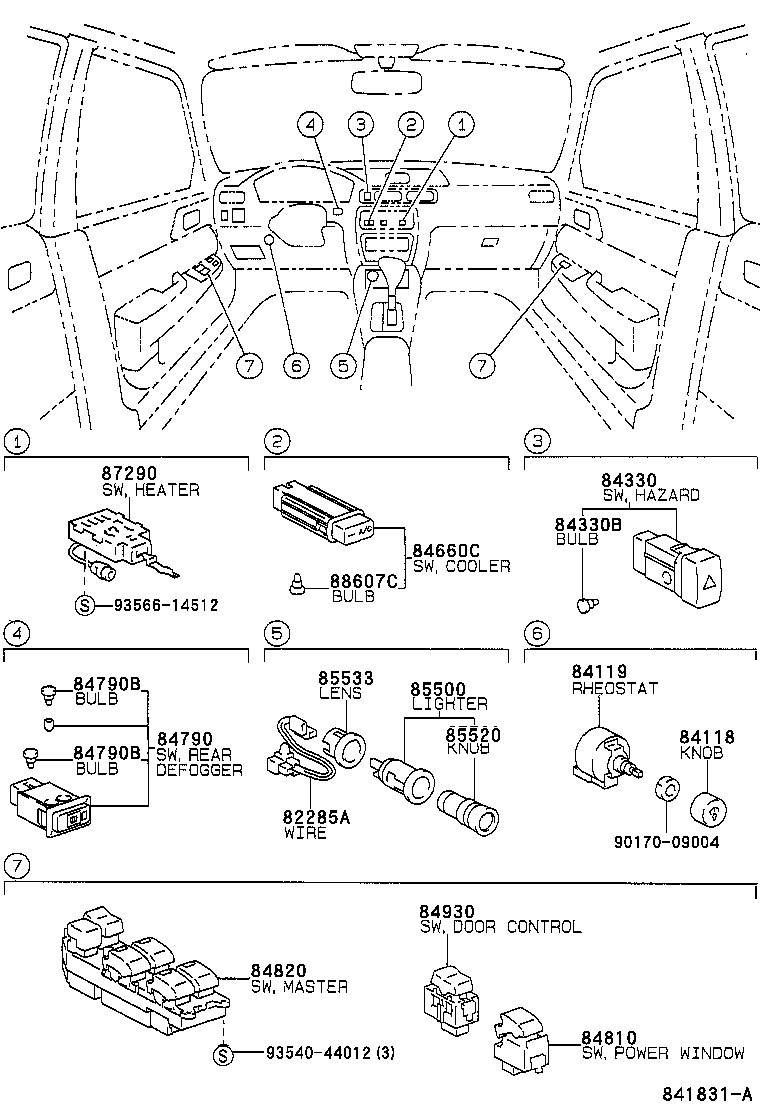

ILLUST NO. 3 OF 6(9712- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82285A - WIRE, ILLUMINATION | ||||
| 82285-16020 |
EL53 |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-2001122 |
EL53..DX BLACK,TRIM1#,4# |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-20140 |
EL53 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-16051 |
EL53 |
1 | ||
| 84332-16060 |
EL53 |
1 | ||
| 84332-16050 |
EL53 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10350 |
EL53 14V 1.54W |
1 | ||
| 84999-10860 |
EL53 14V 0.91W |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-16100 |
EL53 |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-16110 |
EL53..USA |
1 | ||
| 84790-16150 |
EL53 W(TIMER) |
1 | ||
| 84790-16140 |
EL53..USA |
1 | ||
| 84790-16120 |
EL53..3FC..STD;EL53..4F,4FC,5F W(TIMER) |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10320 |
EL53..USA 14V 0.84W |
2 | ||
| 84999-10310 |
EL53 14V 0.91W |
2 | ||
| 84999-10780 |
EL53 14V 0.7W |
2 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10320 |
EL53..USA 14V 0.84W |
2 | ||
| 84999-10310 |
EL53 14V 0.91W |
2 | ||
| 84999-10780 |
EL53 14V 0.7W |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32070 |
EL53 |
1 | ||
| 84810-32070 |
EL53..DX..USA;EL53..4DS..CND |
1 | ||
| 84810-32070 |
EL53..4DS |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-33060 |
EL53..4DS |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-14090 |
EL53..4DS |
1 | ||
| 84930-14090 |
EL53..DX..USA;EL53..4DS..CND |
1 | ||
| 84930-14090 |
EL53 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28050 |
EL53 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
EL53 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-16020 |
EL53 |
1 | ||
| 87290 - SWITCH ASSY, HEATER | ||||
| 87290-16010 |
EL53 |
1 | ||
| 88607C - LAMP SUB-ASSY, INDICATOR | ||||
| 88607-20060 |
EL53..USA 14V 0.08A |
1 | ||
| 88607-16010 |
EL53 14V 0.065A |
1 | ||
| Common parts | ||||
| 90170-09004 | ||||
| 93540-44012 | ||||
| 93566-14512 | ||||

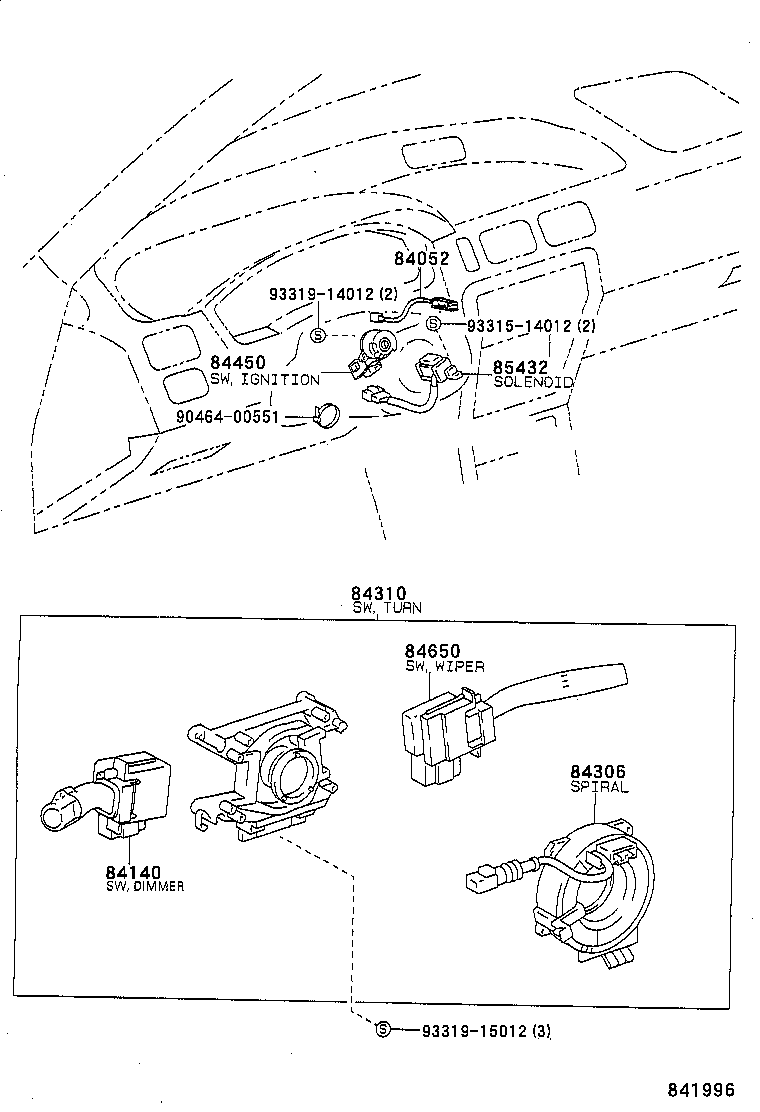

ILLUST NO. 4 OF 6(9712- )
W(AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-20030 |
EL53 |
1 | ||
| 84052-12070 |
EL53 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-16150 |
EL53 W(AIR BAG CAUTION) |
1 | ||
| 84140-12440 |
EL53 |
1 | ||
| 84140-10190 |
EL53..USA |
1 | ||
| 84140-16130 |
EL53 W(AIR BAG CAUTION) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-20050 |
EL53 |
1 | ||
| 84306-16030 |
EL53 |
1 | ||
| 84306-12080 |
EL53 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-16690 |
EL53 W(AIR BAG CAUTION) |
1 | ||
| 84310-16800 |
EL53..USA |
1 | ||
| 84310-16700 |
EL53..DX W(INTERMITTENT WIPER);W(AIR BAG CAUTION) |
1 | ||
| 84310-16890 |
EL53 W(INTERMITTENT WIPER) |
1 | ||
| 84310-16870 |
EL53 |
1 | ||
| 84310-16820 |
EL53..USA W(INTERMITTENT REAR WIPER) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-16080 |
EL53 |
1 | ||
| 84450-12200 |
EL53 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-16520 |
EL53 W(AIR BAG CAUTION) |
1 | ||
| 84652-16530 |
EL53..DX W(INTERMITTENT WIPER);W(AIR BAG CAUTION) |
1 | ||
| 84652-16560 |
EL53 W(AIR BAG CAUTION) |
1 | ||
| 84652-16600 |
EL53..USA |
1 | ||
| 84652-16620 |
EL53 W(INTERMITTENT WIPER) |
1 | ||
| 84652-16610 |
EL53..USA W(INTERMITTENT REAR WIPER) |
1 | ||
| 84652-16570 |
EL53..DX W(INTERMITTENT WIPER);W(AIR BAG CAUTION) |
1 | ||
| 84652-16580 |
EL53 |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-12010 |
EL53..ATM |
1 | ||
| 85432-12020 |
EL53..ATM |
1 | ||
| Common parts | ||||
| 90464-00551 | ||||
| 93315-14012 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||

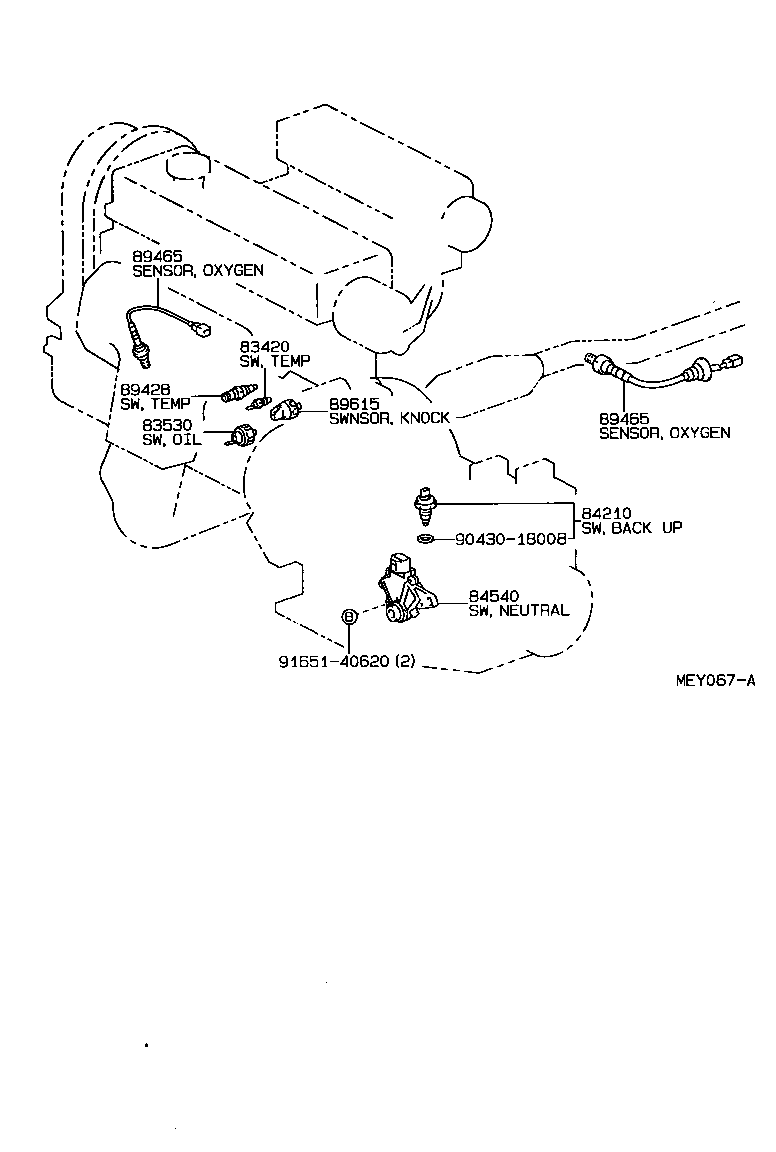

ILLUST NO. 1 OF 6(9409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16050 |
EL53 |
1 | ||
| 83420-20040 |
EL53 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
EL53 |
1 | ||
| 83530-14060 |
EL53 |
1 | ||
| 83530-30090 |
EL53 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-16050 |
EL53..ATM |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-12160 |
EL53 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-16120 |
EL53 EXHAUST PIPE |
1 | ||
| 89465-16050 |
EL53 EXHAUST MANIFOLD |
1 | ||
| 89465-16060 |
EL53 EXHAUST PIPE |
1 | ||
| 89465-16110 |
EL53 EXHAUST MANIFOLD |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-16120 |
EL53 EXHAUST PIPE |
1 | ||
| 89465-16050 |
EL53 EXHAUST MANIFOLD |
1 | ||
| 89465-16060 |
EL53 EXHAUST PIPE |
1 | ||
| 89465-16110 |
EL53 EXHAUST MANIFOLD |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-22030 |
EL53 MATSUSHITA |
1 | ||
| 89615-22040 |
EL53 NIPPONDENSO |
1 | ||
| Common parts | ||||
| 90430-18008 | ||||
| 91651-40620 | ||||
ILLUST NO. 3 OF 6(9409-9712)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82285A - WIRE, ILLUMINATION | ||||
| 82285-16020 |
EL53 |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-2001122 |
EL53..DX BLACK,TRIM1#,4# |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-20140 |
EL53 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-16051 |
EL53 |
1 | ||
| 84332-16060 |
EL53 |
1 | ||
| 84332-16050 |
EL53 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10350 |
EL53 14V 1.54W |
1 | ||
| 84999-10860 |
EL53 14V 0.91W |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-16100 |
EL53 |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-16190 |
EL53 |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
EL53 14V 1.4W |
1 | ||
| 84730D - CAP, HEATER BLOWER SWITCH BULB | ||||
| 84998-10710 |
EL53 |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-16110 |
EL53..USA |
1 | ||
| 84790-16150 |
EL53 W(TIMER) |
1 | ||
| 84790-16140 |
EL53..USA |
1 | ||
| 84790-16120 |
EL53..3FC..STD;EL53..4F,4FC,5F W(TIMER) |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10320 |
EL53..USA 14V 0.84W |
2 | ||
| 84999-10310 |
EL53 14V 0.91W |
2 | ||
| 84999-10780 |
EL53 14V 0.7W |
2 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10320 |
EL53..USA 14V 0.84W |
2 | ||
| 84999-10310 |
EL53 14V 0.91W |
2 | ||
| 84999-10780 |
EL53 14V 0.7W |
2 | ||
| 84790E - CAP, BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84998-10640 |
EL53 |
1 | ||
| 84998-10650 |
EL53..3FC..STD..USA;EL53..(4F,4FC,5F)..USA W(TIMER) |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32070 |
EL53 |
1 | ||
| 84810-32070 |
EL53..DX..USA;EL53..4DS..CND |
1 | ||
| 84810-32070 |
EL53..4DS |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-33060 |
EL53..4DS |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-14090 |
EL53..4DS |
1 | ||
| 84930-14090 |
EL53..DX..USA;EL53..4DS..CND |
1 | ||
| 84930-14090 |
EL53 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28050 |
EL53 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
EL53 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-16020 |
EL53 |
1 | ||
| 88607C - LAMP SUB-ASSY, INDICATOR | ||||
| 88607-20060 |
EL53..USA 14V 0.08A |
1 | ||
| 88607-16010 |
EL53 14V 0.065A |
1 | ||
| Common parts | ||||
| 90170-09004 | ||||
| 93540-44012 | ||||

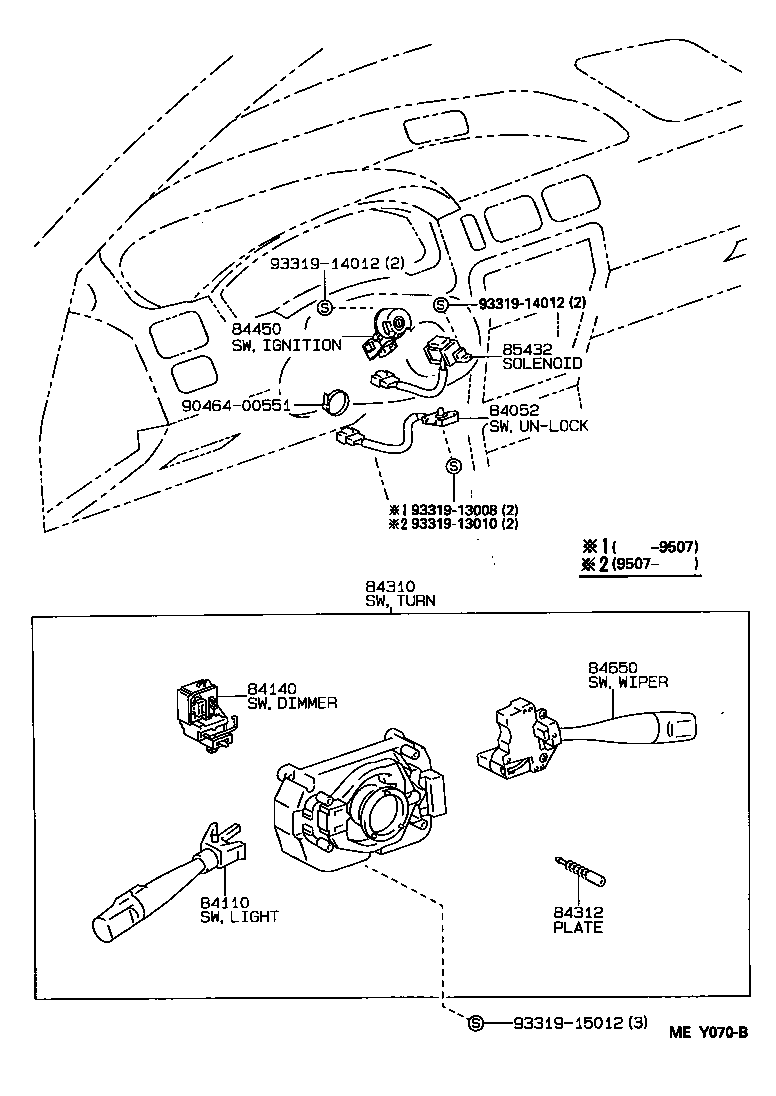

ILLUST NO. 4 OF 6(9409- )
W/O(AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-20030 |
EL53 |
1 | ||
| 84052-12070 |
EL53 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-16150 |
EL53 W(AIR BAG CAUTION) |
1 | ||
| 84140-12440 |
EL53 |
1 | ||
| 84140-10190 |
EL53..USA |
1 | ||
| 84140-16130 |
EL53 W(AIR BAG CAUTION) |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-16690 |
EL53 W(AIR BAG CAUTION) |
1 | ||
| 84310-16800 |
EL53..USA |
1 | ||
| 84310-16700 |
EL53..DX W(INTERMITTENT WIPER);W(AIR BAG CAUTION) |
1 | ||
| 84310-16890 |
EL53 W(INTERMITTENT WIPER) |
1 | ||
| 84310-16870 |
EL53 |
1 | ||
| 84310-16820 |
EL53..USA W(INTERMITTENT REAR WIPER) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-16080 |
EL53 |
1 | ||
| 84450-12200 |
EL53 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-16520 |
EL53 W(AIR BAG CAUTION) |
1 | ||
| 84652-16530 |
EL53..DX W(INTERMITTENT WIPER);W(AIR BAG CAUTION) |
1 | ||
| 84652-16560 |
EL53 W(AIR BAG CAUTION) |
1 | ||
| 84652-16600 |
EL53..USA |
1 | ||
| 84652-16620 |
EL53 W(INTERMITTENT WIPER) |
1 | ||
| 84652-16610 |
EL53..USA W(INTERMITTENT REAR WIPER) |
1 | ||
| 84652-16570 |
EL53..DX W(INTERMITTENT WIPER);W(AIR BAG CAUTION) |
1 | ||
| 84652-16580 |
EL53 |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-12010 |
EL53..ATM |
1 | ||
| 85432-12020 |
EL53..ATM |
1 | ||
| Common parts | ||||
| 90464-00551 | ||||
| 93319-13008 | ||||
| 93319-13010 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||

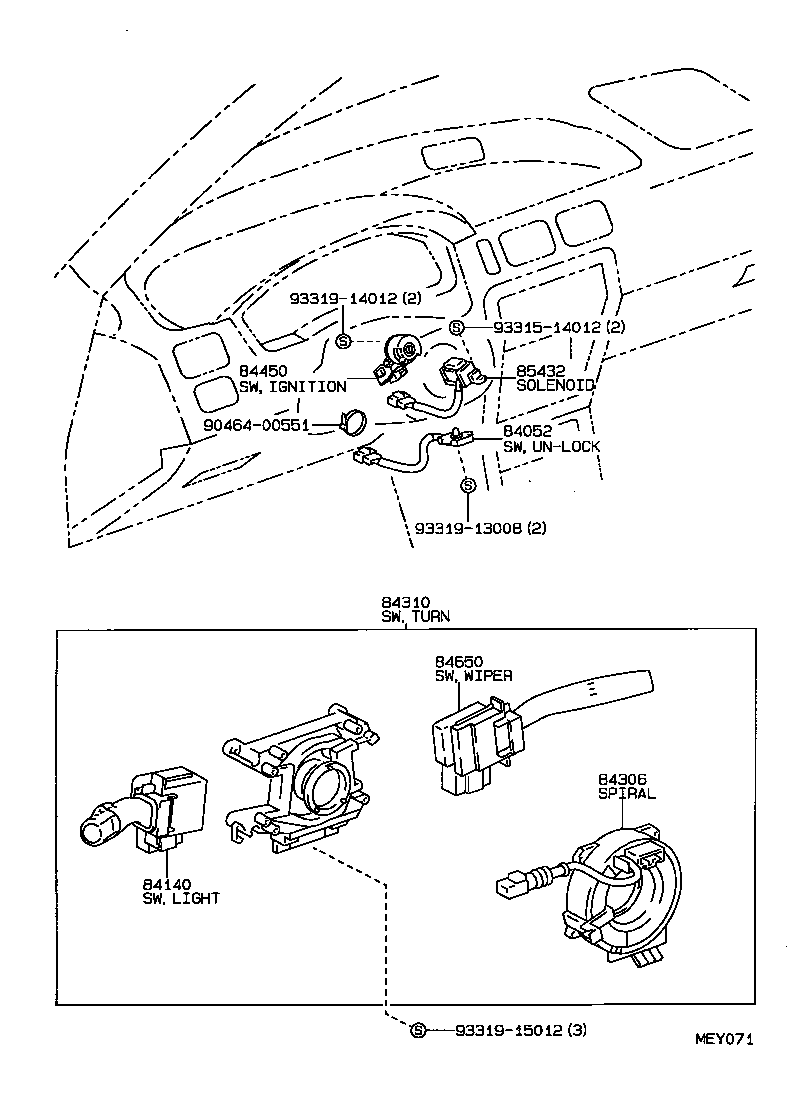

ILLUST NO. 4 OF 6(9409-9712)
W(AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-20030 |
EL53 |
1 | ||
| 84052-12070 |
EL53 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-16150 |
EL53 W(AIR BAG CAUTION) |
1 | ||
| 84140-12440 |
EL53 |
1 | ||
| 84140-10190 |
EL53..USA |
1 | ||
| 84140-16130 |
EL53 W(AIR BAG CAUTION) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-20050 |
EL53 |
1 | ||
| 84306-16030 |
EL53 |
1 | ||
| 84306-12080 |
EL53 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-16690 |
EL53 W(AIR BAG CAUTION) |
1 | ||
| 84310-16800 |
EL53..USA |
1 | ||
| 84310-16700 |
EL53..DX W(INTERMITTENT WIPER);W(AIR BAG CAUTION) |
1 | ||
| 84310-16890 |
EL53 W(INTERMITTENT WIPER) |
1 | ||
| 84310-16870 |
EL53 |
1 | ||
| 84310-16820 |
EL53..USA W(INTERMITTENT REAR WIPER) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-16080 |
EL53 |
1 | ||
| 84450-12200 |
EL53 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-16520 |
EL53 W(AIR BAG CAUTION) |
1 | ||
| 84652-16530 |
EL53..DX W(INTERMITTENT WIPER);W(AIR BAG CAUTION) |
1 | ||
| 84652-16560 |
EL53 W(AIR BAG CAUTION) |
1 | ||
| 84652-16600 |
EL53..USA |
1 | ||
| 84652-16620 |
EL53 W(INTERMITTENT WIPER) |
1 | ||
| 84652-16610 |
EL53..USA W(INTERMITTENT REAR WIPER) |
1 | ||
| 84652-16570 |
EL53..DX W(INTERMITTENT WIPER);W(AIR BAG CAUTION) |
1 | ||
| 84652-16580 |
EL53 |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-12010 |
EL53..ATM |
1 | ||
| 85432-12020 |
EL53..ATM |
1 | ||
| Common parts | ||||
| 90464-00551 | ||||
| 93315-14012 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
