EL53L-AEPRKA (1994)
Toyota Tercel
Production
Sep 1994
-
Jul 1999
Engine
5EFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9409- )

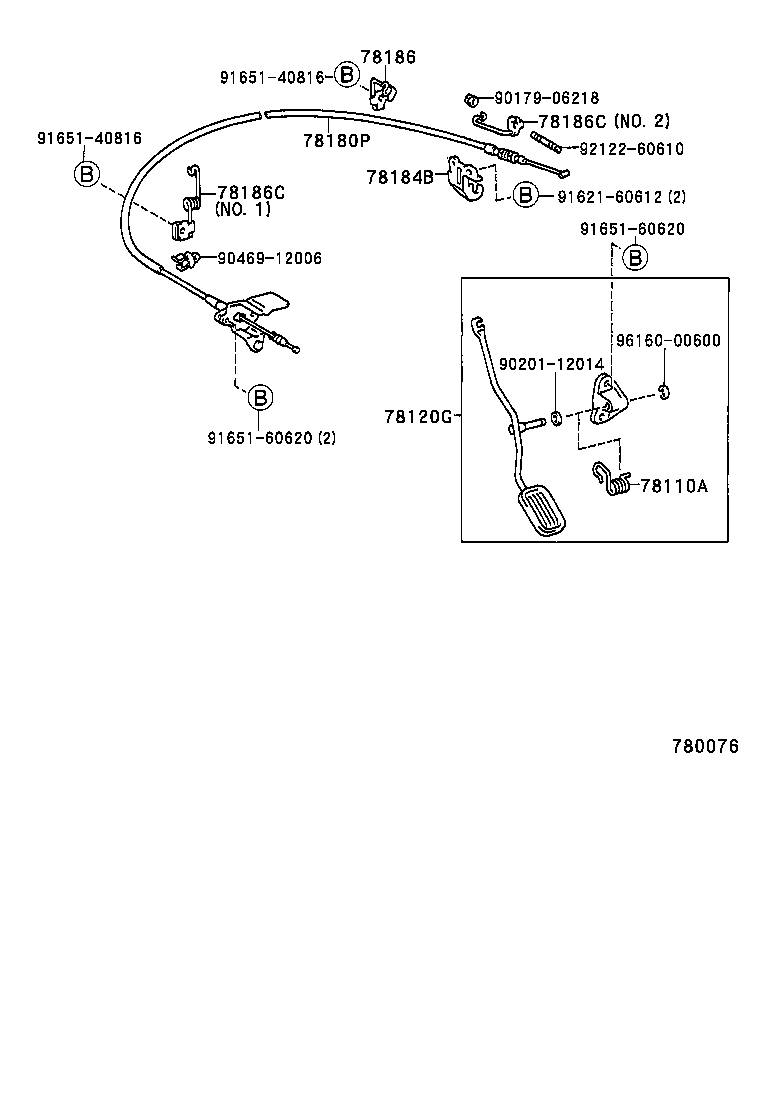

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-17003 |
EL53 |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-16100 |
EL53 |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-16440 |
EL53 |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-16070 |
EL53 |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-16180 |
EL53 |
1 | ||
| 78186C - SUPPORT, ACCELERATOR CONTROL CABLE NO.3 | ||||
| 78186-16190 |
EL53 NO.2 |
1 | ||
| 78186-16150 |
EL53 NO.1 |
1 | ||
| 78186-16230 |
EL53 NO.2 |
1 | ||
| 78186C - SUPPORT, ACCELERATOR CONTROL CABLE NO.3 | ||||
| 78186-16190 |
EL53 NO.2 |
1 | ||
| 78186-16150 |
EL53 NO.1 |
1 | ||
| 78186-16230 |
EL53 NO.2 |
1 | ||
| Common parts | ||||
| 90179-06218 | ||||
| 90201-12014 | ||||
| 90469-12006 | ||||
| 91621-60612 | ||||
| 91651-40816 | ||||
| 91651-60620 | ||||
| 92122-60610 | ||||
| 96160-00600 | ||||
