EL53L-AEPRKA (1994)
Toyota Tercel

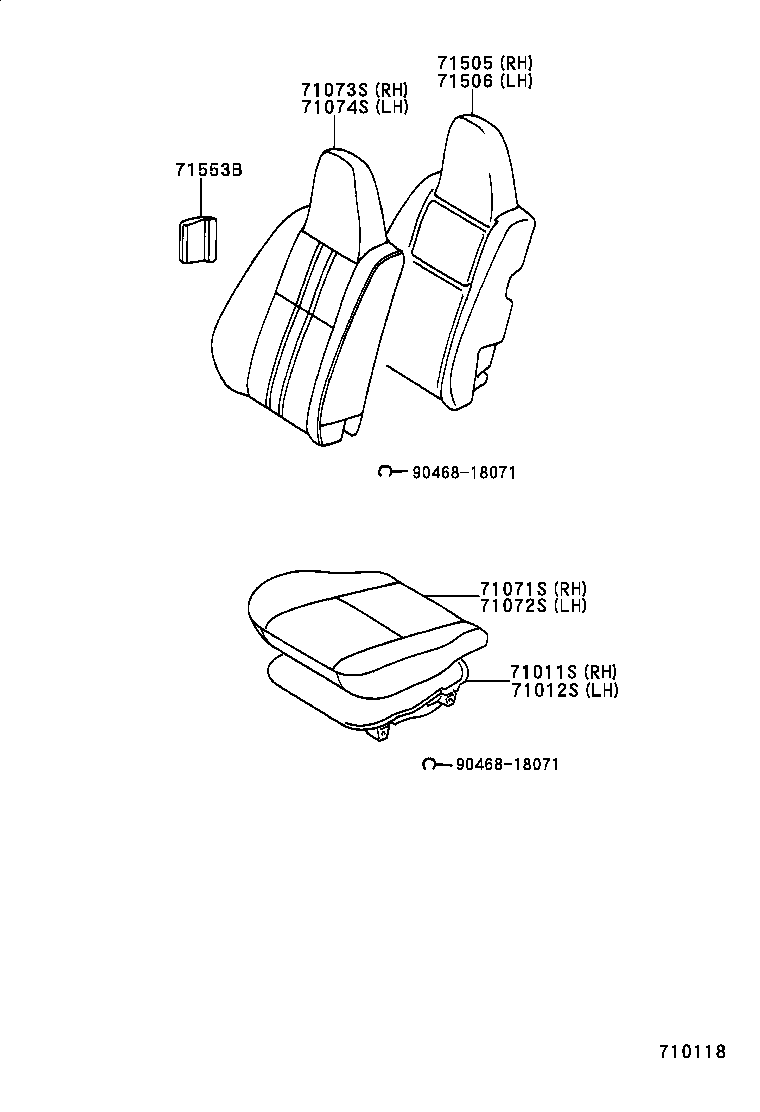

ILLUST NO. 1 OF 2(9409-9608)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-16160 |
EL53 |
1 | ||
| 71011-10220 |
EL53 |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-16090 |
EL53 |
1 | ||
| 71011-10220 |
EL53 |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71518-16170E0 |
EL53..DX OAK,TRIM4# |
1 | ||
| 71518-16170B0 |
EL53..DX BLUISH GRAY,TRIM1# |
1 | ||
| 71518-16310E0 |
EL53 OAK,TRIM4# |
1 | ||
| 71518-16590B0 |
EL53 GRAY,TRIM1# |
1 | ||
| 71518-16310B0 |
EL53 BLUISH GRAY,TRIM1# |
1 | ||
| 71518-16590E0 |
EL53 OAK,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71518-16170B0 |
EL53..DX BLUISH GRAY,TRIM1# |
1 | ||
| 71518-16170E0 |
EL53..DX OAK,TRIM4# |
1 | ||
| 71518-16410E0 |
EL53 OAK,TRIM4# |
1 | ||
| 71518-16410B0 |
EL53 BLUISH GRAY,TRIM1# |
1 | ||
| 71518-16410B8 |
EL53 GRAY,TRIM1# |
1 | ||
| 71518-16410E7 |
EL53 OAK,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1G270B0 |
EL53..DX;EL53..STD..CND BLUISH GRAY,TRIM1# |
1 | ||
| 71073-1G270E0 |
EL53..DX OAK,TRIM4# |
1 | ||
| 71073-1G270E0 |
EL53 OAK,TRIM4# |
1 | ||
| 71073-1G270B0 |
EL53..DX BLUISH GRAY,TRIM1# |
1 | ||
| 71073-1G460E0 |
EL53 OAK,TRIM4# |
1 | ||
| 71073-1G460B0 |
EL53 BLUISH GRAY,TRIM1# |
1 | ||
| 71073-1G460E4 |
EL53 OAK,TRIM4# |
1 | ||
| 71073-1G460B4 |
EL53 GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1G070B0 |
EL53..DX;EL53..STD..CND BLUISH GRAY,TRIM1# |
1 | ||
| 71074-1G070E0 |
EL53 OAK,TRIM4# |
1 | ||
| 71074-1G180B4 |
EL53 GRAY,TRIM1# |
1 | ||
| 71074-1G180B0 |
EL53 BLUISH GRAY,TRIM1# |
1 | ||
| 71074-1G180E4 |
EL53 OAK,TRIM4# |
1 | ||
| 71074-1G070B0 |
EL53..DX BLUISH GRAY,TRIM1# |
1 | ||
| 71074-1G070E0 |
EL53..DX OAK,TRIM4# |
1 | ||
| 71074-1G180E0 |
EL53 OAK,TRIM4# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-16140 |
EL53 |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71505-16140 |
EL53 |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-16070 |
EL53 |
4 | ||
| Common parts | ||||
| 90468-18071 | ||||

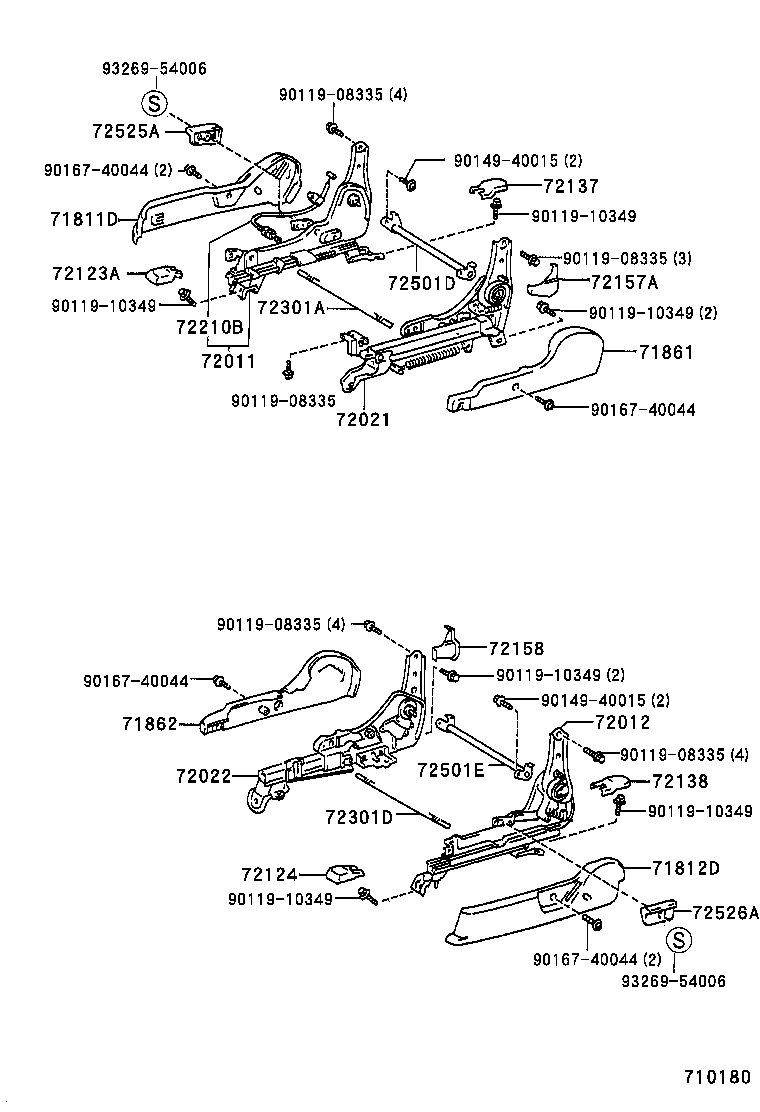

ILLUST NO. 2 OF 2(9409-9608)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-16140E0 |
EL53..DX OAK,TRIM4# |
1 | ||
| 71811-20300B0 |
EL53..4DS SHADOW GRAY,TRIM1# |
1 | ||
| 71811-20300E1 |
EL53..4DS OAK,TRIM4# |
1 | ||
| 71811-16140B0 |
EL53 BLUISH GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-20270B0 |
EL53 SHADOW GRAY,TRIM1# |
1 | ||
| 71812-16100B0 |
EL53 BLUISH GRAY,TRIM1# |
1 | ||
| 71812-16100E0 |
EL53..DX OAK,TRIM4# |
1 | ||
| 71812-20270E1 |
EL53 OAK,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-16220E0 |
EL53 OAK,TRIM4# |
1 | ||
| 71861-16090B0 |
EL53 BLUISH GRAY,TRIM1# |
1 | ||
| 71861-16090E0 |
EL53..DX OAK,TRIM4# |
1 | ||
| 71861-16220B0 |
EL53 SHADOW GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-16060B0 |
EL53 BLUISH GRAY,TRIM1# |
1 | ||
| 71862-16060E0 |
EL53..DX OAK,TRIM4# |
1 | ||
| 71862-16190E0 |
EL53 OAK,TRIM4# |
1 | ||
| 71862-16190B0 |
EL53 SHADOW GRAY,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-16190 |
EL53..4DS |
1 | ||
| 72011-16310 |
EL53..4DS |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-16150 |
EL53 |
1 | ||
| 72012-16250 |
EL53 |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-16250 |
EL53..4DS |
1 | ||
| 72021-16200 |
EL53..4DS;EL53..STD |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-16220 |
EL53 |
1 | ||
| 72022-16180 |
EL53 |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-10090 |
EL53 |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-16050 |
EL53..DX;EL53..STD..CND W(BACK DOOR OPENER) |
1 | ||
| 72124-10060 |
EL53..USA |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-16030 |
EL53 |
1 | ||
| 72137-16050 |
EL53 |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-16050 |
EL53 |
1 | ||
| 72138-16030 |
EL53 |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-16040 |
EL53 |
1 | ||
| 72157-16080 |
EL53 |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-16080 |
EL53 |
1 | ||
| 72158-16040 |
EL53 |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-16090 |
EL53 |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-16090 |
EL53 |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72501-16021 |
EL53 |
1 | ||
| 72345-16030 |
EL53 |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72345-16030 |
EL53 |
1 | ||
| 72501-16021 |
EL53 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-12090B2 |
EL53 BLUISH GRAY,TRIM1# |
1 | ||
| 72525-16010E1 |
EL53 OAK,TRIM4# |
1 | ||
| 72525-16010B0 |
EL53 SHADOW GRAY,TRIM1# |
1 | ||
| 72525-12090E1 |
EL53..DX OAK,TRIM4# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-12030B0 |
EL53 BLUISH GRAY,TRIM1# |
1 | ||
| 72526-16010E1 |
EL53 OAK,TRIM4# |
1 | ||
| 72526-12030E1 |
EL53..DX OAK,TRIM4# |
1 | ||
| 72526-16010B0 |
EL53 SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08335 | ||||
| 90119-10349 | ||||
| 90149-40015 | ||||
| 90167-40044 | ||||
| 93269-54006 | ||||

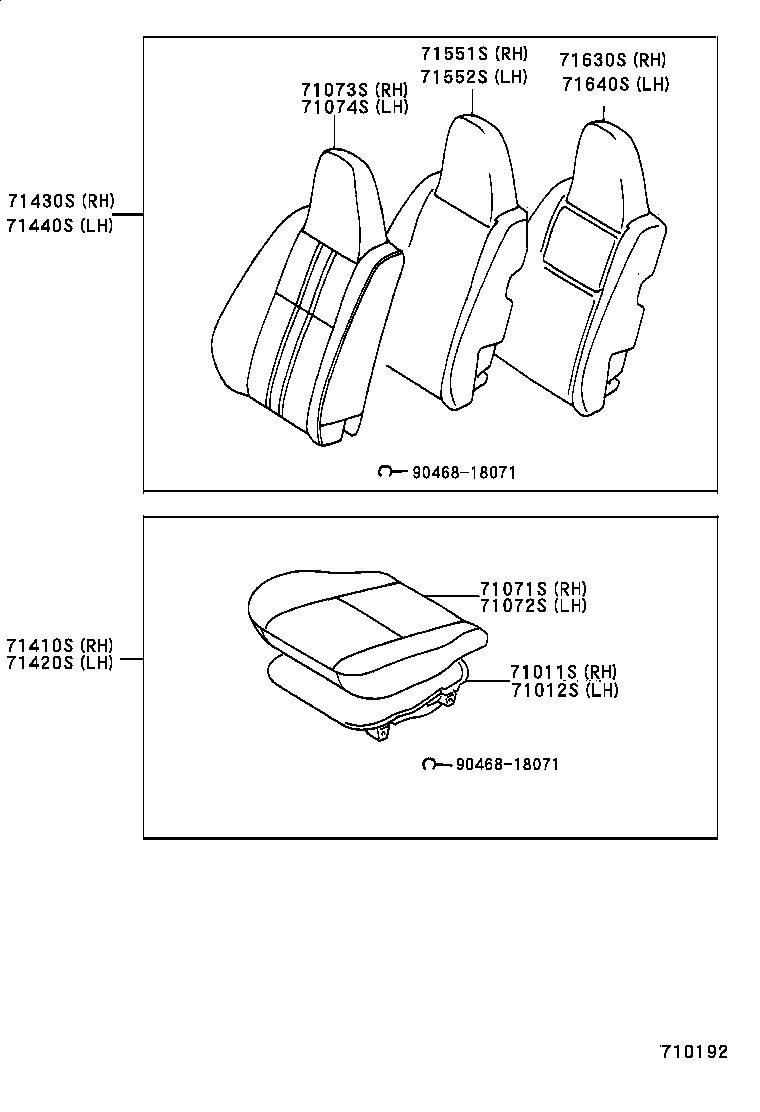

ILLUST NO. 1 OF 2(9608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-16160 |
EL53 |
1 | ||
| 71011-10220 |
EL53 |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-16090 |
EL53 |
1 | ||
| 71011-10220 |
EL53 |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71518-16310E0 |
EL53 OAK,TRIM4# |
1 | ||
| 71518-16170E0 |
EL53..DX OAK,TRIM4# |
1 | ||
| 71518-16170B0 |
EL53..DX BLUISH GRAY,TRIM1# |
1 | ||
| 71518-16590B0 |
EL53 GRAY,TRIM1# |
1 | ||
| 71518-16310B0 |
EL53 BLUISH GRAY,TRIM1# |
1 | ||
| 71518-16590E0 |
EL53 OAK,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71518-16170B0 |
EL53..DX BLUISH GRAY,TRIM1# |
1 | ||
| 71518-16170E0 |
EL53..DX OAK,TRIM4# |
1 | ||
| 71518-16410E0 |
EL53 OAK,TRIM4# |
1 | ||
| 71518-16410B0 |
EL53 BLUISH GRAY,TRIM1# |
1 | ||
| 71518-16410B8 |
EL53 GRAY,TRIM1# |
1 | ||
| 71518-16410E7 |
EL53 OAK,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1G270B0 |
EL53..DX;EL53..STD..CND BLUISH GRAY,TRIM1# |
1 | ||
| 71073-1G270E0 |
EL53..DX OAK,TRIM4# |
1 | ||
| 71073-1G270E0 |
EL53 OAK,TRIM4# |
1 | ||
| 71073-1G270B0 |
EL53..DX BLUISH GRAY,TRIM1# |
1 | ||
| 71073-1G460E0 |
EL53 OAK,TRIM4# |
1 | ||
| 71073-1G460B0 |
EL53 BLUISH GRAY,TRIM1# |
1 | ||
| 71073-1G460E4 |
EL53 OAK,TRIM4# |
1 | ||
| 71073-1G460B4 |
EL53 GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1G070B0 |
EL53..DX;EL53..STD..CND BLUISH GRAY,TRIM1# |
1 | ||
| 71074-1G070E0 |
EL53 OAK,TRIM4# |
1 | ||
| 71074-1G180B4 |
EL53 GRAY,TRIM1# |
1 | ||
| 71074-1G180B0 |
EL53 BLUISH GRAY,TRIM1# |
1 | ||
| 71074-1G180E4 |
EL53 OAK,TRIM4# |
1 | ||
| 71074-1G070B0 |
EL53..DX BLUISH GRAY,TRIM1# |
1 | ||
| 71074-1G070E0 |
EL53..DX OAK,TRIM4# |
1 | ||
| 71074-1G180E0 |
EL53 OAK,TRIM4# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1G530B0 |
EL53 ***,W(SPLIT TYPE REAR SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1G370B0 |
EL53 ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71410-1G370E0 |
EL53 ***,OAK,TRIM4# |
1 | ||
| 71410-1G530E0 |
EL53 ***,W(SPLIT TYPE REAR SEAT),OAK,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1G340B0 |
EL53 ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71420-1G340E0 |
EL53 ***,OAK,TRIM4# |
1 | ||
| 71420-1G340B7 |
EL53 ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71420-1G340E7 |
EL53 ***,OAK,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1G500B0 |
EL53 ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71430-1G500E4 |
EL53 ***,OAK,TRIM4# |
1 | ||
| 71430-1G500B4 |
EL53 ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1G500E0 |
EL53 ***,OAK,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1G380E4 |
EL53 ***,OAK,TRIM4# |
1 | ||
| 71440-1G380E0 |
EL53 ***,OAK,TRIM4# |
1 | ||
| 71440-1G380B0 |
EL53 ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71440-1G380B4 |
EL53 ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-16170 |
EL53 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71505-16170 |
EL53 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71013-16120 |
EL53 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71013-16120 |
EL53 |
1 | ||
| Common parts | ||||
| 90468-18071 | ||||

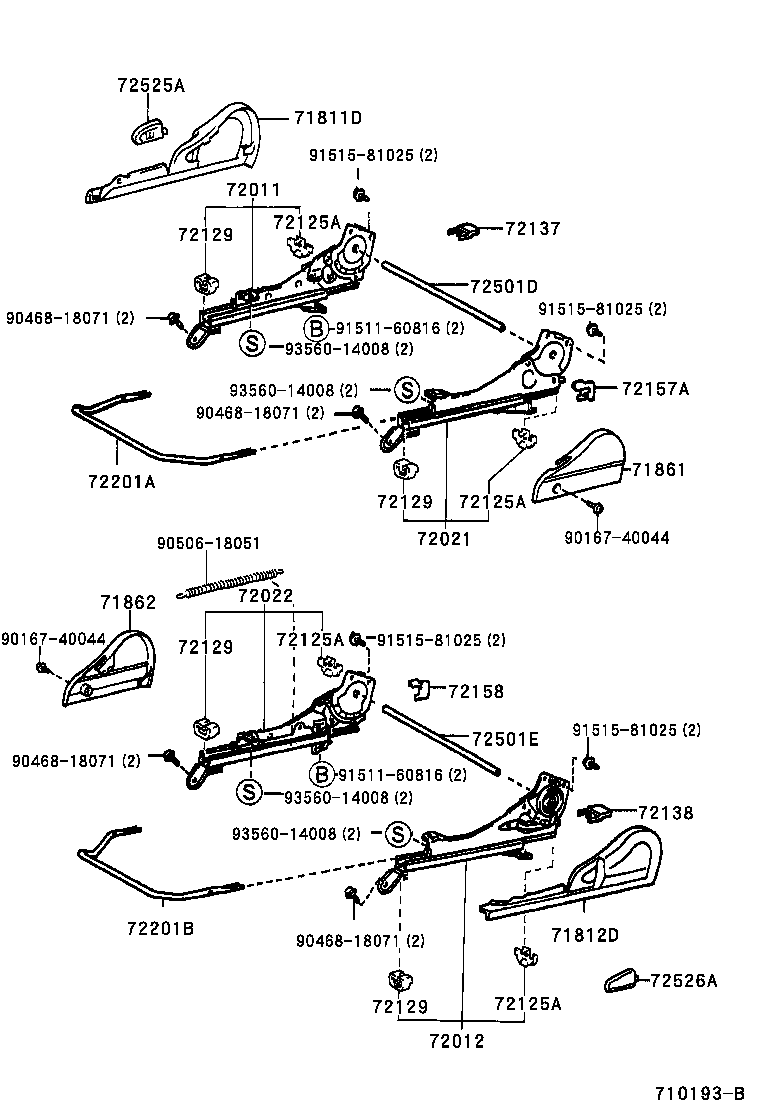

ILLUST NO. 2 OF 2(9608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-16140E0 |
EL53..DX OAK,TRIM4# |
1 | ||
| 71811-20300B0 |
EL53..4DS SHADOW GRAY,TRIM1# |
1 | ||
| 71811-20300E1 |
EL53..4DS OAK,TRIM4# |
1 | ||
| 71811-16140B0 |
EL53 BLUISH GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-20270B0 |
EL53 SHADOW GRAY,TRIM1# |
1 | ||
| 71812-16100B0 |
EL53 BLUISH GRAY,TRIM1# |
1 | ||
| 71812-16100E0 |
EL53..DX OAK,TRIM4# |
1 | ||
| 71812-20270E1 |
EL53 OAK,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-16220E0 |
EL53 OAK,TRIM4# |
1 | ||
| 71861-16090B0 |
EL53 BLUISH GRAY,TRIM1# |
1 | ||
| 71861-16090E0 |
EL53..DX OAK,TRIM4# |
1 | ||
| 71861-16220B0 |
EL53 SHADOW GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-16060B0 |
EL53 BLUISH GRAY,TRIM1# |
1 | ||
| 71862-16060E0 |
EL53..DX OAK,TRIM4# |
1 | ||
| 71862-16190E0 |
EL53 OAK,TRIM4# |
1 | ||
| 71862-16190B0 |
EL53 SHADOW GRAY,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-16190 |
EL53..4DS |
1 | ||
| 72011-16310 |
EL53..4DS |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-16150 |
EL53 |
1 | ||
| 72012-16250 |
EL53 |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-16250 |
EL53..4DS |
1 | ||
| 72021-16200 |
EL53..4DS;EL53..STD |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-16220 |
EL53 |
1 | ||
| 72022-16180 |
EL53 |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-16020 |
EL53 |
4 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-16020 |
EL53 |
4 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-16020 |
EL53 |
4 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-16020 |
EL53 |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-16010 |
EL53 REAR |
4 | ||
| 72129-16020 |
EL53 FRONT |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-16010 |
EL53 REAR |
4 | ||
| 72129-16020 |
EL53 FRONT |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-16010 |
EL53 REAR |
4 | ||
| 72129-16020 |
EL53 FRONT |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-16010 |
EL53 REAR |
4 | ||
| 72129-16020 |
EL53 FRONT |
4 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-16030 |
EL53 |
1 | ||
| 72137-16050 |
EL53 |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-16050 |
EL53 |
1 | ||
| 72138-16030 |
EL53 |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-16040 |
EL53 |
1 | ||
| 72157-16080 |
EL53 |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-16040 |
EL53 |
1 | ||
| 72158-16080 |
EL53 |
1 | ||
| 72201A - HANDLE SUB-ASSY, SEAT TRACK RH | ||||
| 72201-16020 |
EL53 |
1 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72201-16020 |
EL53 |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72501-16021 |
EL53 |
1 | ||
| 72345-16030 |
EL53 |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72345-16030 |
EL53 |
1 | ||
| 72501-16021 |
EL53 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-12090B2 |
EL53 BLUISH GRAY,TRIM1# |
1 | ||
| 72525-16010E1 |
EL53 OAK,TRIM4# |
1 | ||
| 72525-16010B0 |
EL53 SHADOW GRAY,TRIM1# |
1 | ||
| 72525-12090E1 |
EL53..DX OAK,TRIM4# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-12030B0 |
EL53 BLUISH GRAY,TRIM1# |
1 | ||
| 72526-16010E1 |
EL53 OAK,TRIM4# |
1 | ||
| 72526-12030E1 |
EL53..DX OAK,TRIM4# |
1 | ||
| 72526-16010B0 |
EL53 SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90167-40044 | ||||
| 90468-18071 | ||||
| 90506-18051 | ||||
| 91511-60816 | ||||
| 91515-81025 | ||||
| 93560-14008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
