EL53L-AEPRKA (1994)
Toyota Tercel

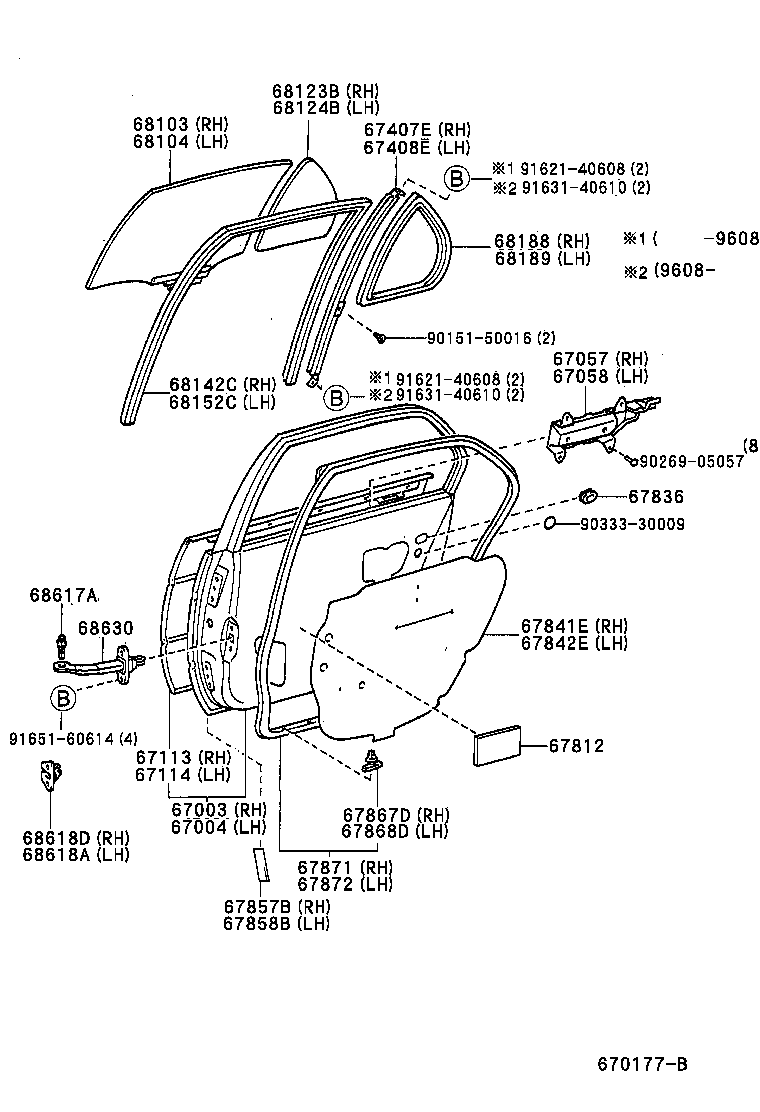

ILLUST NO. 2 OF 2(9409- )4DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-16250 |
EL53..4DS W(POWER WINDOW) |
1 | ||
| 67003-16260 |
EL53..4DS |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-16260 |
EL53..4DS |
1 | ||
| 67004-16250 |
EL53..4DS W(POWER WINDOW) |
1 | ||
| 67057 - REINFORCE SUB-ASSY, REAR DOOR INSIDE PANEL, RH | ||||
| 67057-16010 |
EL53..4DS |
1 | ||
| 67058 - REINFORCE SUB-ASSY, REAR DOOR INSIDE PANEL, LH | ||||
| 67058-16010 |
EL53..4DS |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-16100 |
EL53..4DS |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-16100 |
EL53..4DS |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-16070 |
EL53..4DS |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-16070 |
EL53..4DS |
1 | ||
| 67812 - PAD, REAR DOOR SILENCER | ||||
| 67812-16060 |
EL53..4DS |
2 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-20060 |
EL53..4DS |
2 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-16150 |
EL53..4DS |
1 | ||
| 67841-16160 |
EL53..4DS W(POWER WINDOW) |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67841-16150 |
EL53..4DS |
1 | ||
| 67842-16090 |
EL53..4DS W(POWER WINDOW) |
1 | ||
| 67857B - PROTECTOR, REAR DOOR PANEL, RH | ||||
| 67857-16010 |
EL53..4DS |
1 | ||
| 67858B - PROTECTOR, REAR DOOR PANEL, LH | ||||
| 67858-16010 |
EL53..4DS |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
EL53..4DS |
16 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
EL53..4DS |
16 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-16210 |
EL53..4DS |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-16210 |
EL53..4DS |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-16060 |
EL53..4DS *TT,T=3.5,GREEN |
1 | ||
| 68103-16060 |
EL53..4DS..USA *TT,T=3.5,GREEN |
1 | ||
| 68103-16040 |
EL53..4DS *TEM,T=3.5,CLEAR |
1 | ||
| 68103-16050 |
EL53..4DS..USA *TT,T=3.5,BLUE |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-16040 |
EL53..4DS *TEM,T=3.5,CLEAR |
1 | ||
| 68104-16050 |
EL53..4DS..USA *TT,T=3.5,BLUE |
1 | ||
| 68104-16060 |
EL53..4DS..USA *TT,T=3.5,GREEN |
1 | ||
| 68104-16060 |
EL53..4DS *TT,T=3.5,GREEN |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-16170 |
EL53..4DS *TT,T=3.5,GREEN |
1 | ||
| 68123-16160 |
EL53..4DS..USA *TT,T=3.5,BLUE |
1 | ||
| 68123-16170 |
EL53..4DS..USA *TT,T=3.5,GREEN |
1 | ||
| 68123-16150 |
EL53..4DS *TEM,T=3.5,CLEAR |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-16150 |
EL53..4DS *TEM,T=3.5,CLEAR |
1 | ||
| 68124-16170 |
EL53..4DS..USA *TT,T=3.5,GREEN |
1 | ||
| 68124-16170 |
EL53..4DS *TT,T=3.5,GREEN |
1 | ||
| 68124-16160 |
EL53..4DS..USA *TT,T=3.5,BLUE |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-16100 |
EL53..4DS |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-16020 |
EL53..4DS |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-16080 |
EL53..4DS |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-16080 |
EL53..4DS |
1 | ||
| 68617A - PIN, REAR DOOR CHECK | ||||
| 68617-20011 |
EL53..4DS |
2 | ||
| 68617-12030 |
EL53..4DS |
2 | ||
| 68618A - BRACKET, REAR DOOR CHECK ARM, LH | ||||
| 61377-16030 |
EL53..4DS |
1 | ||
| 68618D - BRACKET, REAR DOOR CHECK ARM, RH | ||||
| 61377-16030 |
EL53..4DS |
1 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-16090 |
EL53..4DS |
2 | ||
| Common parts | ||||
| 90151-50016 | ||||
| 90269-05057 | ||||
| 90333-30009 | ||||
| 91621-40608 | ||||
| 91631-40610 | ||||
| 91651-60614 | ||||

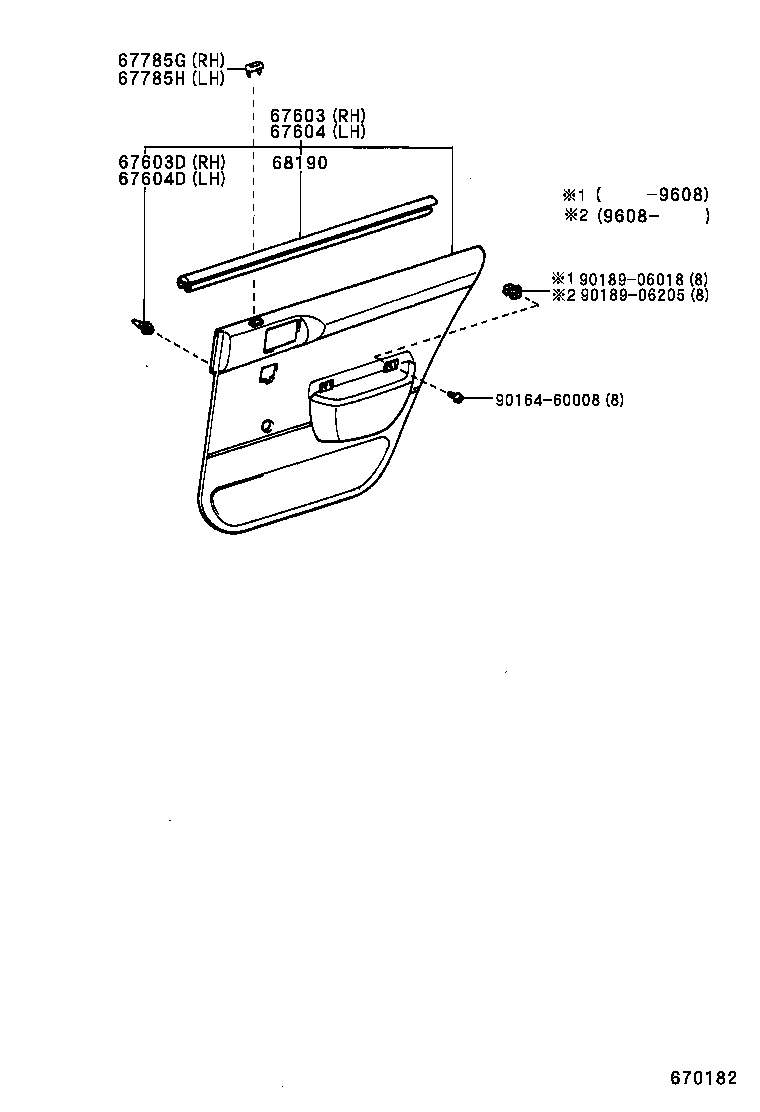

ILLUST NO. 1 OF 2(9409- )4DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-16530B1 |
EL53..4DS W(POWER WINDOW),BLUISH GRAY,TRIM1# |
1 | ||
| 67630-16670E0 |
EL53..4DS W(POWER WINDOW),OAK,TRIM4# |
1 | ||
| 67630-16530E1 |
EL53..4DS W(POWER WINDOW),OAK,TRIM4# |
1 | ||
| 67630-16661E1 |
EL53..4DS OAK,TRIM4# |
1 | ||
| 67630-16660E0 |
EL53..4DS OAK,TRIM4# |
1 | ||
| 67630-16661B1 |
EL53..4DS SHADOW GRAY,TRIM1# |
1 | ||
| 67630-16580E0 |
EL53..4DS OAK,TRIM4# |
1 | ||
| 67630-16580B0 |
EL53..4DS BLUISH GRAY,TRIM1# |
1 | ||
| 67630-16670B0 |
EL53..4DS W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-16671B1 |
EL53..4DS W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-16671E1 |
EL53..4DS W(POWER WINDOW),OAK,TRIM4# |
1 | ||
| 67630-16660B0 |
EL53..4DS SHADOW GRAY,TRIM1# |
1 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12050 |
EL53..4DS RED |
2 | ||
| 67771-16120 |
EL53..4DS |
8 | ||
| 67771-16120 |
EL53..4DS LIGHT GRAY |
6 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-16540B1 |
EL53..4DS W(POWER WINDOW),BLUISH GRAY,TRIM1# |
1 | ||
| 67640-16680E0 |
EL53..4DS W(POWER WINDOW),OAK,TRIM4# |
1 | ||
| 67640-16540E1 |
EL53..4DS W(POWER WINDOW),OAK,TRIM4# |
1 | ||
| 67640-16670E0 |
EL53..4DS OAK,TRIM4# |
1 | ||
| 67640-16590E0 |
EL53..4DS OAK,TRIM4# |
1 | ||
| 67640-16670B0 |
EL53..4DS SHADOW GRAY,TRIM1# |
1 | ||
| 67640-16681B1 |
EL53..4DS W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-16680B0 |
EL53..4DS W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-16590B0 |
EL53..4DS BLUISH GRAY,TRIM1# |
1 | ||
| 67640-16671E1 |
EL53..4DS OAK,TRIM4# |
1 | ||
| 67640-16671B1 |
EL53..4DS SHADOW GRAY,TRIM1# |
1 | ||
| 67640-16681E1 |
EL53..4DS W(POWER WINDOW),OAK,TRIM4# |
1 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-12050 |
EL53..4DS RED |
2 | ||
| 67771-16120 |
EL53..4DS LIGHT GRAY |
6 | ||
| 67771-16120 |
EL53..4DS |
8 | ||
| 67785G - HOLDER, REAR DOOR LOCK CONTROL KNOB, RH | ||||
| 69751-12050E0 |
EL53..4DS OAK,TRIM4# |
1 | ||
| 69751-12050B0 |
EL53..4DS SHADOW GRAY,TRIM1# |
1 | ||
| 67785H - HOLDER, REAR DOOR LOCK CONTROL KNOB, LH | ||||
| 69751-12050B0 |
EL53..4DS SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050E0 |
EL53..4DS OAK,TRIM4# |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68174-16070 |
EL53..4DS LH |
1 | ||
| 68174-16080 |
EL53..4DS LH |
1 | ||
| 68173-16090 |
EL53..4DS RH |
1 | ||
| 68174-16090 |
EL53..4DS LH |
1 | ||
| 68173-16070 |
EL53..4DS RH |
1 | ||
| 68173-16080 |
EL53..4DS RH |
1 | ||
| Common parts | ||||
| 90164-60008 | ||||
| 90189-06018 | ||||
| 90189-06205 | ||||
