EL53L-AEPRKA (1994)
Toyota Tercel

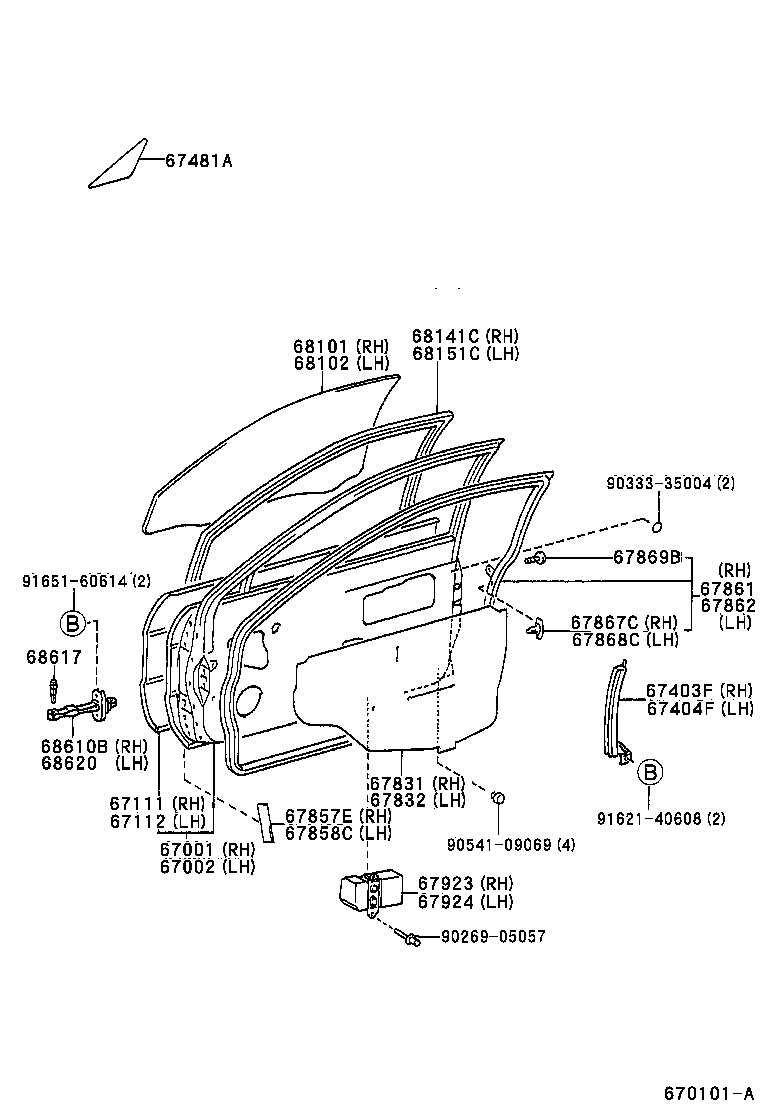

ILLUST NO. 2 OF 2(9409- )4DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-16600 |
EL53..4DS |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-16530 |
EL53..4DS |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-16220 |
EL53..4DS |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-16200 |
EL53..4DS |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-16140 |
EL53..4DS |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-16140 |
EL53..4DS |
1 | ||
| 67481A - SEAL, FRONT DOOR FRONT LOWER FRAME, RH | ||||
| 67481-16190 |
EL53 |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-16400 |
EL53..4DS W(POWER WINDOW) |
1 | ||
| 67831-16390 |
EL53..4DS |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67831-16390 |
EL53..4DS |
1 | ||
| 67832-16120 |
EL53..4DS W(POWER WINDOW) |
1 | ||
| 67857E - PROTECTOR, REAR DOOR PANEL, RH | ||||
| 67857-16010 |
EL53 |
1 | ||
| 67858C - PROTECTOR, REAR DOOR PANEL, LH | ||||
| 67858-16010 |
EL53 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-16300 |
EL53..4DS |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-16300 |
EL53..4DS |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
EL53..4DS |
15 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
EL53..4DS |
15 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-32020 |
EL53..4DS |
2 | ||
| 67923 - CUSHION, FRONT DOOR STIFFENER, NO.1 | ||||
| 67923-16010 |
EL53..4DS |
1 | ||
| 67924 - CUSHION, FRONT DOOR STIFFENER, NO.2 | ||||
| 67924-16010 |
EL53..4DS |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68110-16120 |
EL53..4DS *TEM,T=3.5,CLEAR |
1 | ||
| 68110-16200 |
EL53..4DS..USA *TT,T=3.5,GREEN |
1 | ||
| 68110-16130 |
EL53..4DS..USA *TT,T=3.5,BLUE |
1 | ||
| 68110-16200 |
EL53..4DS *TT,T=3.5,GREEN |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68120-16120 |
EL53..4DS *TEM,T=3.5,CLEAR |
1 | ||
| 68120-16130 |
EL53..4DS..USA *TT,T=3.5,BLUE |
1 | ||
| 68120-16200 |
EL53..4DS..USA *TT,T=3.5,GREEN |
1 | ||
| 68120-16200 |
EL53..4DS *TT,T=3.5,GREEN |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-16210 |
EL53..4DS |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-16040 |
EL53..4DS |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-16090 |
EL53 |
1 | ||
| 68610-16090 |
EL53 |
1 | ||
| 68610-16090 |
EL53 |
1 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-20011 |
EL53 |
2 | ||
| 68617-12030 |
EL53 |
2 | ||
| 68617-12030 |
EL53 |
2 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68610-16090 |
EL53 |
1 | ||
| 68610-16090 |
EL53 |
1 | ||
| 68610-16090 |
EL53 |
1 | ||
| Common parts | ||||
| 90269-05057 | ||||
| 90333-35004 | ||||
| 90541-09069 | ||||
| 91621-40608 | ||||
| 91651-60614 | ||||

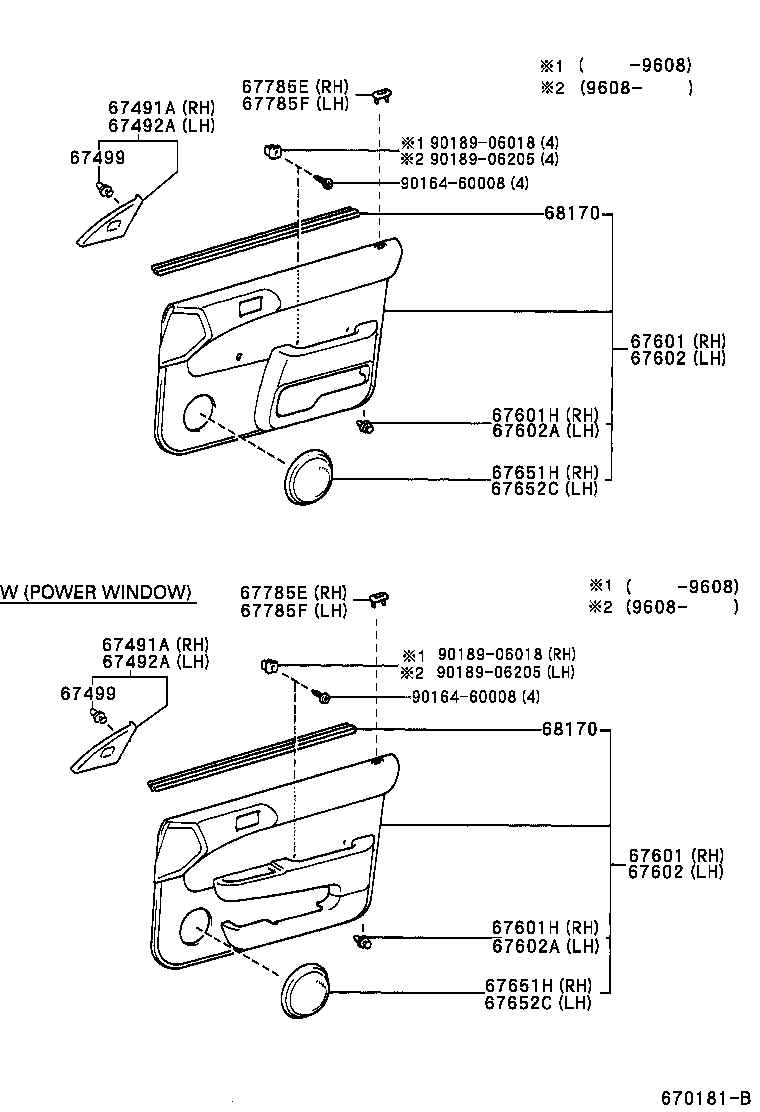

ILLUST NO. 1 OF 2(9409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-16161 |
EL53 W(LEVER REMOTE CONTROL) |
1 | ||
| 67491-16111 |
EL53 |
1 | ||
| 67491-16160 |
EL53..DX W(LEVER REMOTE CONTROL) |
1 | ||
| 67491-16110 |
EL53 |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-16161 |
EL53 W(LEVER REMOTE CONTROL) |
1 | ||
| 67491-16111 |
EL53 |
1 | ||
| 67491-16160 |
EL53..DX W(LEVER REMOTE CONTROL) |
1 | ||
| 67491-16110 |
EL53 |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-16111 |
EL53 |
1 | ||
| 67492-16110 |
EL53 |
1 | ||
| 67492-16161 |
EL53 W(LEVER REMOTE CONTROL) |
1 | ||
| 67492-16160 |
EL53..DX W(LEVER REMOTE CONTROL) |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-16111 |
EL53 |
1 | ||
| 67492-16110 |
EL53 |
1 | ||
| 67492-16161 |
EL53 W(LEVER REMOTE CONTROL) |
1 | ||
| 67492-16160 |
EL53..DX W(LEVER REMOTE CONTROL) |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67771-30070 |
EL53 |
4 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67771-30070 |
EL53 |
4 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-16680B1 |
EL53..4DS W(POWER WINDOW),BLUISH GRAY,TRIM1# |
1 | ||
| 67650-16730E1 |
EL53..4DS OAK,TRIM4# |
1 | ||
| 67610-1G250E0 |
EL53..4DS OAK,TRIM4# |
1 | ||
| 67650-16730B1 |
EL53..4DS BLUISH GRAY,TRIM1# |
1 | ||
| 67650-16680E1 |
EL53..4DS W(POWER WINDOW),OAK,TRIM4# |
1 | ||
| 67610-1G251E1 |
EL53..4DS OAK,TRIM4# |
1 | ||
| 67610-1G060B0 |
EL53..4DS W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-1G061B1 |
EL53..4DS W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-1G061E1 |
EL53..4DS W(POWER WINDOW),OAK,TRIM4# |
1 | ||
| 67610-1G250B0 |
EL53..4DS SHADOW GRAY,TRIM1# |
1 | ||
| 67610-1G060E0 |
EL53..4DS W(POWER WINDOW),OAK,TRIM4# |
1 | ||
| 67610-1G251B1 |
EL53..4DS SHADOW GRAY,TRIM1# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-16680B1 |
EL53..4DS W(POWER WINDOW),BLUISH GRAY,TRIM1# |
1 | ||
| 67650-16730E1 |
EL53..4DS OAK,TRIM4# |
1 | ||
| 67610-1G250E0 |
EL53..4DS OAK,TRIM4# |
1 | ||
| 67650-16730B1 |
EL53..4DS BLUISH GRAY,TRIM1# |
1 | ||
| 67650-16680E1 |
EL53..4DS W(POWER WINDOW),OAK,TRIM4# |
1 | ||
| 67610-1G251E1 |
EL53..4DS OAK,TRIM4# |
1 | ||
| 67610-1G060B0 |
EL53..4DS W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-1G061B1 |
EL53..4DS W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-1G061E1 |
EL53..4DS W(POWER WINDOW),OAK,TRIM4# |
1 | ||
| 67610-1G250B0 |
EL53..4DS SHADOW GRAY,TRIM1# |
1 | ||
| 67610-1G060E0 |
EL53..4DS W(POWER WINDOW),OAK,TRIM4# |
1 | ||
| 67610-1G251B1 |
EL53..4DS SHADOW GRAY,TRIM1# |
1 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12050 |
EL53..4DS RED |
3 | ||
| 67771-16120 |
EL53 GRAY |
7 | ||
| 67771-16120 |
EL53..4DS |
10 | ||
| 67771-16120 |
EL53..4DS GRAY |
7 | ||
| 67771-12050 |
EL53 RED |
3 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12050 |
EL53..4DS RED |
3 | ||
| 67771-16120 |
EL53 GRAY |
7 | ||
| 67771-16120 |
EL53..4DS |
10 | ||
| 67771-16120 |
EL53..4DS GRAY |
7 | ||
| 67771-12050 |
EL53 RED |
3 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1G680B1 |
EL53..4DS W(POWER WINDOW),BLUISH GRAY,TRIM1# |
1 | ||
| 67620-1G670E0 |
EL53..4DS OAK,TRIM4# |
1 | ||
| 67620-1G670B0 |
EL53..4DS BLUISH GRAY,TRIM1# |
1 | ||
| 67620-1G680E1 |
EL53..4DS W(POWER WINDOW),OAK,TRIM4# |
1 | ||
| 67050-16130B0 |
EL53..4DS W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67050-16120E0 |
EL53..4DS OAK,TRIM4# |
1 | ||
| 67050-16120B0 |
EL53..4DS SHADOW GRAY,TRIM1# |
1 | ||
| 67050-16131B1 |
EL53..4DS W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67050-16121E1 |
EL53..4DS OAK,TRIM4# |
1 | ||
| 67050-16131E1 |
EL53..4DS W(POWER WINDOW),OAK,TRIM4# |
1 | ||
| 67050-16121B1 |
EL53..4DS SHADOW GRAY,TRIM1# |
1 | ||
| 67050-16130E0 |
EL53..4DS W(POWER WINDOW),OAK,TRIM4# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1G680B1 |
EL53..4DS W(POWER WINDOW),BLUISH GRAY,TRIM1# |
1 | ||
| 67620-1G670E0 |
EL53..4DS OAK,TRIM4# |
1 | ||
| 67620-1G670B0 |
EL53..4DS BLUISH GRAY,TRIM1# |
1 | ||
| 67620-1G680E1 |
EL53..4DS W(POWER WINDOW),OAK,TRIM4# |
1 | ||
| 67050-16130B0 |
EL53..4DS W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67050-16120E0 |
EL53..4DS OAK,TRIM4# |
1 | ||
| 67050-16120B0 |
EL53..4DS SHADOW GRAY,TRIM1# |
1 | ||
| 67050-16131B1 |
EL53..4DS W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67050-16121E1 |
EL53..4DS OAK,TRIM4# |
1 | ||
| 67050-16131E1 |
EL53..4DS W(POWER WINDOW),OAK,TRIM4# |
1 | ||
| 67050-16121B1 |
EL53..4DS SHADOW GRAY,TRIM1# |
1 | ||
| 67050-16130E0 |
EL53..4DS W(POWER WINDOW),OAK,TRIM4# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-16120 |
EL53..4DS GRAY |
10 | ||
| 67771-12050 |
EL53 RED |
3 | ||
| 67771-16120 |
EL53 GRAY |
10 | ||
| 67771-16120 |
EL53..4DS GRAY |
7 | ||
| 67771-16120 |
EL53..4DS GRAY |
10 | ||
| 67771-12050 |
EL53..4DS RED |
3 | ||
| 67771-16120 |
EL53 GRAY |
7 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-16120 |
EL53..4DS GRAY |
10 | ||
| 67771-12050 |
EL53 RED |
3 | ||
| 67771-16120 |
EL53 GRAY |
10 | ||
| 67771-16120 |
EL53..4DS GRAY |
7 | ||
| 67771-16120 |
EL53..4DS GRAY |
10 | ||
| 67771-12050 |
EL53..4DS RED |
3 | ||
| 67771-16120 |
EL53 GRAY |
7 | ||
| 67651H - GRILLE, SPEAKER DOOR, RH | ||||
| 67651-16070E0 |
EL53..DX OAK,TRIM4# |
1 | ||
| 67651-16070B1 |
EL53 SHADOW GRAY,TRIM1# |
1 | ||
| 67651H - GRILLE, SPEAKER DOOR, RH | ||||
| 67651-16070E0 |
EL53..DX OAK,TRIM4# |
1 | ||
| 67651-16070B1 |
EL53 SHADOW GRAY,TRIM1# |
1 | ||
| 67652C - GRILLE, SPEAKER DOOR, LH | ||||
| 67651-16070B1 |
EL53 SHADOW GRAY,TRIM1# |
1 | ||
| 67651-16070E0 |
EL53..DX OAK,TRIM4# |
1 | ||
| 67652C - GRILLE, SPEAKER DOOR, LH | ||||
| 67651-16070B1 |
EL53 SHADOW GRAY,TRIM1# |
1 | ||
| 67651-16070E0 |
EL53..DX OAK,TRIM4# |
1 | ||
| 67785E - HOLDER, FRONT DOOR LOCK CONTROL KNOB, RH | ||||
| 69751-12050B0 |
EL53 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050E0 |
EL53 OAK,TRIM4# |
1 | ||
| 67785E - HOLDER, FRONT DOOR LOCK CONTROL KNOB, RH | ||||
| 69751-12050B0 |
EL53 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050E0 |
EL53 OAK,TRIM4# |
1 | ||
| 67785F - HOLDER, FRONT DOOR LOCK CONTROL KNOB, LH | ||||
| 69751-12050E0 |
EL53 OAK,TRIM4# |
1 | ||
| 69751-12050B0 |
EL53 SHADOW GRAY,TRIM1# |
1 | ||
| 67785F - HOLDER, FRONT DOOR LOCK CONTROL KNOB, LH | ||||
| 69751-12050E0 |
EL53 OAK,TRIM4# |
1 | ||
| 69751-12050B0 |
EL53 SHADOW GRAY,TRIM1# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-16110 |
EL53..4DS RH |
1 | ||
| 68172-16140 |
EL53..4DS LH |
1 | ||
| 68171-16150 |
EL53..4DS RH |
1 | ||
| 68172-16170 |
EL53..4DS LH |
1 | ||
| 68172-16210 |
EL53..4DS LH |
1 | ||
| 68171-16190 |
EL53..4DS RH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-16110 |
EL53..4DS RH |
1 | ||
| 68172-16140 |
EL53..4DS LH |
1 | ||
| 68171-16150 |
EL53..4DS RH |
1 | ||
| 68172-16170 |
EL53..4DS LH |
1 | ||
| 68172-16210 |
EL53..4DS LH |
1 | ||
| 68171-16190 |
EL53..4DS RH |
1 | ||
| Common parts | ||||
| 90164-60008 | ||||
| 90189-06018 | ||||
| 90189-06205 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
