EL53L-AEPRKA (1994)

Toyota Tercel

Production Sep 1994 - Jul 1999
Engine 5EFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9409- )

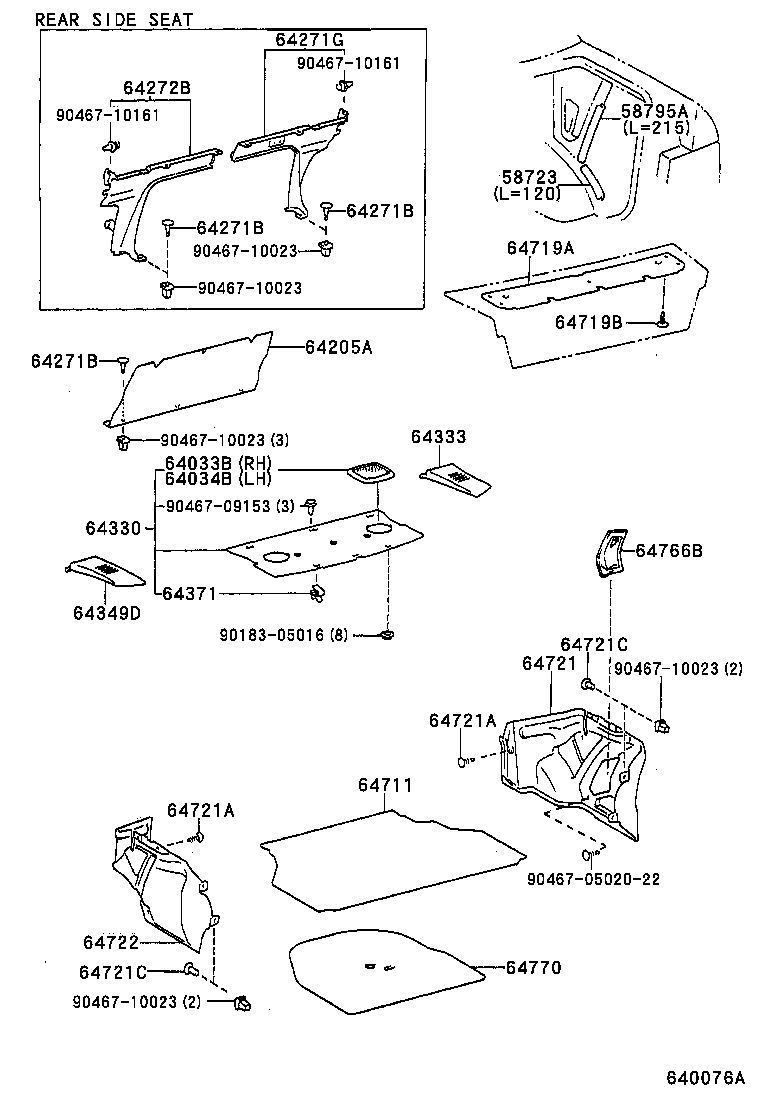

Click highlighted areas on diagram

diagram 58723 58795A 64033B 64034B 64205A 64271B 64271B 64271B 64271G 64272B 64330 64333 64349D 64371 64711 64719A 64719B 64721 64721A 64721A 64721C 64721C 64722 64766B 64770 9018305016 904670502022 9046709153 9046710023 9046710023 9046710023 9046710023 9046710023 9046710161 9046710161
Part # Description Qty Price
58723 - PROTECTOR, LUGGAGE COMPARTMENT SERVICE COVER, NO.1
58723-16010

EL53

 1
58795A - TRIM, JACK HOUSE OPENING
58795-16020

EL53

 1
64033B - GRILLE SUB-ASSY, REAR SPEAKER, RH
64383-16040E0

EL53..DX

OAK,TRIM4#

 1
64383-16040B0

EL53..DX;EL53..STD..CND

BLUISH GRAY,TRIM1#

 1
64383-16040B1

EL53

SHADOW GRAY,TRIM1#

 1
64034B - GRILLE SUB-ASSY, REAR SPEAKER, LH
64383-16040B0

EL53..DX;EL53..STD..CND

BLUISH GRAY,TRIM1#

 1
64383-16040B1

EL53

SHADOW GRAY,TRIM1#

 1
64383-16040E0

EL53..DX

OAK,TRIM4#

 1
64205A - COVER SUB-ASSY, ROOM PARTITION
64275-16030C0

EL53..DX

BLACK,TRIM1#,4#

 1
64271B - CLIP(FOR ROOM PARTITION BOARD)
90467-07115C0

EL53..DX

BLACK,TRIM1#,4#

 3
90467-07115C0

EL53..DX

W(REAR SPLIT SEAT),BLACK,TRIM1#,4#

 2
64271B - CLIP(FOR ROOM PARTITION BOARD)
90467-07115C0

EL53..DX

BLACK,TRIM1#,4#

 3
90467-07115C0

EL53..DX

W(REAR SPLIT SEAT),BLACK,TRIM1#,4#

 2
64271B - CLIP(FOR ROOM PARTITION BOARD)
90467-07115C0

EL53..DX

BLACK,TRIM1#,4#

 3
90467-07115C0

EL53..DX

W(REAR SPLIT SEAT),BLACK,TRIM1#,4#

 2
64271G - BOARD, ROOM PARTITION, RH
64271-16061C0

EL53

BLACK,TRIM1#,4#

 1
64271-16060C0

EL53..DX

BLACK,TRIM1#,4#

 1
64272B - BOARD, ROOM PARTITION, LH
64272-16060C0

EL53..DX

BLACK,TRIM1#,4#

 1
64272-16061C0

EL53

BLACK,TRIM1#,4#

 1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-16600B0

EL53

BLUISH GRAY,TRIM1#

 1
64330-16860B0

EL53

W(REAR SPOILER),SHADOW GRAY,TRIM1#

 1
64330-16850E0

EL53

OAK,TRIM4#

 1
64330-16610E0

EL53..DX

W(REAR SPEAKER),OAK,TRIM4#

 1
64330-16600E0

EL53..DX

OAK,TRIM4#

 1
64330-16850B0

EL53

SHADOW GRAY,TRIM1#

 1
64330-16860E0

EL53

W(REAR SPOILER),OAK,TRIM4#

 1
64330-16610B0

EL53..DX;EL53..STD..CND

W(REAR SPEAKER),BLUISH GRAY,TRIM1#

 1
64333 - COVER, PACKAGE TRAY TRIM, SIDE
64333-16070B1

EL53

SHADOW GRAY,TRIM1#

 1
64333-16070E0

EL53..DX

OAK,TRIM4#

 1
64349D - COVER, PACKAGE TRAY TRIM SIDE, LH
64349-16050B1

EL53

SHADOW GRAY,TRIM1#

 1
64349-16050E0

EL53..DX

OAK,TRIM4#

 1
64371 - RETAINER, PACKAGE TRAY TRIM
64371-16010

EL53

 3
64711 - MAT, LUGGAGE COMPARTMENT FLOOR
64711-16210C0

EL53

W(REAR SPLIT SEAT),BLACK,TRIM1#,4#

 1
64711-16130C0

EL53..DX

W(REAR SPLIT SEAT),BLACK,TRIM1#,4#

 1
64711-16150C0

EL53..DX

BLACK,TRIM1#,4#

 1
64711-16190C0

EL53

BLACK,TRIM1#,4#

 1
64719A - COVER, LUGGAGE COMPARTMENT DOOR
64719-16030C0

EL53..DX

BLACK,TRIM1#,4#

 1
64719B - CLIP(FOR LUGGAGE COMPARTMENT DOOR)
90467-0509622

EL53..DX

BLACK,TRIM1#,4#

 5
64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
64721-16071C0

EL53..DX

BLACK,TRIM1#,4#

 1
64721-16100C0

EL53

BLACK,TRIM1#,4#

 1
64721-16070C0

EL53..DX

BLACK,TRIM1#,4#

 1
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-0509622

EL53

BLACK,TRIM1#,4#

 7
90467-0509622

EL53..DX

BLACK,TRIM1#,4#

 8
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-0509622

EL53

BLACK,TRIM1#,4#

 7
90467-0509622

EL53..DX

BLACK,TRIM1#,4#

 8
64721C - CLIP(LUGGAGE COMPARTMENT)
90467-14041C0

EL53..DX

BLACK,TRIM1#,4#

 4
64721C - CLIP(LUGGAGE COMPARTMENT)
90467-14041C0

EL53..DX

BLACK,TRIM1#,4#

 4
64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
64722-16070C0

EL53..DX

BLACK,TRIM1#,4#

 1
64722-16071C0

EL53..DX

BLACK,TRIM1#,4#

 1
64722-16120C0

EL53

BLACK,TRIM1#,4#

 1
64766B - COVER, QUARTER TRIM JACK
64766-16050C0

EL53

BLACK,TRIM1#,4#

 1
64770 - COVER ASSY, SPARE WHEEL
64770-16230

EL53

 1
Common parts
90183-05016
90467-0502022
90467-09153
90467-10023
90467-10161
