EL53L-AEPRKA (1994)
Toyota Tercel
Production
Sep 1994
-
Jul 1999
Engine
5EFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9409- )4DS

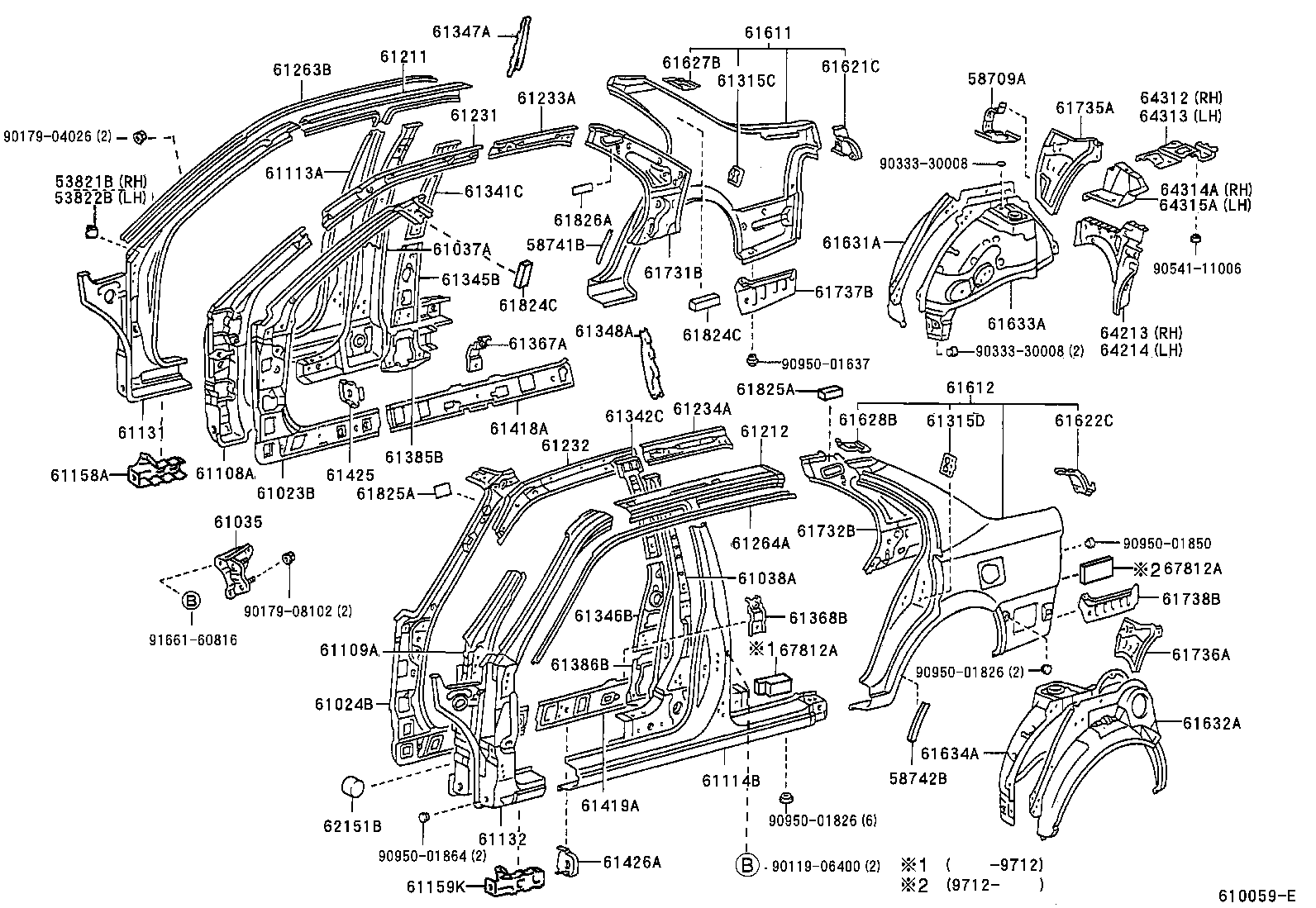

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53821B - BRACKET, FRONT FENDER, REAR RH | ||||
| 53821-16010 |
EL53 |
1 | ||
| 53821-16010 |
EL53..4DS |
1 | ||
| 53822B - BRACKET, FRONT FENDER, REAR LH | ||||
| 53821-16010 |
EL53 |
1 | ||
| 58709A - CARRIER SUB-ASSY, JACK | ||||
| 58709-16030 |
EL53 |
1 | ||
| 58741B - PROTECTOR, QUARTER PANEL, RH | ||||
| 58741-12040 |
EL53..4DS |
1 | ||
| 58742B - PROTECTOR, QUARTER PANEL, LH | ||||
| 58742-12040 |
EL53..4DS |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-16100 |
EL53 |
1 | ||
| 61023-16170 |
EL53 |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-16170 |
EL53 |
1 | ||
| 61024-16200 |
EL53 |
1 | ||
| 61035 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH | ||||
| 61035-16030 |
EL53 |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-16040 |
EL53..4DS |
1 | ||
| 61037-16900 |
EL53..4DS |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-16900 |
EL53..4DS |
1 | ||
| 61038-16030 |
EL53..4DS |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-16060 |
EL53..4DS |
1 | ||
| 61108-16902 |
EL53..4DS |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-16060 |
EL53..4DS |
1 | ||
| 61109-16902 |
EL53..4DS |
1 | ||
| 61113A - PANEL, SIDE, OUTER NO.2 RH | ||||
| 61113-16070 |
EL53..4DS |
1 | ||
| 61114B - PANEL, SIDE, OUTER NO.2 LH | ||||
| 61114-16070 |
EL53..4DS |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-16190 |
EL53 |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-16220 |
EL53 |
1 | ||
| 61158A - EXTENSION, FRONT PILLER, LOWER RH | ||||
| 61158-16010 |
EL53 |
1 | ||
| 61159K - EXTENSION, FRONT PILLER, LOWER LH | ||||
| 61159-16020 |
EL53 |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-16160 |
EL53..4DS |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-16160 |
EL53..4DS |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-16230 |
EL53..4DS |
1 | ||
| 61231-16280 |
EL53..4DS |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-16230 |
EL53..4DS |
1 | ||
| 61232-16280 |
EL53..4DS |
1 | ||
| 61233A - RAIL, ROOF SIDE, INNER NO.2 RH | ||||
| 61233-16090 |
EL53..4DS |
1 | ||
| 61233-16080 |
EL53..4DS |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61234-16090 |
EL53..4DS |
1 | ||
| 61234-16080 |
EL53..4DS |
1 | ||
| 61263B - CHANNEL, ROOF DRIP SIDE, FRONT RH | ||||
| 61263-16100 |
EL53..4DS |
1 | ||
| 61264A - CHANNEL, ROOF DRIP SIDE, FRONT LH | ||||
| 61264-16100 |
EL53..4DS |
1 | ||
| 61315C - RETAINER, DOOR LOCK STRIKER, RH | ||||
| 61315-22020 |
EL53 |
1 | ||
| 61315D - RETAINER, DOOR LOCK STRIKER, LH | ||||
| 61315-22020 |
EL53 |
1 | ||
| 61341C - PILLAR, CENTER BODY, INNER UPPER RH | ||||
| 61341-16050 |
EL53..4DS |
1 | ||
| 61342C - PILLAR, CENTER BODY, INNER UPPER LH | ||||
| 61342-16050 |
EL53..4DS |
1 | ||
| 61345B - PILLAR, CENTER BODY, INNER LOWER RH | ||||
| 61345-16020 |
EL53..4DS |
1 | ||
| 61346B - PILLAR, CENTER BODY, INNER LOWER LH | ||||
| 61346-16020 |
EL53..4DS |
1 | ||
| 61347A - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, RH | ||||
| 61347-16100 |
EL53..4DS |
1 | ||
| 61348A - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LH | ||||
| 61348-16090 |
EL53..4DS |
1 | ||
| 61367A - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER RH | ||||
| 61367-16010 |
EL53..4DS |
1 | ||
| 61367-16020 |
EL53..4DS |
1 | ||
| 61368B - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER LH | ||||
| 61368-16020 |
EL53..4DS |
1 | ||
| 61368-16010 |
EL53..4DS |
1 | ||
| 61385B - EXTENSION, CENTER BODY PILLAR, INNER RH | ||||
| 61385-16020 |
EL53..4DS |
1 | ||
| 61385-16010 |
EL53..4DS |
1 | ||
| 61386B - EXTENSION, CENTER BODY PILLAR, INNER LH | ||||
| 61386-16010 |
EL53..4DS |
1 | ||
| 61386-16020 |
EL53..4DS |
1 | ||
| 61418A - REINFORCEMENT, ROCKER PANEL, RH | ||||
| 61418-16050 |
EL53..4DS |
1 | ||
| 61419A - REINFORCEMENT, ROCKER PANEL, LH | ||||
| 61419-16050 |
EL53..4DS |
1 | ||
| 61425 - REINFORCEMENT, ROCKER PANEL, NO.4 RH | ||||
| 61425-16010 |
EL53 |
1 | ||
| 61426A - REINFORCEMENT, ROCKER PANEL, NO.4 LH | ||||
| 61426-16010 |
EL53 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-1G070 |
EL53..4DS |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-1G410 |
EL53..4DS |
1 | ||
| 61621C - TROUGH, LUGGAGE COMPARTMENT OPENING, RH | ||||
| 61621-16100 |
EL53 |
1 | ||
| 61622C - TROUGH, LUGGAGE COMPARTMENT OPENING, LH | ||||
| 61622-16100 |
EL53 |
1 | ||
| 61627B - EXTENSION, QUARTER PANEL, UPPER REAR RH | ||||
| 61627-16050 |
EL53 |
1 | ||
| 61628B - EXTENSION, QUARTER PANEL, UPPER REAR LH | ||||
| 61628-16050 |
EL53 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-16170 |
EL53 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-16170 |
EL53 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-16904 |
EL53..4F |
1 | ||
| 61607-16241 |
EL53..DX W(REAR SPLIT SEAT) |
1 | ||
| 61607-16440 |
EL53 |
1 | ||
| 61607-16240 |
EL53..3FC,4FC,5F |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-16351 |
EL53..DX W(REAR SPLIT SEAT) |
1 | ||
| 61608-16904 |
EL53..4F |
1 | ||
| 61608-16460 |
EL53 |
1 | ||
| 61608-16350 |
EL53..3FC,4FC,5F |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-16220 |
EL53..4DS |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-16220 |
EL53..4DS |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-16120 |
EL53 |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-16120 |
EL53 |
1 | ||
| 61737B - PANEL, ROOF SIDE, INNER LOWER RH | ||||
| 61737-16090 |
EL53 |
1 | ||
| 61738B - PANEL, ROOF SIDE, INNER LOWER LH | ||||
| 61738-16090 |
EL53 |
1 | ||
| 61824C - PAD, NOISE SHUTTER, NO.1 | ||||
| 61824-16010 |
EL53 |
2 | ||
| 61824-16010 |
EL53..4DS |
4 | ||
| 61824C - PAD, NOISE SHUTTER, NO.1 | ||||
| 61824-16010 |
EL53 |
2 | ||
| 61824-16010 |
EL53..4DS |
4 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61825-12010 |
EL53 |
2 | ||
| 61825-16030 |
EL53 |
1 | ||
| 61825-16030 |
EL53 |
7 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61825-12010 |
EL53 |
2 | ||
| 61825-16030 |
EL53 |
1 | ||
| 61825-16030 |
EL53 |
7 | ||
| 61826A - PLATE, NOISE CONTROL, NO.3 | ||||
| 61826-16020 |
EL53 |
2 | ||
| 61826-16020 |
EL53..4DS |
2 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-12100 |
EL53 |
2 | ||
| 62151-12130 |
EL53 ROCKKER PANEL REAR |
2 | ||
| 62151-12100 |
EL53 COWL PANEL SIDE |
2 | ||
| 64213 - EXTENSION, PACKAGE TRAY STRAINER, RH | ||||
| 64213-16060 |
EL53 |
1 | ||
| 64214 - EXTENSION, PACKAGE TRAY STRAINER, LH | ||||
| 64214-16060 |
EL53 |
1 | ||
| 64312 - BRACKET, PACKAGE TRAY, RH | ||||
| 64312-16050 |
EL53 |
1 | ||
| 64313 - BRACKET, PACKAGE TRAY, LH | ||||
| 64313-16050 |
EL53 |
1 | ||
| 64314A - REINFORCEMENT, PACKAGE TRAY BRACKET, RH | ||||
| 64314-16080 |
EL53 |
1 | ||
| 64315A - REINFORCEMENT, PACKAGE TRAY BRACKET, LH | ||||
| 64315-16080 |
EL53 |
1 | ||
| 67812A - PAD, QUARTER PANEL SILENCER | ||||
| 67812-16070 |
EL53 |
7 | ||
| 67812-10020 |
EL53..4DS |
1 | ||
| 67812A - PAD, QUARTER PANEL SILENCER | ||||
| 67812-10020 |
EL53..4DS |
1 | ||
| 67812-16070 |
EL53 |
7 | ||
| Common parts | ||||
| 90119-06400 | ||||
| 90179-04026 | ||||
| 90179-08102 | ||||
| 90333-30008 | ||||
| 90541-11006 | ||||
| 90950-01637 | ||||
| 90950-01826 | ||||
| 90950-01850 | ||||
| 90950-01864 | ||||
| 91661-60816 | ||||
