Toyota Tercel EL53 REAR BUMPER & BUMPER STAY

Manufacturers Home
Toyota
EU
TERCEL
EL53L-AEPRKA (1994)
5202 - REAR BUMPER & BUMPER STAY

EL53L-AEPRKA (1994)

Toyota Tercel

Production Sep 1994 - Jul 1999

Engine 5EFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

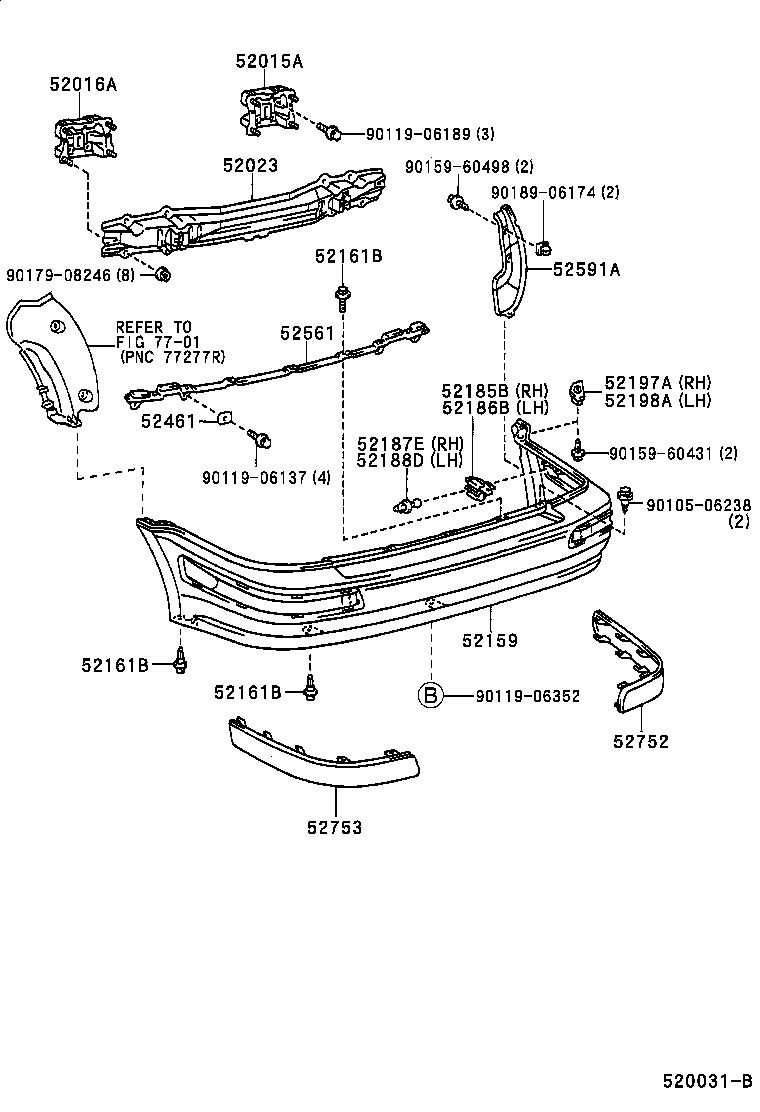

(9409-9712)

Click highlighted areas on diagram

Part #	Description	Period	Qty
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-16191	EL53	12/1997 - 12/2999	1
52015-16190	EL53	09/1994 - 12/1997	1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52016-16171	EL53	12/1997 - 12/2999	1
52016-16170	EL53	09/1994 - 12/1997	1
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-16110	EL53	09/1994 - 12/2999	1
52159 - COVER, REAR BUMPER
52159-16530	EL53	12/1997 - 12/2999	1
52159-16450	EL53	09/1994 - 12/1997	1
52161B - PIECE, REAR BUMPER
52161-16010	EL53	08/1996 - 12/2999	7
52161-16010	EL53	09/1994 - 08/1996	4
52161B - PIECE, REAR BUMPER
52161-16010	EL53	08/1996 - 12/2999	7
52161-16010	EL53	09/1994 - 08/1996	4
52161B - PIECE, REAR BUMPER
52161-16010	EL53	08/1996 - 12/2999	7
52161-16010	EL53	09/1994 - 08/1996	4
52185B - BRACKET, REAR BUMPER SIDE MOUNTING, RH
52185-16050	EL53	12/1997 - 12/2999	1
52185-16020	EL53	09/1994 - 12/1997	1
52186B - BRACKET, REAR BUMPER SIDE MOUNTING, LH
52185-16020	EL53	09/1994 - 12/1997	1
52185-16050	EL53	12/1997 - 12/2999	1
52187E - GUIDE, REAR BUMPER LOCATION, RH
52187-16070	EL53	09/1994 - 12/2999	1
52188D - GUIDE, REAR BUMPER LOCATION, LH
52187-16070	EL53	09/1994 - 12/2999	1
52197A - BRACKET, REAR BUMPER SEAL, RH
52197-16020	EL53	09/1994 - 12/2999	1
52198A - BRACKET, REAR BUMPER SEAL, LH
52197-16020	EL53	09/1994 - 12/2999	1
52461 - PAD, REAR BUMPER, CENTER
53882-16030	EL53	09/1994 - 12/2999	4
52561 - RETAINER, REAR BUMPER, UPPER CENTER
52508-16040	EL53	09/1994 - 12/2999	1
52591A - SEAL, REAR BUMPER
52591-16090	EL53	09/1994 - 12/2999	1
52752 - MOULDING, REAR BUMPER SIDE, RH
52752-16060	EL53	12/1997 - 12/2999	1
52752-16080B0	EL53 DK.GRAY ME.,205 ,3E5 ,3L9 ,6N7 ,8L3 ,8M5	12/1997 - 12/2999	1
52752-16080B2	EL53 GRAY MM,040 ,1A0 ,6P6	12/1997 - 12/2999	1
52752-16020	EL53	09/1994 - 12/1997	1
52753 - MOULDING, REAR BUMPER SIDE, LH
52753-16020	EL53	09/1994 - 12/1997	1
52753-16060	EL53	12/1997 - 12/2999	1
52753-16080B0	EL53 DK.GRAY ME.,205 ,3E5 ,3L9 ,6N7 ,8L3 ,8M5	12/1997 - 12/2999	1
52753-16080B2	EL53 GRAY MM,040 ,1A0 ,6P6	12/1997 - 12/2999	1
Common parts
90105-06238
90119-06137
90119-06189
90119-06352
90159-60431
90159-60498
90179-08246
90189-06174
Linked diagrams
7701

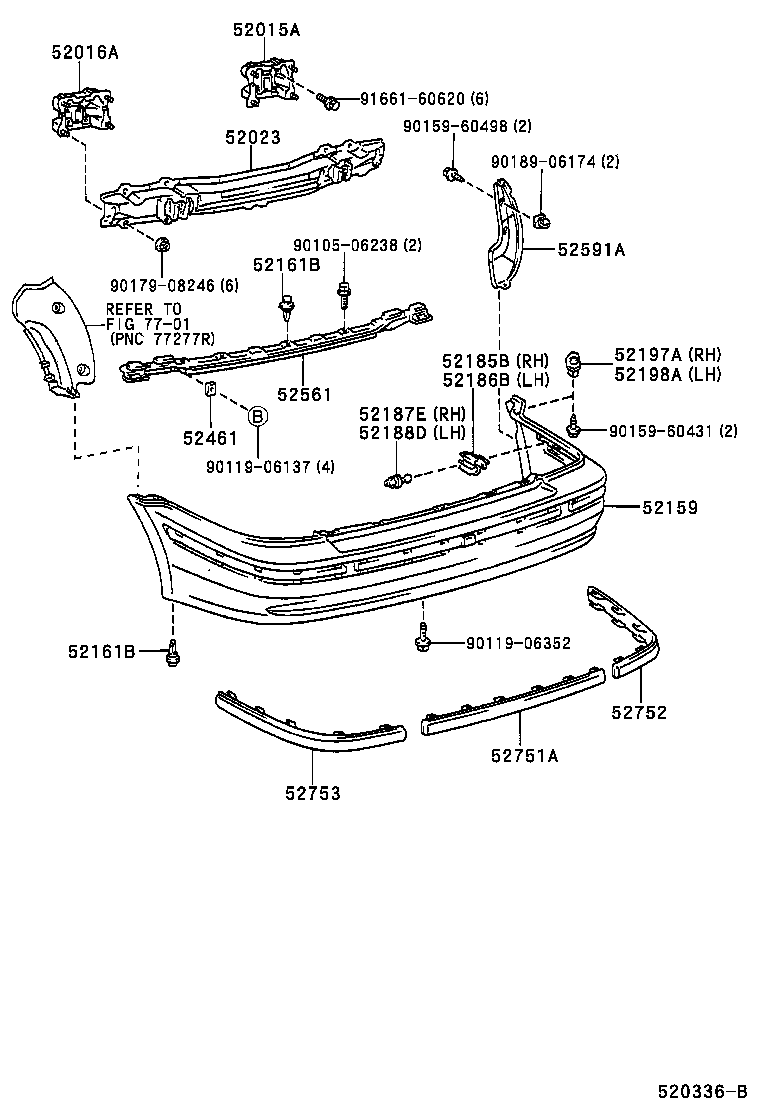

(9712- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-16191	EL53	12/1997 - 12/2999	1
52015-16190	EL53	09/1994 - 12/1997	1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52016-16171	EL53	12/1997 - 12/2999	1
52016-16170	EL53	09/1994 - 12/1997	1
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-16110	EL53	09/1994 - 12/2999	1
52159 - COVER, REAR BUMPER
52159-16530	EL53	12/1997 - 12/2999	1
52159-16450	EL53	09/1994 - 12/1997	1
52161B - PIECE, REAR BUMPER
52161-16010	EL53	08/1996 - 12/2999	7
52161-16010	EL53	09/1994 - 08/1996	4
52161B - PIECE, REAR BUMPER
52161-16010	EL53	08/1996 - 12/2999	7
52161-16010	EL53	09/1994 - 08/1996	4
52185B - BRACKET, REAR BUMPER SIDE MOUNTING, RH
52185-16050	EL53	12/1997 - 12/2999	1
52185-16020	EL53	09/1994 - 12/1997	1
52186B - BRACKET, REAR BUMPER SIDE MOUNTING, LH
52185-16020	EL53	09/1994 - 12/1997	1
52185-16050	EL53	12/1997 - 12/2999	1
52187E - GUIDE, REAR BUMPER LOCATION, RH
52187-16070	EL53	09/1994 - 12/2999	1
52188D - GUIDE, REAR BUMPER LOCATION, LH
52187-16070	EL53	09/1994 - 12/2999	1
52197A - BRACKET, REAR BUMPER SEAL, RH
52197-16020	EL53	09/1994 - 12/2999	1
52198A - BRACKET, REAR BUMPER SEAL, LH
52197-16020	EL53	09/1994 - 12/2999	1
52461 - PAD, REAR BUMPER, CENTER
53882-16030	EL53	09/1994 - 12/2999	4
52561 - RETAINER, REAR BUMPER, UPPER CENTER
52508-16040	EL53	09/1994 - 12/2999	1
52591A - SEAL, REAR BUMPER
52591-16090	EL53	09/1994 - 12/2999	1
52751A - MOULDING, REAR BUMPER, CENTER
52751-16060B2	EL53 GRAY MM,040 ,1A0 ,6P6	12/1997 - 07/1999	1
52751-16060B0	EL53 GRAY,205 ,3E5 ,3L9 ,6N7 ,8L3 ,8M5	12/1997 - 07/1999	1
52751-16050	EL53	12/1997 - 07/1999	1
52752 - MOULDING, REAR BUMPER SIDE, RH
52752-16020	EL53	09/1994 - 12/1997	1
52752-16060	EL53	12/1997 - 12/2999	1
52752-16080B0	EL53 DK.GRAY ME.,205 ,3E5 ,3L9 ,6N7 ,8L3 ,8M5	12/1997 - 12/2999	1
52752-16080B2	EL53 GRAY MM,040 ,1A0 ,6P6	12/1997 - 12/2999	1
52753 - MOULDING, REAR BUMPER SIDE, LH
52753-16020	EL53	09/1994 - 12/1997	1
52753-16060	EL53	12/1997 - 12/2999	1
52753-16080B0	EL53 DK.GRAY ME.,205 ,3E5 ,3L9 ,6N7 ,8L3 ,8M5	12/1997 - 12/2999	1
52753-16080B2	EL53 GRAY MM,040 ,1A0 ,6P6	12/1997 - 12/2999	1
Common parts
90105-06238
90119-06137
90119-06352
90159-60431
90159-60498
90179-08246
90189-06174
91661-60620
Linked diagrams
7701

EL53L-AEPRKA (1994)

(9409-9712)

(9712- )
