EL53L-AEPRKA (1994)
Toyota Tercel
Production
Sep 1994
-
Jul 1999
Engine
5EFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9409-9712)

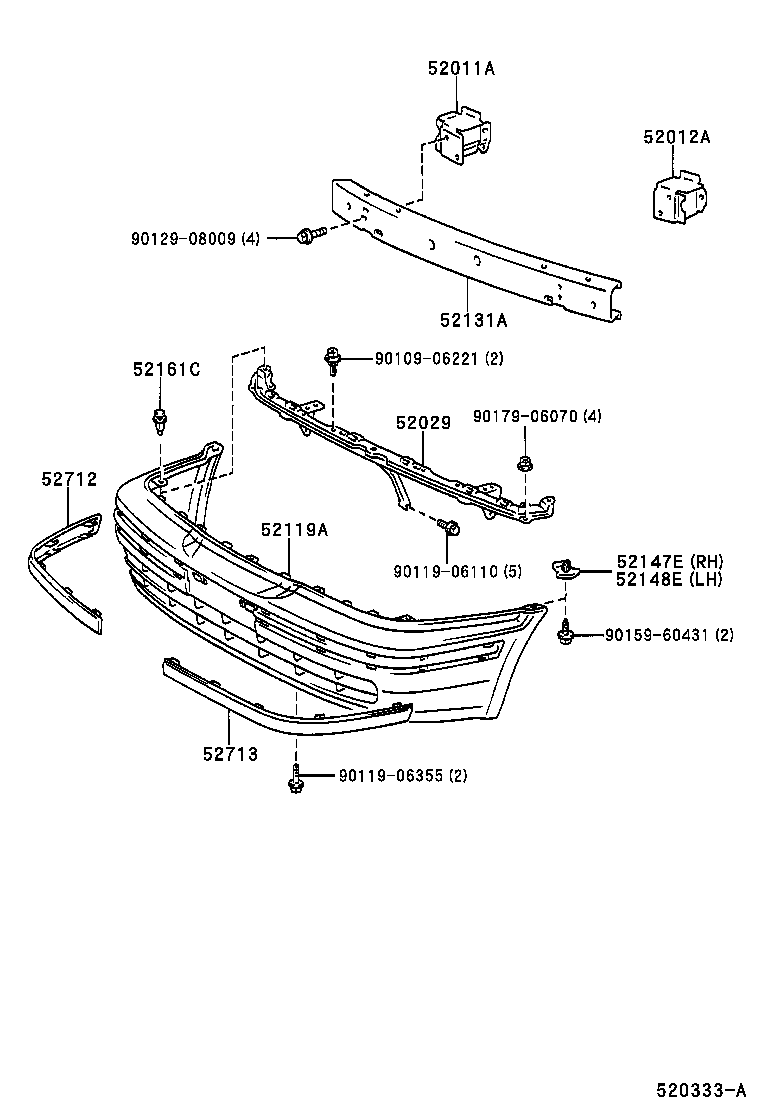

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52011A - ARM SUB-ASSY, FRONT BUMPER, RH | ||||
| 52011-16151 |
EL53 |
1 | ||
| 52012A - ARM SUB-ASSY, FRONT BUMPER, LH | ||||
| 52012-16141 |
EL53 |
1 | ||
| 52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER | ||||
| 52029-16052 |
EL53 |
1 | ||
| 52029-16050 |
EL53 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-16540 |
EL53 |
1 | ||
| 52119-16440 |
EL53 |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-16071 |
EL53 |
1 | ||
| 52147E - BRACKET, FRONT BUMPER MOUNTING, RH | ||||
| 52147-16080 |
EL53 |
1 | ||
| 52148E - BRACKET, FRONT BUMPER MOUNTING, LH | ||||
| 52147-16080 |
EL53 |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
EL53 |
2 | ||
| 52712 - MOULDING, FRONT BUMPER SIDE, RH | ||||
| 52712-16010 |
EL53 |
1 | ||
| 52712-16050 |
EL53 |
1 | ||
| 52712-16070B0 |
EL53 DK.GRAY ME.,205 ,3E5 ,3L9 ,6N7 ,8L3 ,8M5 |
1 | ||
| 52712-16070B2 |
EL53 GRAY MM,040 ,1A0 ,6P6 |
1 | ||
| 52713 - PLUG, FRONT BUMPER MOULDING | ||||
| 52713-16050 |
EL53 |
1 | ||
| 52713-16070B2 |
EL53 GRAY MM,040 ,1A0 ,6P6 |
1 | ||
| 52713-16010 |
EL53 |
1 | ||
| 52713-16070B0 |
EL53 DK.GRAY ME.,205 ,3E5 ,3L9 ,6N7 ,8L3 ,8M5 |
1 | ||
| Common parts | ||||
| 90109-06221 | ||||
| 90119-06110 | ||||
| 90119-06355 | ||||
| 90119-08781 | ||||
| 90129-08009 | ||||
| 90159-60431 | ||||
| 90179-06070 | ||||
(9712- )

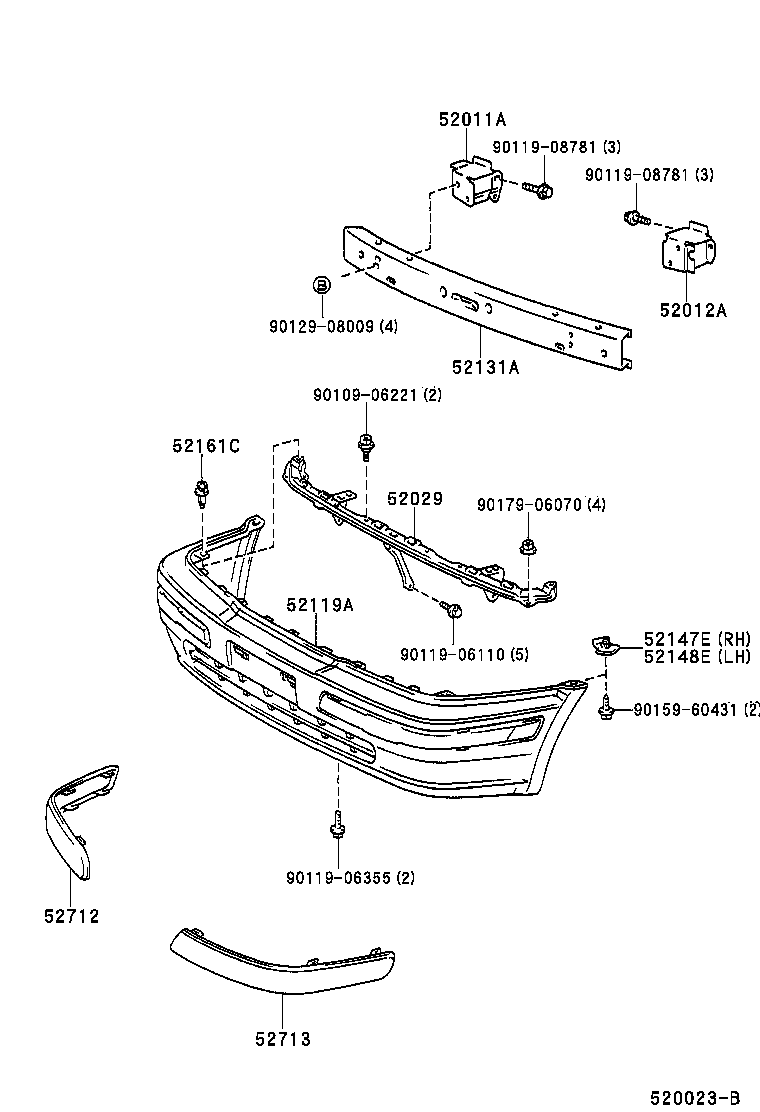

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52011A - ARM SUB-ASSY, FRONT BUMPER, RH | ||||
| 52011-16151 |
EL53 |
1 | ||
| 52012A - ARM SUB-ASSY, FRONT BUMPER, LH | ||||
| 52012-16141 |
EL53 |
1 | ||
| 52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER | ||||
| 52029-16052 |
EL53 |
1 | ||
| 52029-16050 |
EL53 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-16540 |
EL53 |
1 | ||
| 52119-16440 |
EL53 |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-16071 |
EL53 |
1 | ||
| 52147E - BRACKET, FRONT BUMPER MOUNTING, RH | ||||
| 52147-16080 |
EL53 |
1 | ||
| 52148E - BRACKET, FRONT BUMPER MOUNTING, LH | ||||
| 52147-16080 |
EL53 |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
EL53 |
2 | ||
| 52712 - MOULDING, FRONT BUMPER SIDE, RH | ||||
| 52712-16010 |
EL53 |
1 | ||
| 52712-16050 |
EL53 |
1 | ||
| 52712-16070B0 |
EL53 DK.GRAY ME.,205 ,3E5 ,3L9 ,6N7 ,8L3 ,8M5 |
1 | ||
| 52712-16070B2 |
EL53 GRAY MM,040 ,1A0 ,6P6 |
1 | ||
| 52713 - PLUG, FRONT BUMPER MOULDING | ||||
| 52713-16050 |
EL53 |
1 | ||
| 52713-16070B2 |
EL53 GRAY MM,040 ,1A0 ,6P6 |
1 | ||
| 52713-16010 |
EL53 |
1 | ||
| 52713-16070B0 |
EL53 DK.GRAY ME.,205 ,3E5 ,3L9 ,6N7 ,8L3 ,8M5 |
1 | ||
| Common parts | ||||
| 90109-06221 | ||||
| 90119-06110 | ||||
| 90119-06355 | ||||
| 90129-08009 | ||||
| 90159-60431 | ||||
| 90179-06070 | ||||
