EL53L-AEPRKA (1994)
Toyota Tercel
Production
Sep 1994
-
Jul 1999
Engine
5EFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9409- )

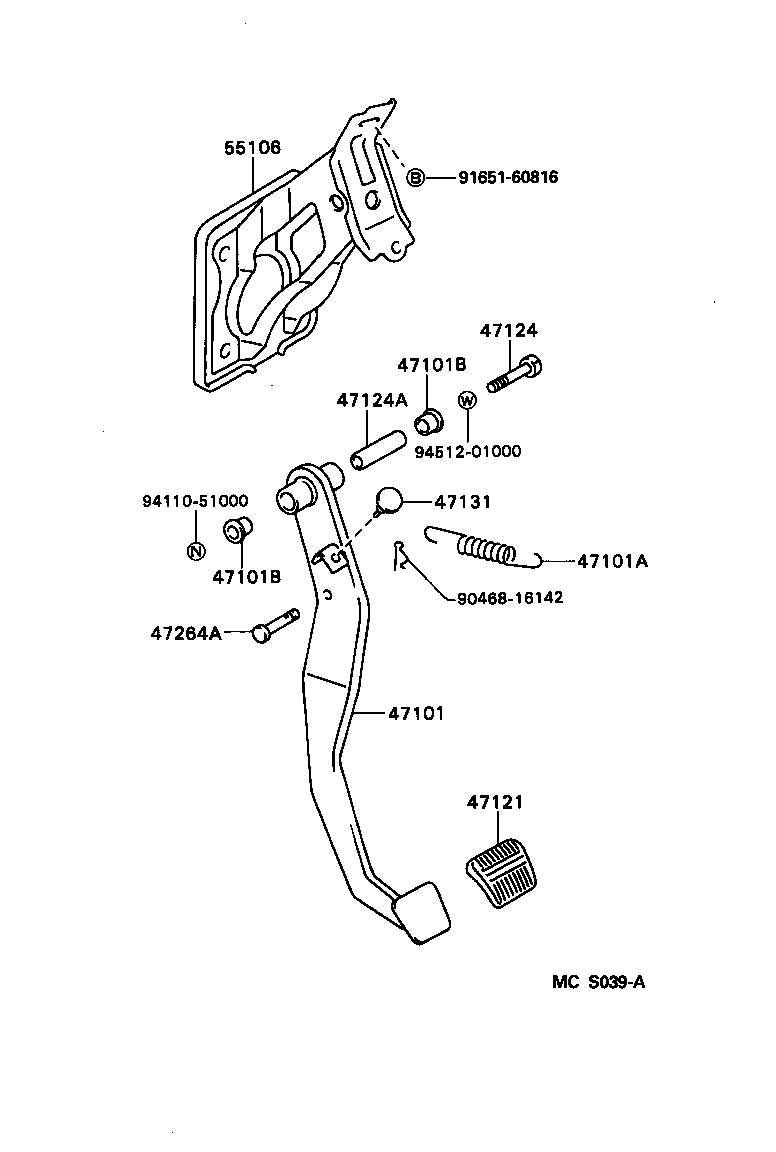

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101 - PEDAL SUB-ASSY, BRAKE | ||||
| 47101-16200 |
EL53..ATM |
1 | ||
| 47101-16280 |
EL53..ATM |
1 | ||
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90507-14038 |
EL53 |
1 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13015 |
EL53 |
2 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13015 |
EL53 |
2 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 47121-12020 |
EL53..ATM |
1 | ||
| 47124 - SHAFT, BRAKE PEDAL | ||||
| 90101-10015 |
EL53 |
1 | ||
| 47124A - COLLAR(FOR BRAKE PEDAL SHAFT) | ||||
| 90387-10003 |
EL53 |
1 | ||
| 47131 - CUSHION(FOR STOP LAMP SWITCH) | ||||
| 90541-06036 |
EL53 |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90249-08051 |
EL53 |
1 | ||
| 55106 - SUPPORT SUB-ASSY, BRAKE PEDAL | ||||
| 55106-16180 |
EL53 |
1 | ||
| 55106-16160 |
EL53 |
1 | ||
| Common parts | ||||
| 90468-16142 | ||||
| 91651-60816 | ||||
| 94110-51000 | ||||
| 94512-01000 | ||||
