EL53L-AEPRKA (1994)
Toyota Tercel

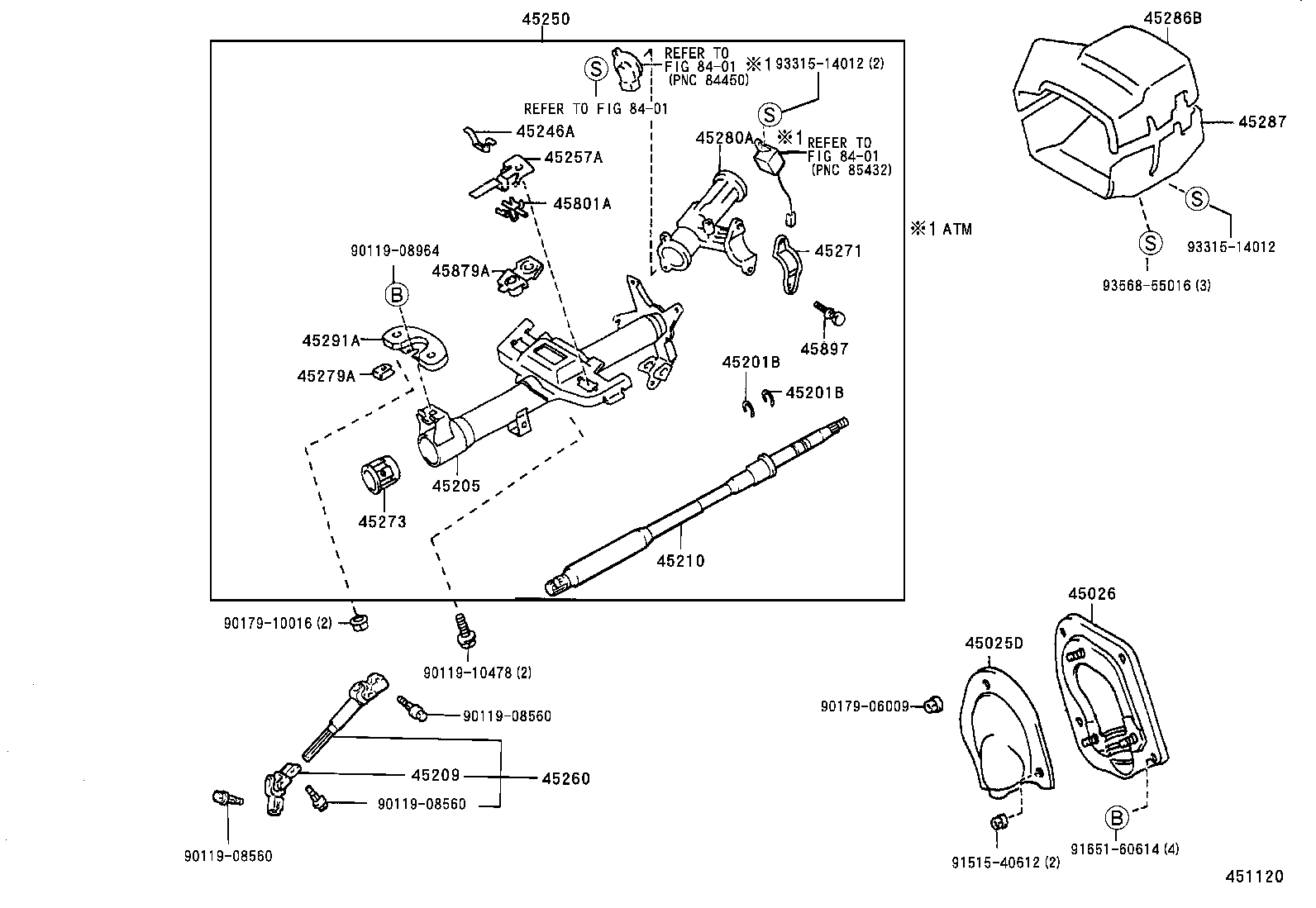

(9712- )
W(POWER STEERING)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-10100 |
EL53 |
1 | ||
| 45025-16140 |
EL53 W(POWER STEERING) |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-10050 |
EL53 |
1 | ||
| 45026-16070 |
EL53 W(POWER STEERING) |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
EL53 T=1.20,UPPER |
1 | ||
| 90520-17042 |
EL53 T=1.20,LOWER |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
EL53 T=1.20,UPPER |
1 | ||
| 90520-17042 |
EL53 T=1.20,LOWER |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-16100 |
EL53 W(*80) |
1 | ||
| 45205-12350 |
EL53 |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-42010 |
EL53 |
1 | ||
| 45210-10161 |
EL53..DX;EL53..STD..USA |
1 | ||
| 45210-16180 |
EL53 W(POWER STEERING) |
1 | ||
| 45246A - GUIDE, STEERING ENERGY ABSORBING PLATE | ||||
| 45246-12110 |
EL53 |
2 | ||
| 45250 - COLUMN ASSY, STEERING | ||||
| 45250-16560 |
EL53..ATM |
1 | ||
| 45257A - PLATE, STEERING COLUMN ENERGY ABSORBING | ||||
| 45257-12070 |
EL53 |
2 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-16090 |
EL53 W(POWER STEERING) |
1 | ||
| 45260-16080 |
EL53 |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-16020 |
EL53 |
1 | ||
| 45271-16030 |
EL53 W(*80) |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-16020 |
EL53 |
1 | ||
| 45273-12020 |
EL53 |
1 | ||
| 45279A - ATTACHMENT, STEERING COLUMN TUBE, LWR | ||||
| 45279-33030 |
EL53 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-16090 |
EL53 |
1 | ||
| 45280-12341 |
EL53..ATM |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-16290E0 |
EL53 OAK,TRIM4# |
1 | ||
| 45286-16290B0 |
EL53 SHADOW GRAY,TRIM1# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-16320B0 |
EL53 SHADOW GRAY,TRIM1# |
1 | ||
| 45287-16320E0 |
EL53 OAK,TRIM4# |
1 | ||
| 45291A - SUPPORT, STEERING COLUMN TUBE | ||||
| 45291-33020 |
EL53 |
1 | ||
| 45801A - PIN SUB-ASSY, STEERING ENERGY ABSORBING | ||||
| 45875-12010 |
EL53 |
2 | ||
| 45879A - CAPSULE, BREAK AWAY | ||||
| 45879-42020 |
EL53 |
2 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
EL53 |
2 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90119-08964 | ||||
| 90119-10478 | ||||
| 90179-06009 | ||||
| 90179-10016 | ||||
| 91515-40612 | ||||
| 91651-60614 | ||||
| 93315-14012 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||

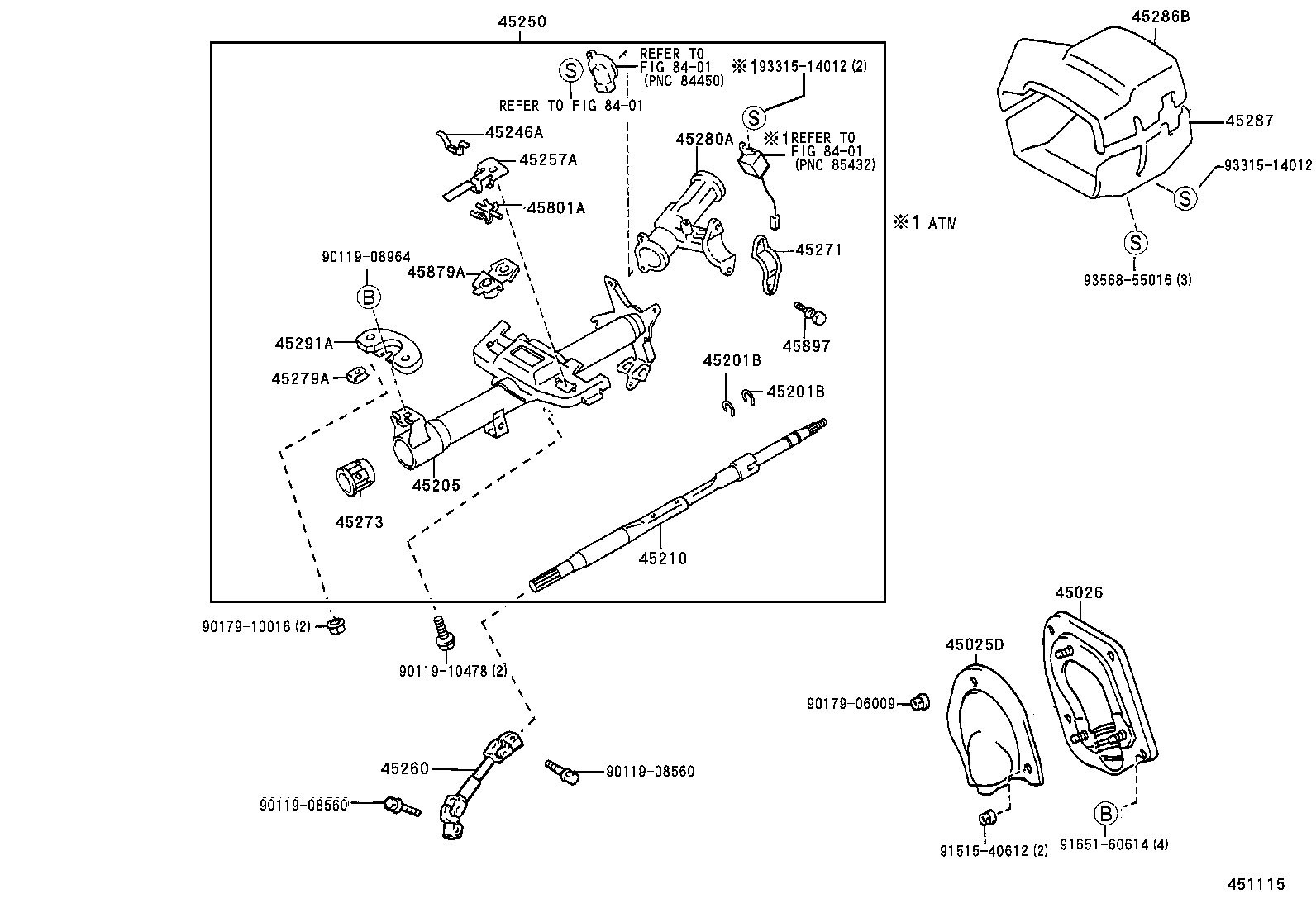

(9712- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-10100 |
EL53 |
1 | ||
| 45025-16140 |
EL53 W(POWER STEERING) |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-10050 |
EL53 |
1 | ||
| 45026-16070 |
EL53 W(POWER STEERING) |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
EL53 T=1.20,UPPER |
1 | ||
| 90520-17042 |
EL53 T=1.20,LOWER |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
EL53 T=1.20,UPPER |
1 | ||
| 90520-17042 |
EL53 T=1.20,LOWER |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-16100 |
EL53 W(*80) |
1 | ||
| 45205-12350 |
EL53 |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-16051 |
EL53 W(POWER STEERING) |
1 | ||
| 45209-12070 |
EL53 KOYO |
1 | ||
| 45209-16051 |
EL53..4FC,5F W(POWER STEERING) & NSK |
1 | ||
| 45209-16040 |
EL53 |
1 | ||
| 45209-18010 |
EL53 W(POWER STEERING) & KOYO;W(POWER STEERING) |
1 | ||
| 45209-16040 |
EL53 NSK |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-42010 |
EL53 |
1 | ||
| 45210-10161 |
EL53..DX;EL53..STD..USA |
1 | ||
| 45210-16180 |
EL53 W(POWER STEERING) |
1 | ||
| 45246A - GUIDE, STEERING ENERGY ABSORBING PLATE | ||||
| 45246-12110 |
EL53 |
2 | ||
| 45250 - COLUMN ASSY, STEERING | ||||
| 45250-16560 |
EL53..ATM |
1 | ||
| 45257A - PLATE, STEERING COLUMN ENERGY ABSORBING | ||||
| 45257-12070 |
EL53 |
2 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-16090 |
EL53 W(POWER STEERING) |
1 | ||
| 45260-16080 |
EL53 |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-16020 |
EL53 |
1 | ||
| 45271-16030 |
EL53 W(*80) |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-16020 |
EL53 |
1 | ||
| 45273-12020 |
EL53 |
1 | ||
| 45279A - ATTACHMENT, STEERING COLUMN TUBE, LWR | ||||
| 45279-33030 |
EL53 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-16090 |
EL53 |
1 | ||
| 45280-12341 |
EL53..ATM |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-16290E0 |
EL53 OAK,TRIM4# |
1 | ||
| 45286-16290B0 |
EL53 SHADOW GRAY,TRIM1# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-16320B0 |
EL53 SHADOW GRAY,TRIM1# |
1 | ||
| 45287-16320E0 |
EL53 OAK,TRIM4# |
1 | ||
| 45291A - SUPPORT, STEERING COLUMN TUBE | ||||
| 45291-33020 |
EL53 |
1 | ||
| 45801A - PIN SUB-ASSY, STEERING ENERGY ABSORBING | ||||
| 45875-12010 |
EL53 |
2 | ||
| 45879A - CAPSULE, BREAK AWAY | ||||
| 45879-42020 |
EL53 |
2 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
EL53 |
2 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90119-08964 | ||||
| 90119-10478 | ||||
| 90179-06009 | ||||
| 90179-10016 | ||||
| 91515-40612 | ||||
| 91651-60614 | ||||
| 93315-14012 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||

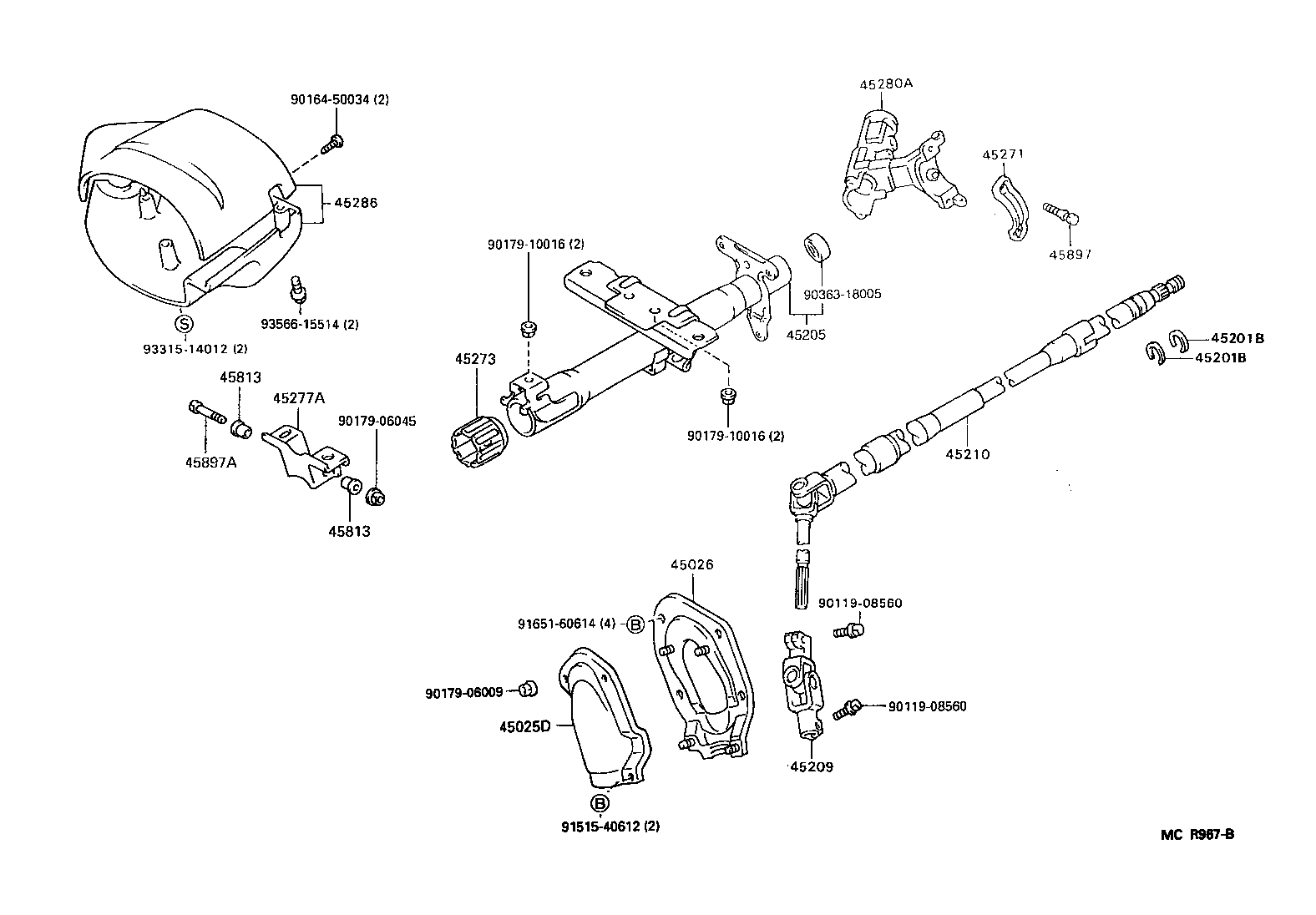

(9409-9712)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-16140 |
EL53 W(POWER STEERING) |
1 | ||
| 45025-10100 |
EL53 |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-10050 |
EL53 |
1 | ||
| 45026-16070 |
EL53 W(POWER STEERING) |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
EL53 T=1.20,UPPER |
1 | ||
| 90520-17042 |
EL53 T=1.20,LOWER |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
EL53 T=1.20,UPPER |
1 | ||
| 90520-17042 |
EL53 T=1.20,LOWER |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-16100 |
EL53 W(*80) |
1 | ||
| 45205-12350 |
EL53 |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-16051 |
EL53 W(POWER STEERING) |
1 | ||
| 45209-12070 |
EL53 KOYO |
1 | ||
| 45209-16051 |
EL53..4FC,5F W(POWER STEERING) & NSK |
1 | ||
| 45209-16040 |
EL53 |
1 | ||
| 45209-18010 |
EL53 W(POWER STEERING) & KOYO;W(POWER STEERING) |
1 | ||
| 45209-16040 |
EL53 NSK |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-10161 |
EL53..DX;EL53..STD..USA |
1 | ||
| 45210-42010 |
EL53 |
1 | ||
| 45210-16180 |
EL53 W(POWER STEERING) |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-16020 |
EL53 |
1 | ||
| 45271-16030 |
EL53 W(*80) |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-16020 |
EL53 |
1 | ||
| 45273-12020 |
EL53 |
1 | ||
| 45277A - SUPPORT, TILT STEERING | ||||
| 45277-16030 |
EL53 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-16090 |
EL53 |
1 | ||
| 45280-12341 |
EL53..ATM |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-16926B1 |
EL53..USA SHADOW GRAY,TRIM1# |
1 | ||
| 45286-16926E0 |
EL53..DX..USA OAK,TRIM4# |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-16030 |
EL53 ID=8,OD=10 |
2 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-16030 |
EL53 ID=8,OD=10 |
2 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
EL53 |
2 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 45897-16020 |
EL53 |
1 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90164-50034 | ||||
| 90179-06009 | ||||
| 90179-06045 | ||||
| 90179-10016 | ||||
| 90363-18005 | ||||
| 91515-40612 | ||||
| 91651-60614 | ||||
| 93315-14012 | ||||
| 93566-15514 | ||||
