EL53L-AEPRKA (1994)
Toyota Tercel
Production
Sep 1994
-
Jul 1999
Engine
5EFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

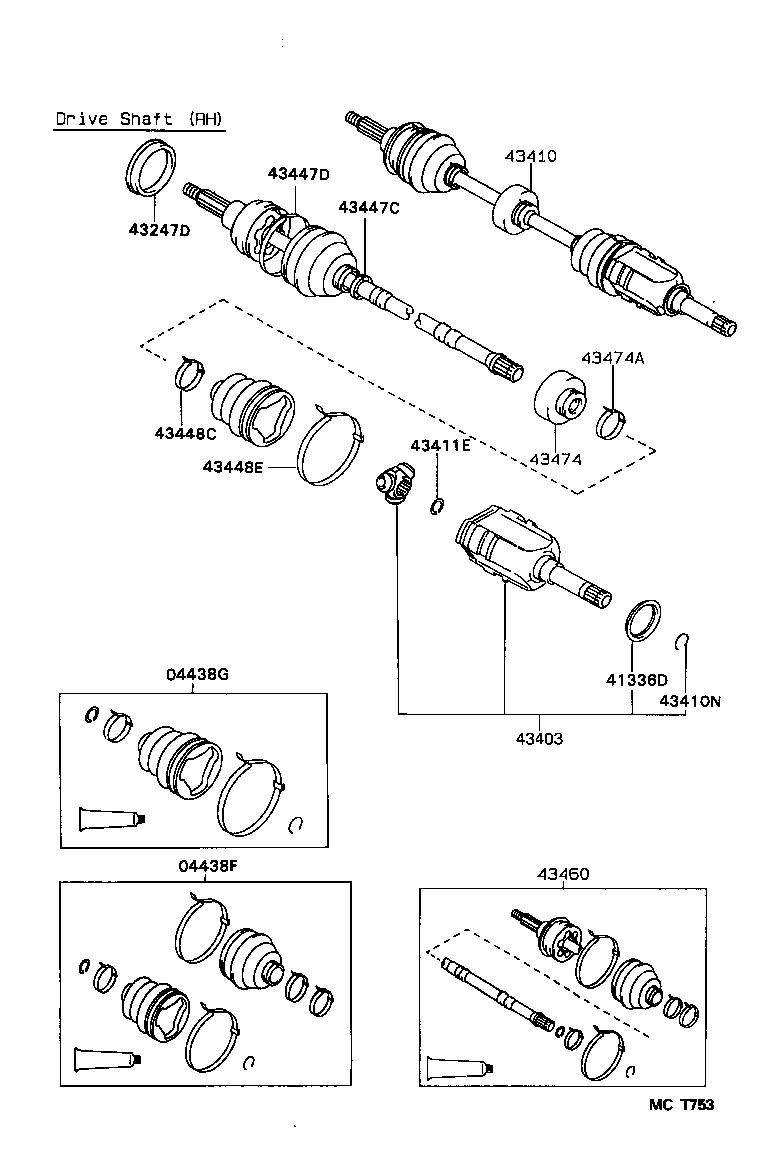

ILLUST NO. 1 OF 2(9409- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04438-16091 |
EL53 |
1 | ||
| 04438-16090 |
EL53 |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-16100 |
EL53 |
1 | ||
| 04438-16101 |
EL53 |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-12010 |
EL53 |
1 | ||
| 43247D - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 RH | ||||
| 43247-16040 |
EL53 |
1 | ||
| 43403 - JOINT SET, FRONT AXLE INBOARD, RH | ||||
| 43403-16020 |
EL53 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-16270 |
EL53 |
1 | ||
| 43410-16271 |
EL53 |
1 | ||
| 43410-16280 |
EL53 W(ABS) |
1 | ||
| 43410-16281 |
EL53 W(ABS) |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90521-26004 |
EL53 |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 43425-16020 |
EL53 |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-16140 |
EL53 ID=31.3 |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-16150 |
EL53 |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-16140 |
EL53 |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-16150 |
EL53 |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-19745 |
EL53 |
1 | ||
| 43460-19757 |
EL53 W(ABS) |
1 | ||
| 43460-19747 |
EL53 |
1 | ||
| 43460-19746 |
EL53 |
1 | ||
| 43460-19756 |
EL53 W(ABS) |
1 | ||
| 43460-19755 |
EL53 W(ABS) |
1 | ||
| 43474 - DAMPER, DRIVE SHAFT | ||||
| 43474-16030 |
EL53 |
1 | ||
| 43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING) | ||||
| 42345-16140 |
EL53 |
1 | ||

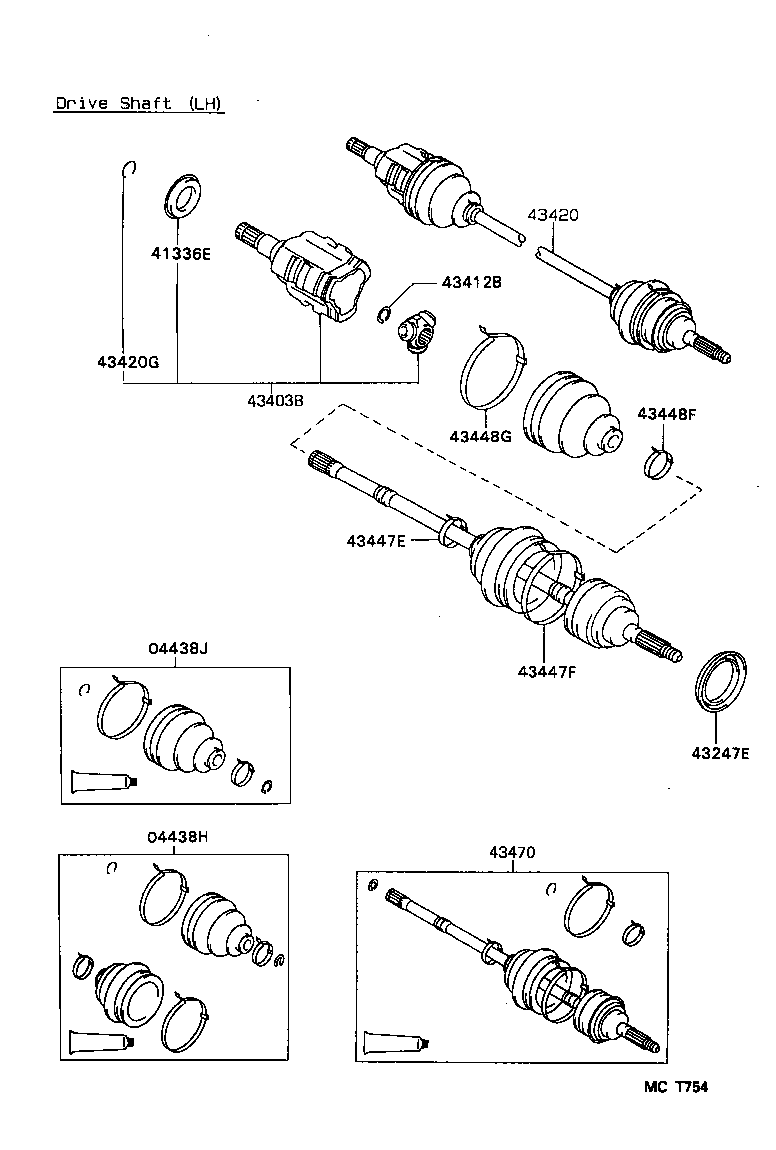

ILLUST NO. 2 OF 2(9409- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04438-16091 |
EL53 |
1 | ||
| 04438-16090 |
EL53 |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-16100 |
EL53 |
1 | ||
| 04438-16101 |
EL53 |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-12010 |
EL53 |
1 | ||
| 43247E - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 LH | ||||
| 43247-16040 |
EL53 |
1 | ||
| 43403B - JOINT SET, FRONT AXLE INBOARD, LH | ||||
| 43403-16020 |
EL53 |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 43425-16020 |
EL53 |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-16201 |
EL53 |
1 | ||
| 43420-16211 |
EL53 W(ABS) |
1 | ||
| 43420-16200 |
EL53 |
1 | ||
| 43420-16210 |
EL53 W(ABS) |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90521-26004 |
EL53 |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-16140 |
EL53 ID=31.3 |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-16150 |
EL53 |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-16140 |
EL53 |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-16150 |
EL53 |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-19815 |
EL53 |
1 | ||
| 43470-19825 |
EL53 W(ABS) |
1 | ||
| 43470-19827 |
EL53 W(ABS) |
1 | ||
| 43470-19816 |
EL53 |
1 | ||
| 43470-19817 |
EL53 |
1 | ||
| 43470-19826 |
EL53 W(ABS) |
1 | ||
