Toyota Tercel EL53 DISC WHEEL & WHEEL CAP

Manufacturers Home
Toyota
EU
TERCEL
EL53L-AEPRKA (1994)
4103 - DISC WHEEL & WHEEL CAP

EL53L-AEPRKA (1994)

Toyota Tercel

Production Sep 1994 - Jul 1999

Engine 5EFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

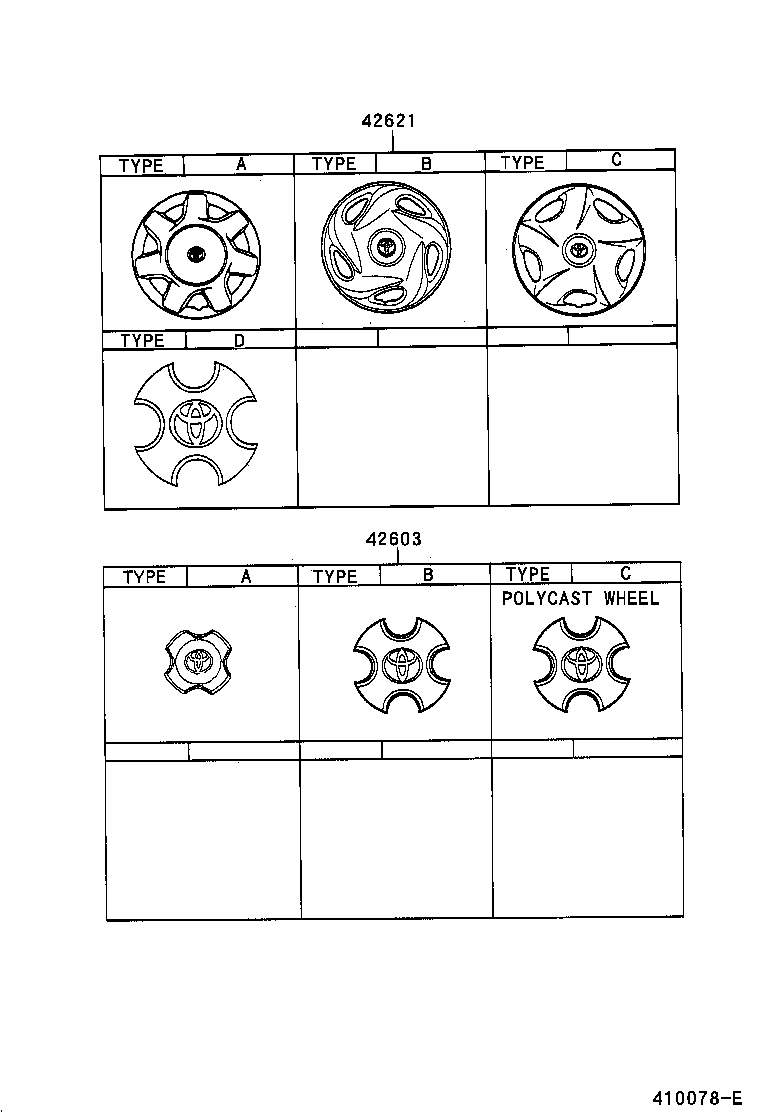

ILLUST NO. 2 OF 4(9409- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-0W010	EL53 TYPE C:REFER TO ILLUSTRATION	01/1998 - 12/2999	4
42638-12290	EL53 TYPE A:REFER TO ILLUSTRATION	09/1994 - 12/2999	4
42621 - CAP, WHEEL
42602-16100	EL53 TYPE B:REFER TO ILLUSTRATION	08/1996 - 12/2999	4
42602-16060	EL53..DX TYPE A:REFER TO ILLUSTRATION	09/1994 - 08/1996	4
42602-16120	EL53 TYPE C:REFER TO ILLUSTRATION	08/1996 - 12/2999	4

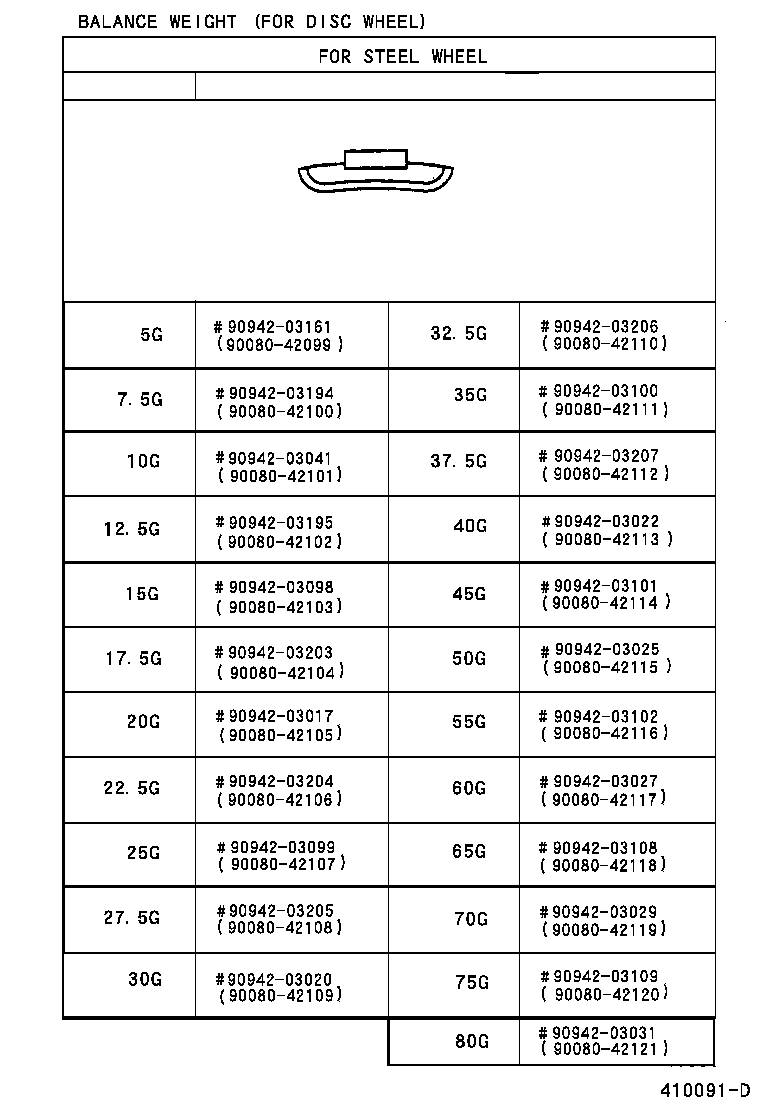

ILLUST NO. 4 OF 4(9409- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90080-42099
90080-42100
90080-42101
90080-42102
90080-42103
90080-42104
90080-42105
90080-42106
90080-42107
90080-42108
90080-42109
90080-42110
90080-42111
90080-42112
90080-42113
90080-42114
90080-42115
90080-42116
90080-42117
90080-42118
90080-42119
90080-42120
90080-42121
90942-03017
90942-03020
90942-03022
90942-03025
90942-03027
90942-03029
90942-03031
90942-03041
90942-03098
90942-03099
90942-03100
90942-03101
90942-03102
90942-03108
90942-03109
90942-03161
90942-03194
90942-03195
90942-03203
90942-03204
90942-03205
90942-03206
90942-03207

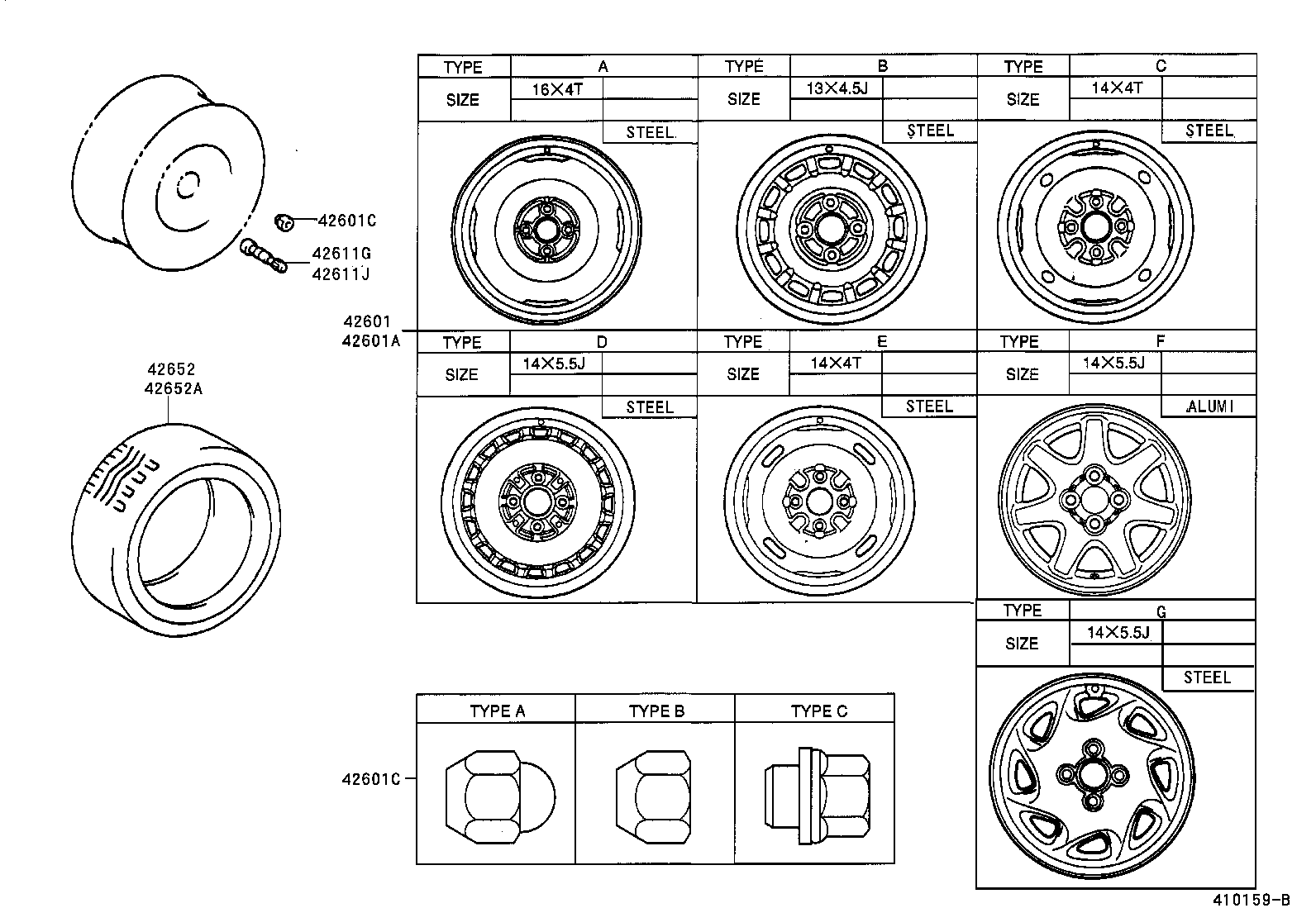

ILLUST NO. 1 OF 4(9409- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
42601 - WHEEL, DISC
42611-1642003	EL53 13X4.5J,TYPE B:REFER TO ILLUSTRATION,SILVER	09/1994 - 12/2999	4
42611-0W010	EL53 14X5.5J,TYPE G:REFER TO ILLUSTRATION	01/1998 - 12/2999	4
42611-1801001	EL53 14X5.5J,TYPE D:REFER TO ILLUSTRATION,BLACK	08/1996 - 12/2999	4
42611-1643001	EL53..DX 13X4.5J,TYPE B:REFER TO ILLUSTRATION,BLACK M	09/1994 - 12/2999	4
42601A - WHEEL, DISC (FOR SPARE)
42611-16340	EL53 14X4T,TYPE C:REFER TO ILLUSTRATION	09/1994 - 08/1996	1
42611-16220	EL53 14X4T,TYPE E:REFER TO ILLUSTRATION	08/1996 - 12/2999	1
42611-16340	EL53 14X4T,TYPE C:REFER TO ILLUSTRATION	12/1997 - 12/2999	1
42611-10320	EL53 16X4T,TYPE A:REFER TO ILLUSTRATION	09/1994 - 08/1996	1
42611-16340	EL53..USA;EL53..(3FC,5F)..CND;EL53..4DS..4FC..CND 14X4T,TYPE C:REFER TO ILLUSTRATION	08/1996 - 12/1997	1
42601C - NUT, HUB (FOR AXLE)
90942-01021	EL53 TYPE A:REFER TO ILLUSTRATION	09/1994 - 12/2999	16
90942-01007	EL53..DX TYPE B:REFER TO ILLUSTRATION	09/1994 - 12/2999	16
42601C - NUT, HUB (FOR AXLE)
90942-01021	EL53 TYPE A:REFER TO ILLUSTRATION	09/1994 - 12/2999	16
90942-01007	EL53..DX TYPE B:REFER TO ILLUSTRATION	09/1994 - 12/2999	16
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009	EL53	09/1994 - 12/2999	4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009	EL53 L=51	09/1994 - 12/2999	1
42652 - TIRE
42652-16500	EL53 P185/60R14 82H	08/1996 - 12/2999	4
42652-16440	EL53 155SR13	09/1994 - 12/2999	4
42652A - TIRE (FOR SPARE)
42652-10170	EL53..USA;EL53..(3FC,5F)..CND;EL53..4DS..4FC..CND T105/70D14	08/1996 - 12/1997	1
42652-12370	EL53 T115/70D14	08/1996 - 12/2999	1
42652-16380	EL53 T105/70D16	09/1994 - 08/1996	1
42652-16290	EL53 T105/70D14	09/1994 - 08/1996	1
42652-10170	EL53 T105/70D14	12/1997 - 12/2999	1

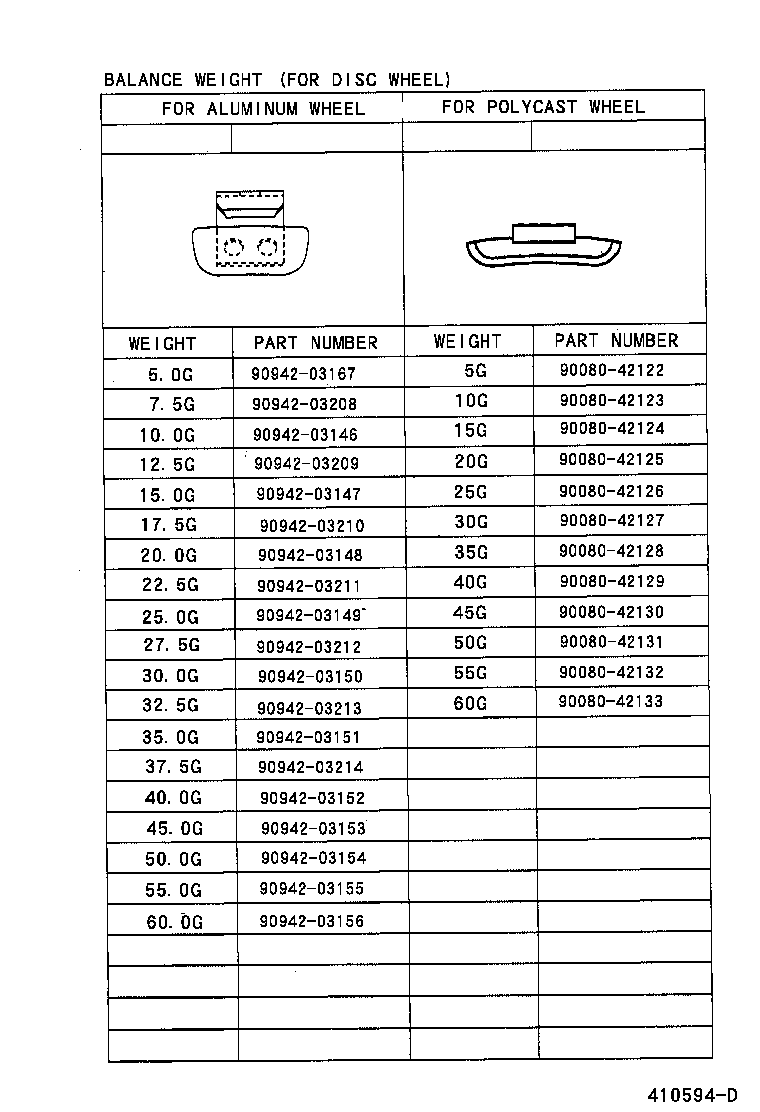

ILLUST NO. 3 OF 4(9409- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90080-42122
90080-42123
90080-42124
90080-42125
90080-42126
90080-42127
90080-42128
90080-42129
90080-42130
90080-42131
90080-42132
90080-42133
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03155
90942-03156
90942-03167
90942-03208
90942-03209
90942-03210
90942-03211
90942-03212
90942-03213
90942-03214
