EL53L-AEPRKA (1994)
Toyota Tercel
Production
Sep 1994
-
Jul 1999
Engine
5EFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9409- )ATM

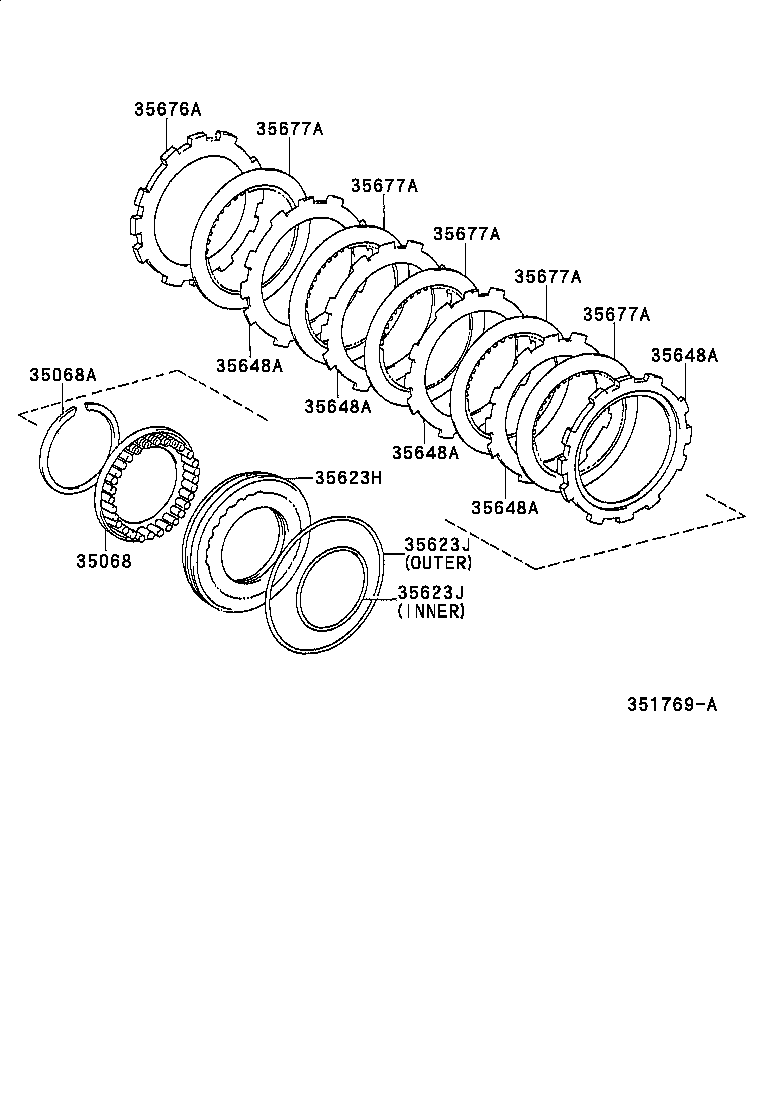

Click highlighted areas on diagram
A132L,A242L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35068 - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN | ||||
| 35068-32010 |
EL53..4FC |
1 | ||
| 35068-20010 |
EL53..ATM |
1 | ||
| 35068-32010 |
EL53..ATM |
1 | ||
| 35068A - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING | ||||
| 90520-90001 |
EL53..ATM |
1 | ||
| 35623H - PISTON, 1ST & REVERSE BRAKE | ||||
| 35623-12040 |
EL53..4FC |
1 | ||
| 35623J - RING, O (FOR 1ST & REVERSE BRAKE) | ||||
| 90301-99022 |
EL53..ATM OUTER |
1 | ||
| 90301-94001 |
EL53..ATM INNER |
1 | ||
| 35623J - RING, O (FOR 1ST & REVERSE BRAKE) | ||||
| 90301-99022 |
EL53..ATM OUTER |
1 | ||
| 90301-94001 |
EL53..ATM INNER |
1 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-32020 |
EL53..ATM |
5 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-32020 |
EL53..ATM |
5 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-32020 |
EL53..ATM |
5 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-32020 |
EL53..ATM |
5 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-32020 |
EL53..ATM |
5 | ||
| 35676A - FLANGE, BRAKE (FOR 1ST & REVERSE BRAKE) | ||||
| 35676-12030 |
EL53..ATM T=3.5 |
1 | ||
| 35676-32010 |
EL53..ATM T=3.5 |
1 | ||
| 35676-32010 |
EL53..4FC T=3.5 |
1 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-12060 |
EL53..4FC |
5 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-12060 |
EL53..4FC |
5 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-12060 |
EL53..4FC |
5 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-12060 |
EL53..4FC |
5 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-12060 |
EL53..4FC |
5 | ||
