EL53L-AEPRKA (1994)
Toyota Tercel
Production
Sep 1994
-
Jul 1999
Engine
5EFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9409- )ATM

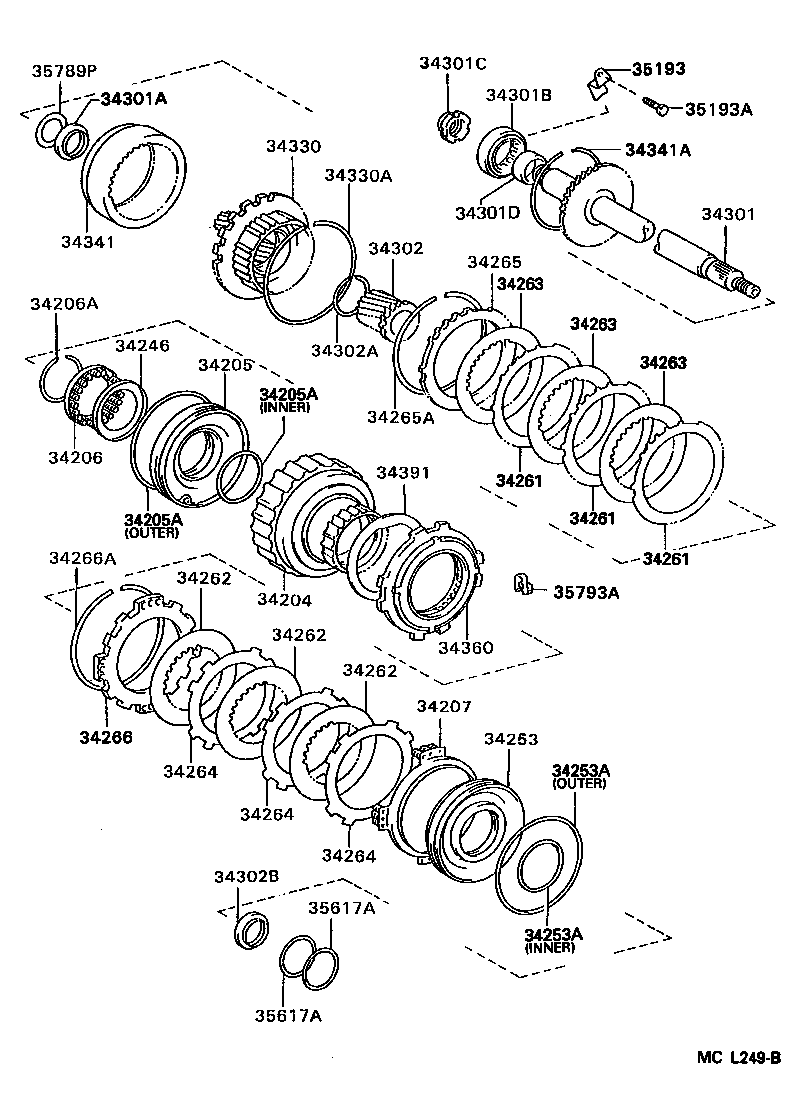

Click highlighted areas on diagram
A242L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34204 - DRUM SUB-ASSY, UNDERDRIVE CLUTCH | ||||
| 34204-12020 |
EL53..4FC |
1 | ||
| 34205 - PISTON SUB-ASSY, UNDERDRIVE CLUTCH | ||||
| 34205-12020 |
EL53..4FC |
1 | ||
| 34205A - RING, O (FOR UNDERDRIVE CLUTCH PISTON) | ||||
| 90301-57188 |
EL53..4FC INNER |
1 | ||
| 90301-98001 |
EL53..4FC OUTER |
1 | ||
| 34205A - RING, O (FOR UNDERDRIVE CLUTCH PISTON) | ||||
| 90301-57188 |
EL53..4FC INNER |
1 | ||
| 90301-98001 |
EL53..4FC OUTER |
1 | ||
| 34206 - SPRING SUB-ASSY, UNDERDRIVE CLUTCH RETURN | ||||
| 34206-12010 |
EL53..4FC |
1 | ||
| 34206A - RING, SHAFT SNAP (FOR UNDERDRIVE RETURN SPRING) | ||||
| 90520-52262 |
EL53..4FC |
1 | ||
| 34207 - SPRING SUB-ASSY, UNDERDRIVE BRAKE RETURN | ||||
| 34207-12010 |
EL53..4FC |
1 | ||
| 34246 - PLATE, UNDERDRIVE CLUTCH RETURN SPRING | ||||
| 34246-12010 |
EL53..4FC |
1 | ||
| 34253 - PISTON, UNDERDRIVE BRAKE | ||||
| 34253-12010 |
EL53..4FC |
1 | ||
| 34253A - RING, O (FOR UNDERDRIVE BRAKE PISTON) | ||||
| 90301-57188 |
EL53..4FC INNER |
1 | ||
| 90301-98001 |
EL53..4FC OUTER |
1 | ||
| 34253A - RING, O (FOR UNDERDRIVE BRAKE PISTON) | ||||
| 90301-57188 |
EL53..4FC INNER |
1 | ||
| 90301-98001 |
EL53..4FC OUTER |
1 | ||
| 34261 - DISC, UNDERDRIVE CLUTCH, NO.1 | ||||
| 34261-20010 |
EL53..4FC |
3 | ||
| 34261 - DISC, UNDERDRIVE CLUTCH, NO.1 | ||||
| 34261-20010 |
EL53..4FC |
3 | ||
| 34261 - DISC, UNDERDRIVE CLUTCH, NO.1 | ||||
| 34261-20010 |
EL53..4FC |
3 | ||
| 34262 - DISC, UNDERDRIVE CLUTCH, NO.2 | ||||
| 34262-12020 |
EL53..4FC |
3 | ||
| 34262 - DISC, UNDERDRIVE CLUTCH, NO.2 | ||||
| 34262-12020 |
EL53..4FC |
3 | ||
| 34262 - DISC, UNDERDRIVE CLUTCH, NO.2 | ||||
| 34262-12020 |
EL53..4FC |
3 | ||
| 34263 - PLATE, UNDERDRIVE CLUTCH, NO.1 | ||||
| 34263-12010 |
EL53..4FC |
3 | ||
| 34263 - PLATE, UNDERDRIVE CLUTCH, NO.1 | ||||
| 34263-12010 |
EL53..4FC |
3 | ||
| 34263 - PLATE, UNDERDRIVE CLUTCH, NO.1 | ||||
| 34263-12010 |
EL53..4FC |
3 | ||
| 34264 - PLATE, UNDERDRIVE CLUTCH, NO.2 | ||||
| 34264-12010 |
EL53..4FC |
3 | ||
| 34264 - PLATE, UNDERDRIVE CLUTCH, NO.2 | ||||
| 34264-12010 |
EL53..4FC |
3 | ||
| 34264 - PLATE, UNDERDRIVE CLUTCH, NO.2 | ||||
| 34264-12010 |
EL53..4FC |
3 | ||
| 34265 - FLANGE, UNDERDRIVE CLUTCH, NO.1 | ||||
| 34265-12040 |
EL53..4FC T=2.40 |
1 | ||
| 34265-12030 |
EL53..4FC T=2.04 |
1 | ||
| 34265A - RING, HOLE SNAP (FOR UNDERDRIVE CLUTCH FLANGE NO.1) | ||||
| 90521-99015 |
EL53..4FC |
1 | ||
| 34266 - FLANGE, UNDERDRIVE CLUTCH, NO.2 | ||||
| 34266-12010 |
EL53..4FC |
1 | ||
| 34266A - RING, HOLE SNAP (FOR UNDERDRIVE CLUTCH FLANGE NO.2) | ||||
| 90521-99015 |
EL53..4FC |
1 | ||
| 34301 - SHAFT SUB-ASSY, UNDERDRIVE INPUT | ||||
| 34301-20010 |
EL53..4FC |
1 | ||
| 34301A - BEARING, NEEDLE ROLLER (FOR UNDERDRIVE INPUT SHAFT) | ||||
| 90374-31002 |
EL53..4FC |
1 | ||
| 34301B - BEARING, CYLINDRICAL ROLLER, NO.1 (FOR UNDERDRIVE) | ||||
| 90365-38002 |
EL53..4FC |
1 | ||
| 34301C - NUT (FOR UNDERDRIVE INPUT SHAFT) | ||||
| 90179-26003 |
EL53..4FC |
1 | ||
| 34301D - BEARING, CYLINDRICAL ROLLER, NO.2 (FOR UNDERDRIVE) | ||||
| 90365-30021 |
EL53..4FC |
1 | ||
| 34302 - GEAR SUB-ASSY, UNDERDRIVE PLANETARY SUN | ||||
| 34302-20010 |
EL53..4FC |
1 | ||
| 34302A - RING, HOLE SNAP (FOR UNDERDRIVE PLANETARY SUN GEAR) | ||||
| 90521-48001 |
EL53..4FC |
1 | ||
| 34302B - BEARING, NEEDLE ROLLER(FOR UNDERDRIVE PLANETARY SUN GEA | ||||
| 90364-31003 |
EL53..4FC |
1 | ||
| 34330 - GEAR ASSY, UNDERDRIVE PLANETARY | ||||
| 34330-20010 |
EL53..4FC |
1 | ||
| 34330-12030 |
EL53..4FC |
1 | ||
| 34330A - RING, HOLE SNAP (FOR UNDERDRIVE PLANETARY GEAR) | ||||
| 90521-99015 |
EL53..4FC |
1 | ||
| 34341 - GEAR, UNDERDRIVE PLANETARY RING | ||||
| 34341-20010 |
EL53..4FC |
1 | ||
| 34341A - RING, HOLE SNAP (FOR UNDERDRIVE PLANETARY RING) | ||||
| 90521-98001 |
EL53..4FC |
1 | ||
| 34360 - CLUTCH ASSY, UNDERDRIVE 1 WAY | ||||
| 34360-12010 |
EL53..4FC |
1 | ||
| 34391 - WASHER, UNDERDRIVE CLUTCH DRUM THRUST | ||||
| 34391-12010 |
EL53..4FC |
1 | ||
| 35193 - RETAINER, ROLLER BEARING | ||||
| 35193-12010 |
EL53..4FC |
1 | ||
| 35193A - BOLT (FOR ROLLER BEARING RETAINER) | ||||
| 90119-08208 |
EL53..4FC |
1 | ||
| 35617A - RING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE) | ||||
| 35617-16010 |
EL53..4FC |
2 | ||
| 35617A - RING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE) | ||||
| 35617-16010 |
EL53..4FC |
2 | ||
| 35789P - RACE, THRUST BEARING (FOR UNDERDRIVE INPUT SHAFT) | ||||
| 35789-12010 |
EL53..4FC |
1 | ||
| 35793A - RETAINER, UNDERDRIVE 1 WAY CLUTCH | ||||
| 35793-10010 |
EL53..4FC |
1 | ||
