EL53L-AEPRKA (1994)
Toyota Tercel
Production
Sep 1994
-
Jul 1999
Engine
5EFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9409- )4FC

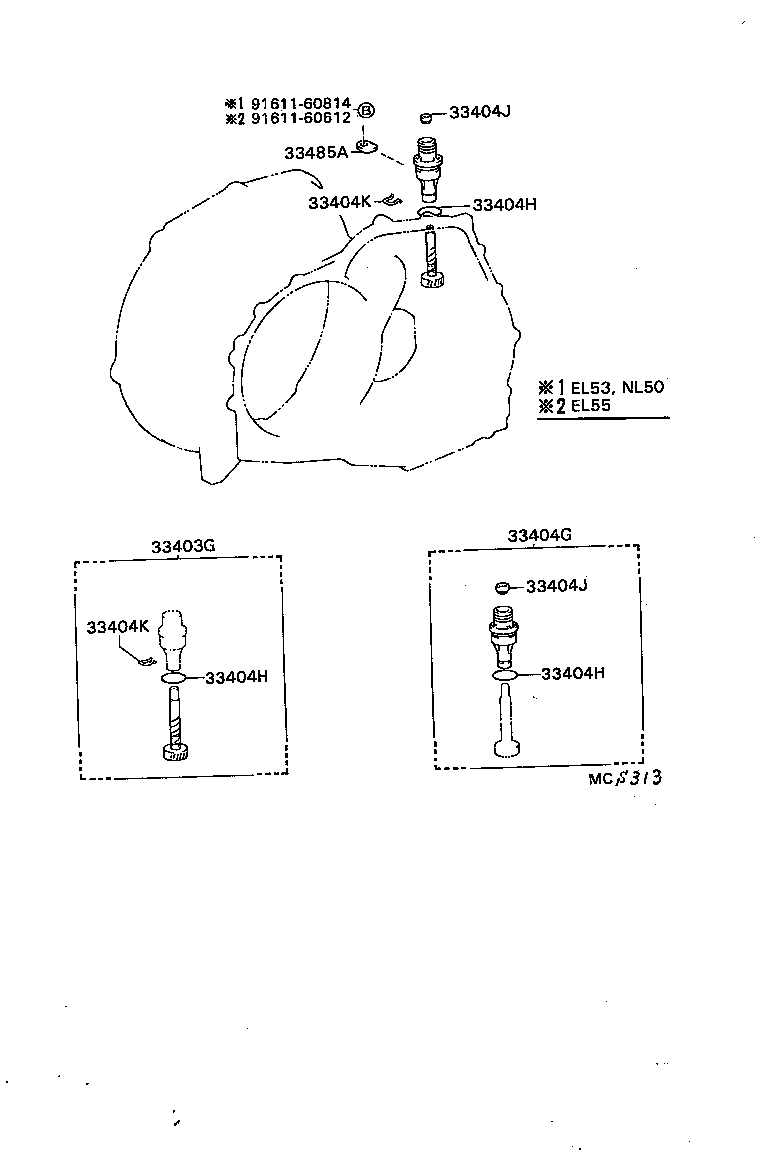

Click highlighted areas on diagram
A242L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33403G - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM) | ||||
| 33403-19385 |
EL53..4FC N=30,MARK 30:34 |
1 | ||
| 33403-19355 |
EL53..4FC N=31,MARK 31:34 |
1 | ||
| 33404G - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM) | ||||
| 33404-12030 |
EL53..4FC |
1 | ||
| 33404H - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE) | ||||
| 96711-24030 |
EL53..4FC |
1 | ||
| 33404H - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE) | ||||
| 96711-24030 |
EL53..4FC |
1 | ||
| 33404H - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE) | ||||
| 96711-24030 |
EL53..4FC |
1 | ||
| 33404J - SEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90310-09001 |
EL53..ATM |
1 | ||
| 33404J - SEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90310-09001 |
EL53..ATM |
1 | ||
| 33404K - CLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90468-12005 |
EL53..ATM |
1 | ||
| 33404K - CLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90468-12005 |
EL53..ATM |
1 | ||
| 33485A - PLATE, SPEEDOMETER SLEEVE LOCK (ATM) | ||||
| 33485-30020 |
EL53..4FC |
1 | ||
| Common parts | ||||
| 91611-60612 | ||||
| 91611-60814 | ||||
