EL53L-AEPRKA (1994)
Toyota Tercel

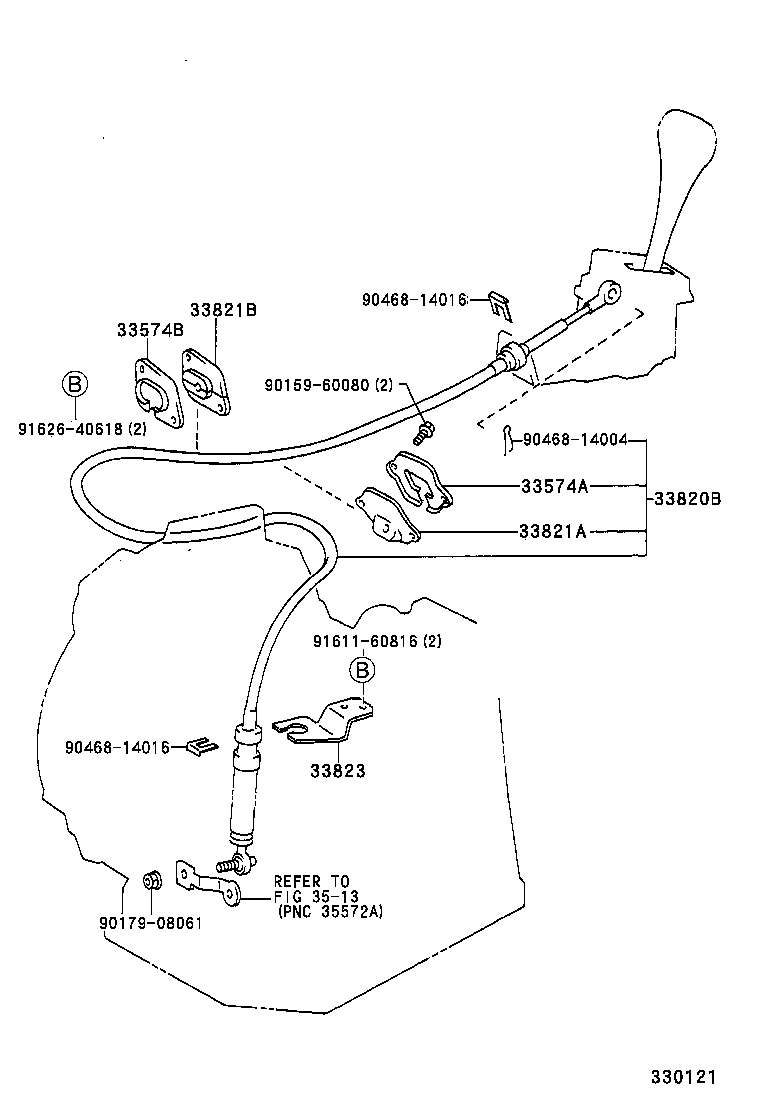

ILLUST NO. 2 OF 2(9409- )4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-10010 |
EL53..4F,4FC,5F |
1 | ||
| 33574B - RETAINER, SHIFT CABLE GROMMET, NO.2 | ||||
| 33574-10030 |
EL53 |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-16181 |
EL53..4FC |
1 | ||
| 33820-16180 |
EL53..4FC |
1 | ||
| 33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01662 |
EL53..4FC |
1 | ||
| 33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01663 |
EL53..ATM |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-16050 |
EL53..4FC |
1 | ||
| Common parts | ||||
| 90159-60080 | ||||
| 90179-08061 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 91611-60816 | ||||
| 91626-40618 | ||||
| Linked diagrams | ||||
| 3513 | ||||

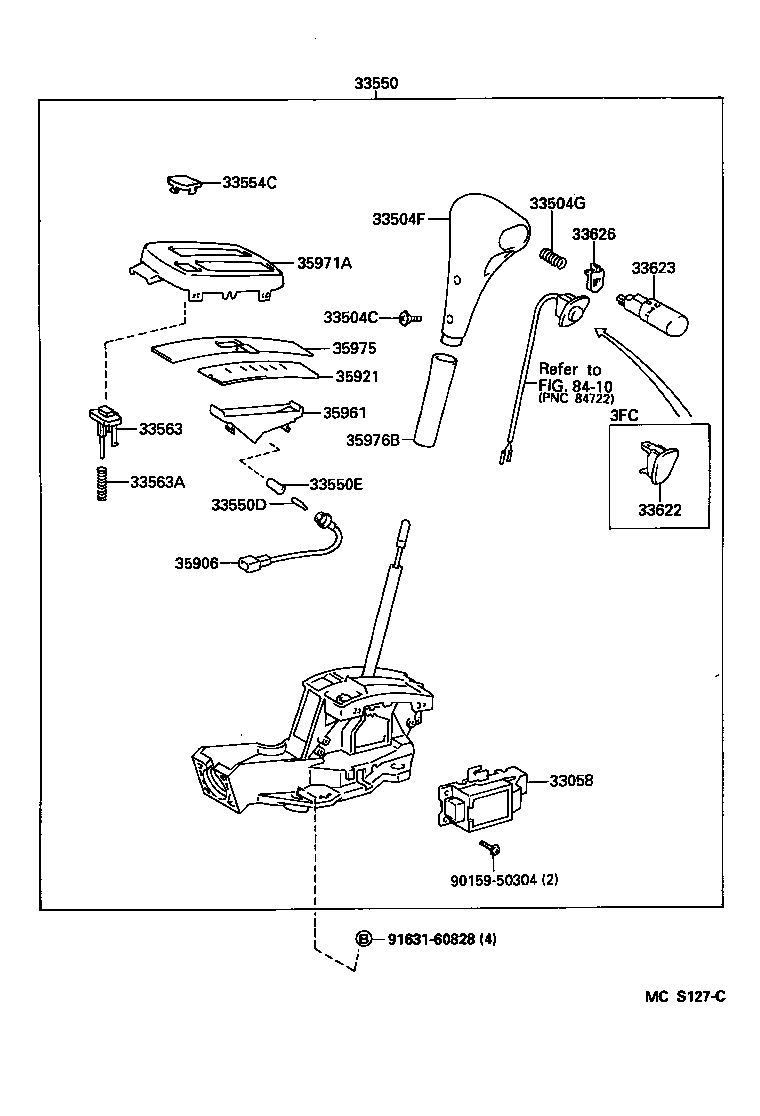

ILLUST NO. 1 OF 2(9409- )ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33058 - BRACKET SUB-ASSY, SHIFT LOCK SOLENOID | ||||
| 33560-16010 |
EL53..ATM |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40221 |
EL53..ATM |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-16060E1 |
EL53..ATM SANDAL WOOD,TRIM4# |
1 | ||
| 33504-14040E0 |
EL53..4F..USA BLACK HAWK,OAK,TRIM4 |
1 | ||
| 33542-16060B1 |
EL53..ATM SHADOW GRAY,TRIM1# |
1 | ||
| 33504-14040B0 |
EL53..4F BLUISH GRAY,TRIM1# |
1 | ||
| 33504-14040P0 |
EL53..4F SHADOW GRAY,TRIM1# |
1 | ||
| 33542-16060B0 |
EL53..ATM BLUISH GRAY,TRIM1# |
1 | ||
| 33542-16060E0 |
EL53..ATM..DX OAK,TRIM4# |
1 | ||
| 33504G - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB) | ||||
| 90501-06082 |
EL53..ATM |
1 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-16380B0 |
EL53..4FC BLUISH GRAY,TRIM1# |
1 | ||
| 33550-16380E0 |
EL53..4FC OAK,TRIM4# |
1 | ||
| 33550-16381B1 |
EL53..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 33550-16381E0 |
EL53..4FC OAK,TRIM4# |
1 | ||
| 33550-16380B1 |
EL53..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 33550-16381E1 |
EL53..4FC SANDAL WOOD,TRIM4# |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11014 |
EL53..ATM 14V 1.4W |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-04041 |
EL53..ATM |
1 | ||
| 33554C - COVER, SHIFT LOCK RELEASE BUTTON | ||||
| 33554-16030 |
EL53..ATM |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-16050 |
EL53..ATM |
1 | ||
| 33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) | ||||
| 90501-08126 |
EL53..ATM |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-16070E0 |
EL53..ATM OAK,TRIM4# |
1 | ||
| 33623-16090B0 |
EL53..ATM SHADOW GRAY,TRIM1# |
1 | ||
| 33623-16070E1 |
EL53..ATM SANDAL WOOD,TRIM4# |
1 | ||
| 33623-16090E0 |
EL53..ATM OAK,TRIM4# |
1 | ||
| 33623-16070B1 |
EL53..ATM SHADOW GRAY,TRIM1# |
1 | ||
| 33623-16070B1 |
EL53..ATM SHADOW GRAY,TRIM1# |
1 | ||
| 33623-16090E1 |
EL53..ATM SANDAL WOOD,TRIM4# |
1 | ||
| 33623-16070B0 |
EL53..ATM BLUISH GRAY,TRIM1# |
1 | ||
| 33626 - STOPPER, SHIFT LEVER BUTTON | ||||
| 33626-16010 |
EL53..ATM |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-16060 |
EL53..ATM |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-16130 |
EL53..ATM |
1 | ||
| 35961 - HOUSING, POSITION INDICATOR LAMP | ||||
| 35961-16010 |
EL53..ATM |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-16110 |
EL53..ATM |
1 | ||
| 35971-16111 |
EL53..ATM |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-16080 |
EL53..ATM |
1 | ||
| 35976B - COVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT) | ||||
| 35976-16030B0 |
EL53..ATM BLUISH GRAY,TRIM1# |
1 | ||
| 35976-16030E0 |
EL53..ATM..DX OAK,TRIM4# |
1 | ||
| 35976-16030B1 |
EL53..ATM SHADOW GRAY,TRIM1# |
1 | ||
| 35976-16030E1 |
EL53..ATM SANDAL WOOD,TRIM4# |
1 | ||
| Common parts | ||||
| 90159-50304 | ||||
| 91631-60828 | ||||
| Linked diagrams | ||||
| 8410 | ||||
