EL53L-AEPRKA (1994)
Toyota Tercel
Production
Sep 1994
-
Jul 1999
Engine
5EFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9409- )

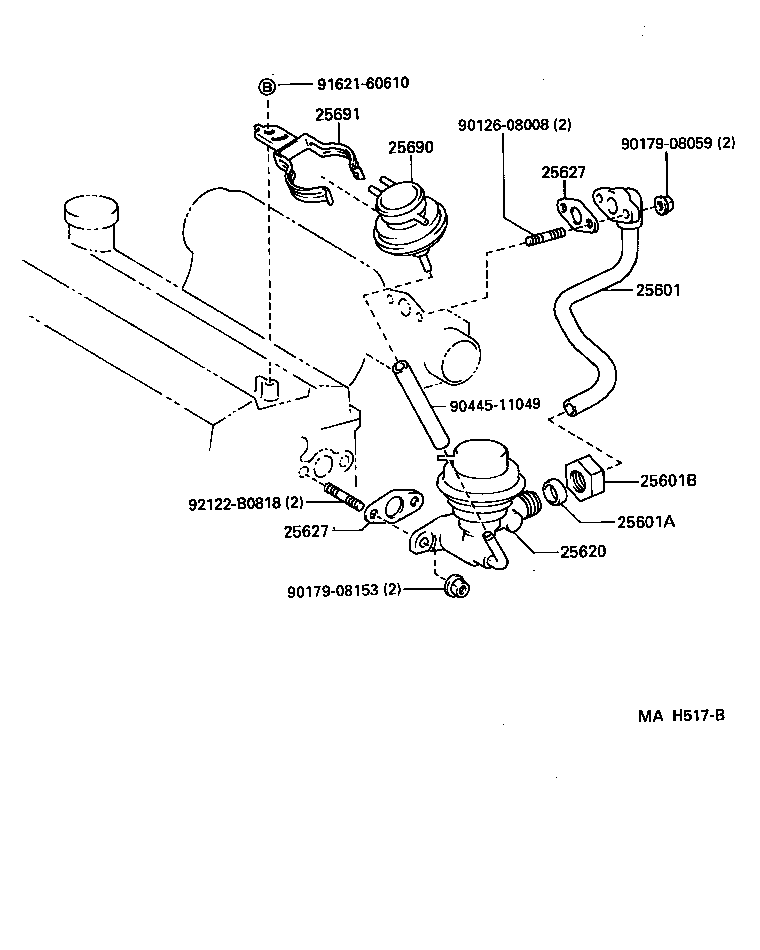

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 25601 - PIPE SUB-ASSY, EGR, NO.1 | ||||
| 25611-11050 |
5EFE..EL53..3FC..STD;5EFE..EL53..4F,4FC,5F |
1 | ||
| 25601A - SLEEVE, BALL, EGR PIPE, NO.1 | ||||
| 90410-14005 |
5EFE..EL53..3FC..STD;5EFE..EL53..4F,4FC,5F |
1 | ||
| 25601B - NUT, UNION, EGR PIPE, NO.1 | ||||
| 90402-22076 |
5EFE..EL53..3FC..STD;5EFE..EL53..4F,4FC,5F |
1 | ||
| 25620 - VALVE ASSY, EGR | ||||
| 25620-11140 |
5EFE..EL53..4FC;5EFE..EL53..3FC..STD |
1 | ||
| 25627 - GASKET, EGR VALVE | ||||
| 25627-11030 |
5EFE..EL53..3FC..STD;5EFE..EL53..4F,4FC,5F |
1 | ||
| 25627 - GASKET, EGR VALVE | ||||
| 25627-11030 |
5EFE..EL53..3FC..STD;5EFE..EL53..4F,4FC,5F |
1 | ||
| 25690 - MODULATOR ASSY, EGR VACUUM | ||||
| 25870-11100 |
5EFE..EL53..4FC;5EFE..EL53..3FC..STD |
1 | ||
| 25691 - BRACKET, EGR VACUUM MODULATOR | ||||
| 25691-11060 |
5EFE..EL53..3FC..STD;5EFE..EL53..4F,4FC,5F |
1 | ||
| Common parts | ||||
| 90126-08008 | ||||
| 90179-08059 | ||||
| 90179-08153 | ||||
| 90445-11049 | ||||
| 91621-60610 | ||||
| 92122-B0818 | ||||
