EL53L-AEPRKA (1994)
Toyota Tercel

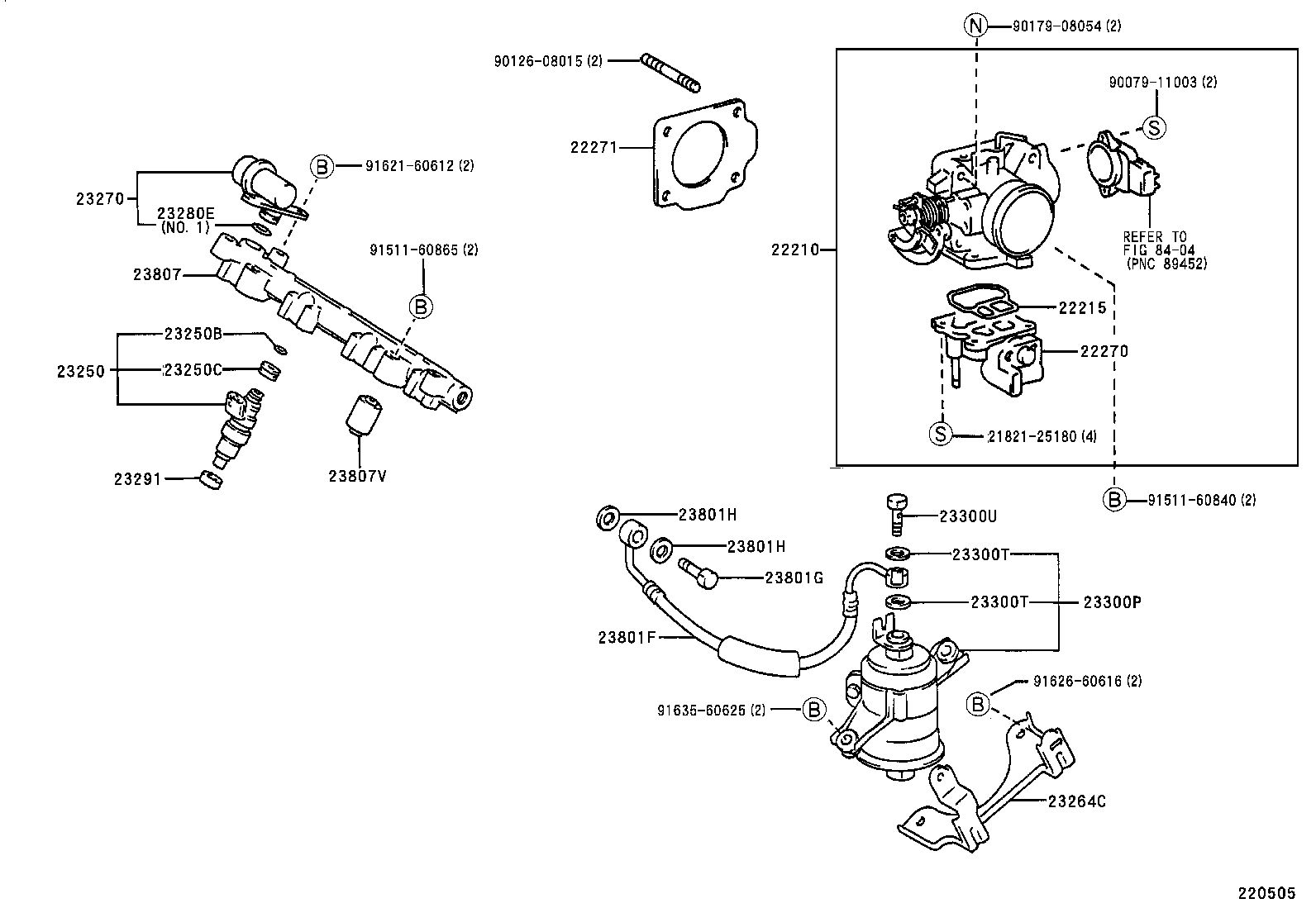

ILLUST NO. 1 OF 2(9409-9712)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-11580 |
5EFE..EL53..ATM |
1 | ||
| 22210-11430 |
5EFE..EL53..ATM |
1 | ||
| 22210-11650 |
5EFE..EL53..ATM |
1 | ||
| 22215 - GASKET, THROTTLE BODY COVER | ||||
| 22215-74400 |
5EFE..EL53 |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-11010 |
5EFE..EL53 |
1 | ||
| 22270-11020 |
5EFE..EL53 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-11030 |
5EFE..EL53 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-11110 |
5EFE..EL53 |
4 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-11110 |
5EFE..EL53 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
5EFE..EL53 |
4 | ||
| 90301-07024 |
5EFE..EL53 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
5EFE..EL53 |
4 | ||
| 90301-07024 |
5EFE..EL53 |
4 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
5EFE..EL53 |
4 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
5EFE..EL53 |
4 | ||
| 23264C - BRACKET, FUEL FILTER | ||||
| 23264-11090 |
5EFE..EL53 |
1 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-11010 |
5EFE..EL53 |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-11090 |
5EFE..EL53 MARUYASU |
1 | ||
| 23280-11080 |
5EFE..EL53 |
1 | ||
| 23280-11090 |
5EFE..EL53 |
1 | ||
| 23280-11100 |
5EFE..EL53 DENSO |
1 | ||
| 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07001 |
5EFE..EL53 NO.1 |
1 | ||
| 90301-08005 |
5EFE..EL53 NO.2 |
1 | ||
| 90301-07024 |
5EFE..EL53 NO.1 |
1 | ||
| 90301-07020 |
5EFE..EL53 NO.2 |
1 | ||
| 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07001 |
5EFE..EL53 NO.1 |
1 | ||
| 90301-08005 |
5EFE..EL53 NO.2 |
1 | ||
| 90301-07024 |
5EFE..EL53 NO.1 |
1 | ||
| 90301-07020 |
5EFE..EL53 NO.2 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
5EFE..EL53 |
4 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
5EFE..EL53 |
4 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-19385 |
5EFE..EL53 |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
5EFE..EL53 |
2 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
5EFE..EL53 |
2 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
5EFE..EL53 |
1 | ||
| 23801F - HOSE, FUEL, NO.1 | ||||
| 23271-11220 |
5EFE..EL53 |
1 | ||
| 23271-11250 |
5EFE..EL53 |
1 | ||
| 23271-11251 |
5EFE..EL53 |
1 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-12029 |
5EFE..EL53 |
1 | ||
| 90401-12033 |
5EFE..EL53 |
1 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12026 |
5EFE..EL53 |
2 | ||
| 23279-74010 |
5EFE..EL53 |
2 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12026 |
5EFE..EL53 |
2 | ||
| 23279-74010 |
5EFE..EL53 |
2 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23814-11070 |
5EFE..EL53 |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23814-11070 |
5EFE..EL53 |
1 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 23891-11020 |
5EFE..EL53 |
2 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 23891-11020 |
5EFE..EL53 |
2 | ||
| Common parts | ||||
| 21821-25180 | ||||
| 90079-11003 | ||||
| 90126-08015 | ||||
| 90179-08054 | ||||
| 91511-60840 | ||||
| 91511-60865 | ||||
| 91621-60612 | ||||
| 91626-60616 | ||||
| 91635-60625 | ||||
| 91645-80616 | ||||
| Linked diagrams | ||||
| 8404 | ||||
ILLUST NO. 2 OF 2(9409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-74030 |
5EFE..EL53 |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23221-11050 |
5EFE..EL53 |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
5EFE..EL53 |
1 | ||
| 23239 - HOSE | ||||
| 23239-11010 |
5EFE..EL53 |
1 | ||
| 23239-74010 |
5EFE..EL53 |
1 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74610 |
5EFE..EL53 |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-11090 |
5EFE..EL53 MARUYASU |
1 | ||
| 23280-11080 |
5EFE..EL53 |
1 | ||
| 23280-11090 |
5EFE..EL53 |
1 | ||
| 23280-11100 |
5EFE..EL53 DENSO |
1 | ||
| 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07001 |
5EFE..EL53 NO.1 |
1 | ||
| 90301-08005 |
5EFE..EL53 NO.2 |
1 | ||
| 90301-07024 |
5EFE..EL53 NO.1 |
1 | ||
| 90301-07020 |
5EFE..EL53 NO.2 |
1 | ||
| 23300Z - FILTER, FUEL(FOR FUEL TANK) | ||||
| 23300-20050 |
5EFE..EL53 |
1 | ||
| 23491 - CLAMP, FUEL FILTER EARTH | ||||
| 23491-74010 |
5EFE..EL53 |
1 | ||
| Common parts | ||||
| 90301-06011 | ||||
| 90467-12067 | ||||
| 93315-14012 | ||||
| 93319-14008 | ||||
ILLUST NO. 1 OF 2(9712- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-11580 |
5EFE..EL53..ATM |
1 | ||
| 22210-11430 |
5EFE..EL53..ATM |
1 | ||
| 22210-11650 |
5EFE..EL53..ATM |
1 | ||
| 22215 - GASKET, THROTTLE BODY COVER | ||||
| 22215-74400 |
5EFE..EL53 |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-11010 |
5EFE..EL53 |
1 | ||
| 22270-11020 |
5EFE..EL53 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-11030 |
5EFE..EL53 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-11110 |
5EFE..EL53 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
5EFE..EL53 |
4 | ||
| 90301-07024 |
5EFE..EL53 |
4 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
5EFE..EL53 |
4 | ||
| 23264C - BRACKET, FUEL FILTER | ||||
| 23264-11090 |
5EFE..EL53 |
1 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-11010 |
5EFE..EL53 |
1 | ||
| 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07001 |
5EFE..EL53 NO.1 |
1 | ||
| 90301-08005 |
5EFE..EL53 NO.2 |
1 | ||
| 90301-07024 |
5EFE..EL53 NO.1 |
1 | ||
| 90301-07020 |
5EFE..EL53 NO.2 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
5EFE..EL53 |
4 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-19385 |
5EFE..EL53 |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
5EFE..EL53 |
2 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
5EFE..EL53 |
2 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
5EFE..EL53 |
1 | ||
| 23801F - HOSE, FUEL, NO.1 | ||||
| 23271-11220 |
5EFE..EL53 |
1 | ||
| 23271-11250 |
5EFE..EL53 |
1 | ||
| 23271-11251 |
5EFE..EL53 |
1 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-12029 |
5EFE..EL53 |
1 | ||
| 90401-12033 |
5EFE..EL53 |
1 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12026 |
5EFE..EL53 |
2 | ||
| 23279-74010 |
5EFE..EL53 |
2 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12026 |
5EFE..EL53 |
2 | ||
| 23279-74010 |
5EFE..EL53 |
2 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23814-11070 |
5EFE..EL53 |
1 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 23891-11020 |
5EFE..EL53 |
2 | ||
| Common parts | ||||
| 21821-25180 | ||||
| 90079-11003 | ||||
| 90126-08015 | ||||
| 90179-08054 | ||||
| 91511-60840 | ||||
| 91511-60865 | ||||
| 91621-60612 | ||||
| 91626-60616 | ||||
| 91635-60625 | ||||
| Linked diagrams | ||||
| 8404 | ||||
