EL53L-AEPRKA (1994)

Toyota Tercel

Production Sep 1994 - Jul 1999
Engine 5EFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9409- )

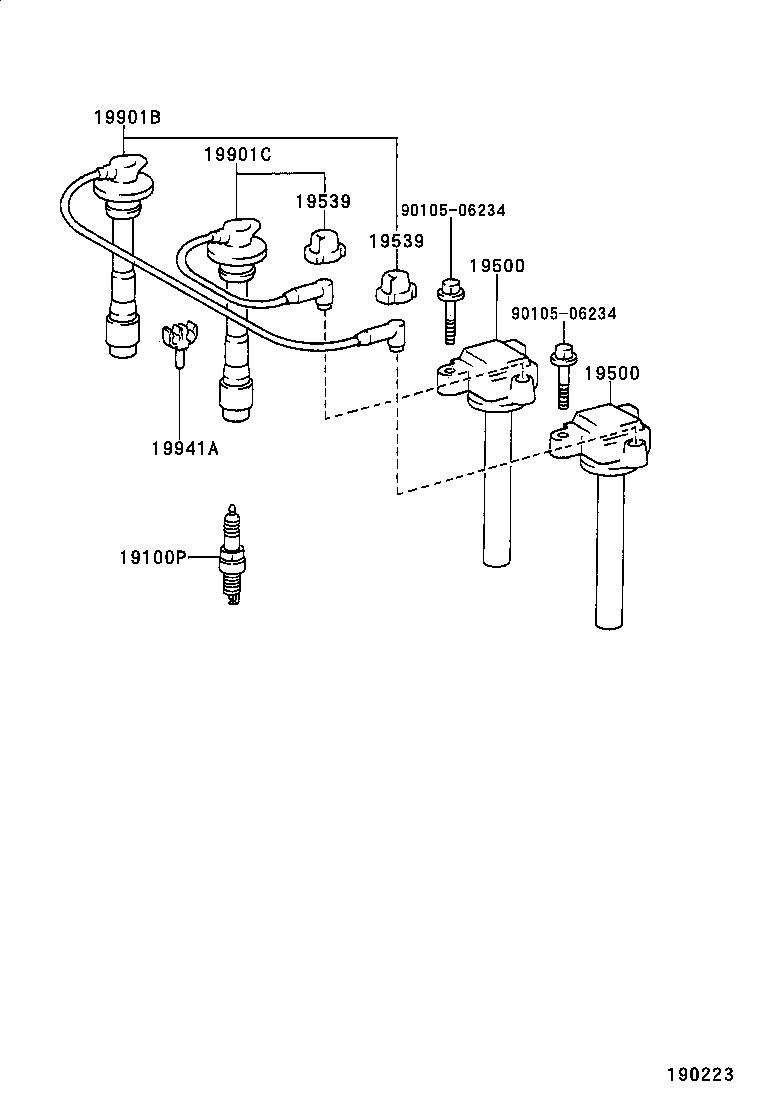

Click highlighted areas on diagram

diagram 19100P 19500 19500 19539 19539 19901B 19901C 19941A 9010506234 9010506234
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01192

5EFE..EL53

K16TR11

 4
19500 - COIL ASSY, IGNITION
90919-02213

5EFE..EL53

 2
19500 - COIL ASSY, IGNITION
90919-02213

5EFE..EL53

 2
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-11030

5EFE..EL53

 2
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-11030

5EFE..EL53

 2
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-15428

5EFE..EL53

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-15429

5EFE..EL53

 1
19941A - CLAMP(FOR RESISTIVE CORD)
90469-05006

5EFE..EL53

 2
90469-05006

5EFE..EL53

 1
Common parts
90105-06234
