EL53L-AEPRKA (1994)
Toyota Tercel
Production
Sep 1994
-
Jul 1999
Engine
5EFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9409- )

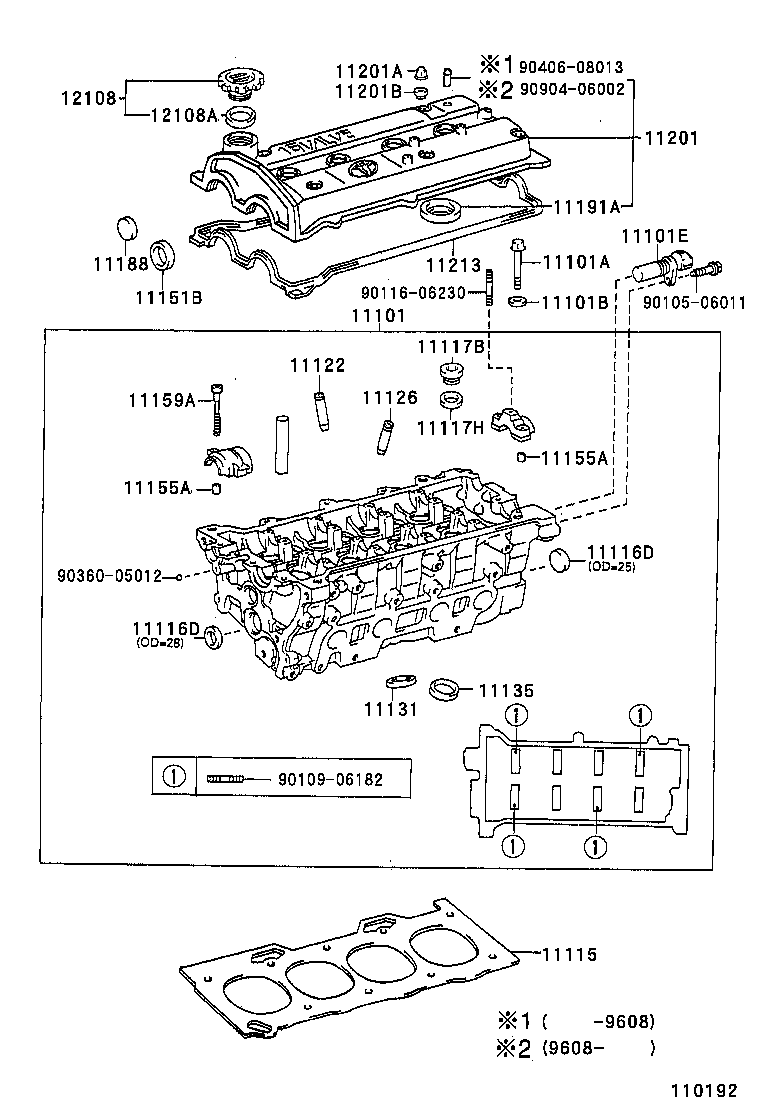

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-19446 |
5EFE..EL53 |
1 | ||
| 11101-19445 |
5EFE..EL53 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02100 |
5EFE..EL53 INTAKE SIDE |
5 | ||
| 90910-02101 |
5EFE..EL53 EXHAUST SIDE |
5 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-09024 |
5EFE..EL53 |
10 | ||
| 11101E - SENSOR, CAM POSITION | ||||
| 90919-05019 |
5EFE..EL53 |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-11090 |
5EFE..EL53 |
1 | ||
| 11116D - PLUG, TIGHT, NO.4 | ||||
| 96411-42500 |
5EFE..EL53 OD=25 |
1 | ||
| 96411-42800 |
5EFE..EL53 OD=28 |
2 | ||
| 11116D - PLUG, TIGHT, NO.4 | ||||
| 96411-42500 |
5EFE..EL53 OD=25 |
1 | ||
| 96411-42800 |
5EFE..EL53 OD=28 |
2 | ||
| 11117B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90341-20002 |
5EFE..EL53 |
3 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-20004 |
5EFE..EL53 |
3 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-15030 |
5EFE..EL53 STD |
8 | ||
| 11123-15030 |
5EFE..EL53 O/S 0.05 |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-10040 |
5EFE..EL53 STD |
8 | ||
| 11123-10040 |
5EFE..EL53 O/S 0.05 |
8 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11132-11020 |
5EFE..EL53 O/S 0.03 |
8 | ||
| 11131-11020 |
5EFE..EL53 STD |
8 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-11020 |
5EFE..EL53 STD |
8 | ||
| 11136-11020 |
5EFE..EL53 O/S 0.03 |
8 | ||
| 11151B - SEAL, OIL(FOR CAMSHAFT SETTING) | ||||
| 90311-35013 |
5EFE..EL53 |
1 | ||
| 90311-35035 |
5EFE..EL53 |
1 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-08003 |
5EFE..EL53 |
4 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-08003 |
5EFE..EL53 |
4 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90109-06080 |
5EFE..EL53 |
16 | ||
| 11188 - PLUG, CAMSHAFT HOUSING | ||||
| 11188-11010 |
5EFE..EL53 |
1 | ||
| 11191A - GASKET(FOR SPARK PLUG TUBE) | ||||
| 11193-15010 |
5EFE..EL53 |
4 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-11071 |
5EFE..EL53 |
1 | ||
| 11201-11070 |
5EFE..EL53 |
1 | ||
| 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) | ||||
| 90176-06028 |
5EFE..EL53 |
5 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-06008 |
5EFE..EL53 |
5 | ||
| 90210-06013 |
5EFE..EL53 |
5 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-11060 |
5EFE..EL53 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-22010 |
5EFE..EL53 |
1 | ||
| 12180-75021 |
5EFE..EL53 |
1 | ||
| 12180-15011 |
5EFE..EL53 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
5EFE..EL53 |
1 | ||
| Common parts | ||||
| 90105-06011 | ||||
| 90109-06182 | ||||
| 90116-06230 | ||||
| 90360-05012 | ||||
| 90406-08013 | ||||
| 90904-06002 | ||||
